Imperial (Middleby) IABF-24 Steakhouse Gas Charbroilers

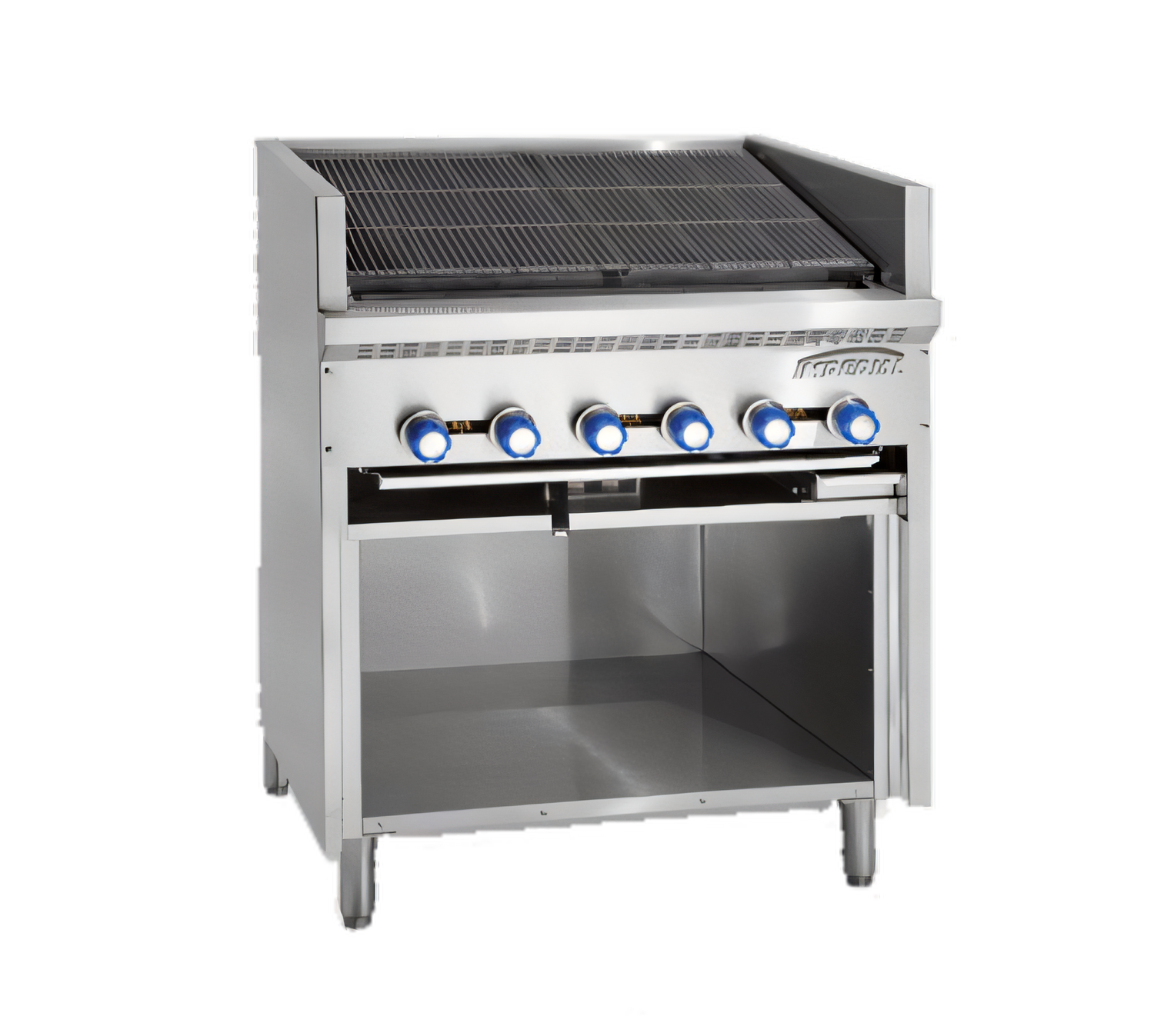

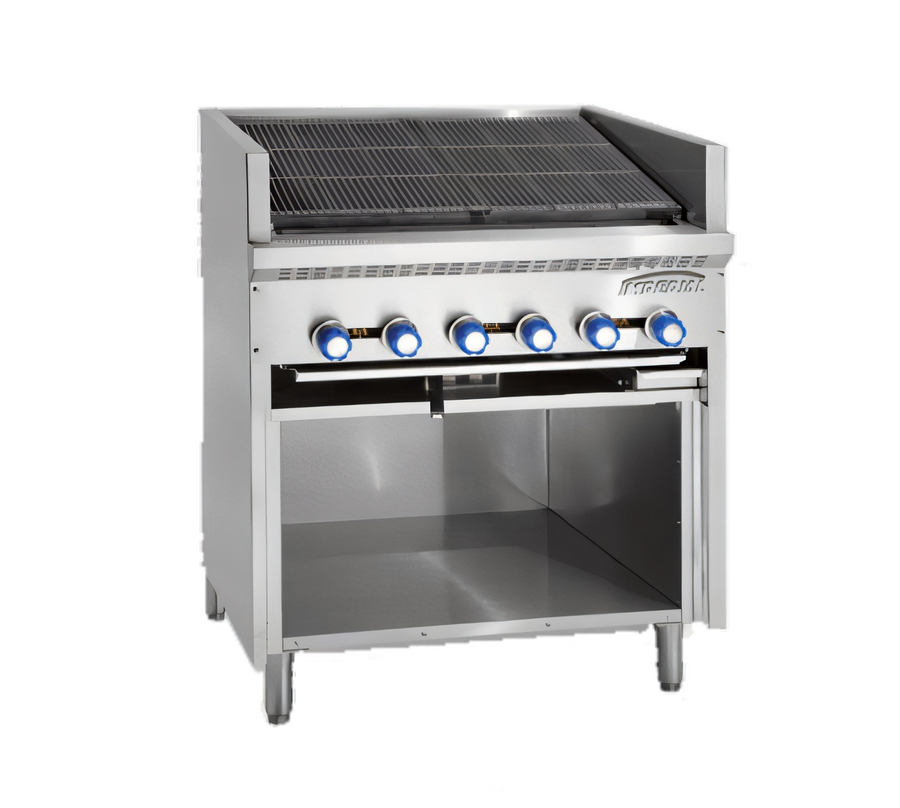

Imperial Steakhouse™ 24" Gas Radiant Charbroiler – Floor Model

Deliver steakhouse results in a compact 24-inch footprint. The Imperial Steakhouse™ floor model charbroiler couples four individually-controlled stainless-steel burners with heavy-duty cast-iron radiants and top grates, giving your kitchen the fire-power and control it needs for perfect grill marks, juicy centers, and lightning-fast ticket times.

Key Advantages

• 80,000 BTU total output – four 20,000 BTU/hr. burners spaced every 6" for even heat.

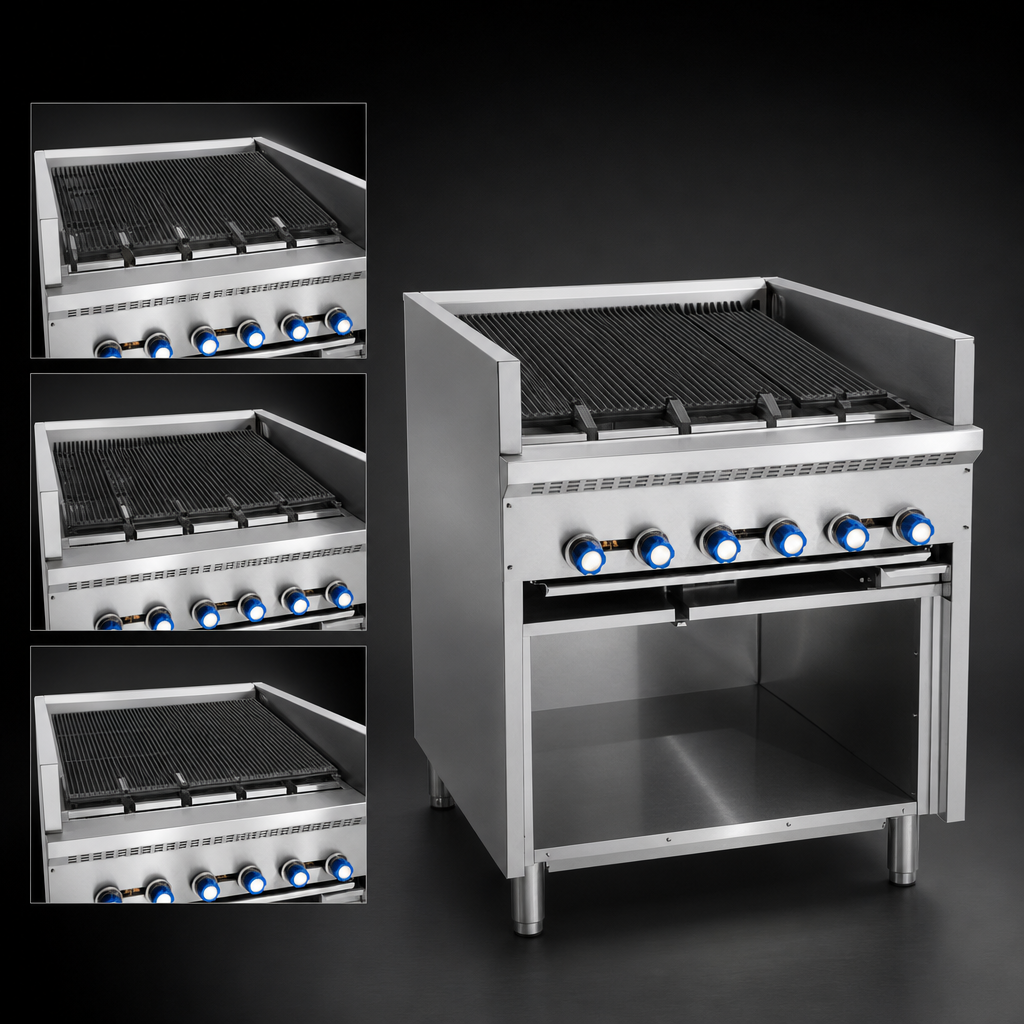

• Three-position, slanted cast-iron grates create three distinct heat zones for rare-to-well doneness in one cook run.
• Cast-iron radiants retain heat, resist clogging, and intensify surface temperatures for signature char marks.
• Full-width front grease gutter plus a 3" removable grease can keep the line clean and reduce flare-ups.
• All stainless-steel exterior—including front, sides, landing ledge, and open cabinet base—for a professional look and easy wipe-down.
• Control knobs are cast aluminum with Valox™ heat-shield grips for cool, confident adjustments.
• Fully insulated cooktop conserves energy and keeps surrounding equipment cooler.
• Ships on sturdy 6" adjustable legs for code-compliant, non-combustible floor installations.

Performance & Control

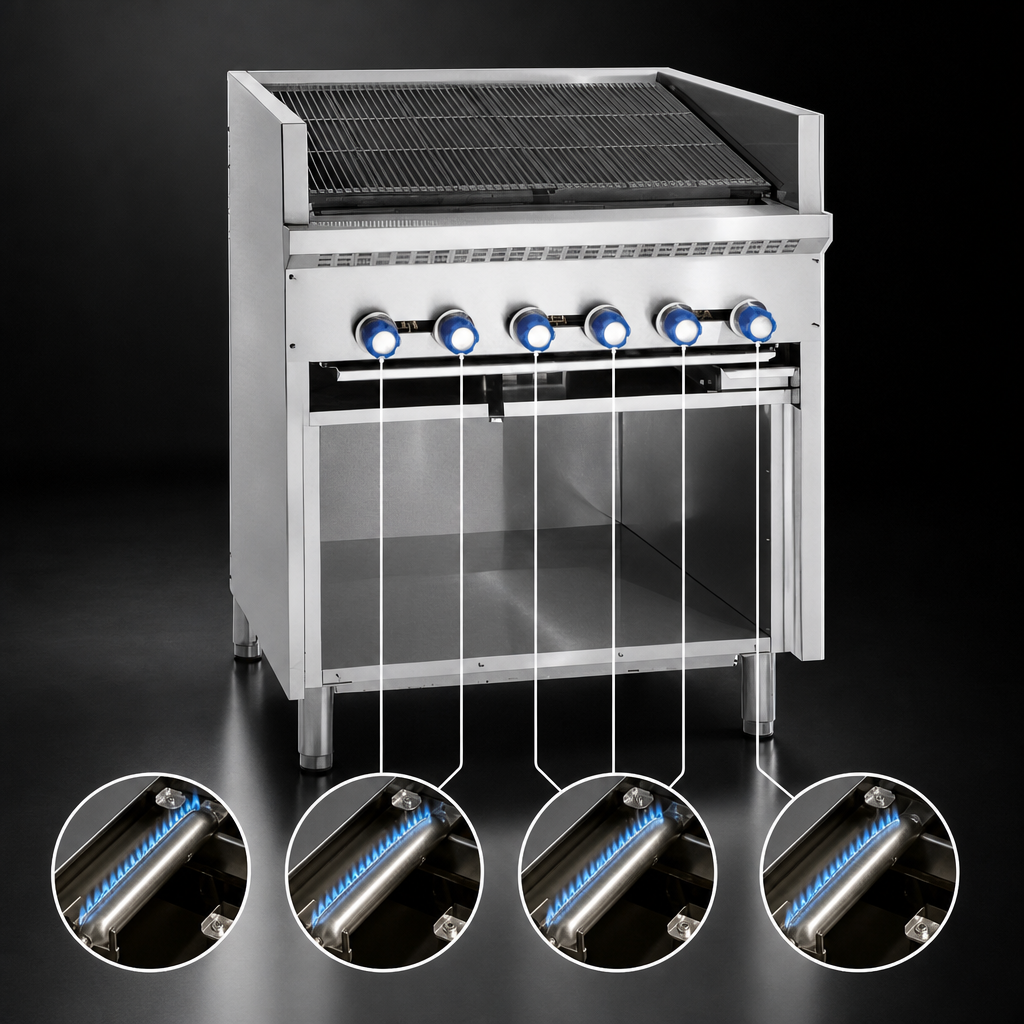

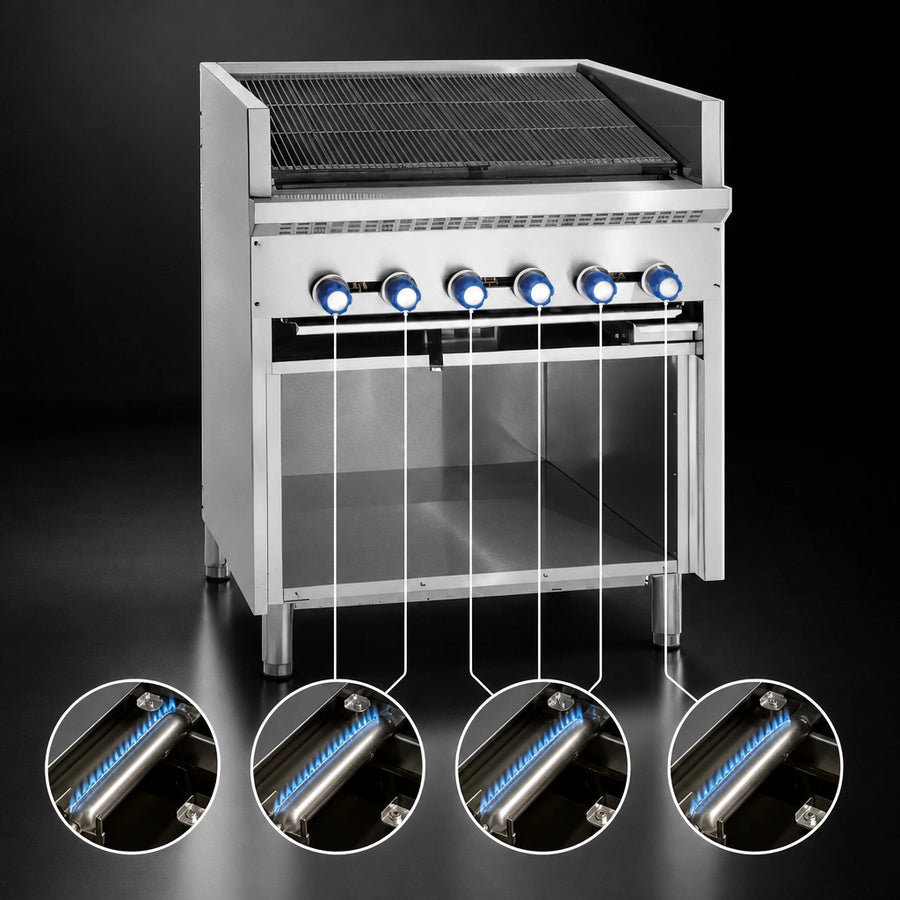

• Independently-controlled burners let you shut down zones during slow periods to save fuel.
• Slanted grate design + cast-in grease troughs channel excess fat forward, minimizing flare-ups and protecting product quality.
• No-tool removal of grates, radiants, and burners simplifies end-of-shift cleaning.

Options & Accessories (sold separately)

• Fin-style, ½" round-rod, or reversible dual grates for specialty menus
• Stainless-steel radiants for faster heat-up and reduced flare-ups
• Stainless-steel front shelf, gas shut-off valve, quick-disconnect hose, and 6" locking casters

Specifications

Clearance: 0" from non-combustible surfaces, 8" (203 mm) from combustible. Legs or casters required on all installations unless curb mounted with 2" (51 mm) overhang.
