Ice-O-Matic UCG100A Ice Machines
Description

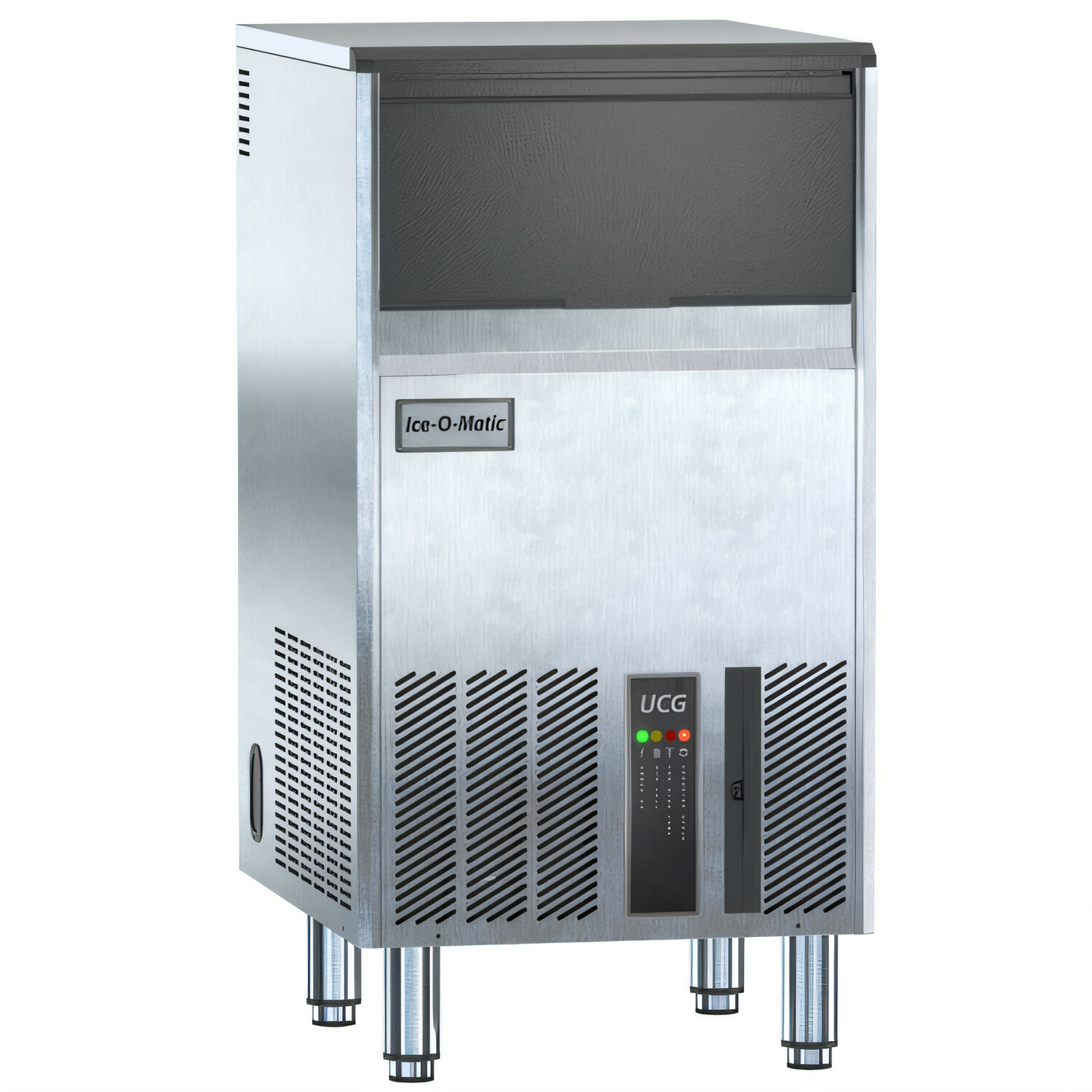

Ice-O-Matic UCG100A Gourmet Undercounter Ice Maker
Compact, air-cooled cube machine – 114 lb/day productionDesigned for premium bars, restaurants and executive suites, the Ice-O-Matic UCG100A delivers crystal-clear, slow-melting gourmet cubes from an 18-inch-wide footprint that disappears beneath the counter. Quiet, efficient and built to last in stainless steel and fingerprint-proof plastic, it turns any tight space into a high-capacity ice station.
Why You’ll Love It

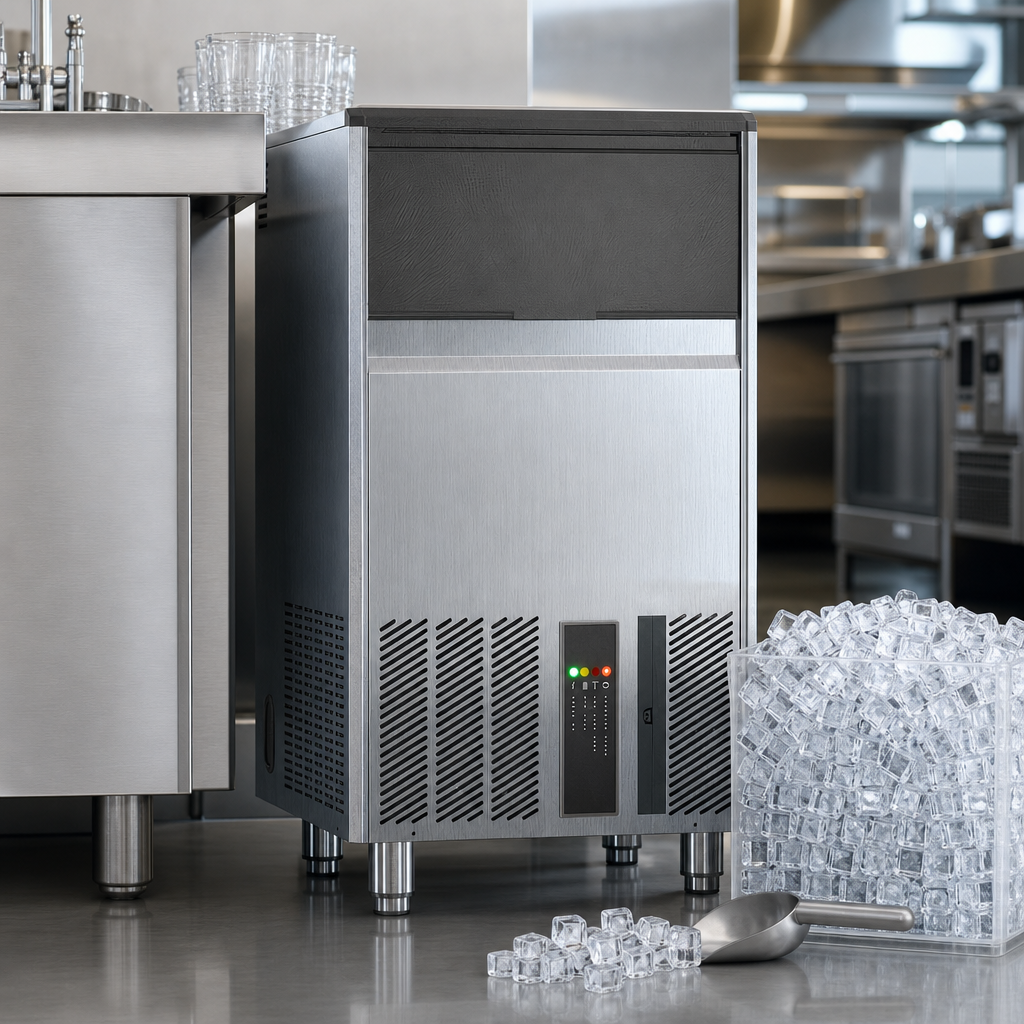

- Produces up to 114 lb (52 kg) of gourmet cubes every 24 hours.*

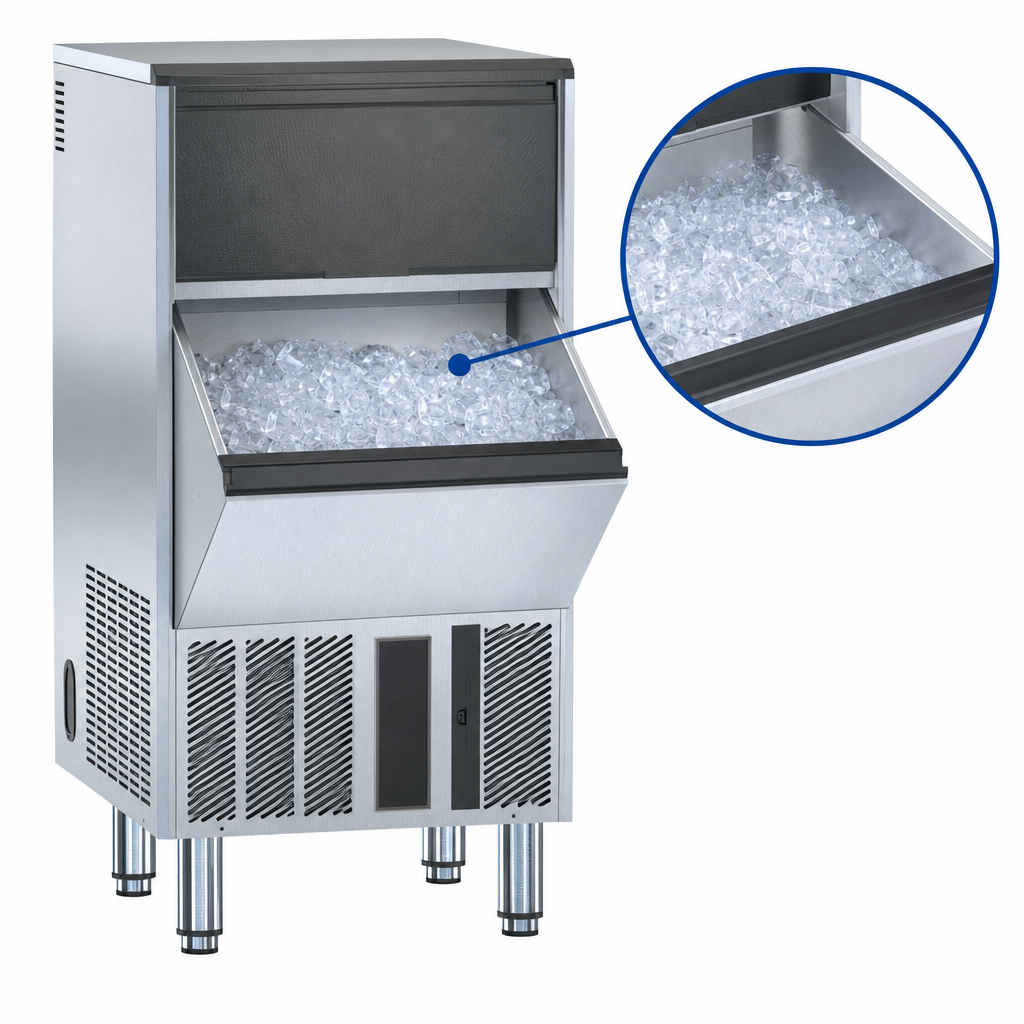

- Integrated bin stores 48.5 lb (22 kg) for uninterrupted service.
- Front-air discharge & low-profile top fit flush under ADA-compliant counters.
- Clear, 1.2 in × 1.35 in cubes resist dilution and showcase premium spirits.
- Durable stainless-steel cabinet with easy-clean, fingerprint-proof front.
- Adjustable 5 – 6 ¾ in legs; optional 2 ⅛ – 2 ½ in “short leg” kit (Part # 1011411-87).
- Environmentally friendly R290A hydrocarbon refrigerant.
- Removable front air filter for tool-free routine maintenance.
- Ships with 6 ft cord & NEMA 5-15P plug; cETLus & ETL-Sanitation listed.
- Backed by an industry-leading 3-year parts & labor warranty.
The Gourmet Difference
Solid, individually formed and virtually transparent, Ice-O-Matic gourmet cubes melt slower than flake or nugget styles—perfect for high-end cocktails, whiskey pours and table-side water service where appearance and flavor preservation matter.
Performance & Utility
- Water use: only 1.27 gal per hour of ice production.
- Energy use: 9.9 kWh per 100 lb of ice (70 °F air / 50 °F water).
- Electrical: 115 V / 60 Hz / 1 ph • 5.6 A max draw.
- Operates in 50 °F – 109 °F ambient & 41 °F – 100 °F water temperatures.
- 14 – 70 psi recommended incoming water pressure.
Technical Specifications
| Model | UCG100A |
|---|---|
| Ice Type | Gourmet cube (individual, solid) |
| Cube Dimensions | 1.2 in H × 1.35 in Ø (30.5 mm × 34.3 mm) |
| 24-Hr Production* | 114 lb @ 70 °F air / 50 °F water 91.7 lb @ 90 °F air / 70 °F water |
| Storage Capacity | 48.5 lb (built-in bin) |
| Condenser | Air-cooled, self-contained (front discharge) |
| Refrigerant | R290A (hydrocarbon) |
| Exterior | Stainless steel & fingerprint-proof ABS front |
| Dimensions (W × D × H) | 18 ¼ in × 22 ¼ in × 33 ⅛ in min (464 mm × 565 mm × 842 mm) |
| Leg Adjustment | 5 in – 6 ¾ in (standard) • 2 ⅛ in – 2 ½ in (short option) |
| Shipping Weight | 97 lb (44 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 3 yr parts & labor (commercial) |
Optional Water Filtration
Extend machine life and ice clarity with Ice-O-Matic’s IFQ1-S manifold & IOMQ-S replacement cartridge, or choose the inline IF14C / IF18C filters for single-line installs.
*Ice production ratings are based on 70 °F air / 50 °F water per AHRI standards. Actual results will vary with ambient, water temperature and installation conditions.
