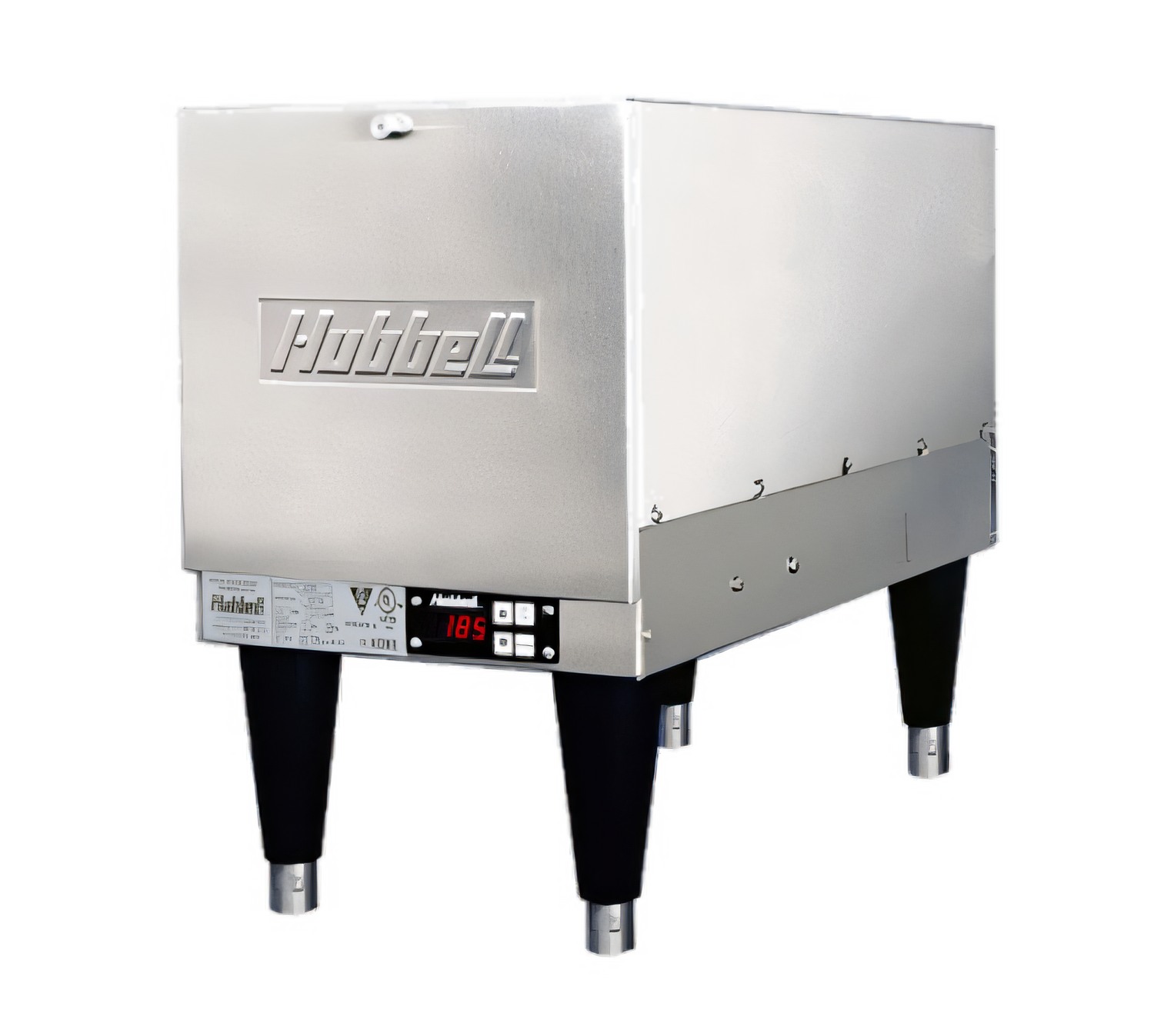

Hubbell Water Heaters J612 Electric Storage Booster Heater, 6-Gallon, 12 kW, Stainless Steel, Floor Model
$2,785.13
/each
Ships in 11–14 business days
Free Shipping
- Dimensions
- 13.0"W × 25.0"D × 19.75"H
- Product type
- Booster heater
- Heating type
- Electric
- Power rating
- 12.0 kW
- Storage capacity
- 6 gallons
- Tank material
- Stainless steel
Specifications
Product type
Booster heater
Heating type
Electric
Power rating
12.0 kW
Storage capacity
6 gallons
Tank material
Stainless steel
Tank standard
ASME stamped
Insulation
CFC/HCFC-free closed-cell foam
Controller
Electronic display controller
Low water cut-off
Included
Leak detection
Included
Exterior material
Stainless steel
Pressure reducing valve
With bypass
Temperature and pressure gauge
T&P gauge
Temperature and pressure relief valve
T&P relief valve
Legs
Adjustable plastic
Description
The Hubbell Water Heaters J612 is an electric booster heater with 6-gallon storage capacity and a 12.0 kW heating rating.
- Stainless steel tank: ASME stamped with CFC/HCFC-free closed-cell foam insulation.
- Electronic control: Display controller with low water cut-off and leak detection.
- Stainless steel exterior: Built with a stainless steel exterior.
- Included components: Pressure reducing valve with bypass, T&P gauge, T&P relief valve and adjustable plastic legs.
Overall Dimensions:
13.0"W x 25.0"D x 19.75"HProduct Weight:
95.0 lbElectric heating
Provides a 12.0 kW electric heating rating.
6-gallon storage
Includes 6-gallon storage capacity.

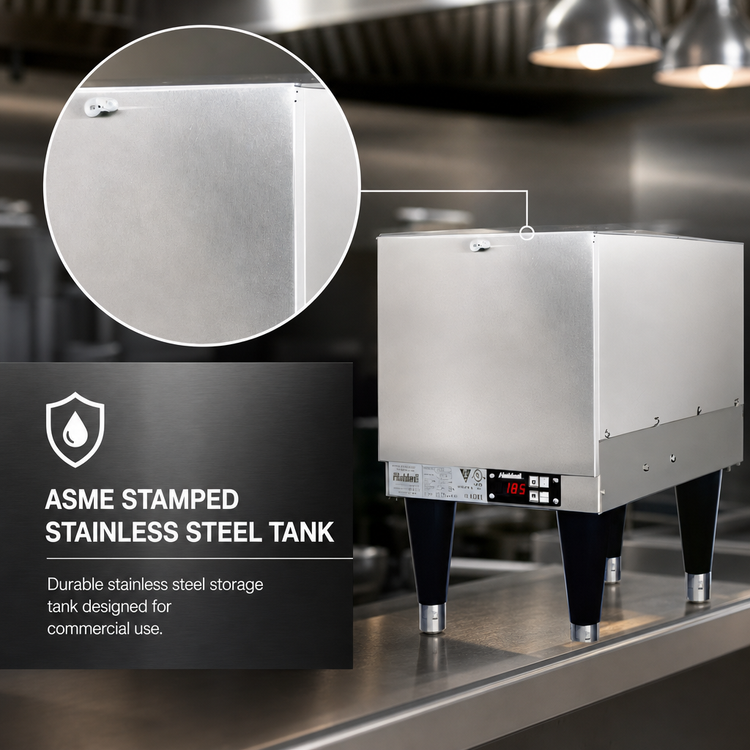

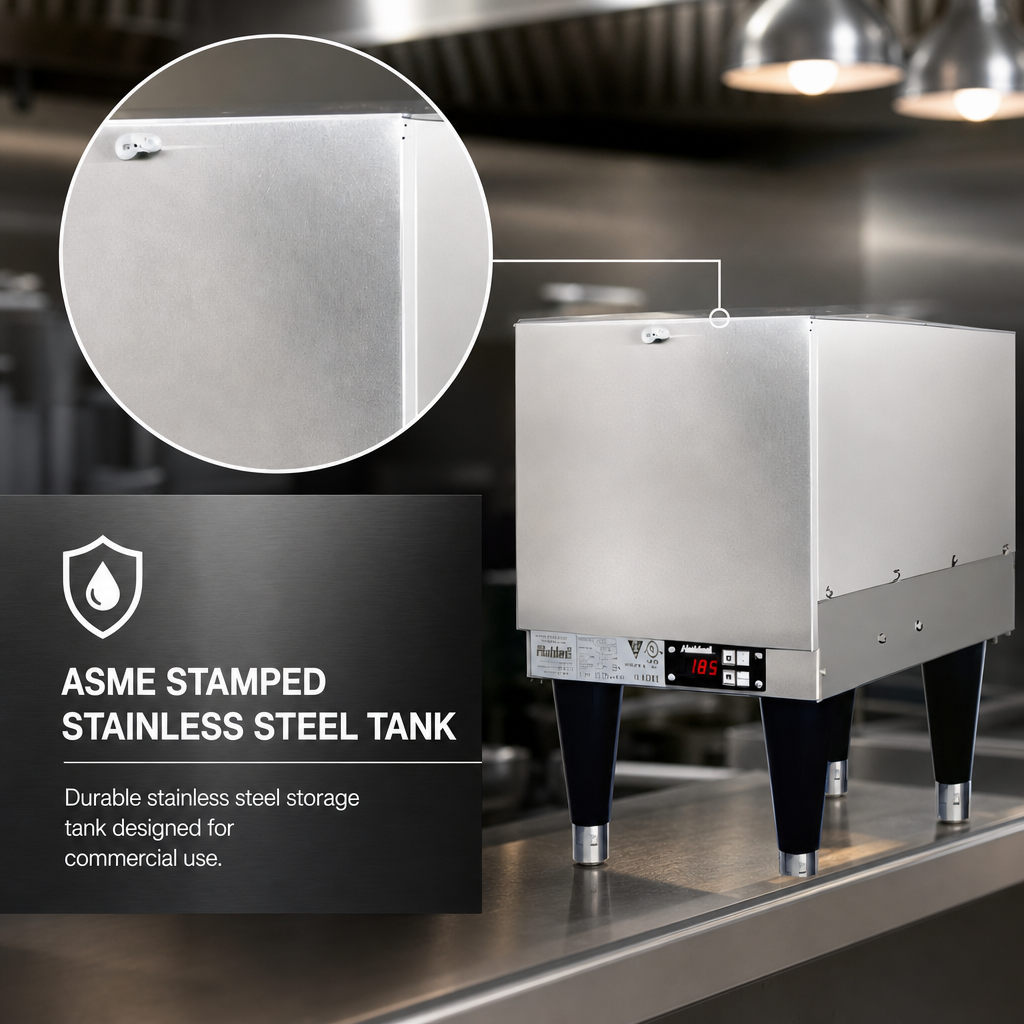

Stainless steel tank
Features an ASME stamped stainless steel tank.
Foam insulation
Uses CFC/HCFC-free closed-cell foam insulation.
Electronic display controller
Includes low water cut-off and leak detection.
Stainless steel exterior
Built with a stainless steel exterior.
Pressure reducing valve
Includes a pressure reducing valve with bypass.
Temperature and pressure protection
Includes a T&P gauge and T&P relief valve.
Adjustable plastic legs
Includes adjustable plastic legs.
Documentation
Certifications & Compliance
Frequently Asked Questions
The J612 has a 6-gallon storage capacity.
The J612 has a 12.0 kW electric heating rating.
It uses an ASME stamped stainless steel tank with CFC/HCFC-free closed-cell foam insulation.
The J612 includes an electronic display controller with low water cut-off and leak detection.
The product dimensions are 13.0 inches wide, 25.0 inches deep and 19.75 inches high.
The tank and components have a one-year parts and labor warranty. The tank has a 10-year non-pro-rated warranty.
