Hobart HL120-1 Food Machines - Mixers Planetary Mixers
Description

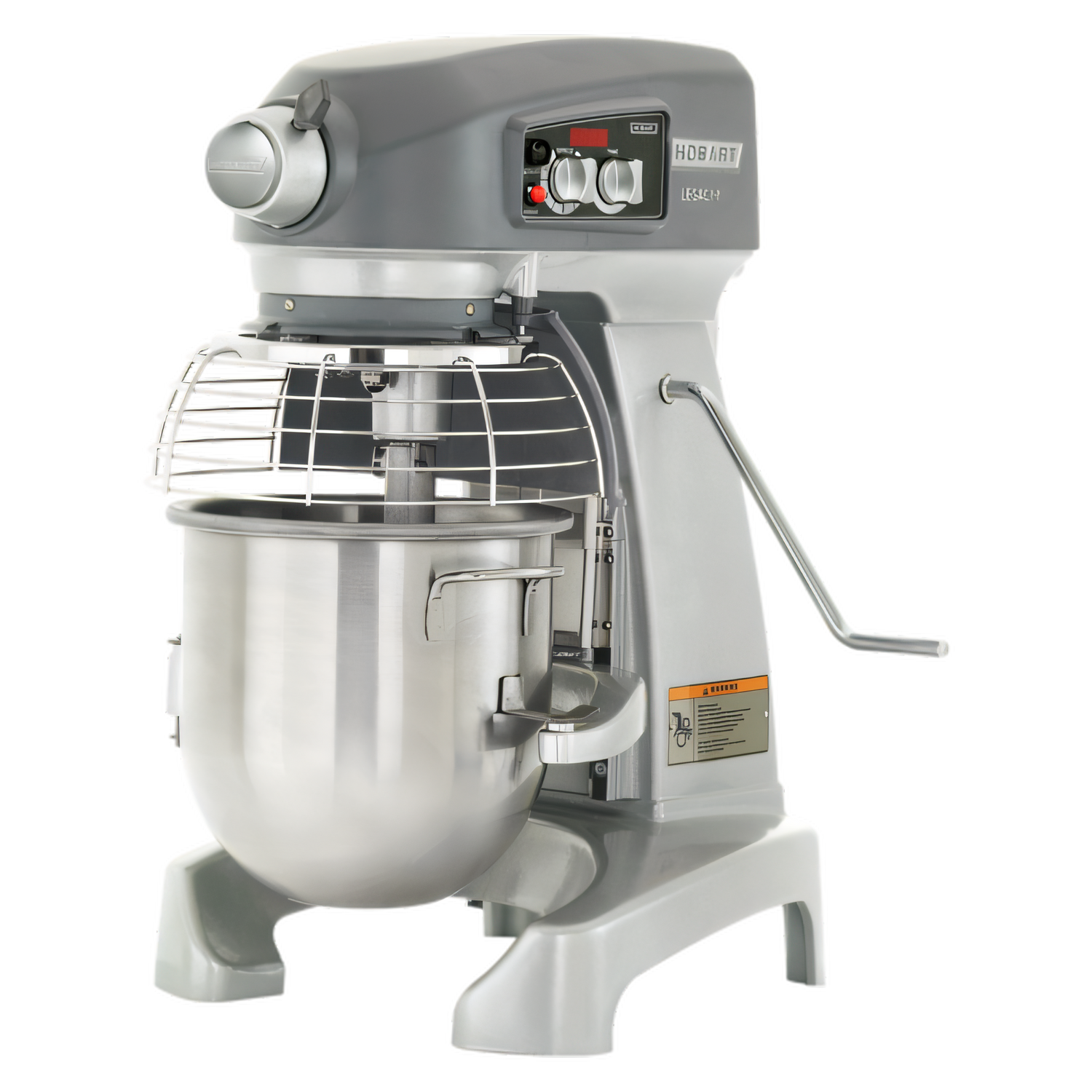

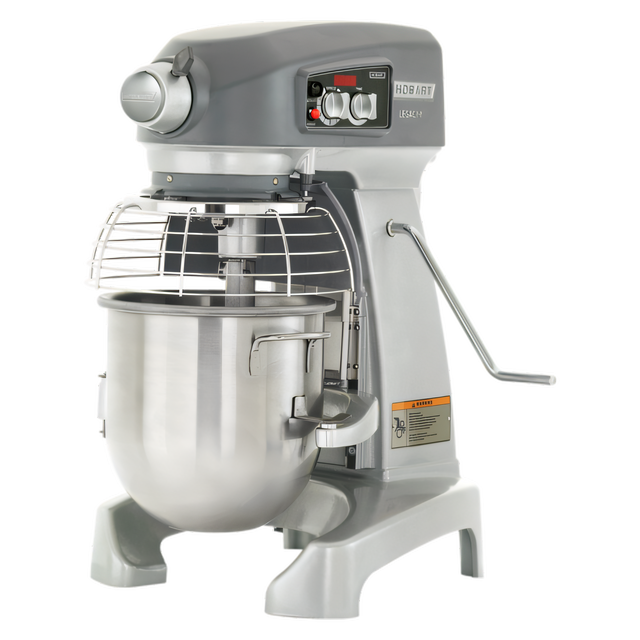

Hobart Legacy+ HL120 12-Qt Bench Planetary Mixer
Base unit • 100-120 V / 50-60 Hz / 1-phase • No bowl or agitators includedBuilt to power through everything from airy meringues to dense artisan dough, the Hobart HL120 Legacy+ mixer delivers maximum heavy-duty performance in a compact 12-quart footprint. Its PLUS System combines a ½ HP gear-driven motor with smart electronic controls to give you consistent, repeatable results—batch after batch.
Key Features
- PLUS System with VFDadvantage variable-frequency drive for consistent torque and bowl-to-agitator ratio.
- Heavy-duty ½ HP motor & all-gear transmission—no belts to slip or replace.
- Three fixed speeds plus dedicated stir speed with Shift-on-the-Fly™ speed changes.
- 15-minute SmartTimer™ remembers the last time set for each speed, boosting productivity.
- Soft-Start agitation reduces ingredient splash-out.
- Triple-interlock MagnaLock bowl-guard system for operator safety.
- Ergonomic swing-out bowl mount and manual bowl lift for fast loading and unloading.
- Front-mounted #12 taper hub—power optional slicers, grinders, stuffers and more.
- Durable metallic-gray hybrid powder-coat finish with dishwasher-safe stainless steel bowl guard.
- Cord & NEMA 5-15P plug included; UL & NSF listed.
Specifications
| Model | HL120-UNIT (bench) |
|---|---|
| Capacity (liquid) | 12 qt / 11.4 L |
| Motor | ½ HP high-torque, totally-enclosed fan-cooled |
| Speeds (Agitator RPM) | Stir 59 | 1st 107 | 2nd 198 | 3rd 365 |
| Electrical | 100–120 V / 50-60 Hz / 1 Ph - 8 A (NEMA 5-15P cord & plug) |
| Transmission | All-gear, direct drive with VFDadvantage |
| Bowl Lift | Manual, self-locking top & bottom positions |
| Attachment Hub | #12 taper (front-mounted) |
| Finish | Metallic gray hybrid powder coat |
| Dimensions (W×D×H) | 16.5″ × 23.4″ × 29.0″ (419 × 596 × 737 mm) |
| Net / Ship Weight | 187 lb / 202 lb (85 kg / 92 kg) |
| Warranty | 1-year parts, labor & mileage |
Recommended Batch Capacities
- Whipped cream – 2.5 qt
- Cake batter – 12 lb
- Mashed potatoes – 10 lb
- Bread / roll dough (60 % AR) – 13 lb
- Whole-wheat dough (70 % AR) – 11 lb
- Thin-crust pizza dough (40 % AR, max 5 min) – 5 lb
Capacities based on 70 °F water & 12 % flour moisture. Reduce by 10 % when using high-gluten flour.
Popular Accessories (sold separately)
- 12-qt stainless steel bowl (BOWL-HL12)
- “B” flat beater – general purpose
- “D” wire whip – light aeration
- “ED” dough hook – yeast doughs & pizza
- Bowl scraper, ingredient chute, splash cover
- VS9 9″ vegetable slicer or 12TIN meat chopper for the #12 hub
Choose the Hobart HL120 Legacy+ mixer for unmatched durability, precision and throughput in bakeries, restaurants, test kitchens and culinary labs where a 20-qt floor mixer is too large but performance can’t be compromised.
