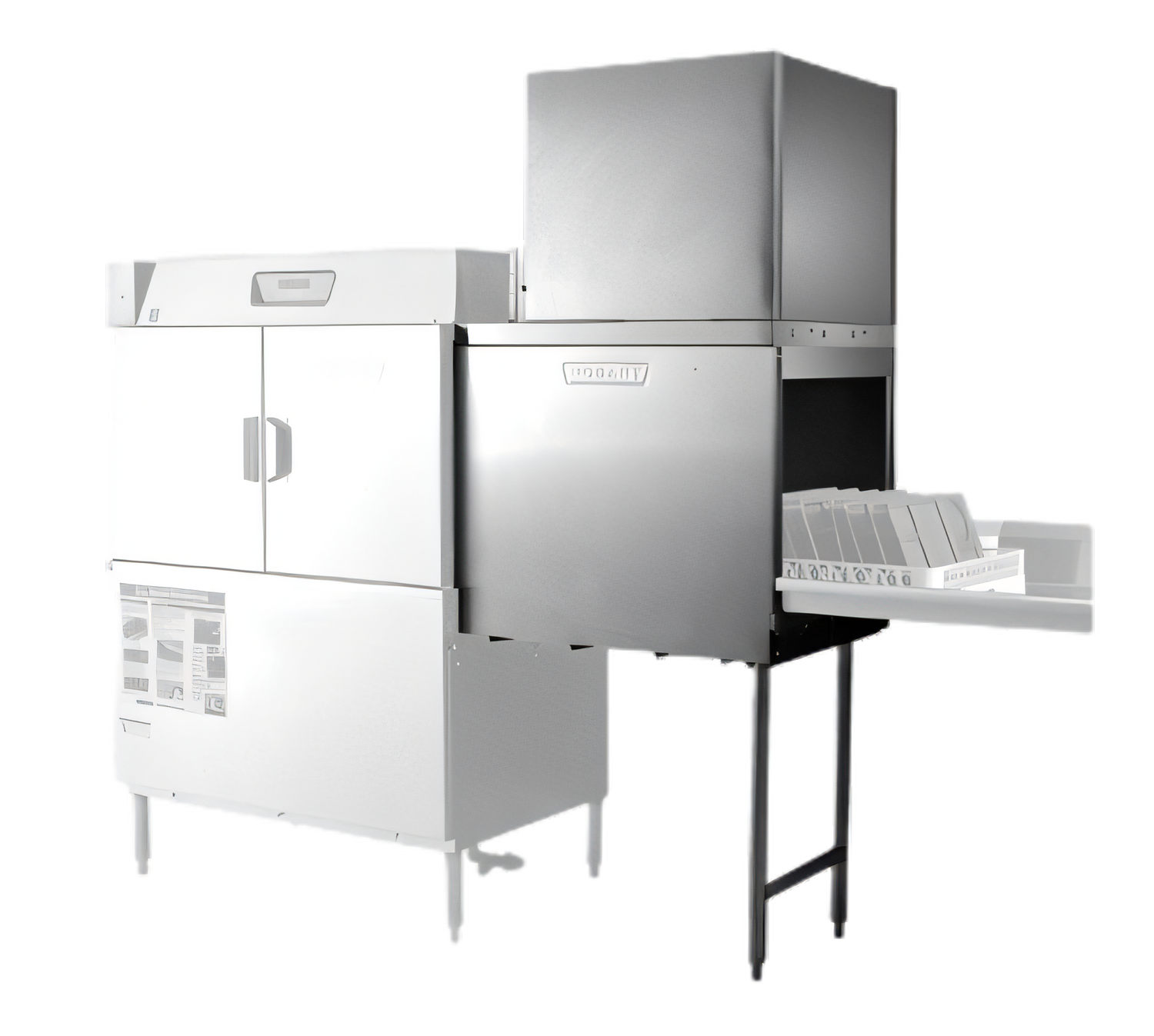

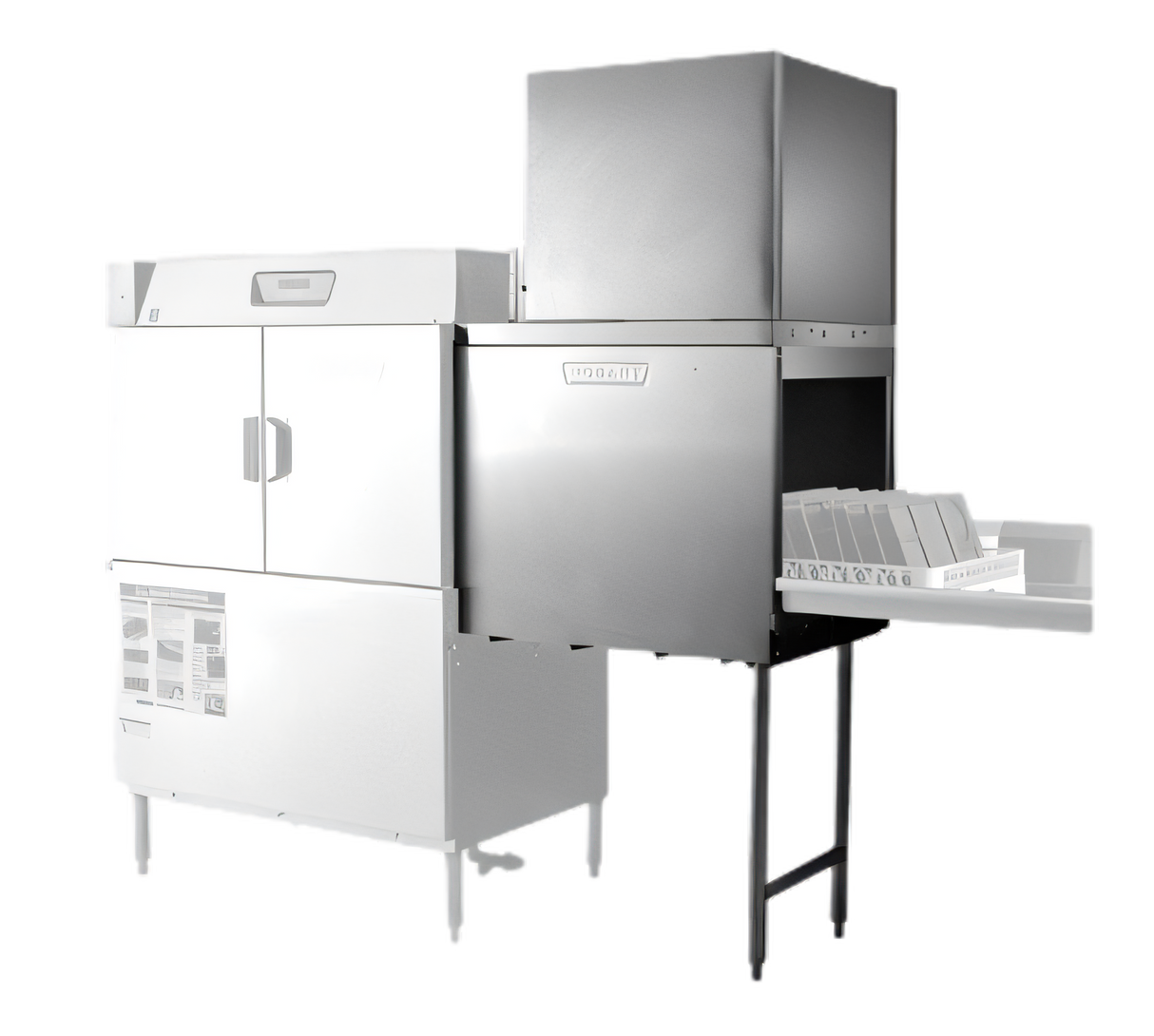

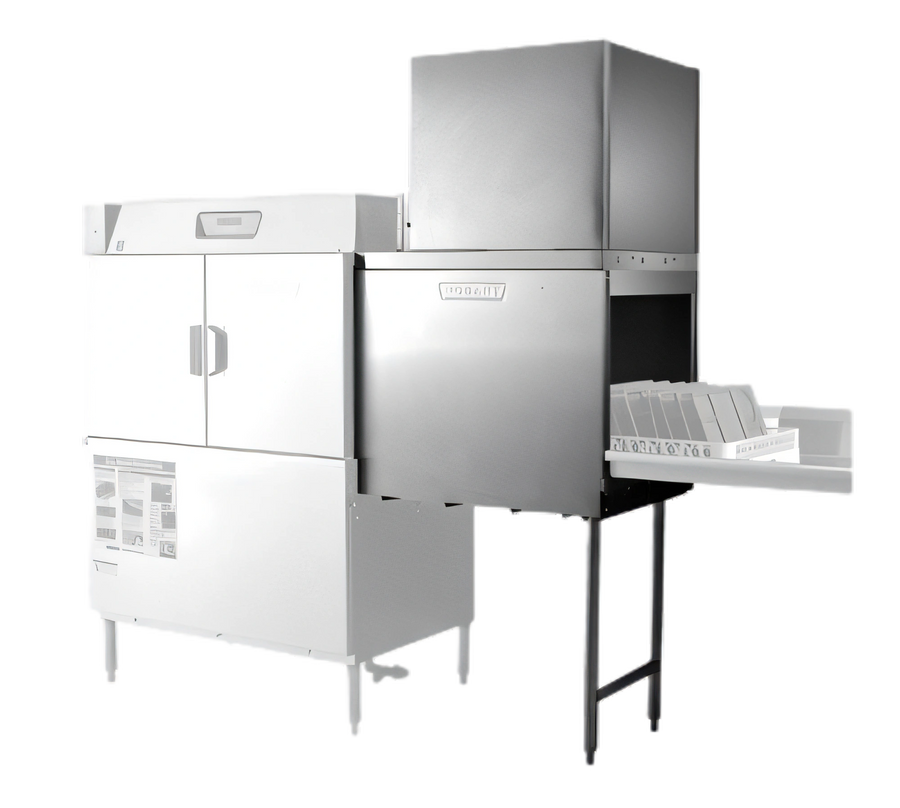

Hobart CLeN Steam Blower-Dryer – R-L, 380 V/60/3
Rapid, quiet and energy-efficient drying for Hobart CLeN conveyor dishwashersAdd true “end-of-cycle” dryness to your CLeN warewasher line. Hobart’s stainless-steel Steam Blower-Dryer forces high-velocity, steam-heated air over racks and trays so they leave the machine table-ready—no towelling, no waiting.
Why You’ll Love It
- Stainless-steel 33 in (838 mm) drying chamber built to match CLeN dishmachine width.
- 2 HP direct-drive industrial blower delivers 200–400 CFM while operating at a low sound level.
- Steam coil heat exchanger consumes just 55 lb/hr @ 20 psi to deliver consistently heated air.
- Positive, vertical airflow blankets ware from top & bottom; baffles recirculate heat for maximum efficiency.
- Self-contained wrap-around enclosure keeps motors, coil and wiring protected and easy to access.
- Automatically interlocks with dishwasher pumps—runs only when the machine is in operation.
Technical Specifications
| Compatible dishwashers | Hobart CLeN conveyor series (CL44eN, CL54eN, CL64eN, CLPS/CLCS 66-86eN) |
|---|---|
| Direction of operation | Right-to-Left (R-L) |
| Electrical | 380 V / 60 Hz / 3-phase, 2.6 A, single-point connection, 15 A min. circuit |
| Blower motor | 2 HP, splash-proof, ventilated, direct drive |
| Steam requirements | 55 lb/hr @ 20 psi (max 25 psi) |
| Utility connections |
Steam supply: 1" FPT Condensate return: ¾" FPT (bucket traps furnished) Drain: 1" FPT |
| Vent requirement | 4" × 16" inside dimension, 400 CFM exhaust (canopy hood not permitted) |
| Chamber length | 33 in (838 mm) |
| Height above dishmachine | Approx. 17 ⅜ in (441 mm) |
| Construction | All-stainless chamber, tank, legs & adjustable feet; welded blower housing |
Installation Essentials
- Bolt dryer chamber directly to CLeN wash chamber using supplied stainless hardware and foam gasket.
- Provide 4" × 16" duct to exterior; do not install under a canopy hood.
- Run dedicated 380 V/3-phase supply with proper grounding in accordance with NEC and local codes.
- Steam line must deliver 20 psi saturated steam; install shut-off valve and strainer upstream.
- Bucket-type traps provided for condensate return—pipe to floor drain per local plumbing code.
Important: Electrical, steam and venting connections must be completed by qualified personnel in accordance with all applicable codes. Improper installation will void warranty.
NSF & cULus listed. Specifications subject to change without notice as part of Hobart’s continuous product improvement program.
$19,163.62
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hobart BDSRLFP-STDDOM undercounter dishwasher: steam wash with blower dryer, reverse-left layout, 380V 3-phase, standard height for domestic use.
Manufacturer
Hobart
Brand name
Warewash - Flow
Specifications
Blower Dryer, Steam, R - L, 380v/60/3-ph, Standard Height, Domestic
