Description

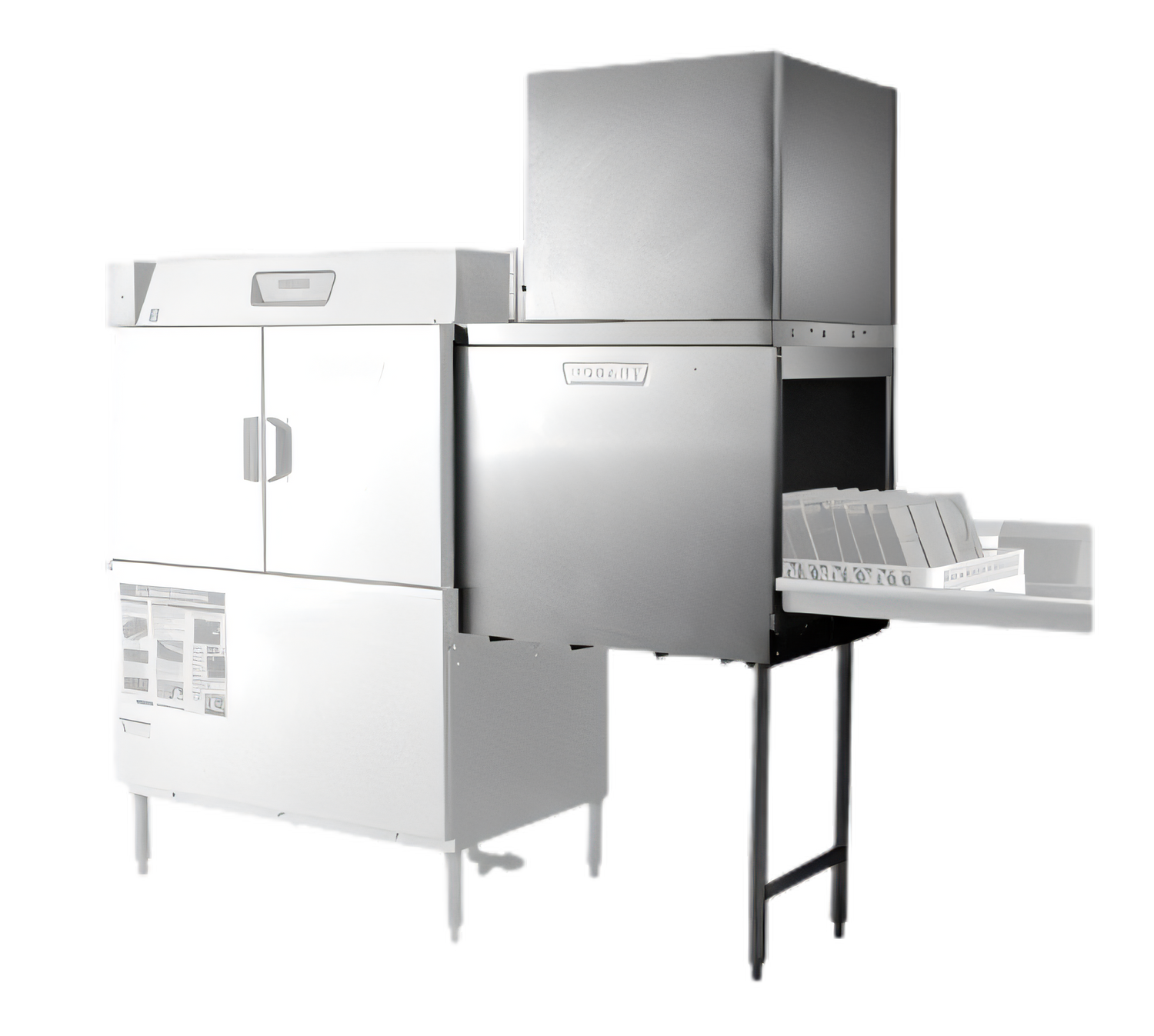

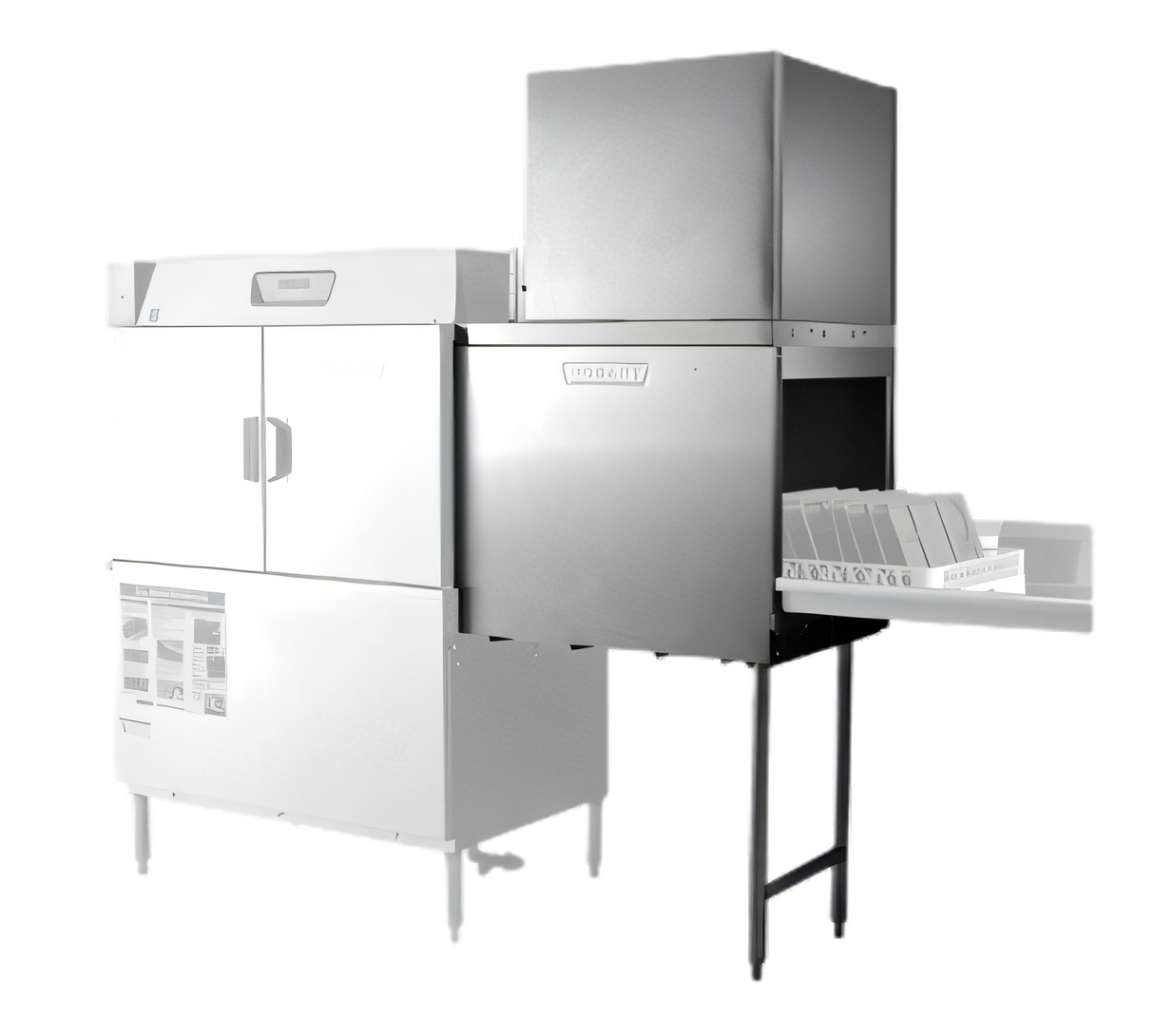

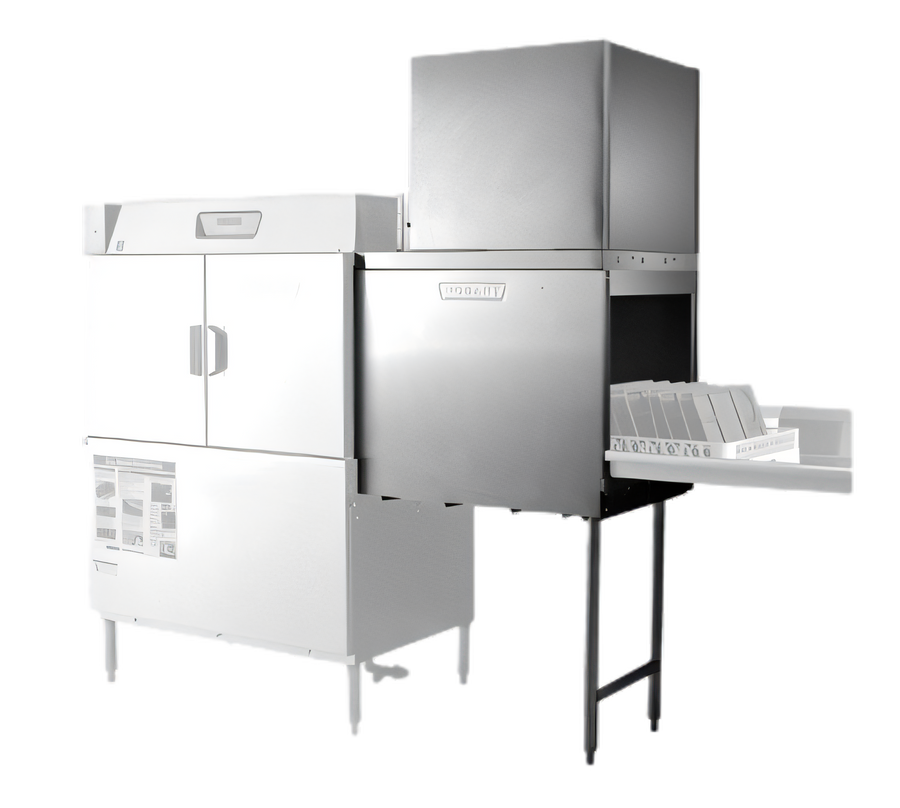

Hobart CLeN Steam Blower-Dryer – Right-to-Left, 200-240 V / 50 Hz / 3-Ph
Model “Warewash – Flow” | SKU 4271 | Higher-than-Standard clearanceTurn your CLeN conveyor warewasher into a true one-pass system. The Hobart Steam Blower-Dryer forces high-velocity, steam-heated air across every rack, so dishes and trays leave the machine spotless, dry and immediately ready for service.
Key Advantages
- 33 in stainless-steel drying chamber built to NSF standards.
- 2 HP direct-drive industrial blower quietly delivers 200 – 400 CFM.
- Double-row finned copper steam coil uses only 55 lb/hr of steam at 20 psi.
- Downward-then-upward airflow blankets the entire rack for consistent drying.
- Controller is inter-wired with the warewasher: runs only when the pumps run—no wasted energy.
- Right-to-Left feed matches “Flow” layouts and reduces operator congestion.
- Bolt-on design fits every Hobart CLeN model—hardware and gasket included.
Technical Specifications
Compatible warewashers | All Hobart CLeN conveyor models (CL44eN, CL54eN, CL64eN, CLPS/CLCS series, etc.) |
---|---|
Direction of operation | Right → Left |
Electrical connection | 200 – 240 V, 50 Hz, 3-phase, 4.5 A, single-point; 15 A circuit |
Blower motor | 2 HP, splash-proof, direct-drive |
Steam requirement | 55 lb/hr @ 20 psi (max 25 psi) |
Steam connections | 1 in FNPT supply, ¾ in FNPT condensate return (bucket traps supplied) |
Vent connection | 4 in × 16 in stack, 200 – 400 CFM exhaust (canopy hood not permitted) |
Chamber length | 33 in (840 mm) |
Height above machine | ≈ 17 ⅜ in (442 mm) additional |
Construction | All-stainless steel wrap-around enclosure with adjustable feet |
Installation Checklist
- Provide 3-phase power per spec and a low-pressure (< 25 psi) steam line.
- Locate a 4 × 16 in vent stack capable of 200 – 400 CFM; do not mount beneath a canopy hood.
- Bolt dryer chamber to warewasher using the 19 pre-punched holes and supplied foam gasket.
- Connect controller lead to the dishwasher motor circuit (115 V secondary) for automatic operation.
In line with Hobart’s continuous improvement program, specifications are subject to change without notice.
