Hobart BDERLAB-HTSDOM Warewash - Flow Undercounter Dishwashers
Description

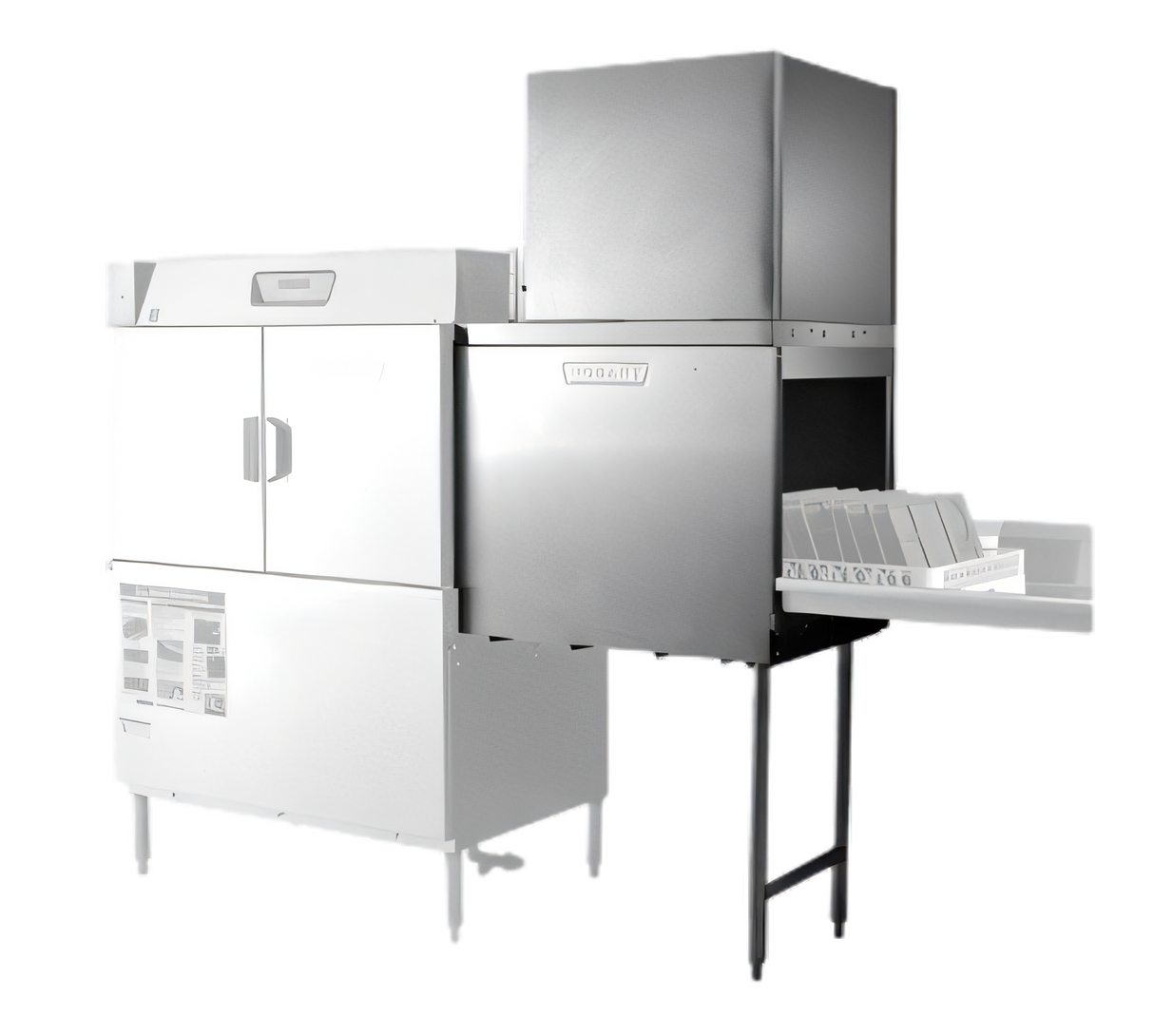

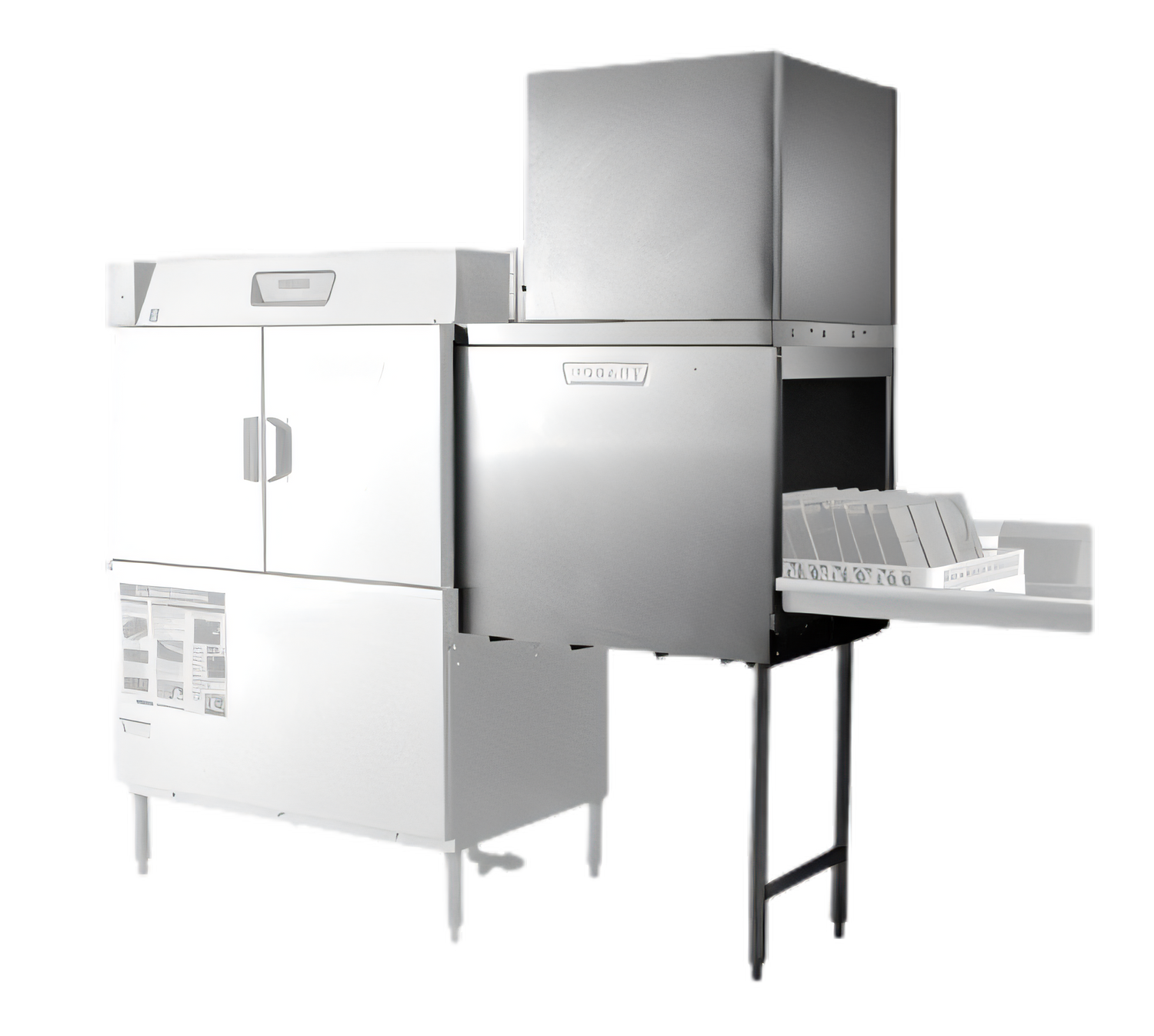

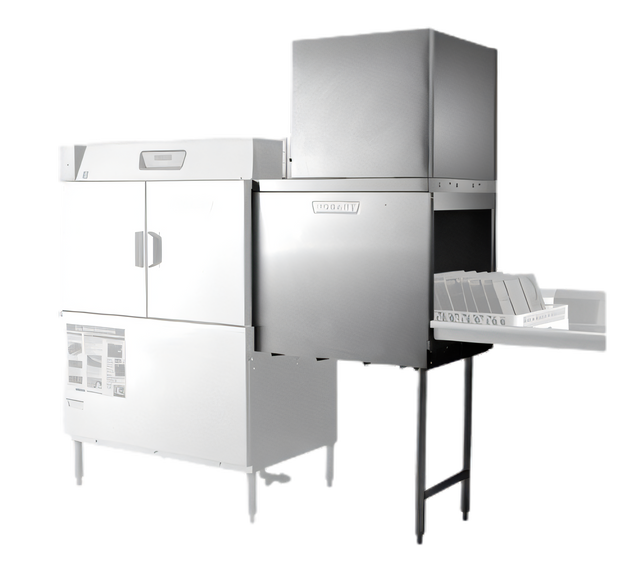

Hobart Warewash-Flow All-Electric Blower-Dryer – R-L, 200 V 50 Hz 3-Ph
CLeN Series Accessory | Item # 4271Slash turnaround times and send every rack out bone-dry. The Hobart Warewash-Flow blower-dryer bolts directly to your CLeN conveyor dishwasher and drenches dishes in a curtain of 200 – 400 CFM of 120 °F+ air, delivered by a quiet 2 HP industrial blower and 10 kW of Incoloy® electric heat.
Key advantages
- 33 in. stainless steel drying chamber built to Hobart standards.
- 2 HP direct-drive blower with splash-proof motor for continuous duty.
- 10 kW (3 × 3.3 kW) electric heaters for rapid heat-up and consistent temps.
- Positive, downward airflow dries plates, trays and flatware in a single pass.
- Right-to-Left configuration integrates with existing R-L CLeN lines.
- Single-point 3-ph connection simplifies field wiring.
- Stainless legs with adjustable feet stand up to harsh warewashing areas.
- Certified UL, cUL & NSF for open-kitchen peace of mind.
Technical specifications
| Direction of operation | Right → Left |
|---|---|
| Voltage / phase / frequency | 200 V / 3-ph / 50 Hz |
| Rated amps | 33 A |
| Min. circuit ampacity | 45 A |
| Max. protective device | 45 A |
| Heat capacity | 10 kW total (3 × 3.3 kW Incoloy® elements) |
| Blower motor | 2 HP, direct-drive, ventilated |
| Airflow | 200 – 400 CFM exhaust requirement |
| Dryer chamber length | 33 in / 838 mm |
| Vent connection | 4″ × 16″ stack with locking damper |
| Drain connection | 1″ FPT in dryer tank |
| Electrical connection | 1-1/8″ conduit hole, 61″ AFF (single-point) |
| Compatible warewashers | CLeN conveyor models – CL44eN, CLPS66eN, CLCS66eN, CL54eN, CLPS76eN, CLCS76eN, CL64eN, CLPS86eN, CLCS86eN |
| Construction | All-stainless chamber & tank; wrap-around enclosure; stainless legs & feet |
| Certifications | UL, cUL, NSF |
Installation requirements
- Bolt dryer to wash chamber with supplied stainless hardware and foam gasket.
- Provide a dedicated 45 A, 3-phase circuit at 200 V 50 Hz.
- Connect vent to 4″ × 16″ stack – canopy hoods are not compatible.
- Maintain 400 CFM exhaust and connect 1″ drain line.
- Blower operates only when dishwasher pump motors are running.
Need alternate voltages or a Left-to-Right model? Talk to our warewashing specialists for fast availability.
