Key specifications

Amps
6.7 Amps
Phase
1-Phase
Dimensions
24.1"W × 16.0"D × 9.3"H
Type
Dry Well
Style
Individual Pans
Installation Type
Drop-In
Spec sheet
Hatco SKU: IWELBFULA515

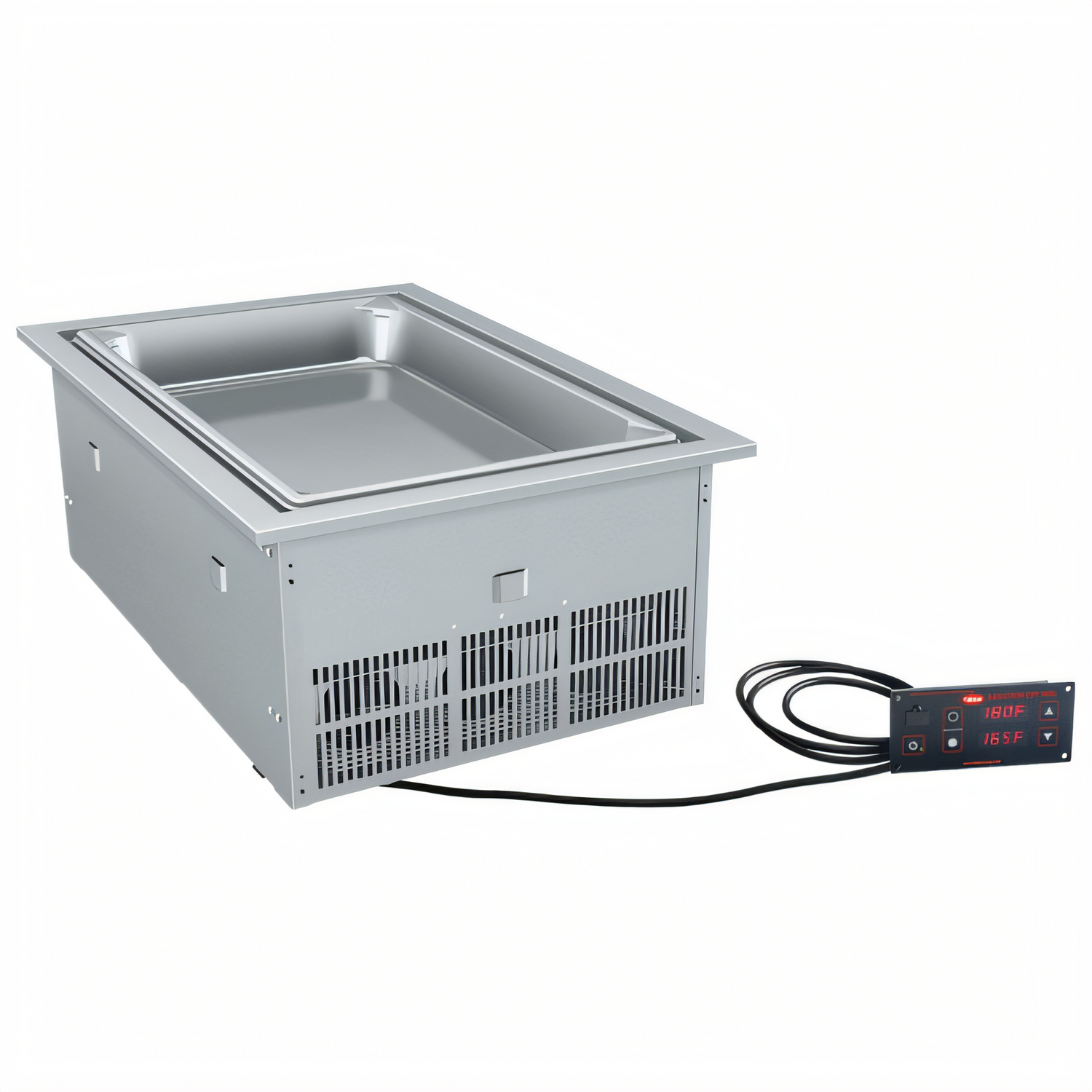

Hatco Quick Ship IWELBFULA515 Drop-In Induction Hot Well

$1,784.75
/each
Estimated to ship in 9–12 business days
Included: Hatco warranty 24/7 parts and service assistance is available in the United States and Canada

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $165/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Dry Well
Style Individual Pans
Installation Type Drop-In
Material Stainless Steel
Base Material Aluminum
Well Bottom Material Glass-Ceramic
Pan Capacity 1 Full-Size Pan (12 x 20 in)
Pan Depth 2.5 or 4 in, Adjustable
Temperature Range 150-210°F (66-99°C)
Heat Zones 2
Temperature Probes 2 Per Zone
Power Levels 5
Controls Mountable Control Panel
USB Port Included
Voltage 120 Volts
Amps 6.7 Amps
Watts 720 Watts
Hertz 50-60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Included Components 1 Stainless Steel Bezel, 2 Support Bars

Description

The Hatco Quick Ship IWELBFULA515 is a drop-in induction dry well for one full-size pan. Its adjustable glass-ceramic well bottom accommodates 2.5 or 4 in deep pans, and the unit can be top- or bottom-mounted into a countertop.

Two heat zones use two temperature probes per zone. A mountable control panel provides five power levels, while a pan-presence sensor prevents operation unless a pan is present.

  • Includes one stainless steel bezel and two support bars.
  • Includes a USB port for updates and future access to additional operating modes.
  • Operates at 720 watts and 120 volts with a NEMA 5-15P plug.

Overall Dimensions:

24.1"W x 16.0"D x 9.3"H

Product Weight:

43.0 lb

Adjustable Pan Depth

The glass-ceramic well bottom adjusts for 2.5 or 4 in deep pans.

Dual Heat Zones

Two heat zones are provided, with two temperature probes in each zone.

Five Power Levels

The mountable control panel provides five power levels and temperature control in Fahrenheit or Celsius.

Pan Presence Sensing

A sensor prevents the unit from turning on unless a pan is present.

Countertop Mounting

The dry well can be top- or bottom-mounted into a countertop.

USB Port

The USB port supports updates and future access to additional operating modes.

Included Components

Includes one stainless steel bezel and two support bars.

Frequently Asked Questions

It accommodates one full-size pan measuring 12 x 20 in.
The well adjusts for 2.5 or 4 in deep pans.
It can be top- or bottom-mounted into a countertop.
It operates at 120 volts, 720 watts, 6.7 amps, 50-60 Hz, single phase, and uses a NEMA 5-15P plug.
No. A sensor prevents the unit from turning on unless a pan is present.
One stainless steel bezel and two support bars are included.
