Key specifications

Amps
6.7 Amps at 120 Volts; 4.3 Amps at 208 Volts; 3.9 Amps at 240 Volts
Phase
1-Phase
Dimensions
24.1"W × 16.0"D × 9.3"H
Type
Dry Well
Style
Individual Pans
Installation Type
Drop-In
Spec sheet
Hatco SKU: IWELB-FUL-A

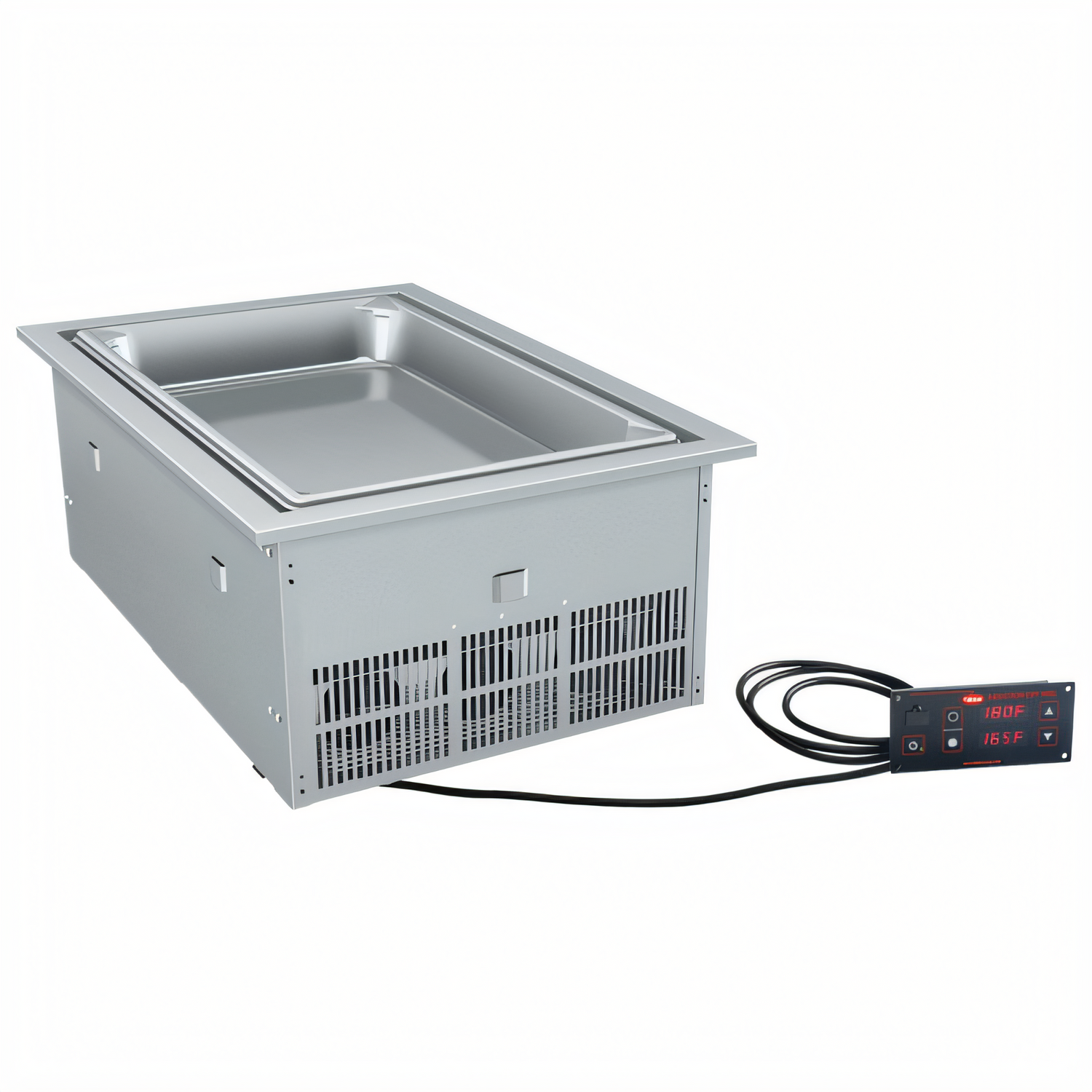

Hatco IWELB-FUL-A Drop-In Induction Dry Well, 1 Full-Size Pan

$1,784.75
/each
Estimated to ship in 9–12 business days
ElectricalRequired
Included: Hatco warranty 24/7 parts and service assistance in the United States and Canada

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $165/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Dry Well
Style Individual Pans
Installation Type Drop-In
Material Stainless Steel
Base Material Aluminum
Well Bottom Material Glass-Ceramic
Pan Capacity 1 Full-Size Pan (12 x 20 Inches)
Pan Size Full Size (12 x 20 Inches)
Pan Depth 2.5 or 4 Inches
Heat Zones 2
Temperature Probes 2 Per Zone
Controls 5 Power Levels, Fahrenheit/Celsius
Temperature Presets 5 Levels, 150-210°F
Pan Sensor Pan Presence Detection
Control Panel Mountable
USB Port Included
Watts 720 Watts
Voltage 120/208-240 Volts
Amps 6.7 Amps at 120 Volts; 4.3 Amps at 208 Volts; 3.9 Amps at 240 Volts
Hertz 50-60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P, NEMA 6-15P, CEE 7/7, BS 1363, AS 3112, CH1-10P
Included Components 1 Stainless Steel Bezel; 2 Support Bars

Description

The Hatco IWELB-FUL-A is a drop-in induction dry well for one full-size pan. Its adjustable glass-ceramic well bottom accommodates a 2.5-inch or 4-inch deep pan, while two heat zones and five power levels support hot food holding.

  • Two temperature probes are provided in each heat zone.
  • A pan-presence sensor prevents the unit from turning on unless a pan is present.
  • The unit mounts from the top or bottom of a countertop.
  • Includes one stainless steel bezel and two support bars.

Overall Dimensions:

24.1"W x 16.0"D x 9.3"H

Product Weight:

43.0 lb

Adjustable Pan Depth

The glass-ceramic well bottom adjusts for a 2.5-inch or 4-inch deep pan.

Dual Heat Zones

Two heat zones use two temperature probes in each zone.

Five Power Levels

The unit provides five power levels and temperature control in Fahrenheit or Celsius, with five preset temperature levels between 150°F and 210°F.

Pan-Presence Sensor

A sensor prevents the unit from turning on unless a pan is present.

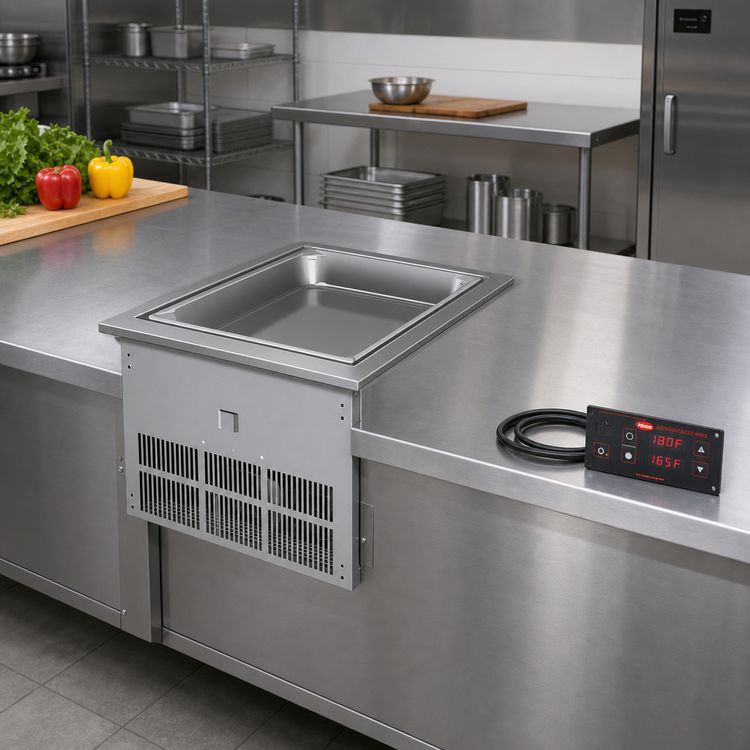

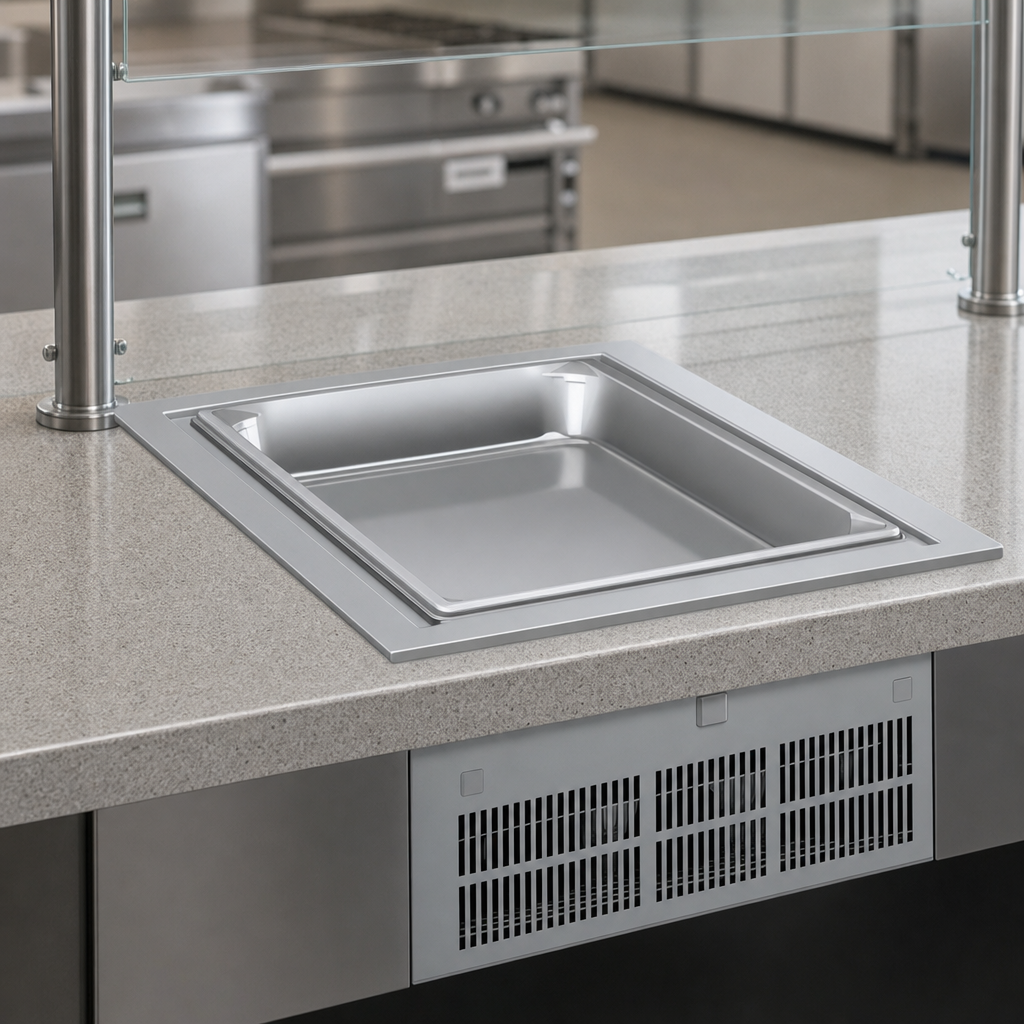

Countertop Installation

The unit can be mounted from the top or bottom into a countertop.

Mountable Control Panel

The control panel can be mounted for the installation.

USB Port

A USB port is provided for updates and future access to additional operating modes.

Included Components

Includes one stainless steel bezel and two support bars.

Pan Compatibility

Made for use with normal full-size, half-size, third-size and quarter-size stainless steel pans.

Frequently Asked Questions

The adjustable well accommodates either a 2.5-inch or 4-inch deep pan.
It has two heat zones with two temperature probes in each zone.
No. The product is described as a plumbing-free solution.
It can be mounted from the top or bottom into a countertop.
The dimensions are 24.1 inches wide by 16.0 inches deep by 9.3 inches high.
It is rated at 720 watts and supports 120/208-240 volts, single phase.
