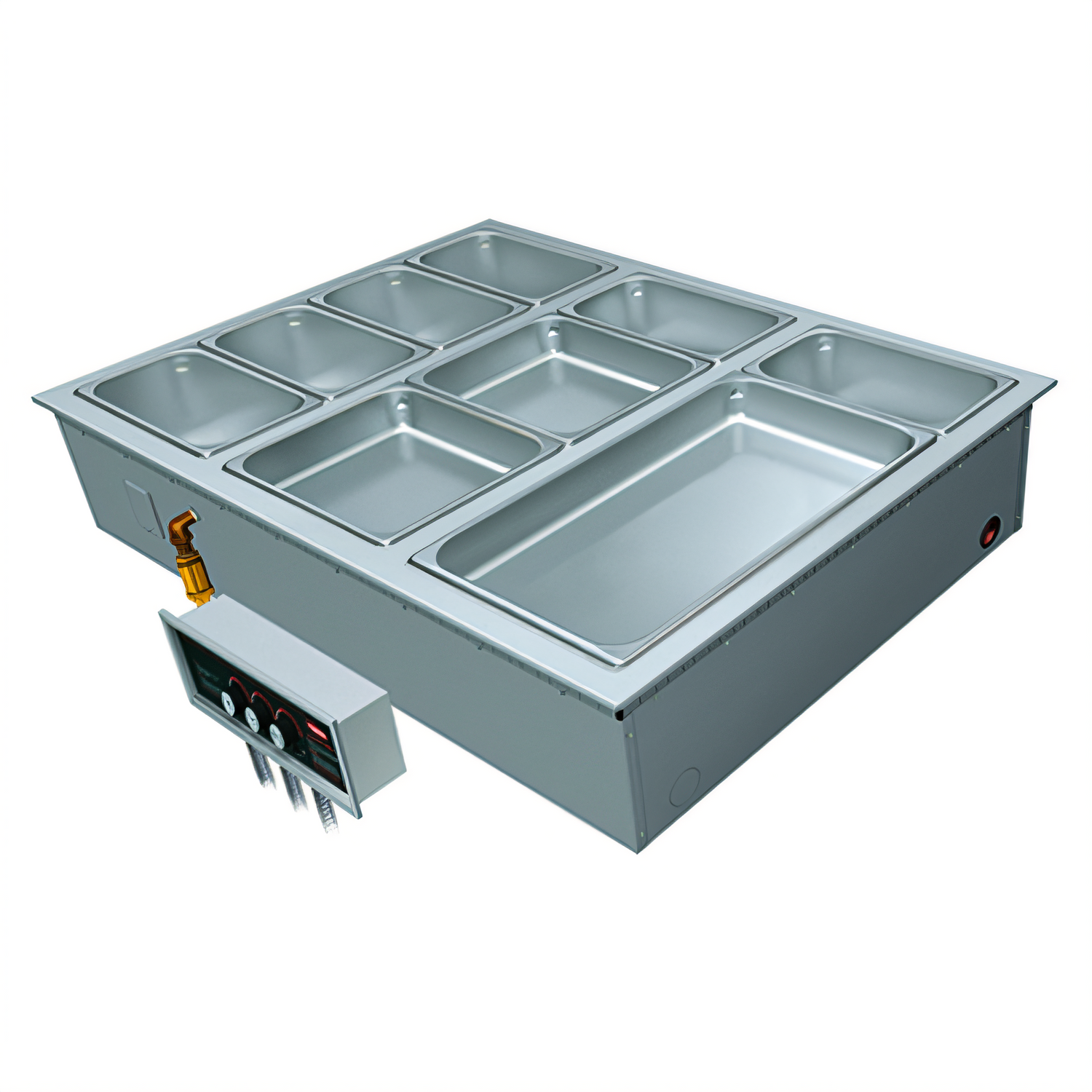

Hatco HWBI43-6M Drop-In Modular/Ganged 6-Well Heated Well
Integrated 1" Manifold Drain • Remote Thermostat Controls • Insulated Top-MountEngineered for demanding commercial kitchens, the Hatco HWBI43-6M combines six individually-controlled, 4/3-size heated wells into one seamless drop-in module. The result is a space-saving, code-compliant steam table that installs fast, holds food safely for hours, and cleans up in minutes.
Key Features
- Six insulated 4/3-size wells—each deep enough for four 1⁄3 pans, two 1⁄2 pans plus one 1⁄3, or one full-size plus one 1⁄3 pan.
- Fully insulated, top-mount design traps heat for longer holding times and lower energy use.
- Remote mechanical thermostat dial for every well, paired with an illuminated On/Off rocker switch for simple, precise control.
- 1 in. NPT manifold drain with flat stainless screen speeds cleanup and can be plumbed left or right.
- EZ-Locking hardware and 6 ft (1829 mm) flexible conduit make installation quick and fool-proof.
- Durable stainless steel upper housing with aluminized steel body; solid-brazed joints for years of leak-free service.
- Quick-change element and thermostat design minimizes downtime.
- Wet- or dry-operation capable; auto-fill ready (kit sold separately).
- cULus, CE & UL EPH Classified; proudly Made in the USA.

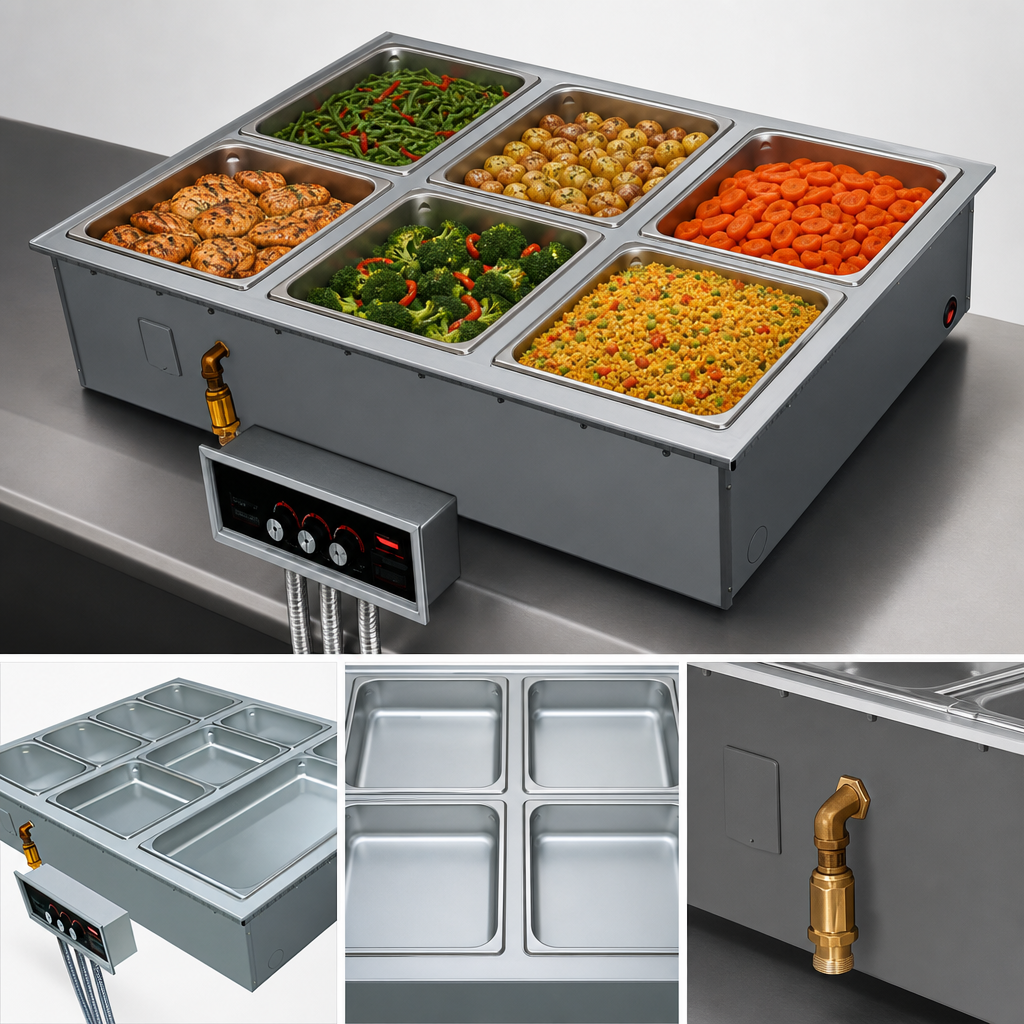

Pan Configuration Examples
- 4 × 1⁄3-size pans (2.5–6 in / 64–152 mm deep)
- 2 × 1⁄2-size pans + 1 × 1⁄3-size pan
- 1 × full-size pan + 1 × 1⁄3-size pan
Specifications
| Model | HWBI43-6M (manifold drain) |
|---|---|
| Number of Wells | 6 rectangular 4/3-size |
| Overall Dimensions (W × D × H) | 85.5 in × 30.375 in × 9.62 in (2172 mm × 772 mm × 244 mm) |
| Voltage Options | 208 V or 240 V; single- or three-phase |
| Total Wattage | 7,215 W (maximum) |
| Amps (typical) | 34.7 A @ 208 V 1 Ø • 30.1 A @ 208 V 3 Ø • 30.0 A @ 240 V 1 Ø • 25.1 A @ 240 V 3 Ø |
| Drain Connection | 1 in. NPT manifold with flat screen |
| Controls | Remote thermostat dial (per well) & lighted rocker switch |
| Construction | Stainless steel top & lip; aluminized steel body; fully insulated |
| Approx. Ship Weight | 214 lb (97 kg) |
| Certifications | CE • cULus • UL EPH Classified • Made in USA |
Perfect For
- High-volume buffet or cafeteria lines
- Institutional & commissary kitchens
- Supermarket hot bars
- Mobile catering build-outs
Electrical Notice: Hard-wiring by a licensed electrician is required. Be sure to specify desired voltage and phase when ordering.
Looking for fewer wells, auto-fill, or split control boxes? Explore other sizes in the Hatco HWBI43 series or contact us for a custom quote.
$6,785.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hatco HWBI43-6M drop-in heated well: insulated stainless/aluminized 6-pan modular unit with remote thermostat, EZ lock, manifold drain. Made in USA.
Manufacturer
Hatco
Certifications
CE, cULus, UL EPH Classified, Made in USA
Height
9.62in
Width
85.5in
Depth
30.38in
Shipping Weight
214.0lbs
Pan Capacity
(6) 4/3 size (12" x 27")
Construction
stainless steel top, corrosion resistant steel exterior
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Wet or Dry operation
wet or dry
Drain
with drain
Specifications
Drop-In Modular/Ganged Heated Well, with manifold drain, (6) 4/3 size pan capacity, insulated, top mounted, remote thermostat dial with separate on/off rocker switch, EZ locking hardware, stainless steel & aluminized construction, CE, cULus, UL EPH Classified, Made in USA
