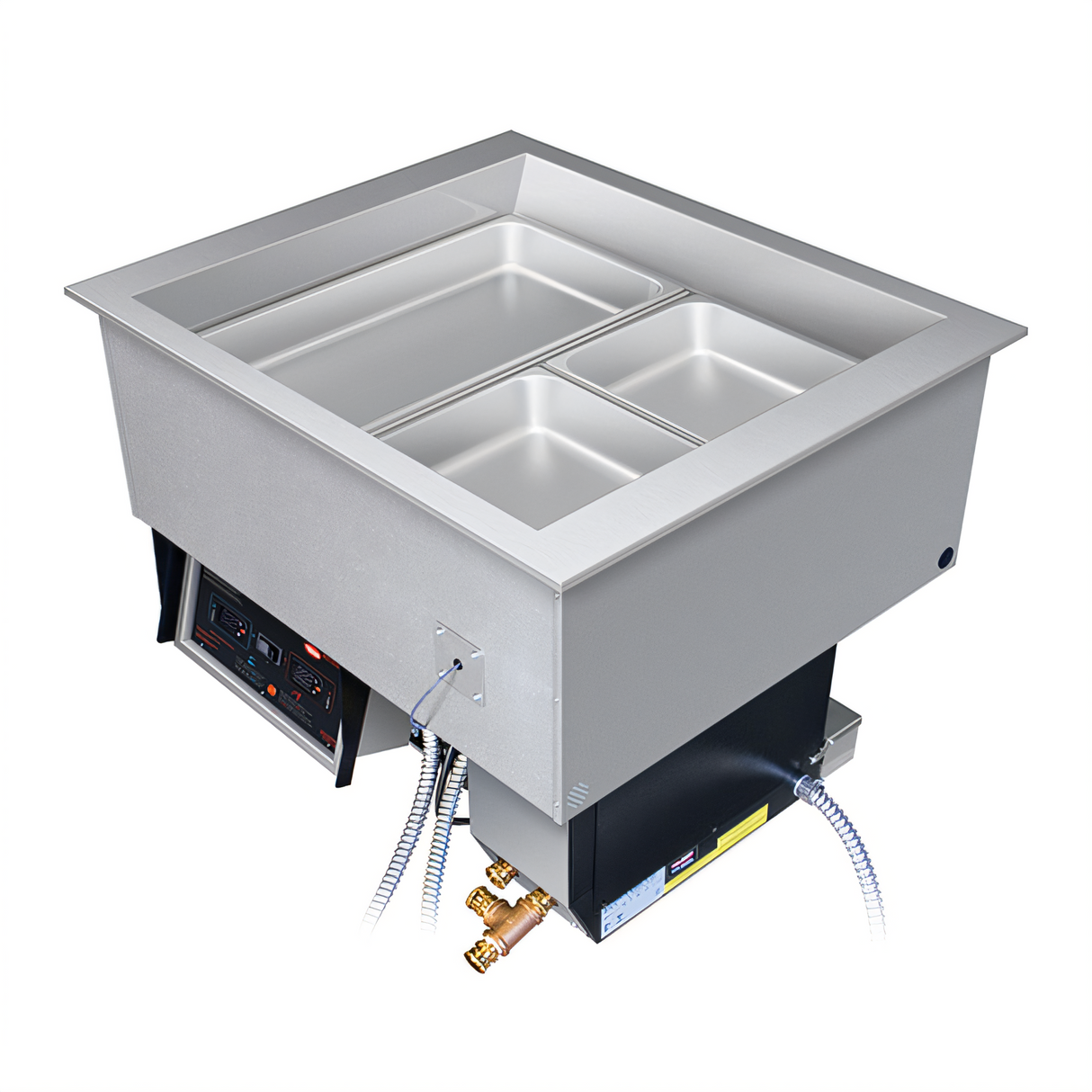

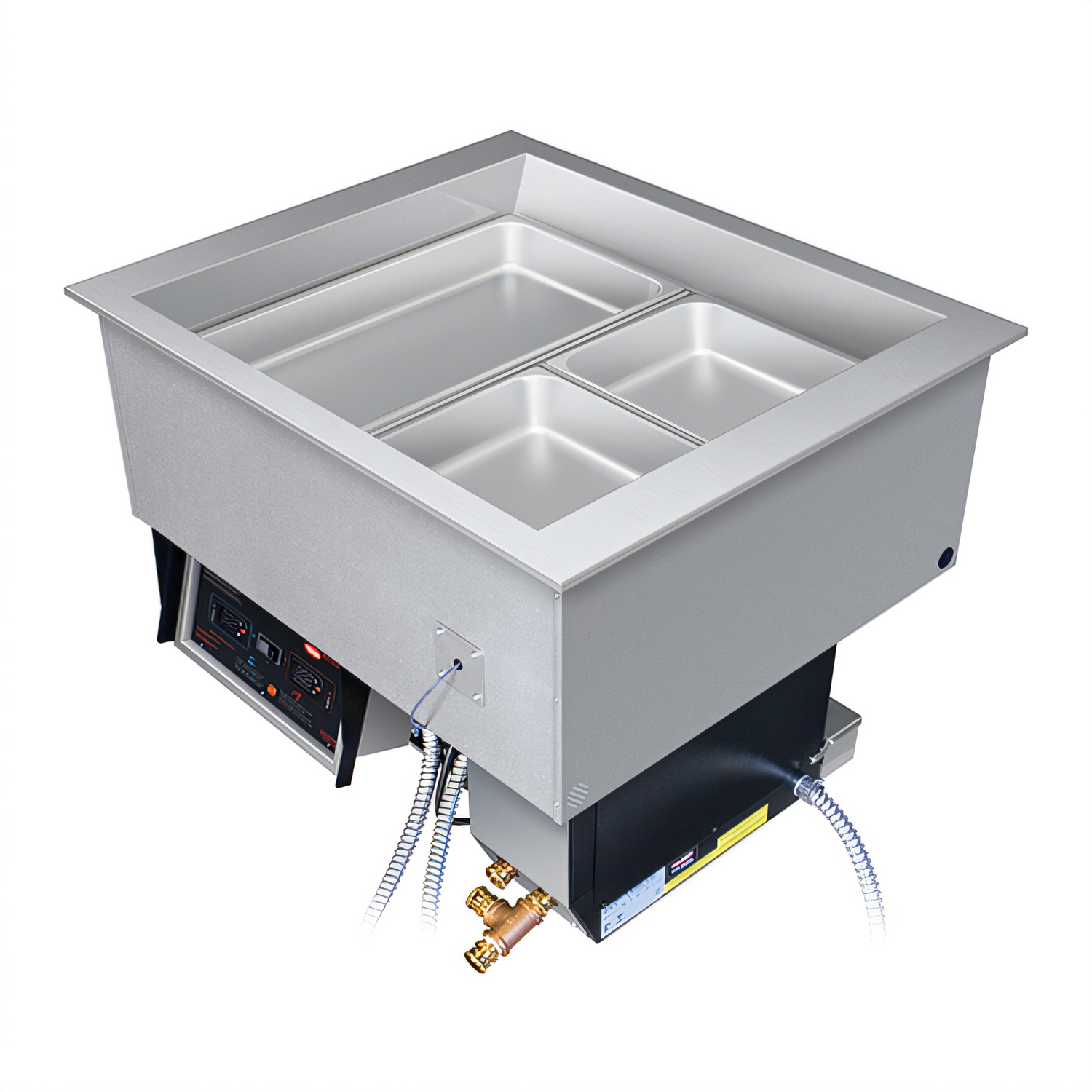

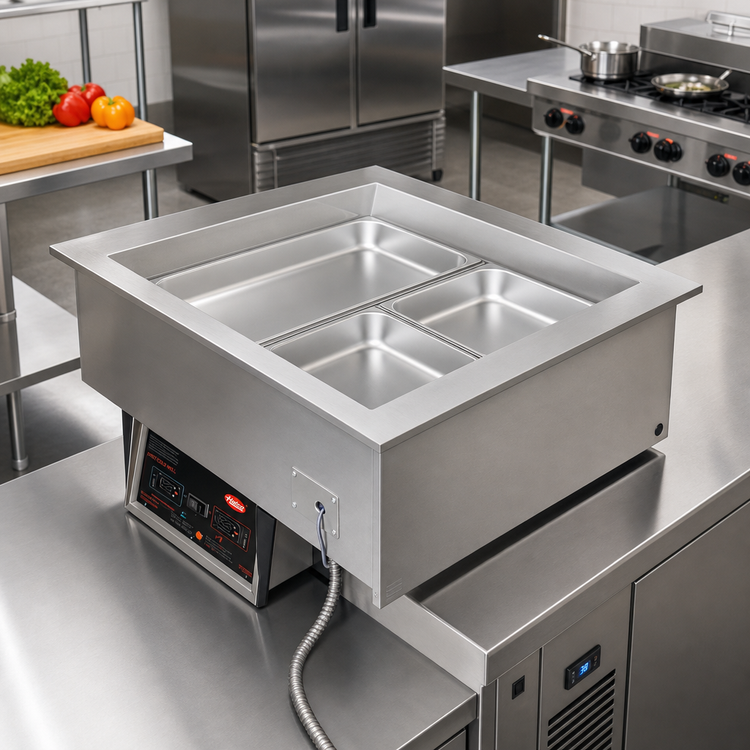

Hatco HCWBIX-3DA Remote Drop-In Hot/Cold Well
3-Pan • Hydro-Heated • No Condensing UnitSwitch from steaming entrées at breakfast to crisp, chilled salads at lunch—all in the same well. The Hatco HCWBIX-3DA combines legendary Hatco hot-well performance with advanced cold-well technology in a single, remote-control drop-in that keeps your buffet line flexible, fast and food-safe.
Why You’ll Love It
- Dual-Mode Convenience – Electronic rocker switch toggles COLD • OFF • HOT with independent digital temperature readouts.

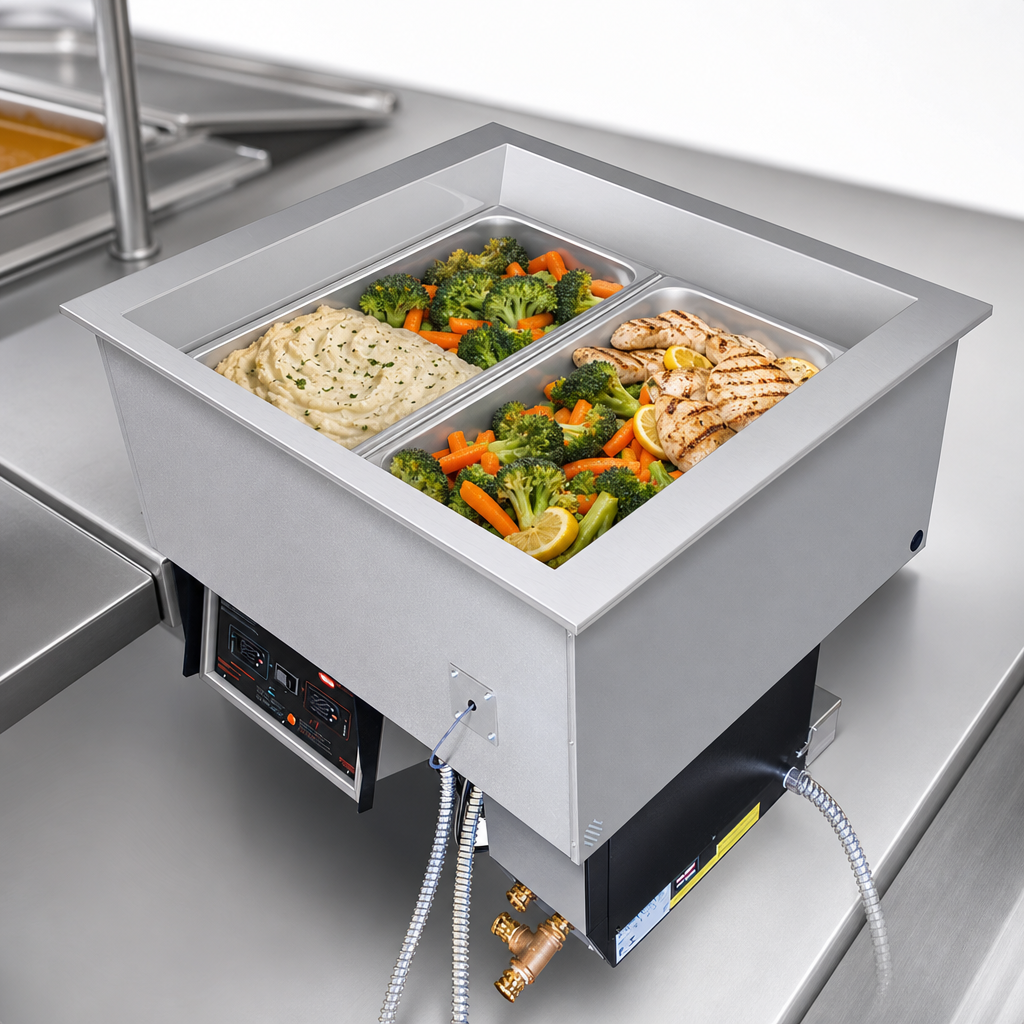

- Three Full-Size Pan Capacity – Includes stainless pan-support bars for both hot and cold operation; angled interior walls improve product visibility and access.
-
HOT mode – FR2 Hydro-Heater
- 3,000 W “free-flow” Bain-Marie heating system
- Automatic water fill, low-water cut-off & convenient drain
- Adjustable 65 – 192 °F (18 – 89 °C)
-
COLD mode – Refrigerated Well
- Auto-defrost cycle for worry-free overnight operation
- Adjustable 10 – 50 °F (-12 – 10 °C) set-point (factory set to 32 °F / 0 °C)
- TXV valve shipped loose and solenoid pre-mounted
- Remote-Mount Control Panel – Field-install up to 5 ft. away for ergonomic, front-counter access.
- Ready for Central Refrigeration – Ships without a condensing unit, giving designers the freedom to tie multiple wells into an existing rack or remote compressor (R-513A refrigerant).
- 60" pre-wired power-supply whip for easy hard-wire installation.
- cULus Listed & NSF component certified; proudly Made in the USA.
Perfect For
- Self-serve buffets & salad bars
- Hotels & country clubs needing rapid menu change-overs
- Corporate cafeterias & university dining
- Anywhere space or compressor placement is limited
Technical Specifications
| Pan Capacity | (3) full-size 12" × 20" (or fractional equivalents) |
|---|---|
| Overall Dimensions | 45" W × 27" D × 26.54" H (1143 × 686 × 674 mm) |
| Counter Cut-Out | 43.125–44" W × 25.19–26" D |
| Hot-Mode Power | 3,000 W | 120/208-240 V | Single or 3-phase hard-wire |
| Cold-Mode Load | 930 BTU/hr (remote compressor not included) |
| Compressor Requirement | 1/5 HP remote condensing unit, R-513A refrigerant (field-supplied) |
| Transition Time | ≈ 60 min between Hot & Cold modes |
| Shipping Weight | ≈ 188 lb (85 kg) |
| Certifications | cULus, NSF (component) |
| Country of Origin | United States of America |
What’s in the Box
- HCWBIX-3DA Hot/Cold well with pan support bars
- Remote-mountable electronic control panel
- FR2 Hydro-Heater assembly with auto-fill & drain
- TXV valve (loose) & pre-installed solenoid for cold circuit
- 60" power supply whip & installation manual
Important: A field-supplied R-513A remote condensing unit is required for cold operation.
Unit ships without refrigerant lines or condenser.
Allow approximately 60 minutes for temperature transition between modes. Three-phase wiring and factory-installed mounting gasket are available at time of order.
$8,439.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hatco HCWBIX-3DA: 3-pan drop-in steam table with FR2 hydro-heater, electronic temp control, auto-fill/defrost, 3000W, remote-ready, cULus, Made in USA.
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
26.5in
Width
45.0in
Depth
27.0in
Shipping Weight
188.0lbs
Controls
single controls
Finish
stainless steel top & well, aluminized steel exterior
Pan Qty
3-pan
Type
hot/cold
Cooling Style
mechanically cooled
Specifications
Drop-In Hot/Cold Well, accommodates (3) full-size pans, NO condensing unit, FR2 hydro-heater, TXV valve, remote mountable panel, 60" power supply whip, electronic temperature control, auto defrost, automatic water fill, condensing unit, comes with pan support bars, 3000 watts, 1/5 HP, cULus, Made in USA
