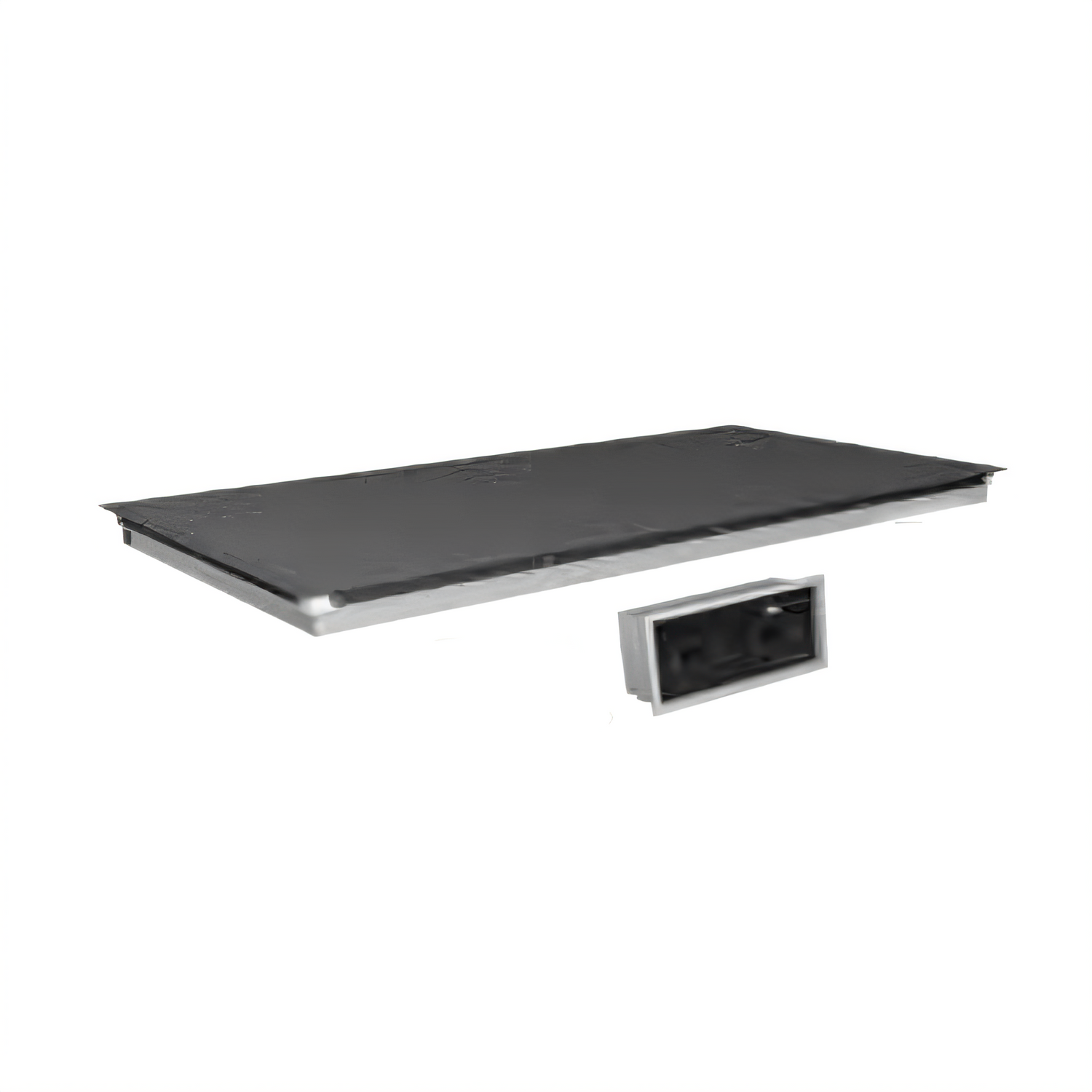

Hatco HCSBFX-48-S Hot/Cold Shelf – 48" W × 24" D
Built-In Flush Top | Remote Refrigeration Ready | Made in USASwitch from a heat-holding station to a chilled display in as little as 30 minutes. The patented Hatco HCSBFX-48-S gives you the freedom to adapt menus on the fly while keeping counters perfectly flush and clutter-free.
Why you’ll love it
- Dual-mode performance – one surface delivers hot (149-185 °F) or cold (≤ 41 °F) holding at the touch of a button.
- Remote refrigeration flexibility – condenser supplied by others, letting you tie the shelf into an existing rack or locate equipment where it suits your layout best.
- Hardcoat aluminum top – food-safe, scratch-resistant and easy to wipe clean.
- Electronic Temperature Control Box (shipped loose) with 4 ft lead for precise, walk-away accuracy.
- Patented thermal break minimizes condensation and protects surrounding counter surfaces.

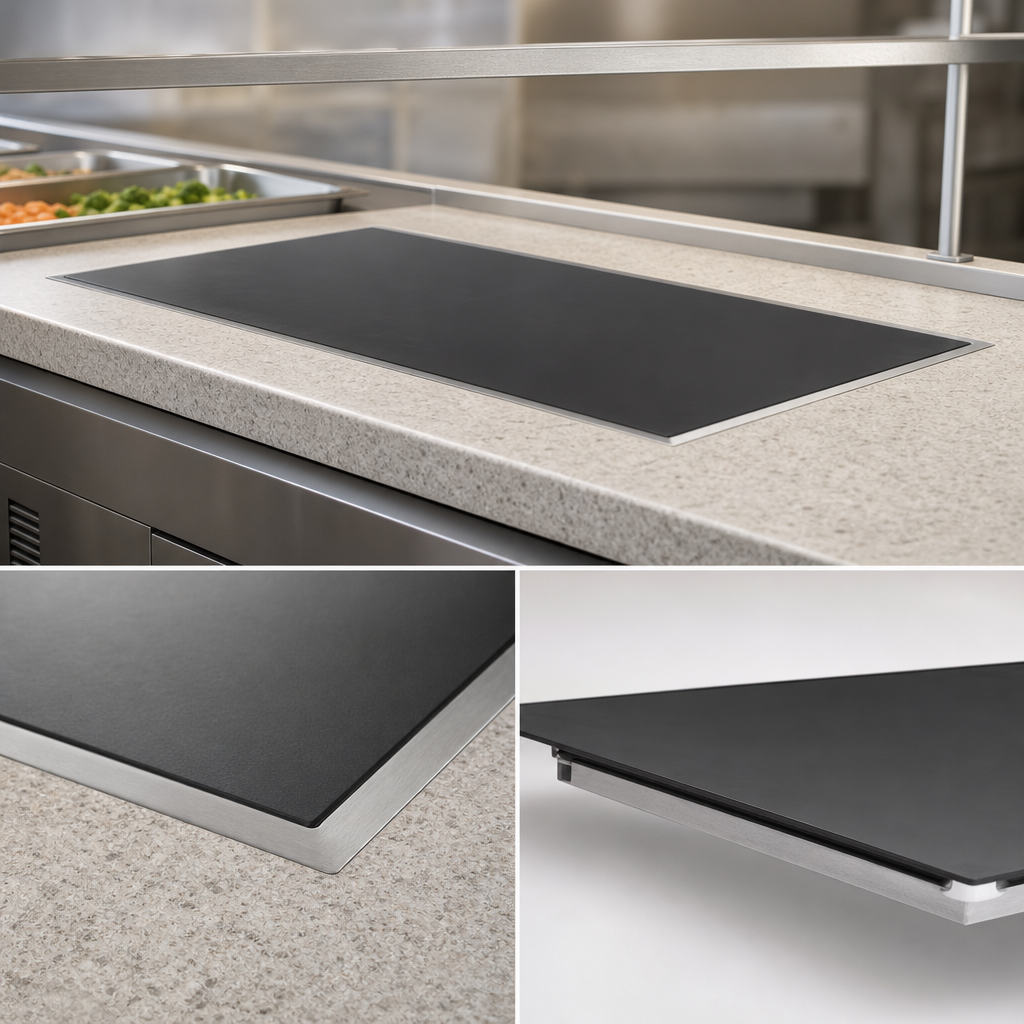

- Top-mount, flush install – creates a seamless, modern presentation that matches Hatco GRSBF heated shelves for a unified look.
- Service-friendly design – factory-installed TXV valve and quick-connect harnesses speed up fabrication and field hook-up.
- cULus & NSF Component listed; backed by Hatco’s renowned quality and support.
Technical specs
| Model | HCSBFX-48-S |
|---|---|
| Overall dimensions | 49.5" W × 25.5" D × 7.29" H (1,257 × 648 × 185 mm) |
| Usable surface | 48" W × 24" D (1,219 × 610 mm) |
| Counter cut-out (W × D) | 48.6–49.0" × 24.6–25.0" (1,234–1,245 mm × 625–635 mm) |
| Temperature range | Hot: 149–185 °F (65–85 °C) / Cold: ≤ 41 °F (≤ 5 °C) |
| Electrical (hot side) | 120 V, 1 ph, 1,100 W, 9.2 A | 220–240 V options 1,006–1,198 W, 4.6–5.0 A |
| Evaporator load (cold side) | 3,009 BTU/hr |
| Refrigerant | Supplied by others – compatible with R-513A and most common refrigerants |
| Control box cut-out | 13.125" W × 5.625" H (333 × 143 mm) |
| Shipping weight | Approx. 149 lb (67 kg) |
| Certifications | cULus, NSF Component, Made in USA |
Important:
1) Condenser is not included – unit must be connected to a remote refrigeration system.
2) Install the Electronic Temperature Control Box outside the heat zone to prevent damage.
3) Follow Hatco’s Installation & Operating Manual for cut-out prep, brazing and electrical connections.
2) Install the Electronic Temperature Control Box outside the heat zone to prevent damage.
3) Follow Hatco’s Installation & Operating Manual for cut-out prep, brazing and electrical connections.
Perfect for
- Breakfast-to-lunch menu flips without swapping equipment
- Grab-and-go sandwich, salad & pastry islands
- Front-of-house buffet lines & chef’s counters looking for a sleek, built-in solution
- C-stores, universities, corporate cafés and anywhere space is at a premium
Need a different size? Matching 24" and 36" wide models are also available.
Questions? Talk to a foodservice equipment specialist ›
$6,487.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hatco HCSBFX-48-S 48" built-in hot/cold shelf with flush aluminum hardcoat top, electronic temp control, top mount, cULus, made in USA.
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
7.29in
Width
49.5in
Depth
25.5in
Shipping Weight
149.0lbs
Controls
electronic controls
Size
48"
Construction
aluminum
Type
built-in
Specifications
Hot/Cold Shelf, built-in flush top, 48"W x 24"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, top mount, cULus, Made in USA
