Hatco FR2-9B Hydro-Heater Steam Tables & Food Wells
Description

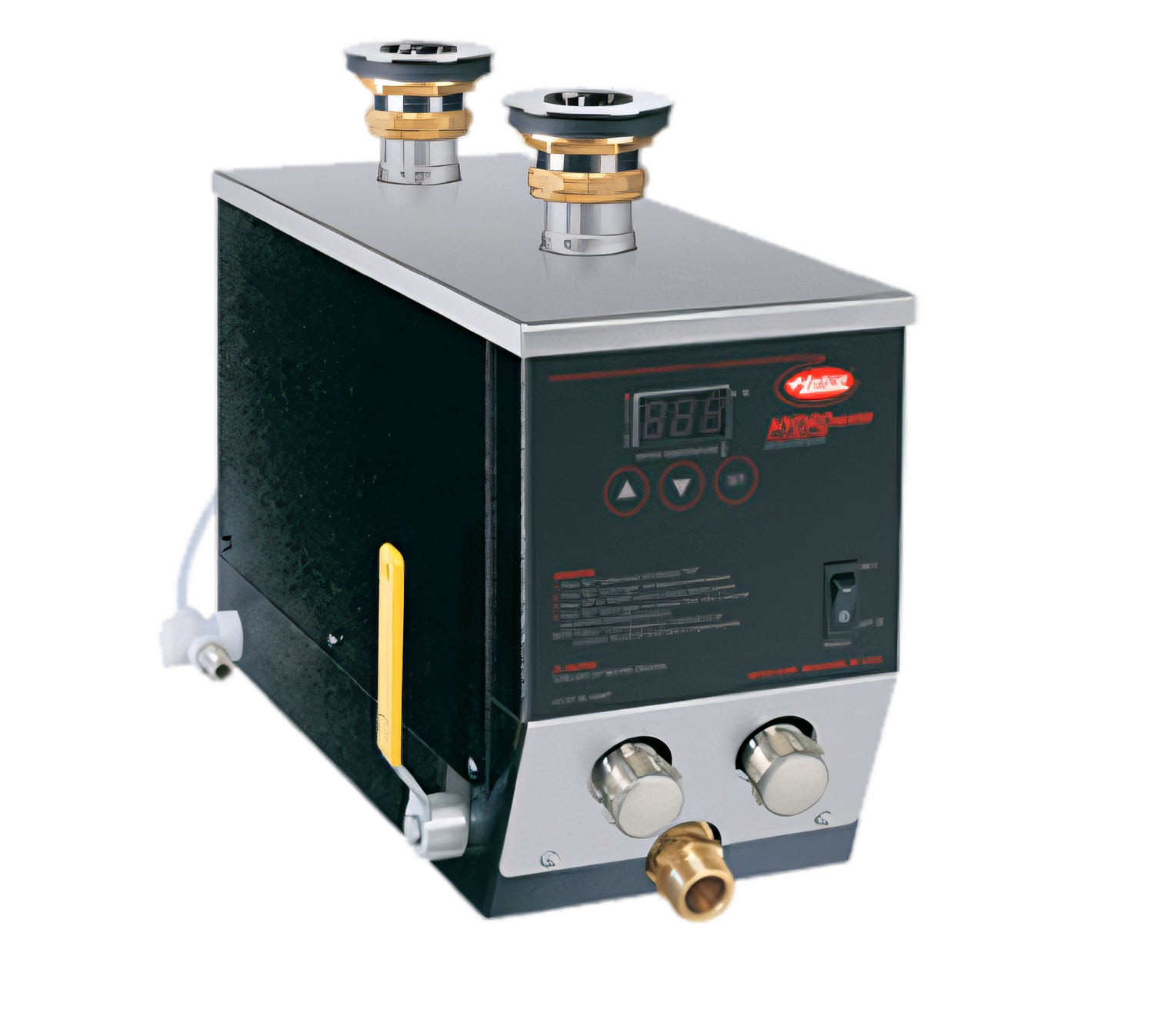

Hatco Hydro-Heater Food Rethermalizer / Bain-Marie Heater
Model FR2-9B • 9 kW Balanced 3-Phase • 208 VBuilt for demanding, high-volume kitchens, the Hatco Hydro-Heater delivers a continuous supply of temperature-controlled water that rapidly rethermalizes chilled foods or maintains prepared foods at safe-serving temperatures. “Free-flow” technology, precision digital controls and a rugged stainless-steel design make this standalone heater an ideal backbone for custom rethermalizing vessels, bain-maries and steam tables up to 6 ft (1.8 m) long.
Why you’ll love it
- 9 kW of balanced three-phase power heats or holds product between 140 °F and 190 °F (60 – 88 °C).
- Patented “free-flow” tubular water chamber with spiral heating element wrapped outside the tube—elements never contact the water, eliminating sediment and lime build-up.
- Electronic temperature controller with large digital display maintains an accurate, user-selectable setpoint.
- Low-water cut-off (LWCO) automatically protects the heater from dry-fire damage.
- Durable construction—stainless-steel front panel, powder-coated black hammertone body and convenient drain outlet with clean-out caps.
- Field-proven reliability backed by Hatco’s 24/7 parts & service support (U.S. & Canada).
- cULus & UL EPH Classified to ANSI/NSF 4 • Made in the USA
Perfect for
- Commissaries and central kitchens
- Supermarkets & deli prep areas
- Catering and banquet operations
- Restaurants adding custom bain-maries or rethermalizing wells
Technical specifications
| Model / Part # | FR2-9B Hydro-Heater |
|---|---|
| Power rating | 9 kW |
| Electrical | 208 V | 50/60 Hz | Balanced 3-phase | 25 A |
| Temperature range | 140 °F – 190 °F (60 °C – 88 °C), digitally adjustable |
| Overall dimensions | 7.75 in W × 17.06 in D × 12.36 in H (197 mm × 433 mm × 314 mm) |
| Approx. ship weight | 34 lb (15 kg) |
| Certifications | cULus | UL EPH Classified (NSF 4) |
| Country of origin | USA |
Factory options (order with unit)
- All-stainless body and base
- Auto-fill solenoid kit
- Remote-mounted control panel
- Security package (Torx® screws & control cover)
Recommended accessory
- FR2-Flush Kit (flush hose, cleaning brush, stopper & adapter) for fast periodic maintenance
Incoming water harder than 3 grains per gallon (0.75 g/L) must be softened to prevent scale and maintain warranty coverage.
