Hatco FR-6B Steam Tables & Food Wells
Description

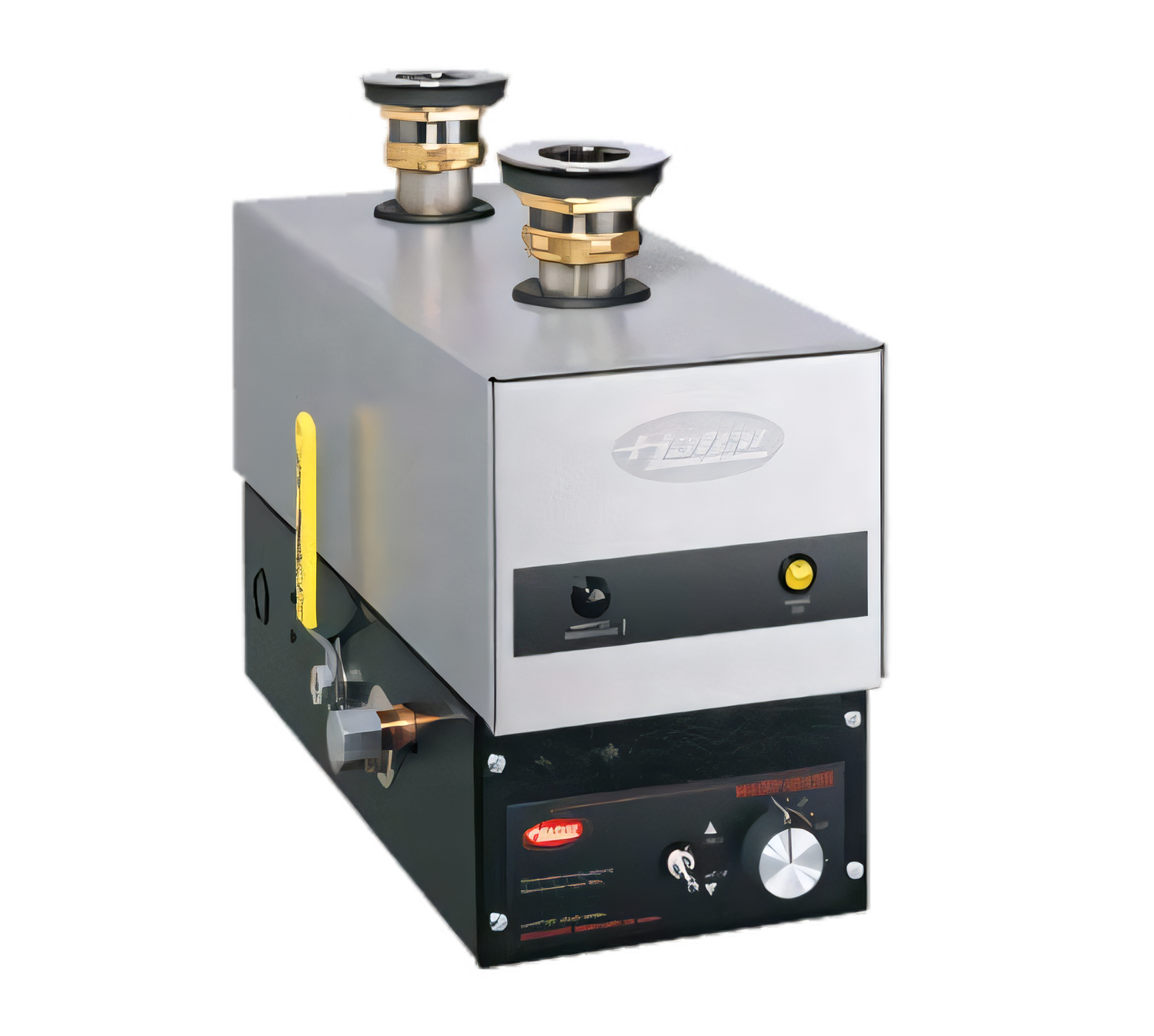

Hatco FR Series Food Rethermalizer / Bain-Marie Heater – 6.8 kW Balanced 3-Phase
Stainless steel front • Silver-gray hammertone body • Black base • Made in USAEngineered for high-volume kitchens that demand rock-solid performance, the Hatco FR Food Rethermalizer/Bain-Marie Heater delivers up-to-temperature results fast—then keeps them there with pinpoint precision. Mount it directly beneath your sink, steam table or custom holding vessel and enjoy consistent 140 – 190 °F water, circulated continually to eliminate “cool spots” and food-safety worries.
Key advantages
- 6.8 kW balanced 3-phase heating for vessels up to 6 ft (1829 mm) long
- Adjustable thermostat knob lets you dial in 140 – 190 °F (60 – 88 °C)
- Built-in Energy Cut-Off (ECO) prevents overheating for added safety and element life
- Dual-reservoir stainless steel tank isolates sediment in a dedicated sump for easy cleaning
- Separate sump and heating-compartment drains speed daily maintenance and sanitizing
- Standard 2 in. (51 mm) plated brass plumbing fittings included for quick installation
- Rugged stainless-steel front panel stands up to daily wear; silver-gray hammertone body is protected with antimicrobial powder coating*
- Large, easy-read indicator lights show Power On and Water Up To Temp at a glance
- Five-year limited warranty backed by Hatco’s 24/7 parts & service network (US & Canada)
Certifications & origin
- NSF Listed
- UL & UL EPH Classified
- CSA & CE compliant
- Manufactured in Milwaukee, Wisconsin, USA
At-a-glance specs
| Heat output | 6.8 kW (balanced 3-phase) |
|---|---|
| Temperature range | 140 – 190 °F | 60 – 88 °C |
| Electrical requirements | 208–480 V, 50/60 Hz, 3 Ø balanced (see wiring chart in manual) |
| Overall dimensions | 17.13 in L × 8.50 in W × 12.25 in H (435 × 216 × 311 mm) |
| Water connections | 2 in. NPT brass fittings (supplied) |
| Shipping weight | ≈ 30 lb | 13.6 kg |
| Standard warranty | 5-year limited heater-tank warranty |
Optional upgrades (factory-fit)
- Low-Water Cut-Off (LWCO) to prevent element burn-out
- All-stainless body & base for extreme environments
- Security package with tamper-resistant Torx® screws & control cover
- Flush Kit (hose, stopper & adapter) for rapid tank rinsing
*IFS antimicrobial powder coating utilizes naturally occurring silver ions to inhibit the growth of microbes on treated surfaces. Visit hatcocorp.com/antimicrobial-paint for details.
