Garland UTOG24-SU4 US Range UT Counter Hot Plates
Description
Garland U.S. Range UTOG24-SU4 Step-Up Gas Hot Plate
24" Countertop • 4 Open Burners • 120,000 BTUBuild a powerful cook line in the footprint of a countertop. The Garland U.S. Range UTOG24-SU4 delivers heavy-duty performance with two front open burners and two elevated step-up burners—each punching out 30,000 BTU for high-volume sautéing, boiling and pan-frying. All the rugged stainless steel construction you expect from Garland, sized perfectly for food trucks, ghost kitchens and busy restaurants.
Key Features
- (4) 30,000 BTU Performer Pro two-piece octagonal burners – 120,000 BTU total

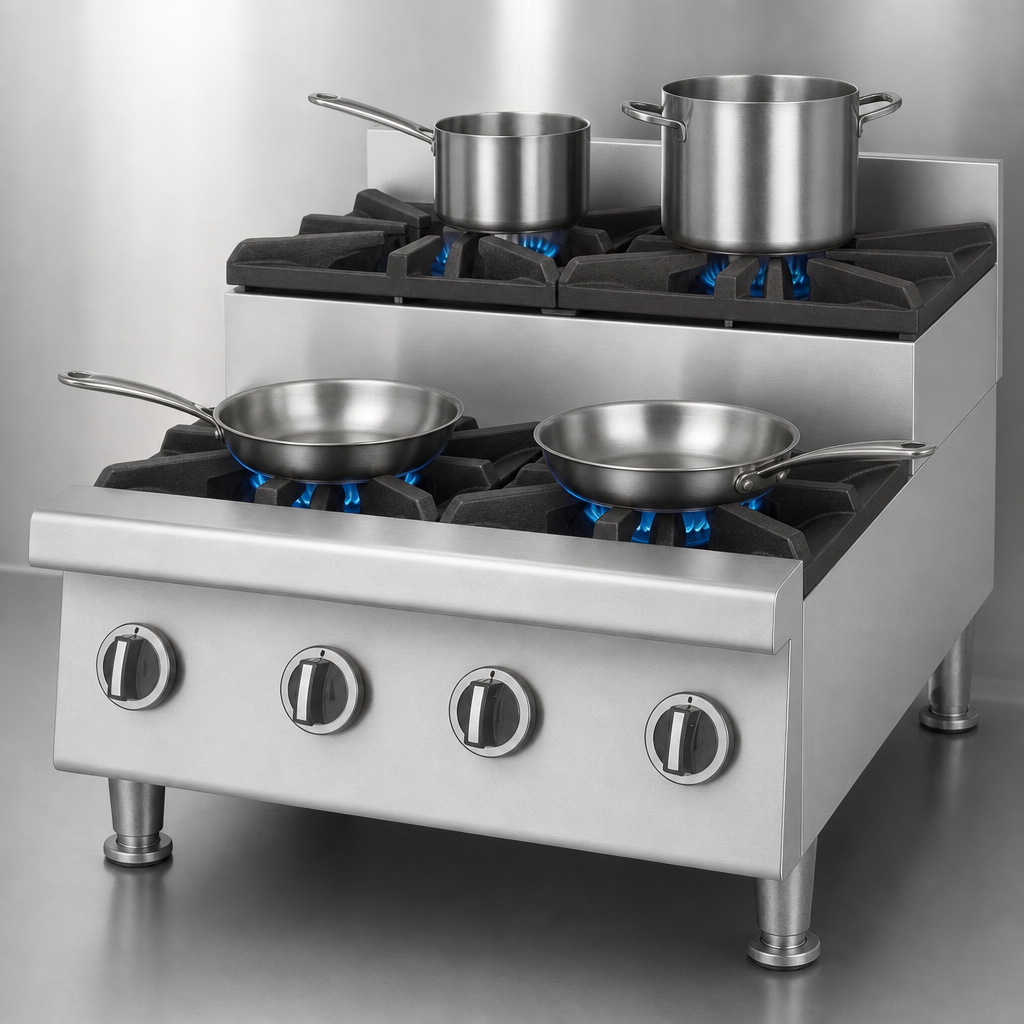

- Step-up rear burners give back-of-house staff clear sight and easy pan access
- Individual, infinitely-adjustable manual valves with standing pilots
- Split ergonomic cast-iron grates protect pilots and remove in seconds for cleaning
- Rugged stainless steel front, sides, back and 4" deep front rail (3-½" work surface)
- Extra-large stainless steel crumb tray slides out for fast clean-ups
- 4" stainless steel adjustable legs level the unit on any countertop
- ¾" NPT regulator with “T” manifold – straight-through or flush-rear gas connection
- Field convertible for Natural Gas (std) or Propane (LP) operation
- CSA & NSF listed for commercial kitchens
Technical Specifications
| Model / SKU | UTOG24-SU4 |
|---|---|
| Burner Configuration | (2) front open burners (2) rear step-up burners |
| Per-Burner Output | 30,000 BTU (Natural Gas) 26,000 BTU (Propane) |
| Total Input | 120,000 BTU NG / 104,000 BTU LP |
| Gas Connection | ¾" NPT (regulator included) |
| Dimensions (W × D × H) | 23-5/8" × 32" × 19-13/16" (600 mm × 814 mm × 503 mm) |
| Work-Height Reduction | -1 ¾" with optional counter-skirt kit |
| Clearances to Combustibles | Sides 7" (178 mm) Rear 6" (152 mm) |
| Certifications | CSA, NSF |
| Shipping Weight | 135 lb / 61 kg |
Popular Options & Accessories
- Stainless steel counter-skirt (reduces height by 1-¾")
- Stainless steel equipment stand with shelves and adjustable feet
- Stand with solid top and locking casters
- Removable condiment rail (1/9- or 1/3-pan cut-outs; pans sold separately)
Gas ratings are for installations up to 2,000 ft (610 m) above sea level. Specify altitude and gas type when ordering.
