Garland UTOG24-4 US Range UT Counter Hot Plates
Description

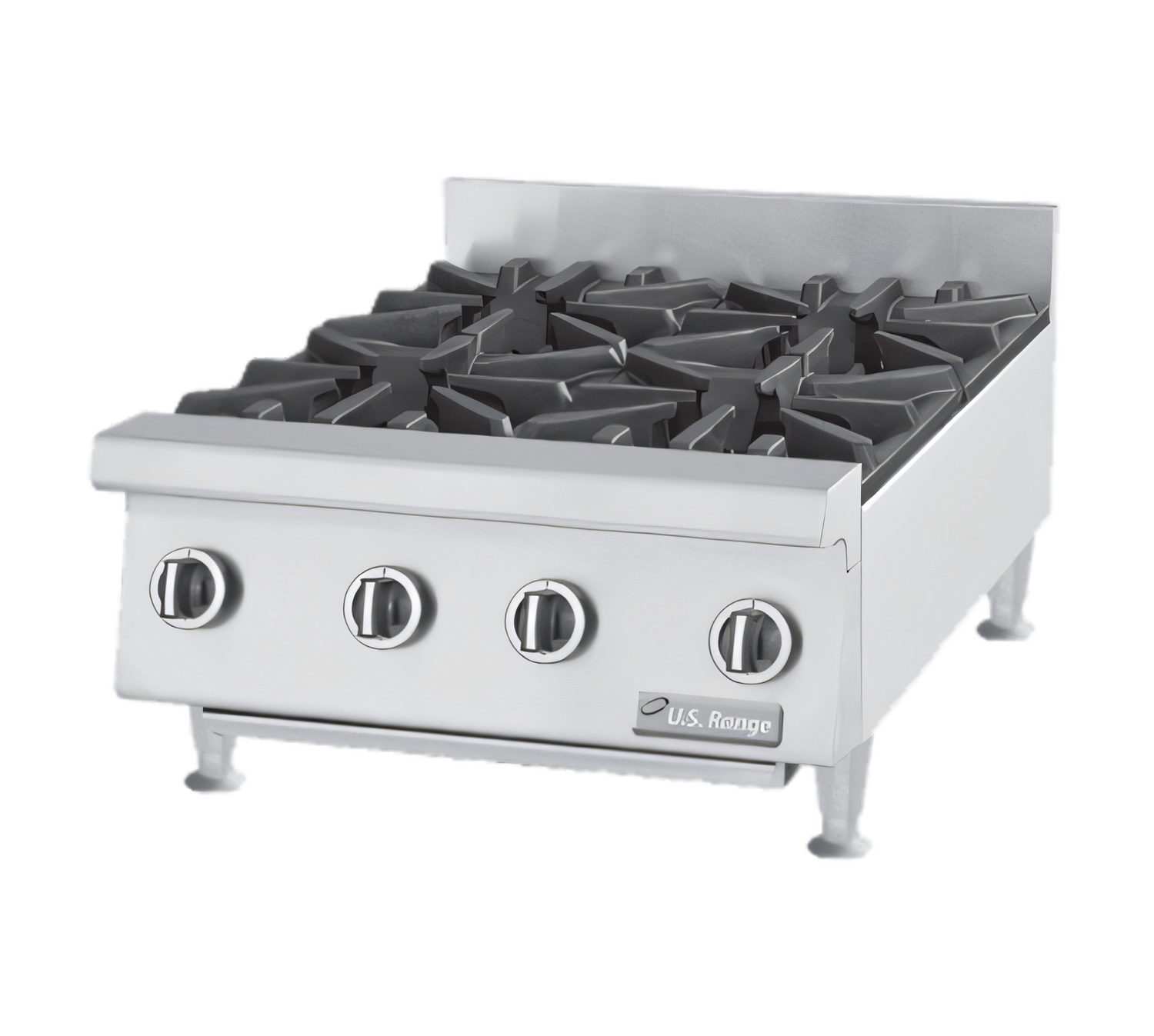

Garland U.S. Range UTOG24-4 Heavy-Duty Countertop Hot Plate
24" wide • 4 Performer Pro burners • 120,000 BTUBuilt for high-volume commercial kitchens, the Garland U.S. Range UTOG24-4 (also known as the “UT Counter” 24") packs the power of a full-size range into a compact countertop footprint. Four 30,000 BTU open burners, rugged stainless steel construction and thoughtful service features keep you cooking at peak performance through the busiest rush.
Key features

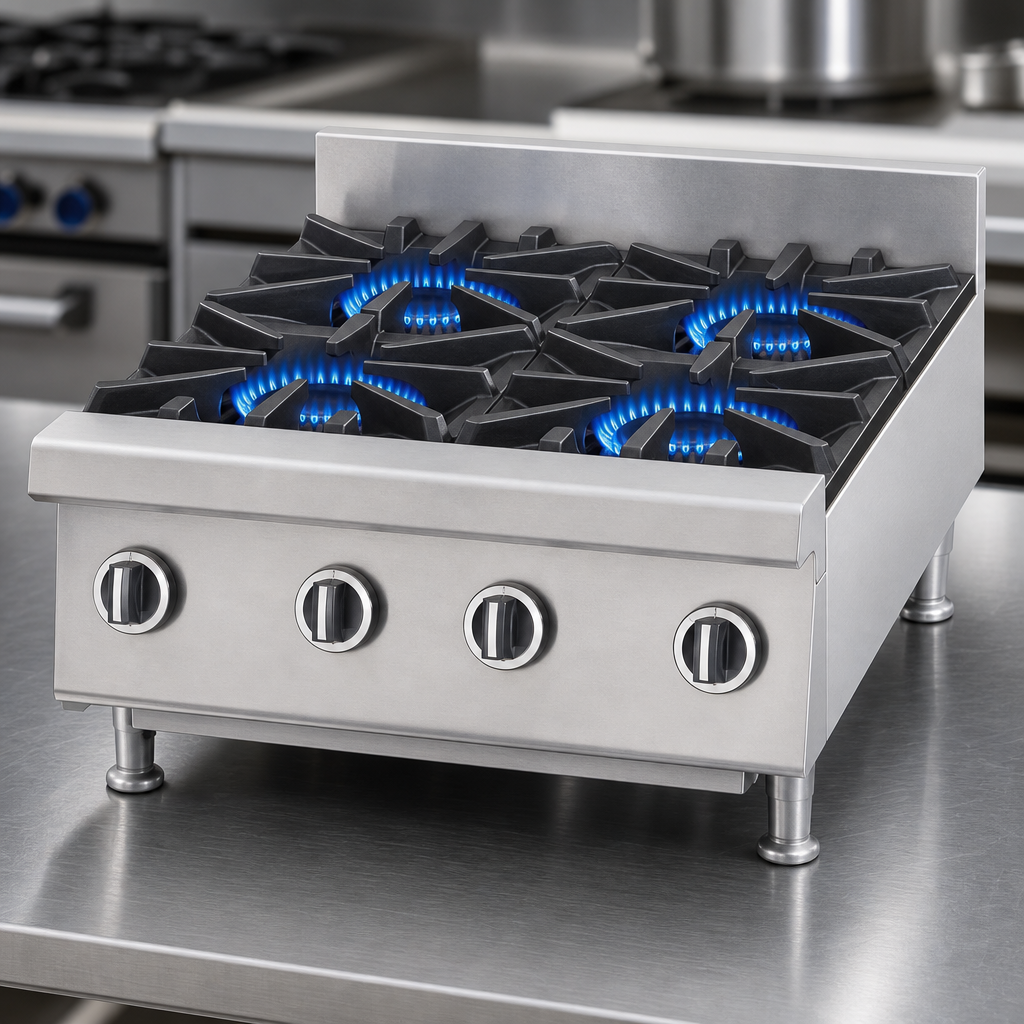

- 4 × 30,000 BTU/h two-piece octagonal Performer Pro burners (Natural Gas) – 120,000 BTU total

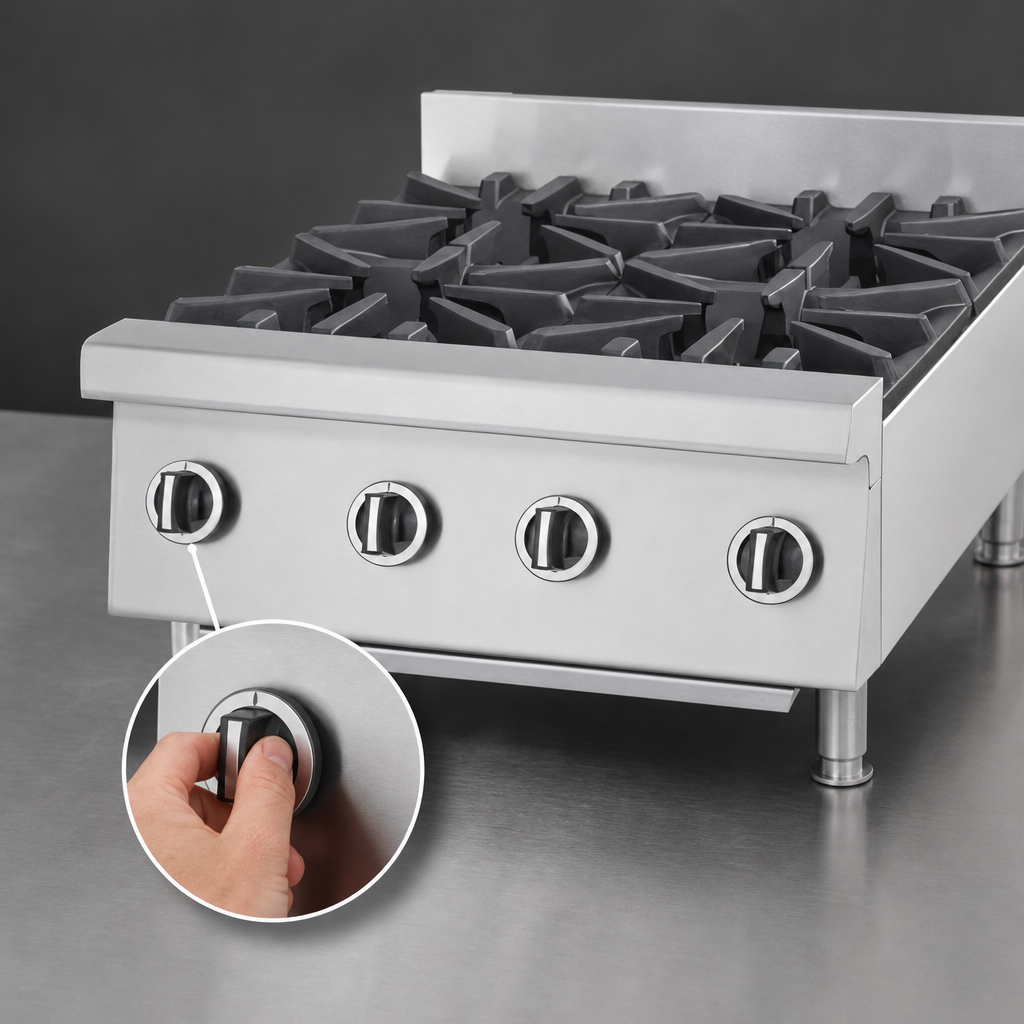

- Individual manual control valves with continuously lit pilots protected beneath the grates
- Split ergonomic cast-iron grates shield pilots from spills and lift out easily for cleaning
- Stainless steel front, sides and back withstand daily abuse in the busiest line-ups
- 3 ½" deep front rail adds a handy work surface and guards the control panel
- Full-width stainless crumb tray for fast, tool-free clean-out
- 4" adjustable stainless legs for levelling on any counter
- 3/4" NPT rear gas inlet with regulator and “T” manifold – straight-through or flush installation
- Field convertible for Natural or Propane gas
- CSA and NSF certified for safe, code-compliant operation
Specifications
| Model | UTOG24-4 |
|---|---|
| Burners | 4 open-top Performer Pro |
| BTU per burner | 30,000 BTU/h (Natural) • 26,000 BTU/h (Propane) |
| Total input | 120,000 BTU/h (Natural) • 104,000 BTU/h (Propane) |
| Gas connection | 3/4" NPT rear, regulator included |
| Dimensions (W × D × H) | 23-5/8" × 32" × 13" (600 mm × 814 mm × 330 mm) with standard legs |
| Cooking height | 13" with legs (reduce by 1 ¾" with optional skirt) |
| Clearances to combustibles | 14" (sides) • 6" (rear) |
| Ship weight | Approx. 135 lb / 61 kg |
| Certifications | CSA, NSF |
Popular accessories (sold separately)
- Stainless skirt for drop-in / flush mounting (reduces overall height)
- Stainless equipment stand with solid top and undershelf (feet or locking casters)
- Removable condiment rail with 1/9 or 1/3 pan cut-outs
Gas ratings shown are for installations up to 2,000 ft (610 m) above sea level. Please specify elevation and gas type when ordering.
