Garland UTGG72-G72M Gas Griddles
Garland UTGG72-G72M Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland UTGG72-G72M Gas Griddles
Description

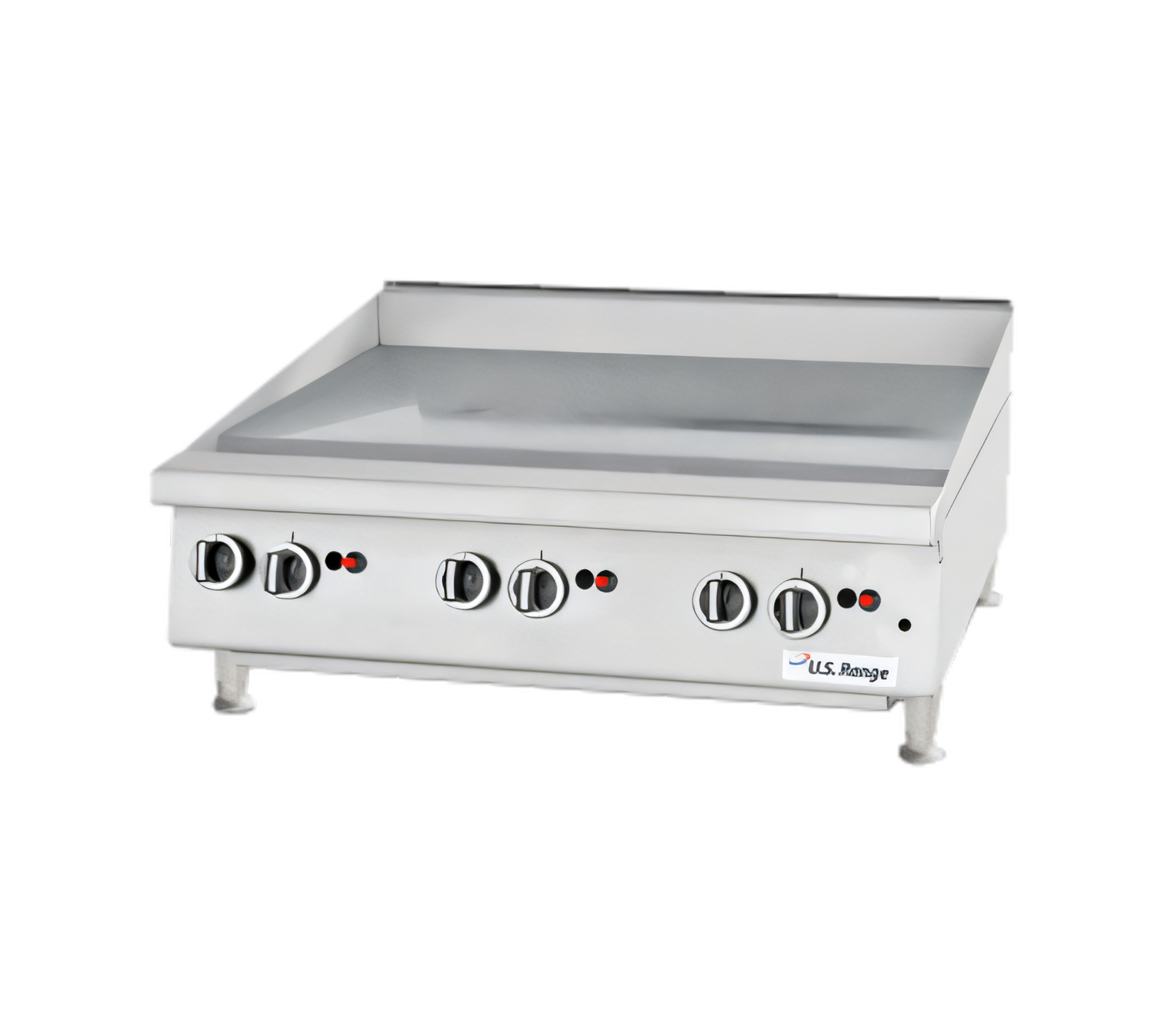

Garland / U.S. Range UTGG72-G72M 72" Heavy-Duty Gas Countertop Griddle
162,000 BTU • Manual Hi-Lo Controls • 1" Steel PlateWhen your kitchen demands unwavering performance across a vast cooking surface, choose the Garland UTGG72-G72M. This 70-7/8" wide, heavy-duty countertop griddle delivers even heat from edge to edge, rock-solid temperature control, and the rugged construction chefs expect from Garland’s U.S. Range series.
Key Features
- 6 U-shaped burners (one every 12") for uniform heat distribution
- Total output of 162,000 BTU (27,000 BTU per burner)

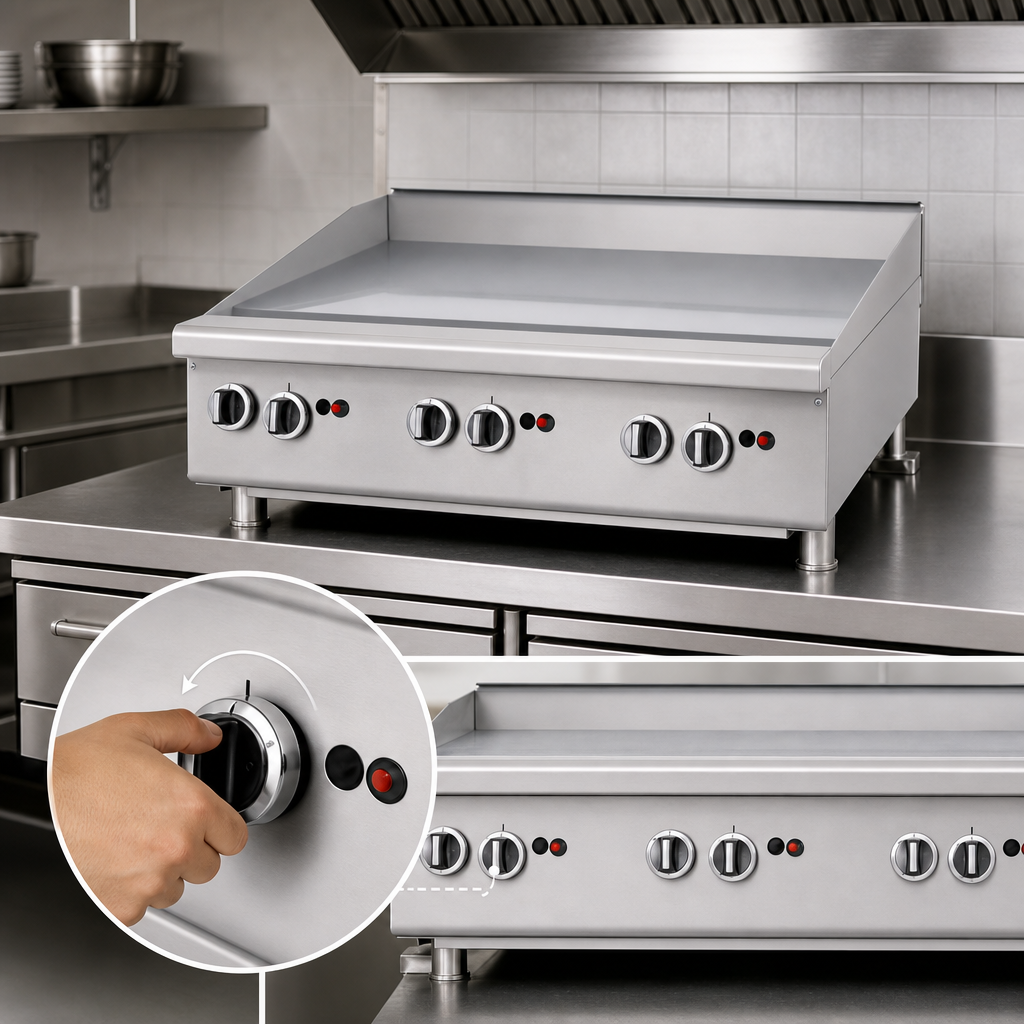

- Manual hi-lo valves deliver an approximate 320 °F–730 °F plate range

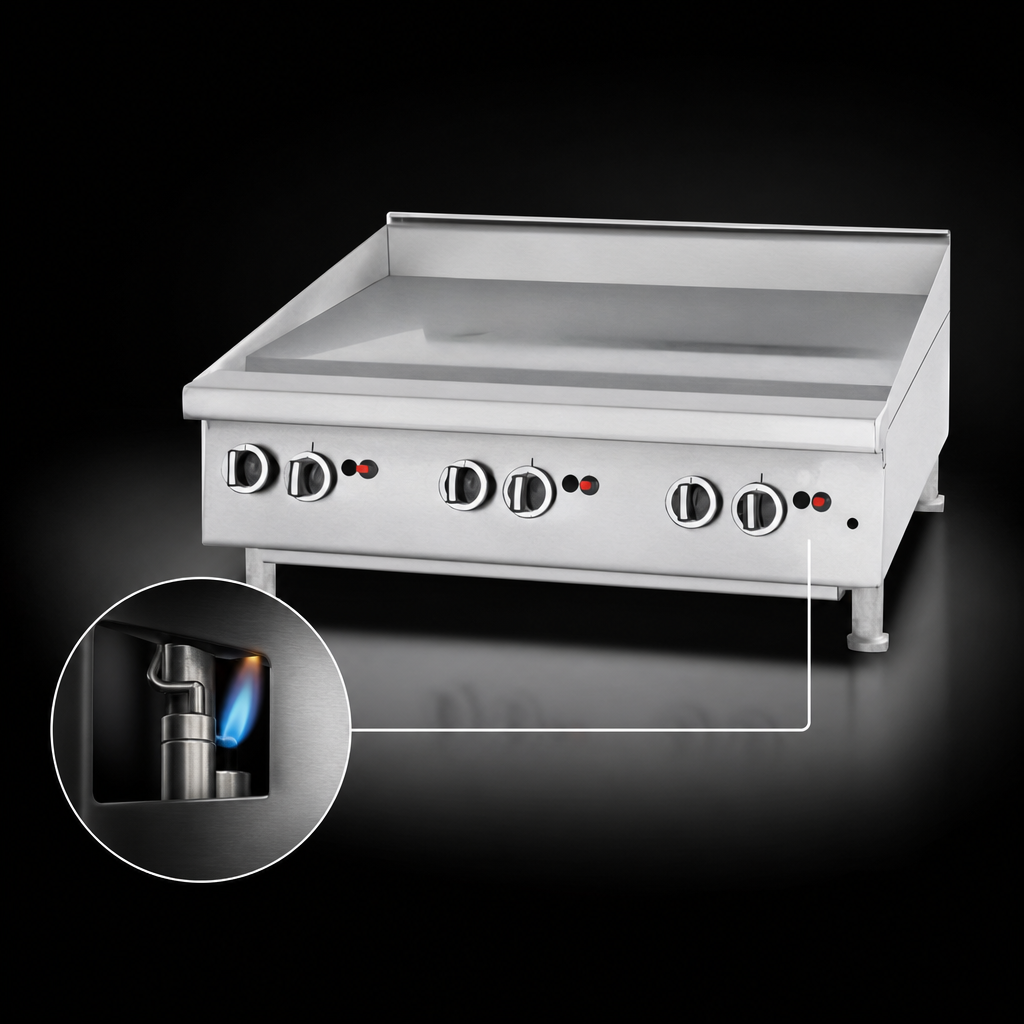

- Reliable piezo pilot ignition on each burner—no electricity required
- Massive 70-7/8" W × 23" D cooking surface with a 1" thick polished steel plate
- 4" wide, 3-sided grease trough plus large-capacity stainless steel grease drawers
- Durable stainless steel front, sides & back with 4" adjustable stainless legs
- 3/4" NPT gas regulator with straight-through or flush rear connection
- Certified CSA & NSF for commercial kitchens
Specifications
| Manufacturer / Model | Garland / U.S. Range UTGG72-G72M |
|---|---|
| Control Type | Manual hi-lo valves (one per burner) |
| Burners | 6 U-shape steel track burners |
| Total BTU | 162,000 BTU/hr |
| Cooking Surface (W × D) | 70-7/8" × 23" (1,800 mm × 584 mm) |
| Plate Thickness | 1" (25 mm) smooth polished steel |
| Overall Dimensions (W × D × H) | 70-7/8" × 32" × 13" (1,800 mm × 814 mm × 330 mm) |
| Gas Connection | 3/4" NPT (regulator included) |
| Operating Gas Pressure | Nat Gas 7" WC | LP Gas 11" WC |
| Clearance to Combustibles | 6" sides & rear |
| Shipping Weight | 790 lb (359 kg) |
| Certifications | CSA, NSF |
Why Choose Garland’s UTGG72-G72M?
- Consistency at scale – Six burners and a full-length 1" plate handle high-volume searing, browning, and breakfast service without hotspots.
- No-nonsense controls – Independent hi-lo valves let operators fine-tune heat zones instantly, ideal for mixed menu items.
- Easy clean-up – A 4" front trough channels grease into removable drawers that hold up to 1.4 gal each, minimizing downtime between rushes.
- Built for the long haul – All-stainless exterior and heavy-gauge components stand up to the rigors of demanding commercial kitchens.
Gas type (Natural or Propane) must be specified at time of order. Shipped ready for commercial installation with 4" adjustable stainless legs; optional stands, chrome plates, or condiment rails are available separately.
