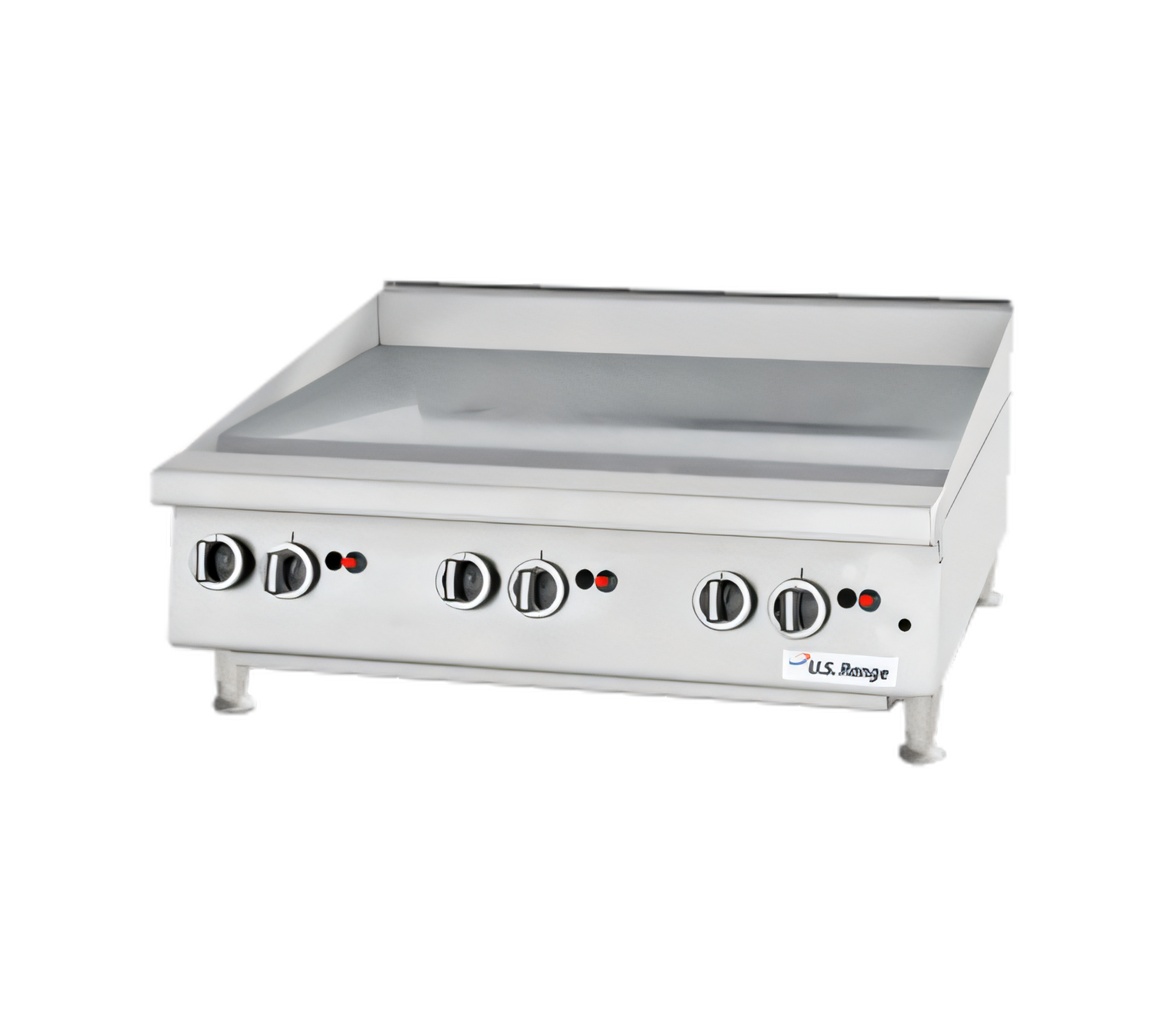

Garland UTGG48-GT48M Heavy-Duty Gas Countertop Griddle
47 ¼" x 23" cooking surface • 112,000 BTU • CSA & NSF CertifiedThe Garland U.S. Range UTGG48-GT48M brings rugged construction and precise temperature control to high-volume kitchens. Four independent, snap-action thermostats regulate a full 47 ¼" wide, 1" thick polished steel plate, delivering even heat from breakfast rush through late-night service.
Key Features
- Spacious 47 ¼" W × 23" D cooking surface—plenty of room for burgers, pancakes, steaks and more.

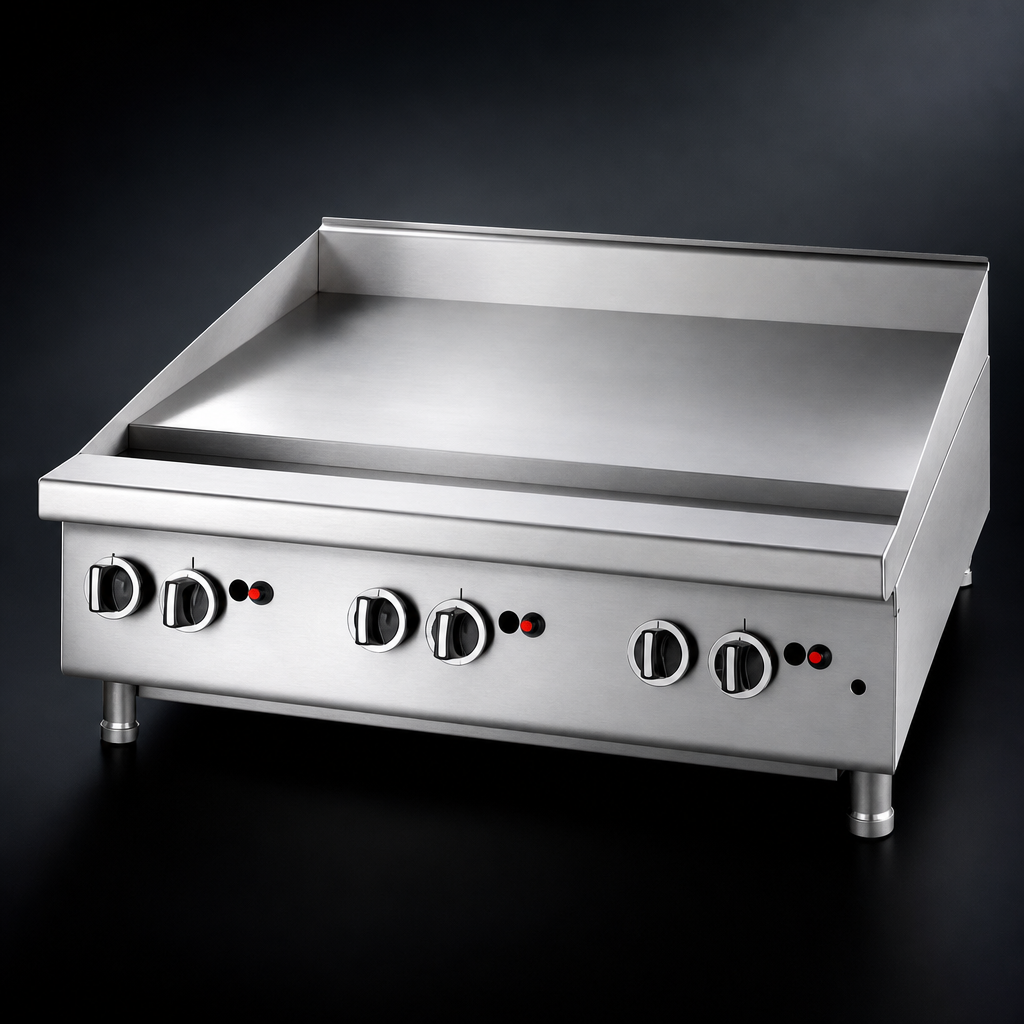

- 1" thick smooth steel griddle plate retains heat for fast recovery and consistent searing.
- Four U-shaped burners (one every 12") with snap-action thermostatic controls for pinpoint temperatures from 200 °F to 550 °F (90 °C–290 °C).
- Total output of 112,000 BTU/h (28,000 BTU per burner) available for natural or propane gas.
- Piezo pilot ignition—no external power required.
- 4" deep, full-width stainless steel grease trough plus large-capacity S/S grease drawer (≈1.4 gal / 5.3 L) for easy, mess-free clean-up.
- Durable stainless steel front, sides & back with 4" adjustable S/S legs for a level, professional install.
- 3/4" NPT rear gas regulator with “T” connection—accommodates straight-through or flush-mount hookups.
- Designed to line-up seamlessly with other Garland countertop equipment.
At-a-Glance Specs
| Model | UTGG48-GT48M |
|---|---|
| Cooking Surface | 47 ¼" W × 23" D (1200 mm × 584 mm) |
| Plate Thickness | 1" polished steel (smooth) |
| Controls | 4 × snap-action thermostats with on/off valves |
| Temperature Range | 200 °F – 550 °F (90 °C – 290 °C) |
| Total Input | 112,000 BTU/h (28,000 BTU per burner) |
| Ignition | Piezo pilot |
| Overall Dimensions | 47 ¼" W × 32" D × 13" H (1200 mm × 814 mm × 330 mm) with 4" adjustable legs |
| Shipping Weight | ≈595 lb / 270 kg |
| Gas Connection | 3/4" NPT (rear) |
| Certifications | CSA, NSF |
Optional Upgrades (sold separately)
- Chrome-finished or half/full grooved griddle plates
- Electric spark ignition (120 V or 208/240 V)
- Stainless steel skirt for drop-in mounting (reduces height by 1 ¾")
- Stainless steel equipment stand with shelves & casters
- Removable condiment rail (1/9 or 1/3 pan cut-outs)
Commercial use only. Garland / U.S. Range equipment is not approved for
residential installations.
Need a custom configuration or accessories? Contact our team for expert assistance.
$5,271.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland 48" heavy-duty gas countertop griddle, 112,000 BTU, 1" steel plate, thermostatic controls, stainless body, NSF/CSA certified.
Manufacturer
Garland
Certifications
NSF, CSA
Height
13.0in
Width
47.25in
Depth
32.0in
Shipping Weight
595.0lbs
Cooking Surface Width (side - side)
43" - 48"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
20" - 23"
Plate Thickness
1"
Griddle Plate Finish
smooth steel
Exterior Finish
stainless steel front & sides
Specifications
Griddle, countertop, gas, heavy-duty, 47-1/4" W x 23" D cooking surface,1" thick smooth steel griddle plate, snap action thermostatic controls, piezo pilot igniters, 4" deep front grease trough, stainless steel front, sides and back, 4" adjustable feet, 112,000 BTU (US Range), CSA, NSF
