Garland UTGG48-G48M Gas Griddles
Garland UTGG48-G48M Gas Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland UTGG48-G48M Gas Griddles
Description
Garland UTGG48-G48M Heavy-Duty 48" Gas Countertop Griddle
47-1/4" × 23" cooking surface • 108,000 BTU • Manual hi-lo controlsBuilt for the busiest breakfast bars, diners and institutional kitchens, the Garland UTGG48-G48M delivers uncompromising power and durability in a space-saving countertop design. Four independently controlled “U”-shaped burners blanket the 1" thick polished steel plate with even heat, while a 4" front trough and high-capacity grease drawer keep your line clean and efficient shift after shift.
Key Features
- 47-1/4" W × 23" D cooking surface provides 7.5 ft² of production space.
- 1" thick smooth steel griddle plate retains heat for rapid recovery and consistent searing.

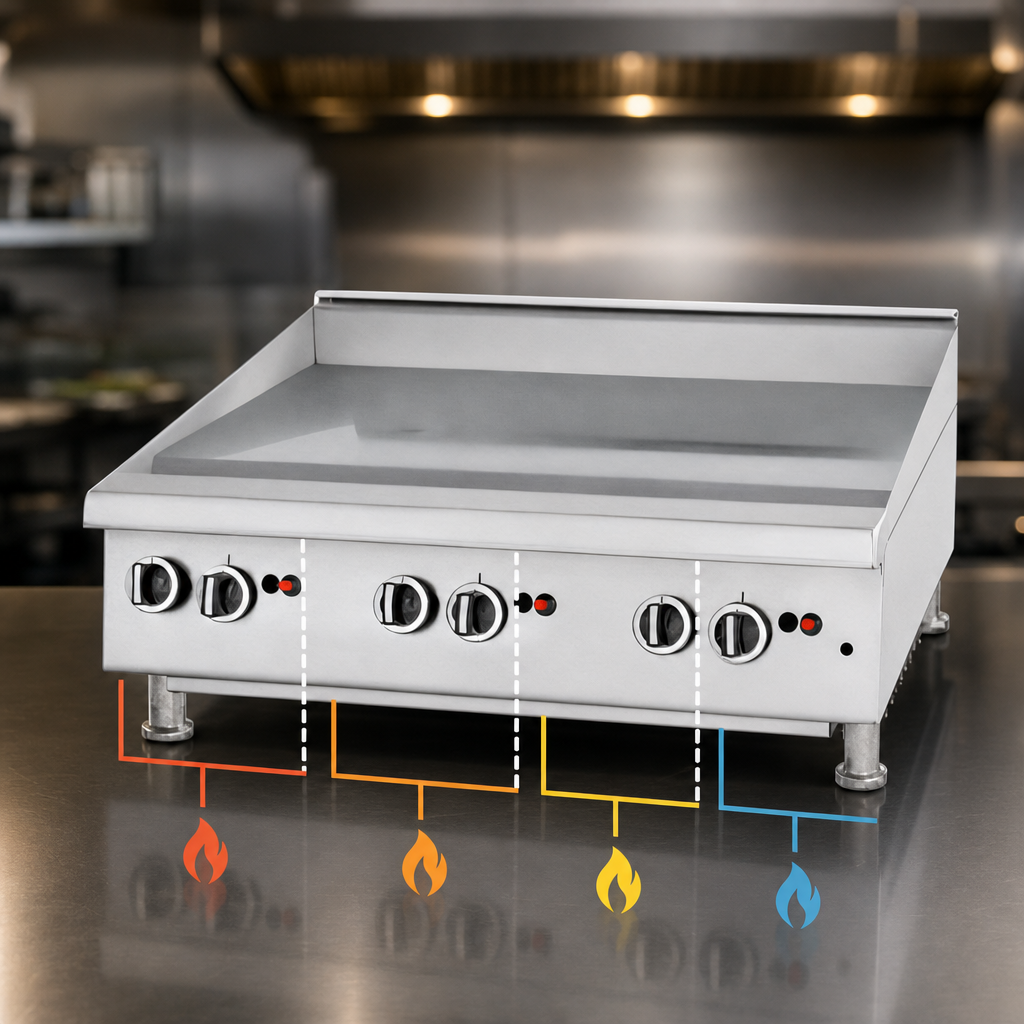

- Four 27,000 BTU “U”-shaped burners (one every 12") with manual hi-lo valves for precise zone control.

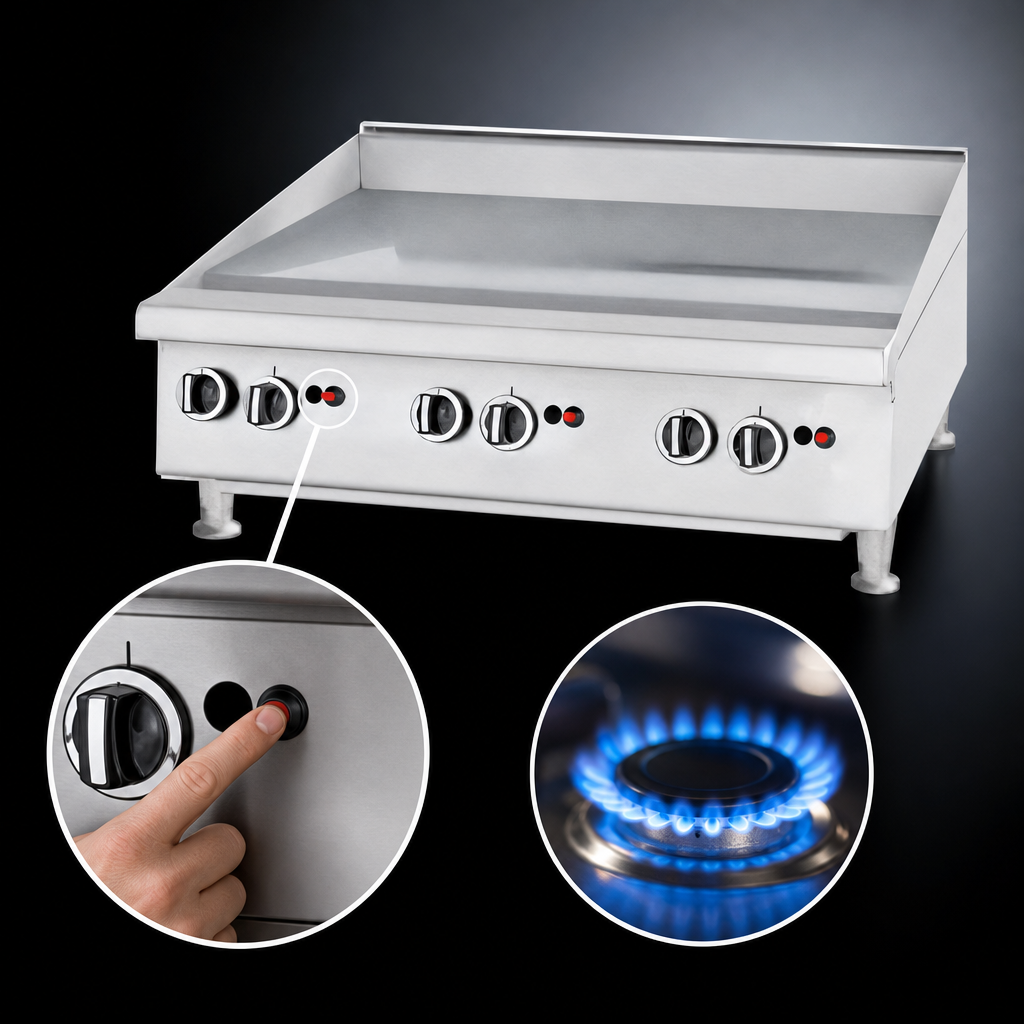

- Reliable piezo pilot igniters—no electricity required.
- 4" wide/deep stainless steel front grease trough channels runoff to a 1.4 gal (5.3 L) grease drawer.
- Full stainless steel chassis (front, sides & back) stands up to daily commercial abuse.
- 4" adjustable stainless steel legs make leveling on any prep surface quick and simple.
- 3/4" NPT regulator included for straight-through or flush rear gas connections (natural or LP).
- Certified to CSA & NSF standards for gas-fired commercial cooking equipment.
Specification Overview
| Model | UTGG48-G48M |
|---|---|
| Control Type | Manual hi-lo valves (1 per burner) |
| Number of Burners | 4 “U”-shaped track burners |
| Total Input | 108,000 BTU/h |
| Cooking Surface | 47-1/4" W × 23" D (1,200 mm × 584 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Temperature Range* | Approx. 320 °F – 730 °F (160 °C – 388 °C) |
| Grease Management | 4" trough & 1.4 gal stainless drawer |
| Exterior Construction | Stainless steel front, sides & back |
| Feet | 4" adjustable stainless legs |
| Gas Connection | 3/4" NPT (regulator supplied) |
| Certifications | CSA, NSF |
| Shipping Weight | ≈ 585 lb / 266 kg |
Ideal For
- Diners & short-order breakfast operations
- Hotel, resort & casino kitchens
- High-volume concession stands and food trucks
- Catering halls, cafeterias & institutional facilities
*Plate temperatures are approximate and depend on room conditions, product load and operator settings.
