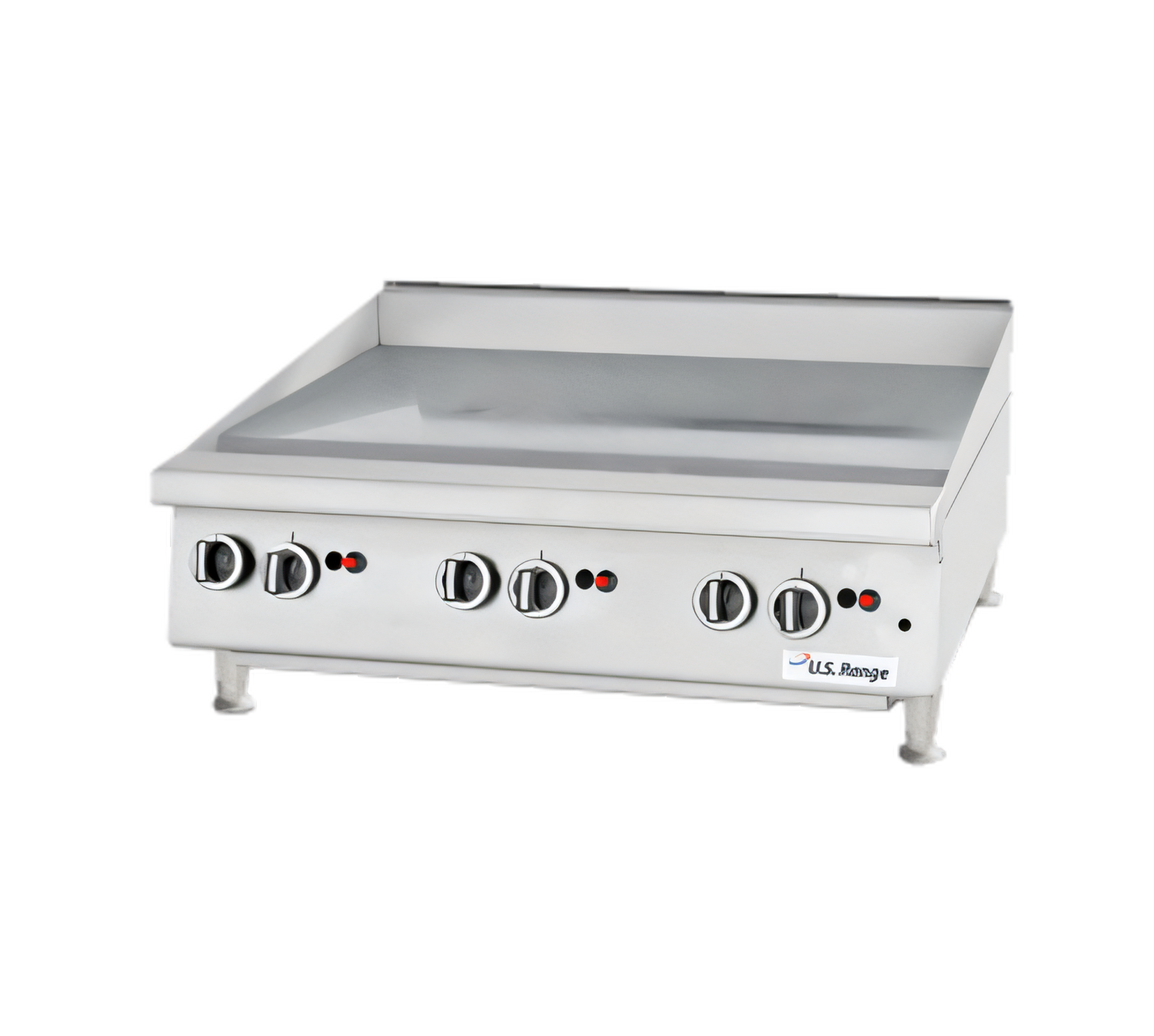

Garland U.S. Range Heavy-Duty Manual Gas Countertop Griddle, 35-7/16" W x 23" D, 81,000 BTU

SKU: UTGG36-G36M
$3,249.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Garland Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment

Garland U.S. Range Heavy-Duty Manual Gas Countertop Griddle, 35-7/16" W x 23" D, 81,000 BTU

Smooth steel plate, piezo pilot ignition, natural gas or propane compatible

Built for high-volume cooking, this heavy-duty countertop griddle pairs a 35-7/16-inch smooth steel surface with manual hi-lo control and 81,000 BTU of heat.

  • 35-7/16" W x 23" D cooking surface with a 1" smooth steel griddle plate.
  • Manual hi-lo controls with piezo pilot ignition for straightforward operation.
  • 81,000 BTU total input delivers strong output for busy commercial service.
  • Stainless steel front, sides, and back with 4" adjustable feet.
  • 4" grease trough and deep grease drawer help simplify cleanup.
  • Compatible with natural gas or propane; optional plates, stand, skirt, and condiment rail are available.

Overall Dimensions:

35.44"W x 32.0"D x 13.0"H

Product Weight:

395.0 lb

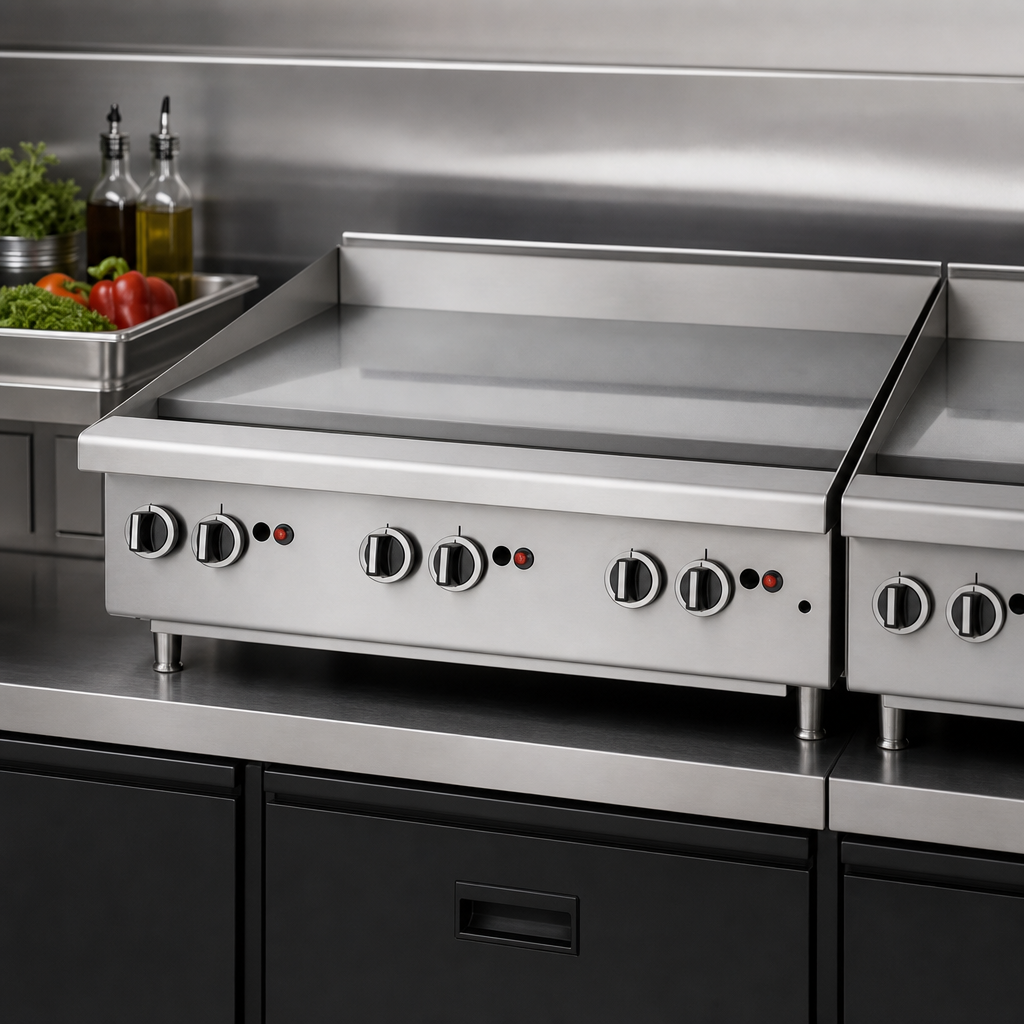

Heavy-Duty Countertop Design

Commercial gas griddle designed for side-by-side matching with other U.S. Range models.

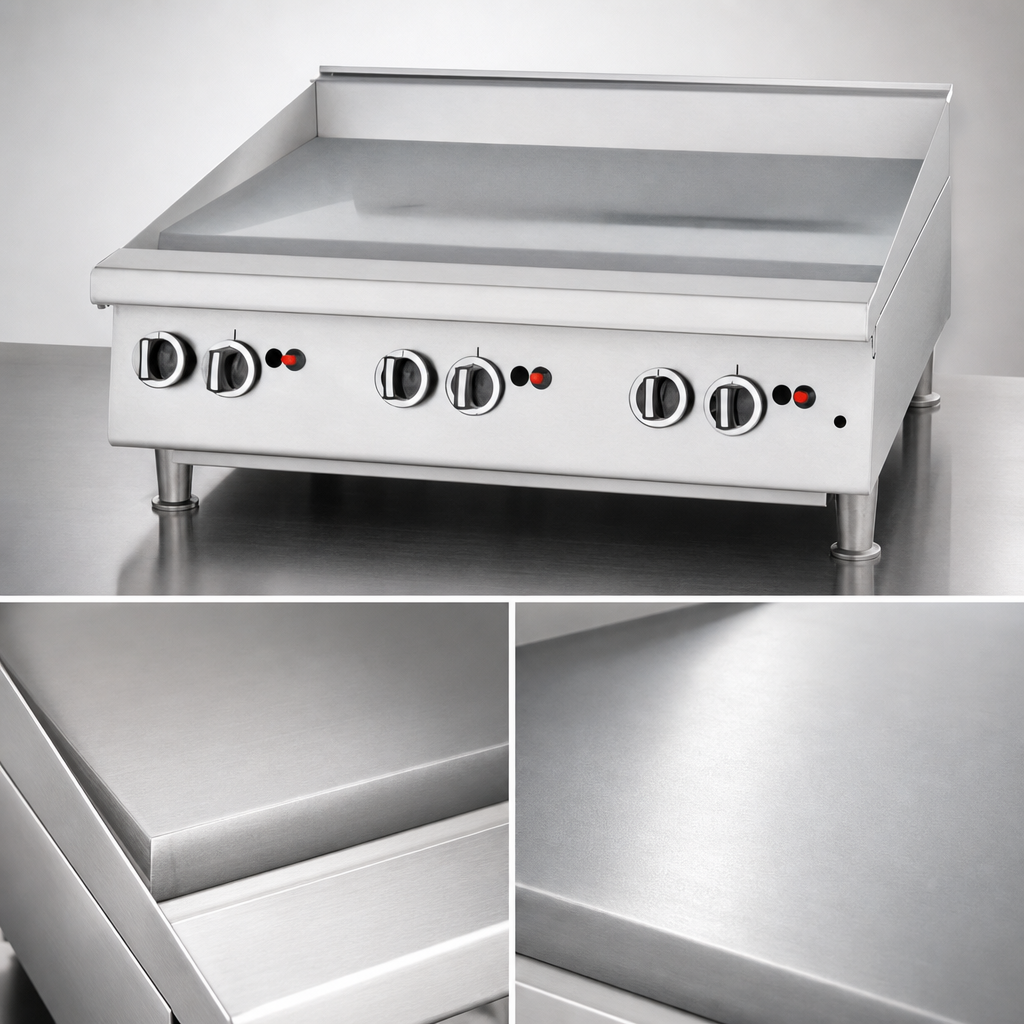

Smooth Steel Griddle Plate

1-inch thick polished steel surface for even heat distribution and dependable cooking results.

Manual Hi-Lo Controls

Manual valve control provides approximate plate temperature adjustment from 320°F to 730°F.

Piezo Pilot Ignition

Standard ignition system for reliable startup.

81,000 BTU Output

High-output heating capacity for demanding production kitchens.

Stainless Steel Construction

Stainless steel front, sides, and back for durability and easy cleaning.

Grease Management

4-inch grease trough and deep grease drawer/tray help channel runoff away from the cooking area.

Adjustable Feet

4-inch adjustable feet help level the unit on the counter.

Flexible Gas Hookup

3/4-inch NPT gas regulator with T manifold connection supports straight-through rear or flush-mount gas connections.

Even Heat Burner Layout

One burner and control is provided for every 12 inches of linear griddle surface width.

Type Griddle
Style Heavy-Duty
Installation Type Countertop
Controls Manual Hi-Lo
Temperature Range 320°F to 730°F
Cooking Surface Width 35-7/16 Inches
Cooking Surface Depth 23 Inches
Griddle Plate Thickness 1 Inch
Griddle Plate Finish Smooth Steel
BTU 81,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The cooking surface measures 35-7/16 inches wide by 23 inches deep.
It comes standard with a piezo pilot ignition system. Electric spark ignition is available as an option.
It is for natural gas or propane only. Specify the gas type when ordering.
This model has an 81,000 BTU total input.
The installation clearance to combustible surfaces is 6 inches on the sides and 6 inches at the rear.
Optional accessories include chrome or grooved griddle plates, a stainless steel skirt, a stainless stand, a condiment rail, and electric spark ignition options.
