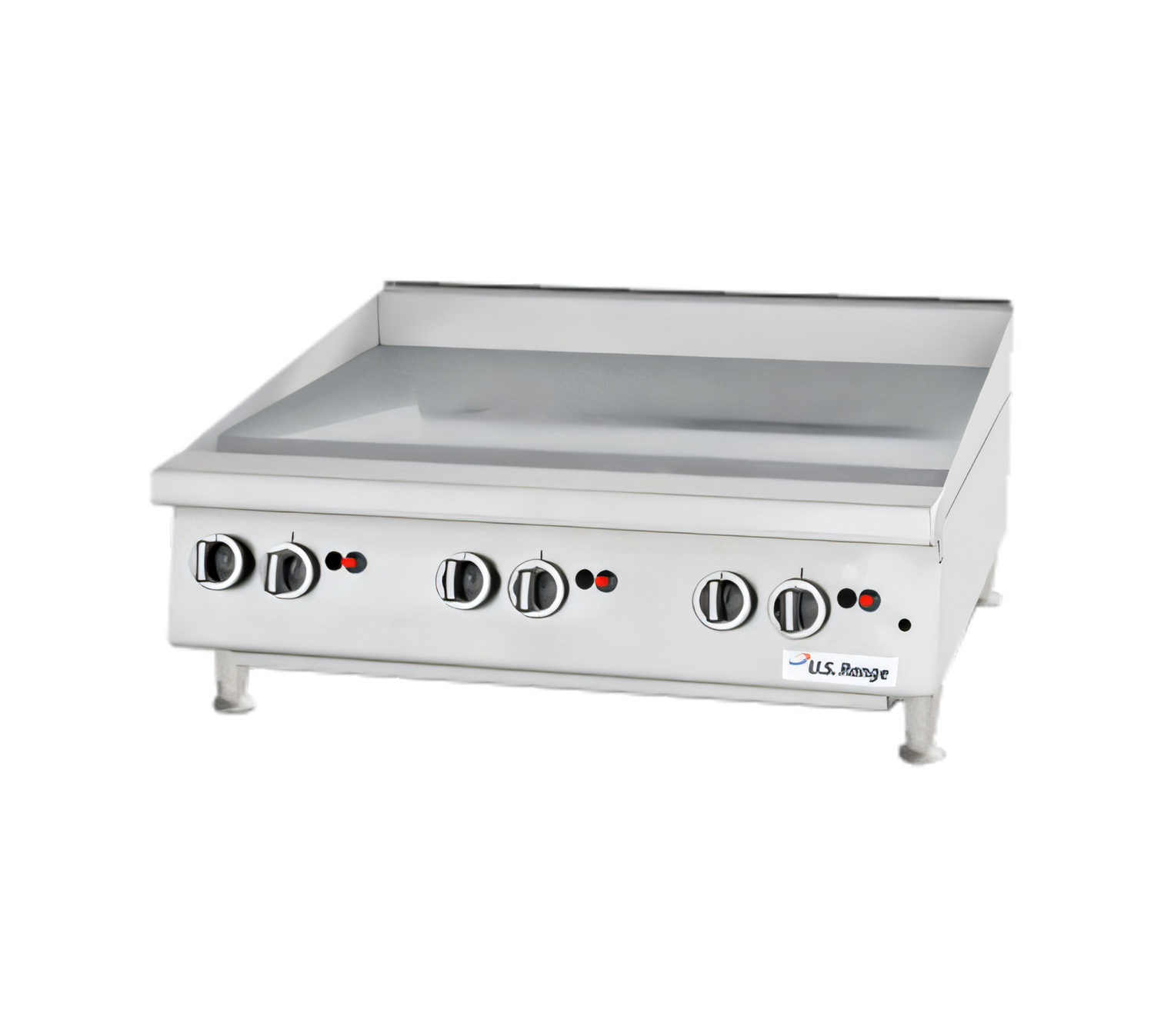

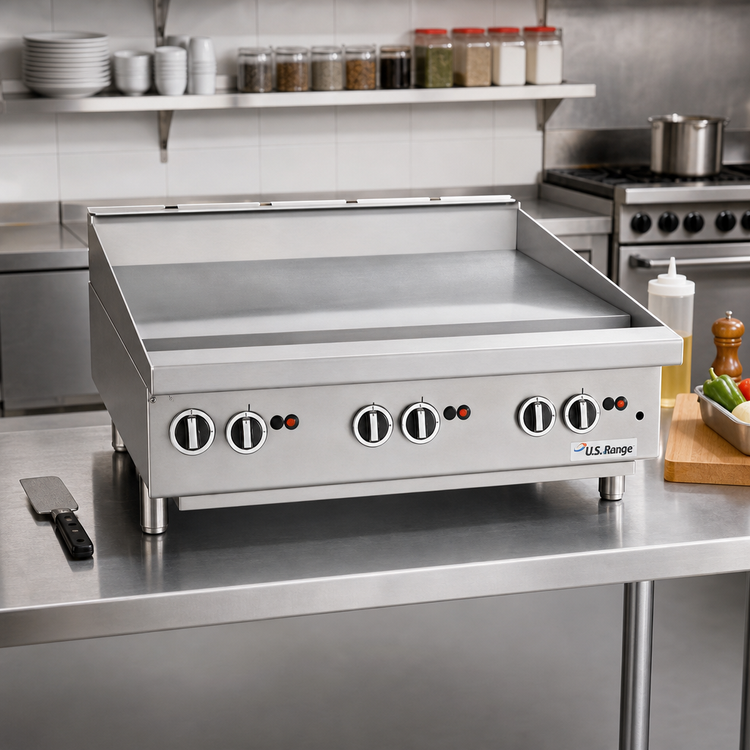

Garland U.S. Range Heavy-Duty 24-Inch Countertop Gas Griddle with Manual Hi-Lo Controls

1-Inch Smooth Steel Plate, Stainless Steel Body, 54,000 BTU

Built for demanding line cooking, this countertop gas griddle delivers even heat, durable stainless steel construction, and easy manual hi-lo control.

  • Heavy-duty countertop gas griddle designed for commercial line cooking and side-by-side installation with other units.
  • 23-5/8" W x 23" D cooking surface with a 1" smooth steel griddle plate for dependable heat retention.
  • Manual hi-lo controls and piezo pilot ignition help simplify operation and heat management.
  • 54,000 BTU output with a 3/4" NPT gas connection for commercial gas service.
  • Stainless steel front, sides, and back add durability and ease of cleaning.
  • 4" front grease trough and adjustable legs support cleaner operation and easier leveling.

Overall Dimensions:

23.63"W x 32.0"D x 13.0"H

Product Weight:

280.0 lb

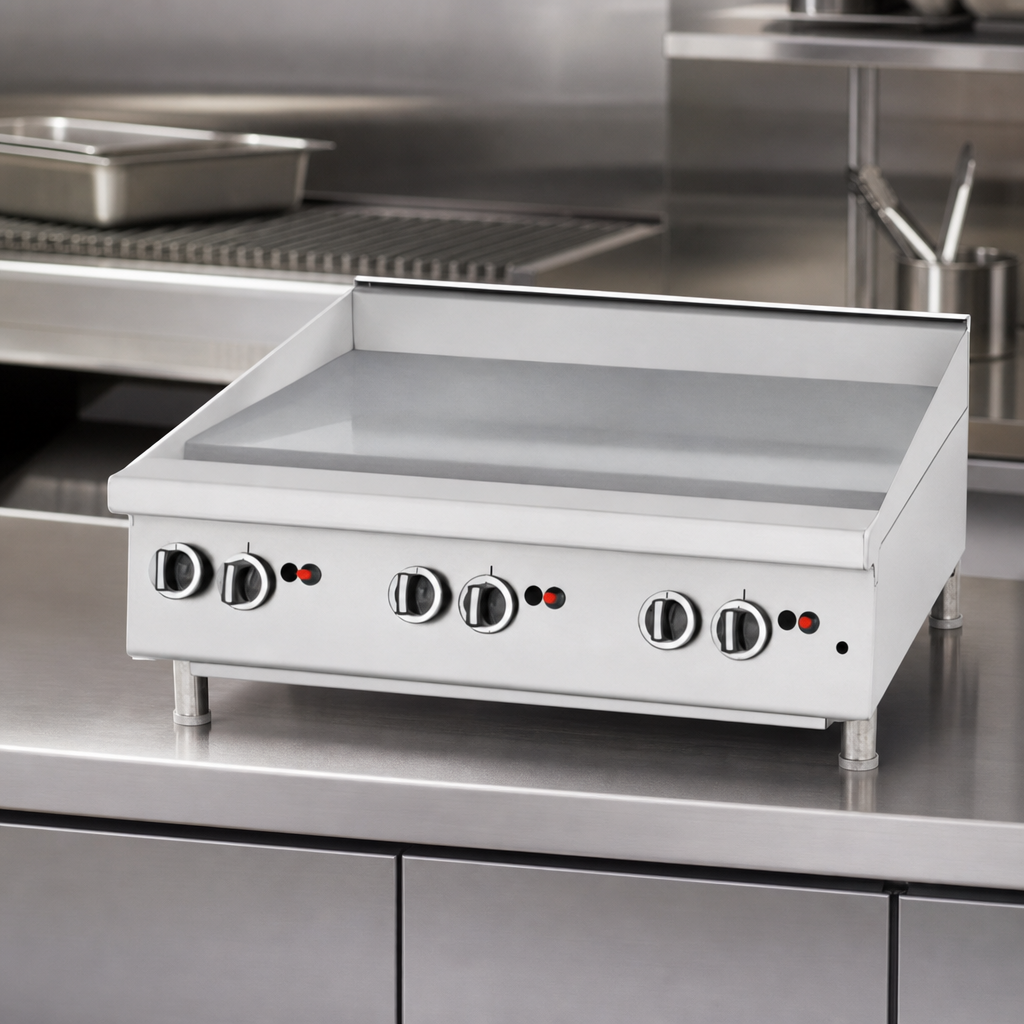

Heavy-Duty Countertop Design

Built as a commercial gas griddle for countertop installation and side-by-side matching with other units in the line.

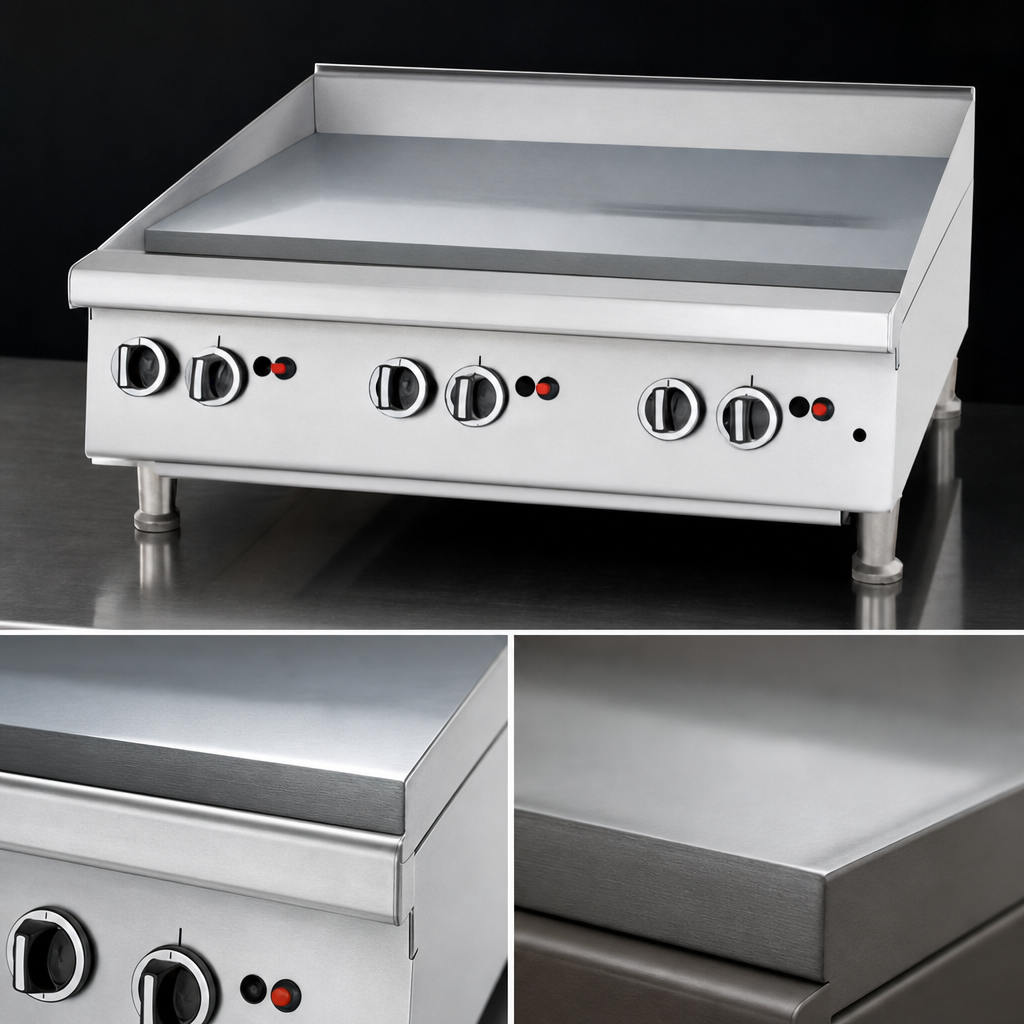

1-Inch Smooth Steel Griddle Plate

A thick smooth steel cooking surface helps retain and distribute heat for consistent griddling performance.

Manual Hi-Lo Controls

Manual valve-style hi-lo control gives the operator straightforward heat adjustment across the griddle.

Piezo Pilot Ignition

Piezo pilot ignition provides reliable start-up without the need for a separate electrical ignition system.

Stainless Steel Construction

Stainless steel front, sides, and back improve durability in busy commercial kitchen environments.

4-Inch Front Grease Trough

The deep front grease trough helps capture drippings and supports easier cleanup during service.

Gas Distribution Design

The griddle is designed with burner/control coverage across the cooking surface for more even heating.

Flexible Gas Connection

A 3/4" NPT gas regulator with T manifold connection supports straight-through rear or flush-mount gas connections.

Type Griddle
Style Heavy Duty
Installation Type Countertop
Controls Manual Hi-Lo
Cooking Surface Width 23-5/8 Inches
Cooking Surface Depth 23 Inches
Plate Thickness 1 Inch
Griddle Plate Finish Smooth Steel
Material Stainless Steel
Finish Stainless Steel
BTU 54,000 BTU
Gas Connection Size 3/4 Inch NPT
Shipping Width 24 Inches
Shipping Depth 32 Inches
Shipping Height 13 Inches
Shipping Weight 280 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The cooking surface measures 23-5/8 inches wide by 23 inches deep.
This model uses a piezo pilot ignition system.
The series is intended for natural gas or propane use only; specify the required gas type when ordering.
The documentation calls for 6 inches of clearance on the sides and rear.
Yes, it is equipped with 4-inch stainless steel adjustable legs.
Optional accessories include chrome or grooved griddle plates, a stainless steel skirt for counter mounting, a stainless stand, and a removable condiment rail.
