Garland Polar Cuisine™ 108" Remote Refrigerated Base
Model UN17R108 • 4-Section / 8-Drawer Equipment StandKeep ingredients ice-cold and right at the cooking line. Built to live beneath a 108-inch Garland Cuisine Series modular cooktop, the Polar Cuisine remote base combines rock-solid stainless-steel construction with high-capacity refrigerated storage for up to 12 full-size hotel pans.
Key Benefits
- Eight low-profile drawers – 4 × 19" and 4 × 32" – glide on stainless-steel roller assemblies covered by a 10-year parts warranty.
- Each standard drawer accepts a full-size 12" × 20" × 4" hotel pan; total capacity 12 pans.

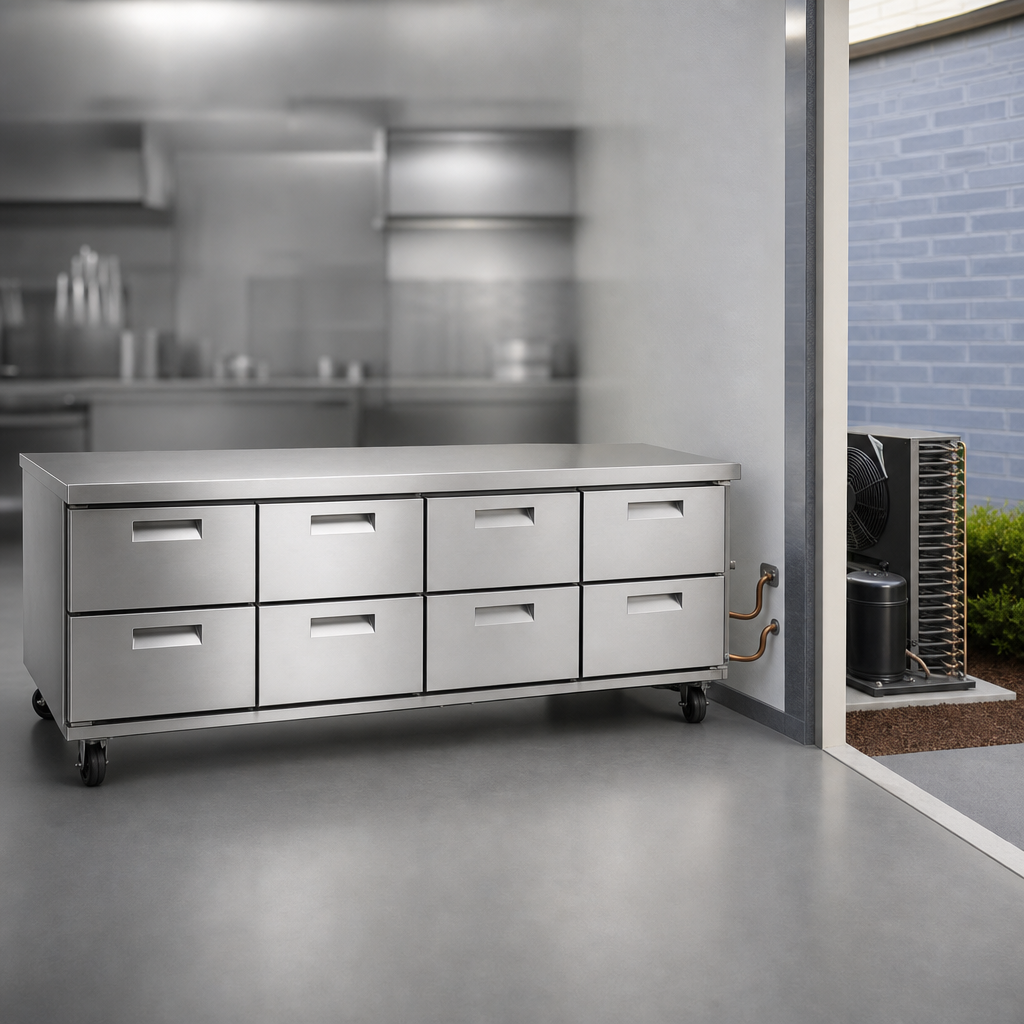

- Remote refrigeration keeps compressor heat and noise out of the kitchen while delivering a 2,850 BTU evaporator capacity at 23 °F / -5 °C.
- Durable, all-stainless exterior with ABS interior sides and foamed-in-place polyurethane insulation for optimal temperature retention.
- Electronic control with bright digital temperature read-out for quick, at-a-glance monitoring.
- 6" adjustable stainless-steel legs included; optional 6" casters available for easy mobility.
- Tool-free, snap-in Santoprene magnetic gaskets speed up cleaning and replacement.
- Vertically mounted blower coil provides even airflow to every drawer cavity.
- Certified to UL, cUL and NSF standards for commercial food-service operations.
Dimensions & Utilities
| Overall Width | 108 in / 2743 mm |
|---|---|
| Depth | 32 ¾ in / 832 mm |
| Height (on 6" legs) | 26 3⁄16 in / 665 mm |
| Sections & Drawers | 4 sections – 8 drawers (4 × 19" + 4 × 32") |
| Pan Capacity | 12 × 12" × 20" × 4" hotel pans |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A (pre-wired with cord & plug) |
| Refrigeration | Remote – 1/4" liquid line, 5/16" suction line; condensing unit supplied by others |
| Evaporator Capacity | 2,850 BTU / h @ 23 °F (-5 °C) |
| Legs / Casters | 6" stainless-steel adjustable legs (casters optional) |
| Certifications | UL, cUL, NSF |
Designed for Cuisine Series Cooktops
The low-height Polar Cuisine base is engineered to fully support Garland Cuisine Series heavy-duty modular tops, creating a seamless refrigerated cookline that maximizes workspace efficiency.
Important: This unit ships without a compressor and requires connection to a compatible remote
condensing system (by others). Available only when ordered in combination with Garland Cuisine Series
modular cooktops. Not approved for residential use.
$24,049.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland Polar Cuisine 108" refrigerated base with remote cooling, four-section stainless steel design, combo 19" & 32" drawers for efficient prep.
Manufacturer
Garland
Brand name
Polar Cuisine
Height
26.19in
Width
108.0in
Depth
32.75in
Shipping Weight
720.0lbs
Refrigeration
remote (refrigeration not included)
Top Finish
stainless steel top
Exterior Finish
all stainless steel exterior
Drawer Qty
8 drawers
Width
97" - 108" wide
Specifications
Polar Cuisine Refrigerated Base, remote refrigeration, 108" W, four-section, (4) 19" & (4) 32" drawers, stainless steel exterior, 6" stainless steel legs (available only when ordered with Cuisine Series modular cook tops) 115v/60/1-ph, 1.5 amps (U S Range)
