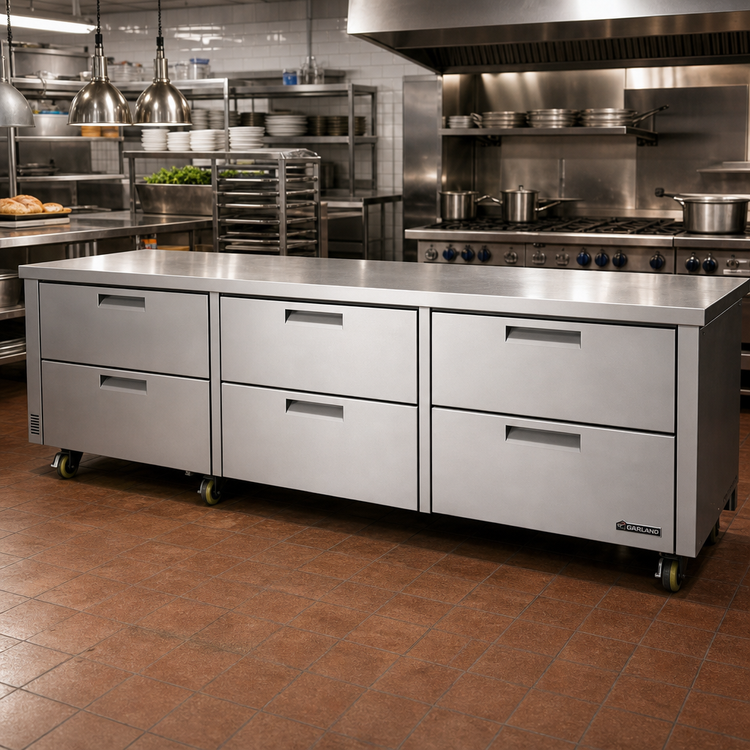

Garland Polar Cuisine Remote Refrigerated Base – 102" (UN17R102)

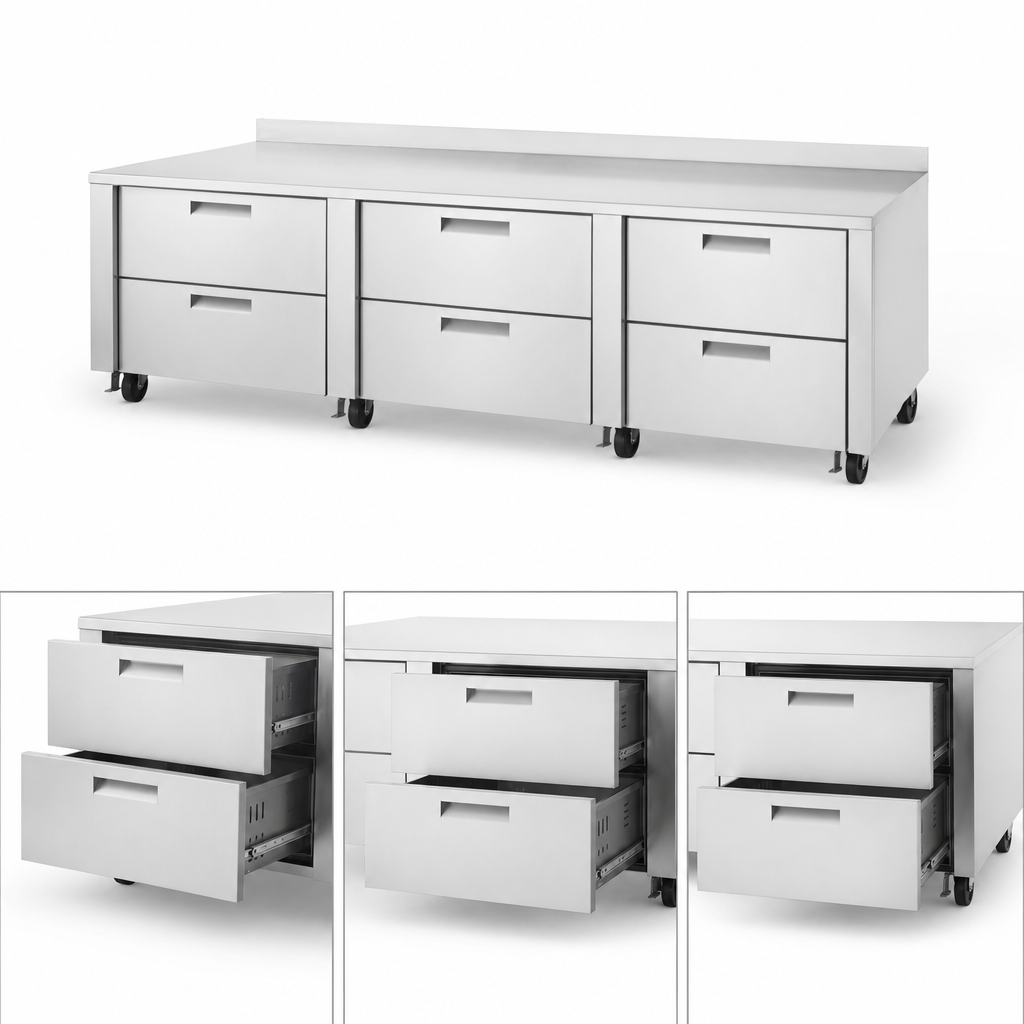

Three-section • (6) 32" drawers • 12 full-size pan capacityTurn the unused space beneath your Garland Cuisine Series cooktops into a high-performance cold zone. The 102" Polar Cuisine remote base keeps ingredients at safe holding temperatures, right where the chef needs them, without adding heat or noise to the line.
Highlights
- Designed exclusively for Garland Cuisine Series heavy-duty modular cooktops (mounts directly beneath)
- Remote refrigeration – connect to a field-supplied condensing unit to keep the kitchen cooler and quieter
- (6) heavy-duty 32" drawers on stainless roller tracks (10-year parts warranty)
- Holds up to 12 full-size 12" × 20" × 4" hotel pans
- All stainless steel exterior front & sides with stainless interior top, rear & bottom
- Electronic microprocessor control with easy-read digital display (°C option available)
- Santoprene™ snap-in magnetic gaskets & non-ODP / non-GWP foamed-in-place insulation
- 6" (152 mm) stainless adjustable legs standard; caster kit optional
Built for the Line
- Vertically mounted blower coil delivers even, rapid recovery after drawer openings
- Drawer slides feature stainless steel bearings for smooth, jam-free operation under heavy loads
- Galvanized steel bottom & back add strength without extra weight
- NSF, UL, cULus listed for commercial kitchens
Connections & Refrigeration
- Refrigerant: R452A (remote)
- Line stubs: 1/4" liquid, 5/16" suction
- Evaporator capacity: 2,850 BTU @ 23 °F (-5 °C) evaporating temperature
- Electrical: 115 V / 60 Hz / 1-ph, 1.5 A (hard-wire)
- 1/2" CPVC condensate drain (field connection)
Dimensions & Weight
| Width | 102" / 2,591 mm |
|---|---|
| Depth | 32-3/4" / 832 mm |
| Height (to cooking surface) | 26-3/16" / 665 mm |
| Sections / Drawers | 3 sections / 6 drawers (32" wide each) |
| Pan Capacity | 12 × 12" × 20" × 4" hotel pans |
| Shipping Weight | ≈ 675 lb / 306 kg |
Options & Accessories
- Extra-deep drawers (no mullion) for 6" deep pans
- 6" casters with front brakes & seismic restraint
- Door/tray rack kit for sheet pans (not available on 32" drawers)
- Celsius temperature readout
- Mechanical section located on left side
Garland products are intended for commercial use only and are not approved for residential applications.
