Garland U60-G60SS US Range U Series Ranges Gas Ranges
Description
Garland U-Series 60" Gas Restaurant Range — Full 60" Griddle, Dual Storage Base
Model U60-G60SS | 90,000 BTU | NSF, CSA Flame & StarWhen you need the rugged reliability of Garland and the versatility of a full-width griddle, the U-Series U60-G60SS delivers. A seamless 60" cooking surface, open storage bases and all-stainless construction make this range a true workhorse for high-volume kitchens.
Key Features

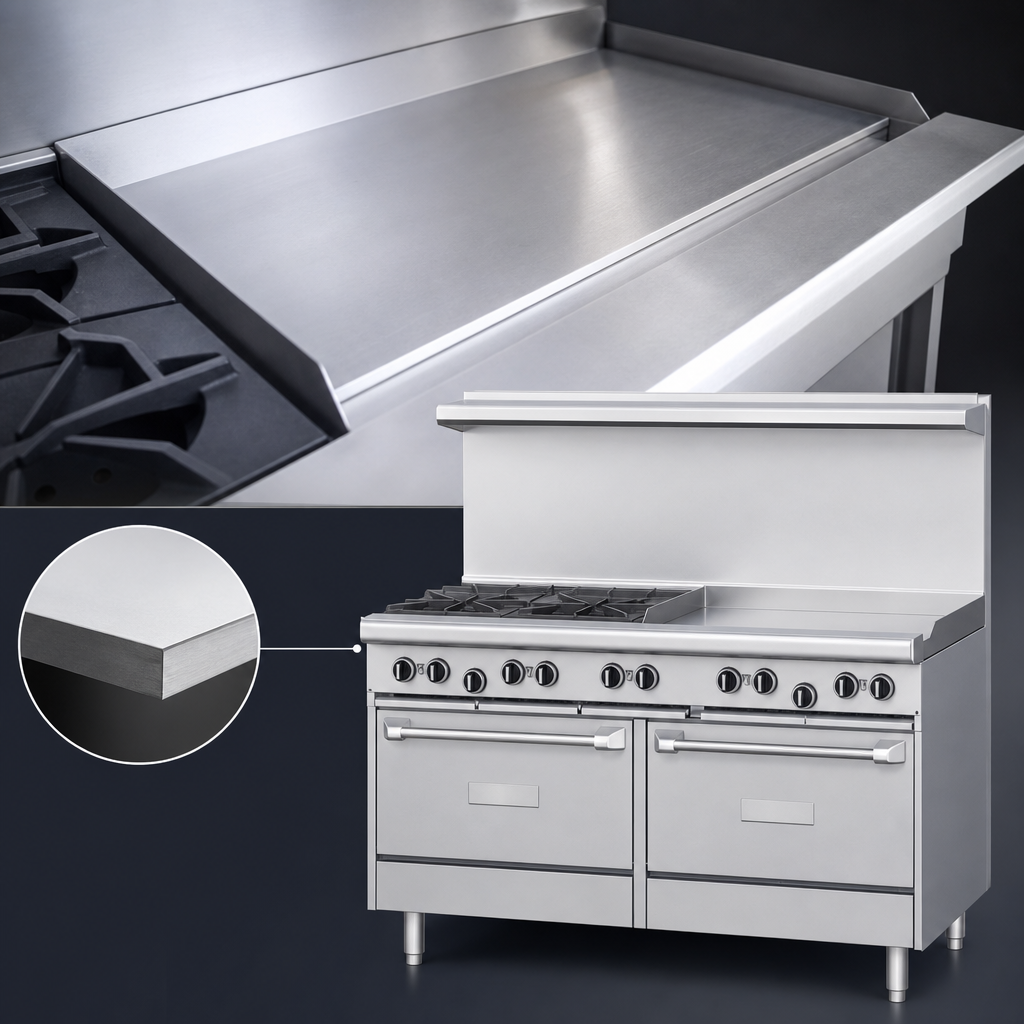

- One-piece 60" (1524 mm) griddle made from 5/8" (15 mm) smooth steel for fast, even heat transfer.
- Manual hi/lo valve control with five cast-iron “H” burners, 18,000 BTU each — 90,000 BTU/h total.
- 23" (584 mm) deep griddle work surface and 4-1/4" (108 mm) wide grease trough for mess-free production.
- Dual open storage bases (left & right) replace traditional ovens, providing quick access to pans, sheet trays and utensils.
- Durable stainless steel front, sides, 5" (127 mm) plate rail and a 2-piece backguard with removable stainless shelf.
- Large, easy-grip control knobs plus factory-supplied gas regulator for precise adjustment.
- 6" (152 mm) adjustable stainless steel legs simplify levelling and cleaning.
- Certified to NSF, CSA Flame, CSA Star and cCSAus standards.
Built for High-Volume Performance
- 27" (686 mm) deep overall worktop maximises usable space.
- Reinforced chassis corners and front-serviceable griddle plate shorten maintenance time.
- Heavy-gauge stainless components resist corrosion and daily wear.
Specifications
| Model | U60-G60SS |
|---|---|
| Cooking Surface | 60" W x 23" D (1524 mm x 584 mm) |
| Total Input | 90,000 BTU/h (Natural Gas or Propane) |
| Burners | 5 × 18,000 BTU cast-iron “H” griddle burners |
| Dimensions (W × D × H) | 59-1/16" × 34-1/2" × 57" (1500 mm × 876 mm × 1448 mm) |
| Work Height | 36" (914 mm) to cook surface |
| Shipping Weight | ≈ 721 lb (327 kg) |
| Gas Connection | 3/4" NPT (rear), factory regulator included |
| Manifold Pressure | Natural 4.5" WC | Propane 10" WC |
| Certifications | NSF, CSA Flame, CSA Star, cCSAus |
Ideal Applications
- Diners, cafés and hotels requiring a dedicated griddle station.
- QSR and fast-casual chains looking to maximise line efficiency.
- Caterers and ghost kitchens needing versatile storage beneath a high-output cooking surface.
Note: This appliance is intended for commercial use only and is not approved for residential installations. Ranges supplied with casters must be installed with an approved restraining device.
