Description

U-Series 60" Gas Restaurant Range w/ 60" Griddle, Standard Oven & Storage Base – 128,000 BTU (Model U60-G60RS)

Manufactured by Garland / U.S. Range

Purpose-built for high-volume kitchens, the Garland U-Series 60" range delivers a full-width, 5/8" steel griddle, a sheet-pan-ready oven and an open storage base in one rock-solid, stainless-steel chassis.

Key advantages
  • 128,000 BTU total output: 90,000 BTU griddle + 38,000 BTU oven

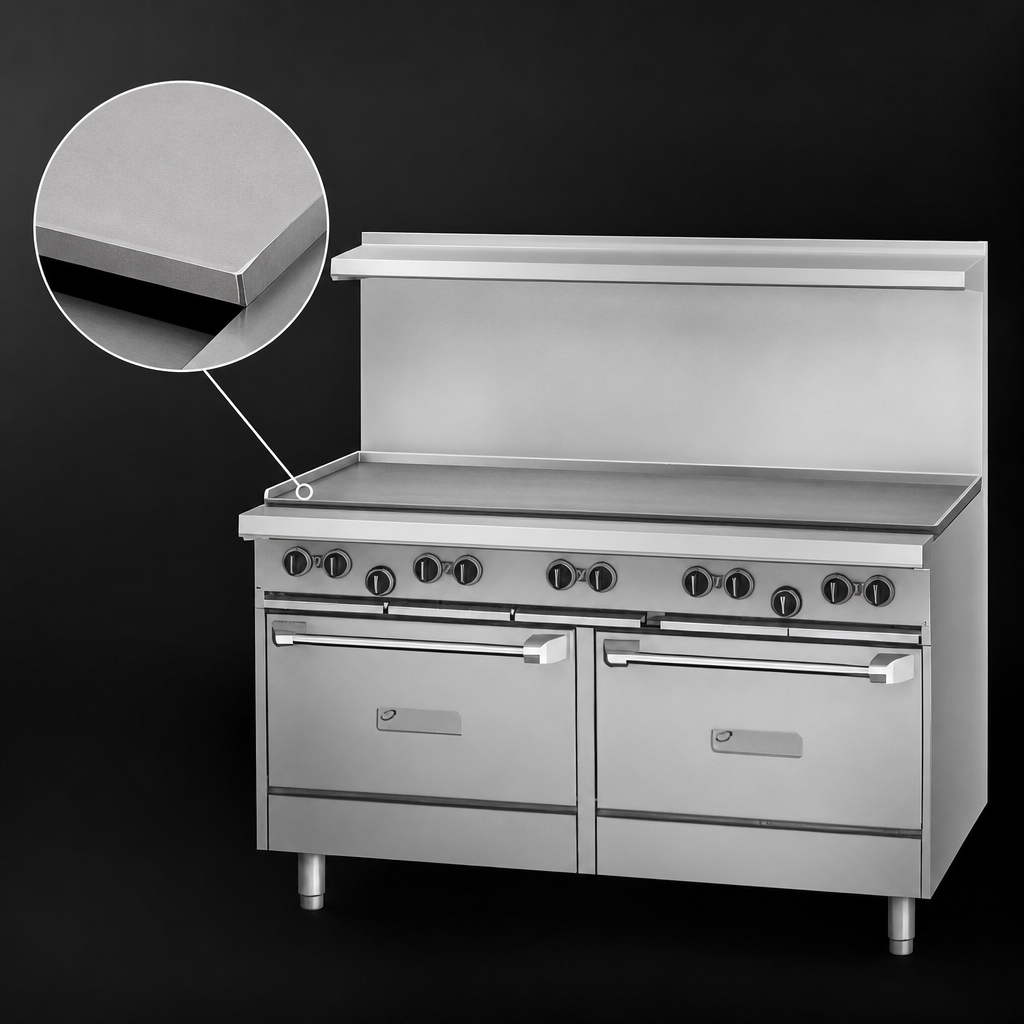

  • True 60" × 23" cooking surface milled from 5/8" (15 mm) steel for even, rapid heat recovery
  • Manual Hi/Lo valves let chefs fine-tune each 12" heating zone instantly
  • Standard oven fits 18" × 26" sheet pans front-to-back or left-to-right
  • Open base keeps hotel pans, sheet pans or smallwares within arm’s reach
  • All-stainless front, sides, 5" plate rail & two-piece backguard with removable shelf
  • 6" adjustable stainless legs simplify leveling on uneven floors
Griddle performance
  • Five 18,000 BTU cast-iron “H” burners (one every 12")
  • 4-1/4" (108 mm) grease trough with stamped drip trays
  • Front-serviceable plate for quick daily maintenance
Oven power & capacity
  • 38,000 BTU cast-iron “H” burner with snap-action thermostat LOW–500 °F
  • Porcelain-enameled ribbed bottom & door liner wipe clean fast
  • 1 nickel-plated rack + 3-position removable rack guides included
  • Square door with keep-cool handle stands up to heavy use
Built for the long haul
  • Reinforced chassis corners resist twisting in daily moves
  • Oversize, easy-grip control knobs designed for gloved operation
  • Factory-installed gas regulator; ships natural gas, convertible to LP
  • Meets CSA Flame, CSA Star, cCSAus & NSF standards
Technical specifications
Model U60-G60RS
Total BTU 128,000 BTU/hr (Natural)
Griddle size 60" W × 23" D, 5/8" smooth steel
Griddle burners 5 × 18,000 BTU cast-iron “H” (manual)
Oven burner 1 × 38,000 BTU cast-iron “H”
Oven interior (W×D×H) 26-1/4" × 26" × 13" (667 × 660 × 330 mm)
Exterior width 59-1/16" (1,500 mm)
Exterior depth 34-1/2" (876 mm)
Work-top depth 27" (686 mm)
Exterior height 57" (1,448 mm) with standard backguard & shelf
Gas connection 3/4" NPT (rear)
Manifold pressure 4.5" WC Natural | 10" WC Propane
Shipping weight ≈ 830 lb (376 kg)
Certifications
  • CSA Flame
  • CSA Star
  • cCSAus
  • NSF

Intended for commercial use only; not approved for residential installations.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

59.1in

Depth

34.5in

Shipping Weight

830.0lbs

Vent

backriser with hi-shelf

Top

(1) griddle

Base

(1) standard oven, (1) cabinet

Plate Thickness

.625" = 5/8"

Control Type

manual controls

Exterior Finish

stainless steel front & sides

Specifications

U Series Restaurant Range, gas, 60", (1) griddle with 5/8" thick smooth steel plate, manual control, (1) standard oven with 3 position rack guides with oven rack, (1) storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 128,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
