Garland U60-8G12SS US Range U Series Ranges Gas Ranges
Description
Garland U-Series 60" Gas Restaurant Range
8 Open Burners & 12" Griddle – Storage Base
Model U60-8G12SS • 274,000 BTU • CSA & NSF Listed
Engineered for high-volume kitchens that demand versatility, the Garland U-Series 60" gas range combines the heat of eight powerful open burners with the added flexibility of a built-in 12" griddle. Two full-width storage bases replace traditional ovens, giving chefs instant access to pans, utensils and mise en place while keeping the cookline clutter-free.
Key Features
- Eight 32,000 BTU 2-piece cast-iron geometric open burners for fast, even heat.

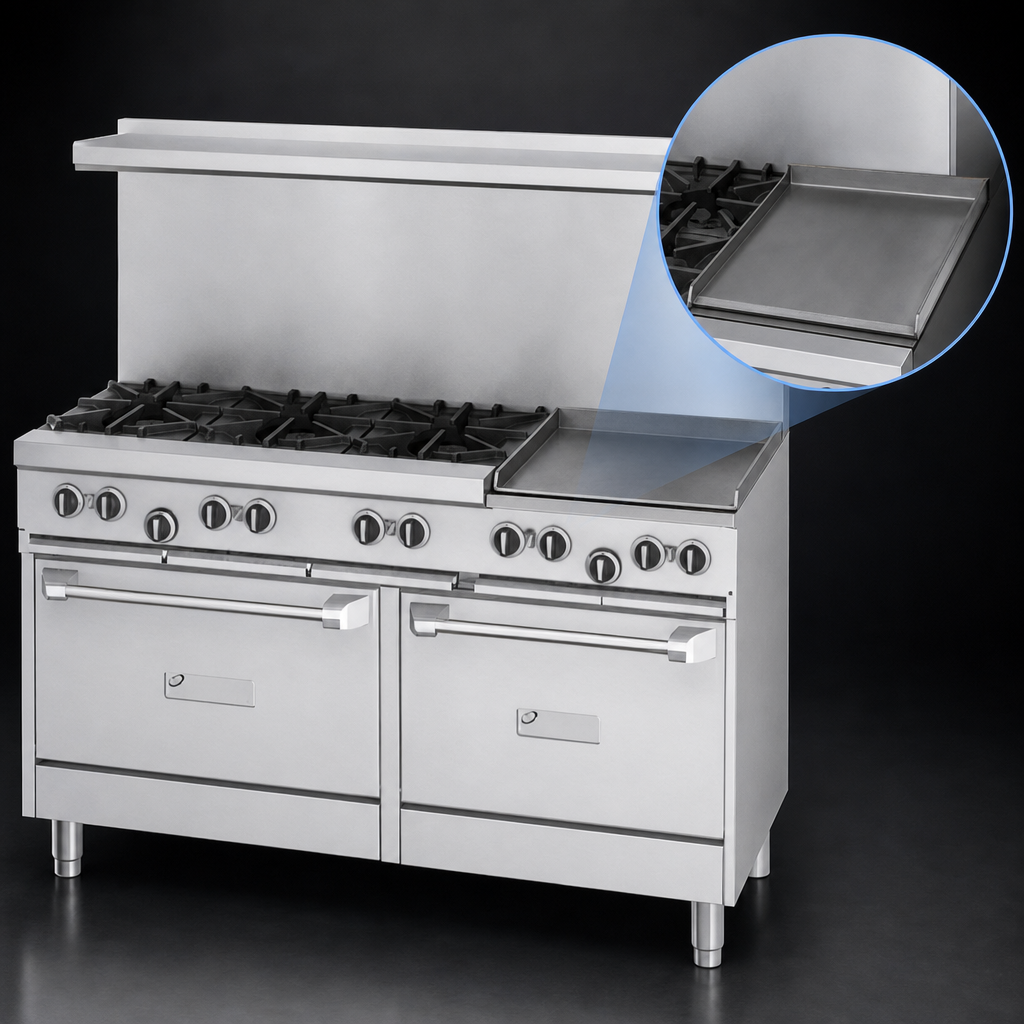

- 12" x 23" (305 x 584 mm) smooth steel griddle, 5/8" (15 mm) thick with manual hi/lo valve for precise searing, sautéing or finishing.
- 18,000 BTU cast-iron “H” style griddle burner, front-serviceable plate and 4-1/4" (108 mm) grease trough for easy clean-up.
- Dual open storage bases (one under each 30" section) in lieu of ovens—perfect for sheet pans, stock pots and smallwares.
- Spacious 27" (686 mm) deep worktop with ergonomic split cast-iron top grates.
- Durable stainless steel front, sides, 5" plate rail, and 2-piece high backguard with removable shelf.
- Large, positive-grip control knobs and factory-installed gas pressure regulator.
- 6" (152 mm) stainless steel legs with adjustable feet for quick leveling.
- Total input: 274,000 BTU/hr (Natural) — field convertible to Propane.
At-a-Glance Specifications
| Overall width | 59-1/16" (1500 mm) |
|---|---|
| Overall depth (to front rail) | 34-1/2" (876 mm) |
| Height w/ standard backguard & shelf | 57" (1448 mm) |
| Cooking surface depth | 27" (686 mm) |
| Open burners | 8 × 32,000 BTU (9.37 kW each) |
| Griddle plate | 12" W × 23" D × 5/8" T smooth steel |
| Griddle burner rating | 18,000 BTU (5.27 kW) |
| Total input | 274,000 BTU/hr (Natural) • 226,000 BTU/hr (Propane) |
| Gas connection | 3/4" NPT rear manifold, left-of-center |
| Manifold pressure | Natural 4.5" WC • Propane 10" WC |
| Storage base openings | (2) – full width, open front |
| Shipping weight | ≈ 611 lb (277 kg) |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Why Choose Garland U-Series?
- Legendary Garland burner design for best-in-class heat distribution and recovery.
- Field-proven durability backed by a nationwide parts & service network.
- Modular platform—mix and match griddle, hot-top or convection oven bases across the U-Series lineup.
Need a custom configuration? Garland’s U-Series offers multiple burner, griddle and oven combinations. Contact us for expert assistance.
