Garland U60-8G12RS US Range U Series Ranges Gas Ranges
Description
U60-8G12RS 60" Gas Restaurant Range
U Series by U.S. Range / GarlandBuilt for kitchens that never stop, the U60-8G12RS combines the raw power of eight 32,000 BTU open burners with the versatility of a smooth-steel griddle and a full-size oven – while still giving you a handy storage base. Rugged stainless construction, simple manual controls and industry-leading certifications make it a dependable centerpiece for any high-volume cookline.
Why chefs choose the U60-8G12RS

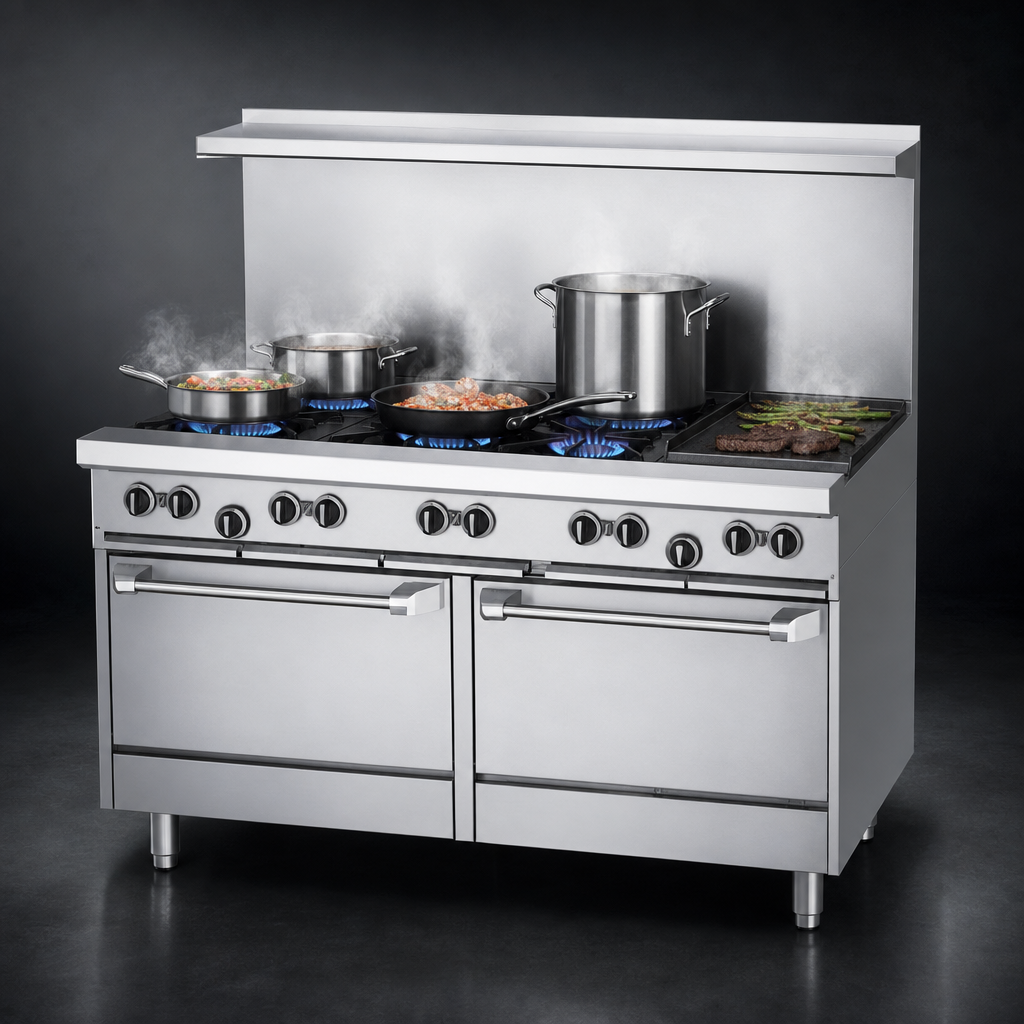

- Eight 32,000 BTU 2-piece cast-iron open burners with geometric heads for consistent flame spread

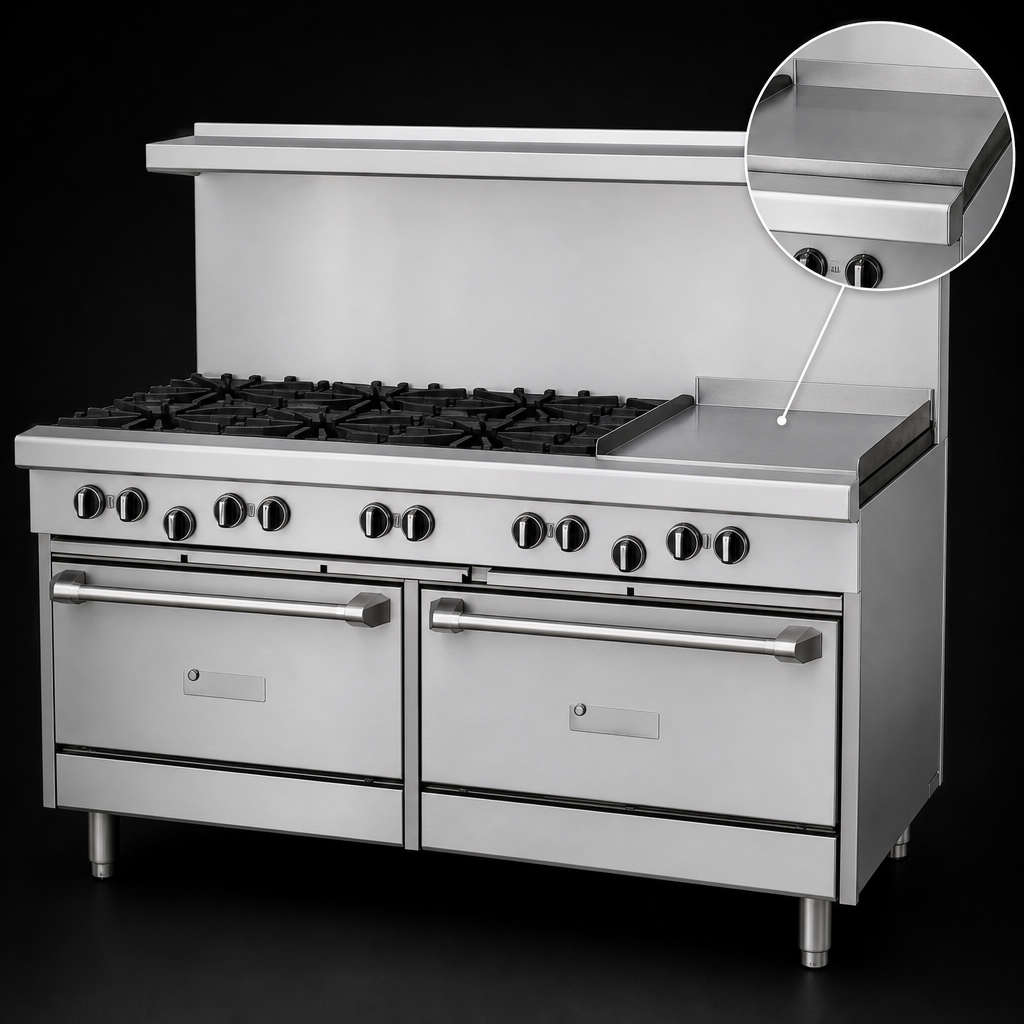

- 12" × 23" (305 × 584 mm) griddle, 5/8" (15 mm) smooth steel plate, manual hi/lo valve – perfect for finishing, searing or all-day breakfast
- Standard oven (right side) with 38,000 BTU cast-iron “H” burner, snap-action thermostat 150 °F – 500 °F (66 °C – 260 °C) and 3-position rack guide
- Open storage base (left side) keeps sheet pans or smallwares within arm’s reach
- 27" (686 mm) extra-deep worktop and split ergonomic cast-iron grates for easy pot movement
- Durable stainless steel front, sides, 5" plate rail, 2-piece backguard & high shelf
- (6) 6" adjustable stainless steel legs for rock-solid installation and easy cleaning underneath
- Individual lift-out 12" drip trays with dimpled bottoms speed up end-of-shift cleanup
- Total input: 312,000 BTU/h | Field-convertible gas regulator included
- Certified: CSA Flame, CSA Star, cCSAus, NSF
Technical Specifications
| Model | U60-8G12RS |
|---|---|
| Overall width | 59 ⅟₁₆" (1500 mm) |
| Overall depth | 34 ½" (876 mm) |
| Work surface depth | 27" (686 mm) |
| Overall height (to high shelf) | 57" (1448 mm) |
| Open burners | 8 × 32,000 BTU (Natural) cast-iron |
| Griddle | 12" W × 23" D × 5/8" T smooth steel | 18,000 BTU “H” burner |
| Oven interior (WxDxH) | 26¼" × 26" × 13" (667 × 660 × 330 mm) |
| Oven capacity | Holds full-size sheet pans – left–right or front–back |
| Total gas input | 312,000 BTU/h (91.4 kW) |
| Gas connection | ¾" NPT rear – regulator supplied |
| Shipping weight | 720 lb (327 kg) |
Perfect for
- Full-service restaurants needing maximum burner real estate
- Breakfast & brunch concepts that rely on both sauté stations and a dedicated griddle
- Hotel or institutional kitchens looking to consolidate equipment footprints
Gas input ratings shown are for installations up to 2,000 ft (610 m) above sea level. Specify altitude for higher elevations.
