Garland U60-6G24RS US Range U Series Ranges Gas Ranges
Description
U.S. Range U-Series 60" Gas Restaurant Range
Model U60-6G24RS — 6 Open Burners • 24" Griddle • Standard Oven + Storage BaseBuilt for the busiest kitchens, the Garland/U.S. Range U-Series combines heavy-duty construction, chef-preferred ergonomics and class-leading BTU output. With six 32,000 BTU open burners, a full-service 24" steel griddle and a high-capacity oven, this 60-inch workhorse delivers every cooking method you need on a single footprint.
Why you’ll love it
- High-power top — six 32,000 BTU two-piece cast-iron burners with ergonomic split grates.

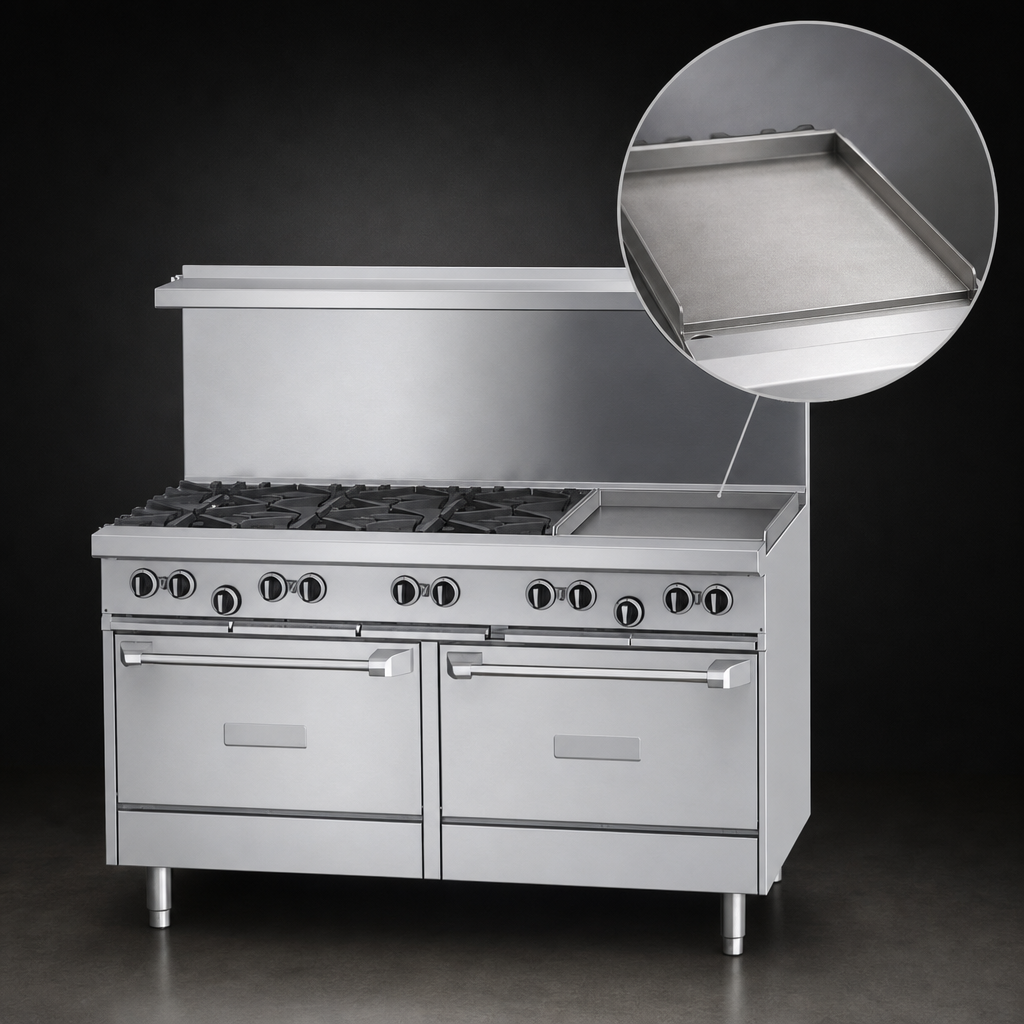

- All-day griddle — 24" × 23" smooth steel plate, 5⁄8" thick, heated by two 18,000 BTU “H” burners and controlled by durable manual hi/lo valves.
- True restaurant oven — 38,000 BTU cast-iron burner, snap-action thermostat (Low–500 °F), porcelain ribbed bottom & door, fits standard sheet pans both directions.
- Integrated storage — open base on the griddle side keeps hotel pans, sheet trays or smallwares within reach.
- Stainless everywhere — front, sides, 5" plate rail, and a two-piece backguard with removable high shelf for plating and spices.
- Fast, mess-free cleanup — 12" stamped drip trays with dimpled bottoms, 4-¼" wide grease trough, and front-serviceable griddle plate.
- Field-ready — factory installed ¾" NPT regulator, 6" adjustable stainless legs and CSA Flame, CSA Star, cCSAus & NSF listings.
Technical specs
| Overall width | 59-1/16" (1500 mm) |
|---|---|
| Overall depth (incl. rail) | 34-½" (876 mm) |
| Work-top depth | 27" (686 mm) |
| Height w/ high shelf | 57" (1448 mm) |
| Open burners | 6 × 32,000 BTU (natural) cast-iron geometric burners |
| Griddle section | 24" W × 23" D × 5⁄8" thick plate | 36,000 BTU total |
| Standard oven | 38,000 BTU | snap-action thermostat 150 – 500 °F | 1 rack, 3 positions |
| Storage base | Open compartment, left of oven (in lieu of second oven) |
| Total input | 266,000 BTU/hr (natural gas) | convertible to LP |
| Manifold pressure | Natural 4.5" WC | Propane 10" WC |
| Shipping weight | ≈ 755 lb (342 kg) |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Popular options (ordered separately)
- 9-⅜" low-profile backguard
- Flanged deck-mount legs or locking swivel casters
- Additional oven racks
- Piezo spark ignition for griddle pilots
- Snap-action griddle thermostat (175 – 425 °F)
Need a different configuration? Browse the full U-Series line or contact us for expert assistance with sizing, ventilation and utility requirements.
