Garland  |  US Range U Series Ranges  |  SKU: U60-4G36RS

Garland U60-4G36RS US Range U Series Ranges Gas Ranges

$7,778.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

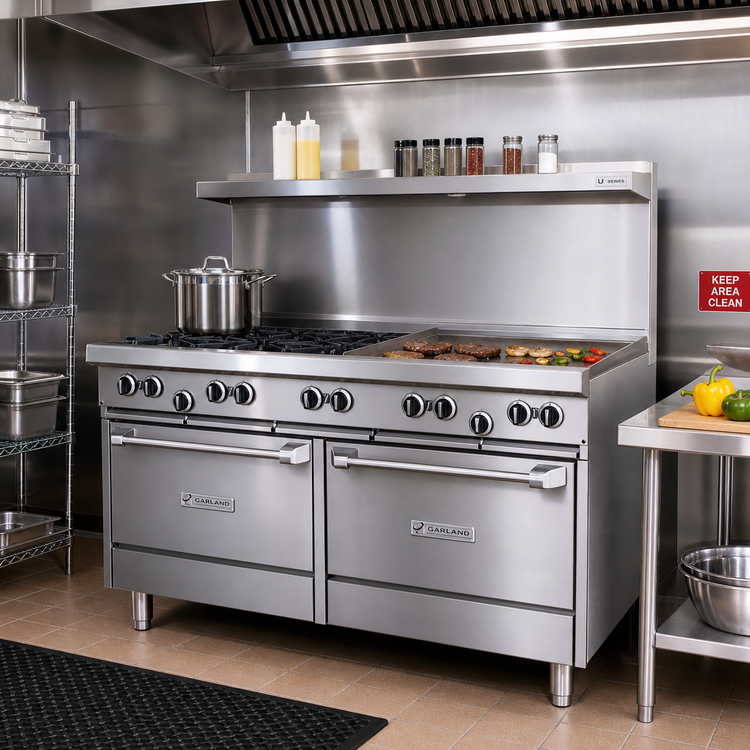

Garland U-Series 60" Gas Restaurant Range

4 Open Burners • 36" Smooth Griddle • Standard Oven + Storage
Model U60-4G36RS

Power, versatility and rock-solid reliability—everything you expect from Garland is built into this 60" U-Series range. Four high-performance open burners handle your sauté, stock and sauce work, while a full 36" steel griddle delivers even, edge-to-edge heat for breakfast, burgers and more. A fast-recovery standard oven on the right and a convenient storage base on the left keep your line streamlined and productive.

Performance Highlights

  • 4 × 32,000 BTU cast-iron open burners with split ergonomic grates for easy pot movement.

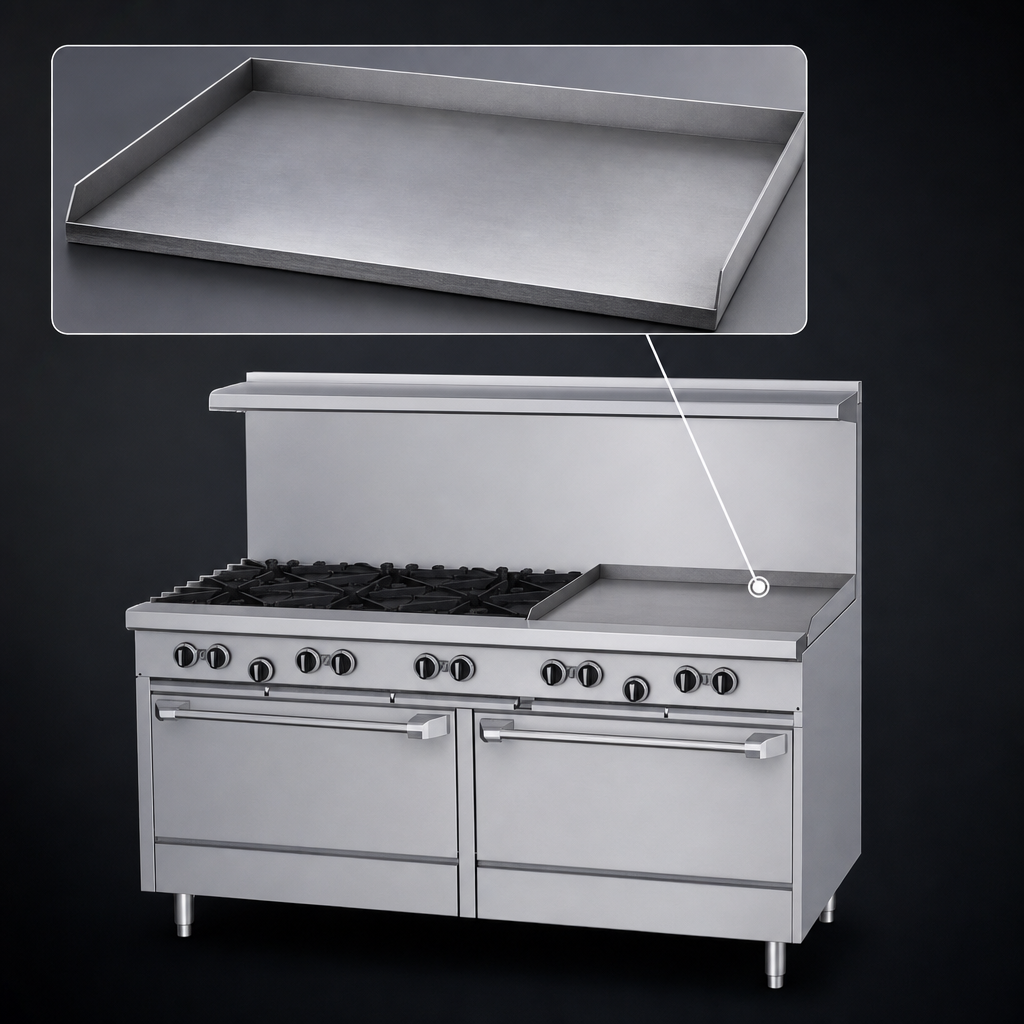

  • 36" × 23" × 5/8" (914 × 584 × 15 mm) polished steel griddle plate, manual hi/lo valve control.
  • 54,000 BTU cast-iron “H” style griddle burner (18 k BTU per 12").
  • 38,000 BTU standard oven burner with snap-action thermostat, low to 500 °F (260 °C).
  • Oven fits full-size sheet pans in either direction; includes 1 nickel-plated rack and 3-position guides.
  • Left-side open storage base keeps sheet pans and utensils right where you need them.
  • 12" stamped drip trays under each top section plus 4-1/4" (108 mm) front grease trough for fast cleanup.
  • Durable stainless steel front, sides, 5" plate rail and 2-piece backguard with removable shelf.
  • 6" (152 mm) adjustable stainless steel legs for easy leveling and floor sanitation.
  • Total input: 220,000 BTU/h; factory-supplied gas regulator included.

Certifications

  • CSA Flame
  • CSA Star
  • cCSAus
  • NSF

Technical Specifications

Model U60-4G36RS
Overall width 59-1/16" (1500 mm)
Overall depth 34-1/2" (876 mm) including 5" plate rail
Work-top depth 27" (686 mm)
Height w/ backguard & shelf 57" (1448 mm)
Cooking height 36" (914 mm)
Oven interior (H × W × D) 13" × 26-1/4" × 26" (330 × 667 × 660 mm)
Gas connection 3/4" NPT rear manifold
Manifold pressure Natural 4.5" WC • Propane 10" WC
Total input 220,000 BTU/h (64.5 kW)
Approx. shipping weight 790 lb (358 kg)

Gas ratings are for installations up to 2,000 ft (610 m) above sea level. Please specify altitude if higher.

Where It Shines

  • Full-service restaurants & catering venues
  • Hotel and resort kitchens
  • Institutional foodservice—schools, hospitals, corporate dining
  • High-volume ghost and commissary kitchens
Important: This appliance is intended for commercial use only and is not approved for residential installation. When mounted on casters, an approved restraining device must be used.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

59.1in

Depth

34.5in

Shipping Weight

790.0lbs

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle

Base

(1) standard oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Control Type

manual controls

Plate Thickness

.625" = 5/8"

Specifications

U Series Restaurant Range, gas, 60", (4) 32,000 BTU open burners, 36" x 23" x 5/8" thick smooth steel griddle plate, manual control, (1) standard oven with 3 position rack guides with oven rack, (1) storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 220,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
