Garland U.S. Range U-Series 60" Gas Restaurant Range
48" Smooth Steel Griddle • 2 Open Burners • Dual Storage Bases (Model U60-2G48SS)Built for kitchens that live on the griddle, this 60-inch U-Series range delivers 48 inches of evenly heated cooking surface plus two high-performance burners—all on top of generous under-counter storage. Heavy-gauge stainless steel, simple manual controls, and a total input of 136,000 BTU/h make it the dependable workhorse your line has been waiting for.
Key Features

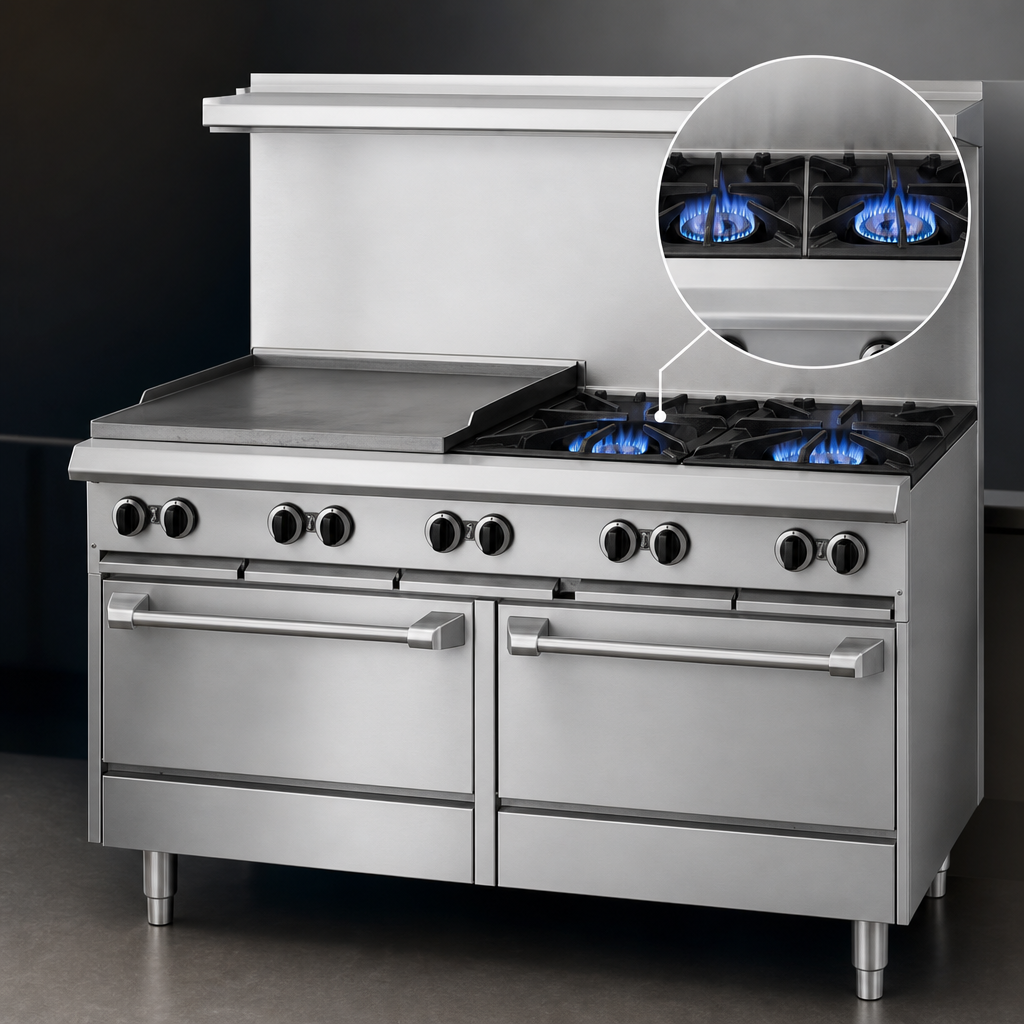

- (2) 32,000 BTU/h open burners with split cast-iron grates for rapid boil-to-simmer precision.

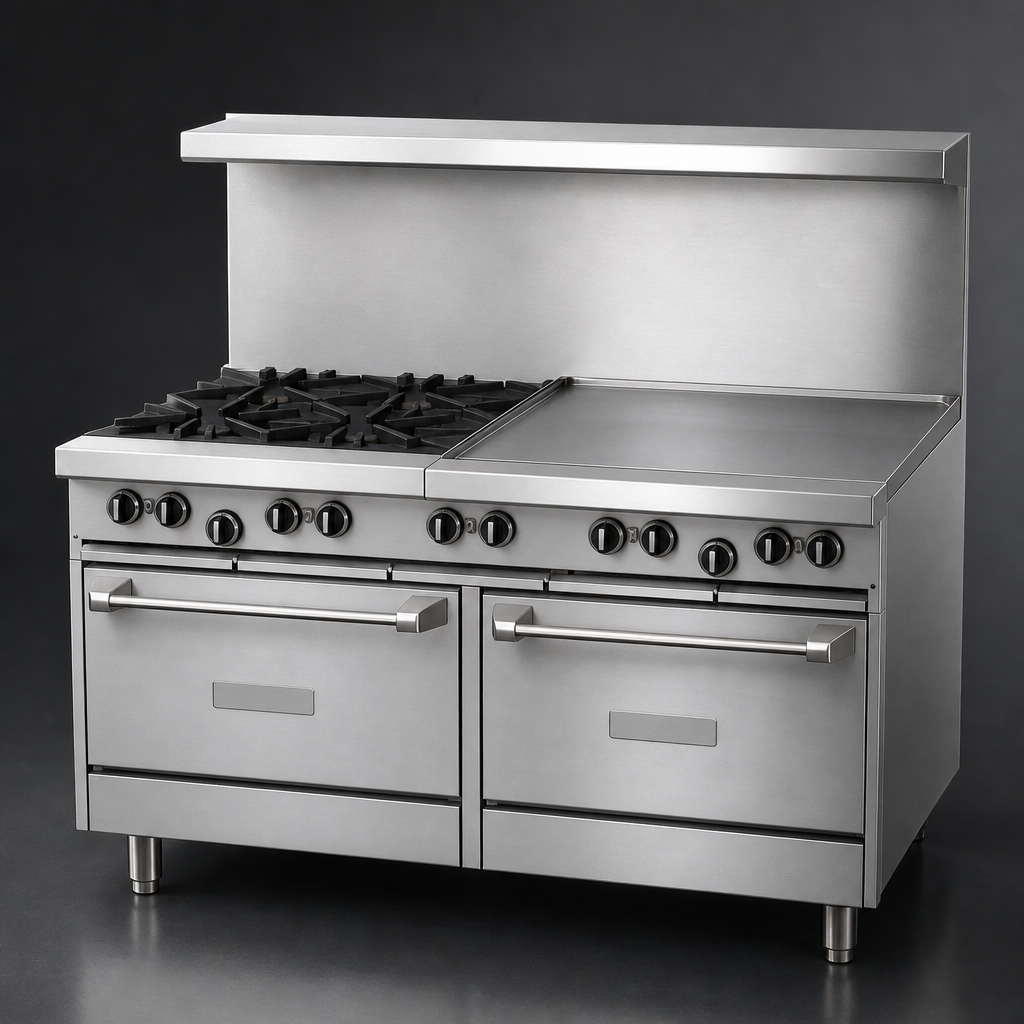

- 48" W × 23" D × 5/8" thick smooth steel griddle plate—ideal for breakfast spreads, smash burgers and everything in-between.
- Four 18,000 BTU/h cast-iron “H” griddle burners (72,000 BTU total) with manual Hi/Lo valves for zone cooking.
- Wide 4-1/4" grease trough and front-serviceable plate speed up end-of-shift clean-up.
- Dual open storage bases replace ovens—perfect for sheet pans, hotel pans and smallwares.
- Durable stainless steel front, sides, 5" plate rail, and 2-piece backguard with removable shelf.
- 27" deep work surface provides ample plating and prep space without increasing footprint.
- 6" stainless steel legs with adjustable feet (optional casters available).
At-a-Glance Specs
| Model | U60-2G48SS |
|---|---|
| Overall width | 59-1/16" (1500 mm) |
| Overall depth | 34-1/2" (876 mm) to plate rail |
| Work-top depth | 27" (686 mm) |
| Cooking configuration | (2) open burners + 48" smooth griddle |
| Total input (natural gas) | 136,000 BTU/h |
| Open burner rating | 32,000 BTU/h each (64,000 BTU total) |
| Griddle burner rating | (4) × 18,000 BTU/h (72,000 BTU total) |
| Griddle plate | 48" W × 23" D × 5/8" thick smooth steel |
| Base type | (2) open storage compartments |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | Natural 4.5" WC • Propane 10" WC |
| Legs / casters | 6" adjustable stainless legs (casters optional) |
| Certifications | CSA Flame • CSA Star • cCSAus • NSF |
Perfect For
- High-volume diners, cafés and QSRs needing maximum griddle real estate.
- Ghost kitchens and food trucks where every inch—and every BTU—counts.
- Hotels, institutions and caterers standardizing on Garland heavy-duty equipment.
Important: This appliance is designed for commercial use only and is not approved for residential installation. When supplied with casters, a suitable restraining device must be used.
Gas ratings shown are for installations up to 2,000 ft (610 m) above sea level. Garland reserves the right to change specifications without notice.
$8,167.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland U60-2G48SS 60" gas U Series range: 136,000 BTU, two 32k burners, 48" steel griddle, stainless steel, storage bases, NSF/CSA certified.
Manufacturer
Garland
Brand name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
59.1in
Depth
34.5in
Shipping Weight
706.0lbs
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.625" = 5/8"
Base
(2) cabinets
Control Type
manual controls
Top
(2) open burners, (1) 48" griddle
Specifications
U Series Restaurant Range, gas, 60", (2) 32,000 BTU open burners, 48" x 23" x 5/8" thick smooth steel griddle plate, manual control, (2) storage bases, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 136,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
