Garland U60-2G48RS US Range U Series Ranges Gas Ranges
Description
Garland U-Series 60" Gas Restaurant Range
Model U60-2G48RS | 174,000 BTU Total OutputBuilt for demanding, high-volume kitchens, the Garland U-Series 60" range pairs two powerful open burners with a full 48" griddle, a full-size standard oven and a convenient open storage base — all in one rugged, stainless-steel chassis that fits a 60" line up.
Key Performance Features

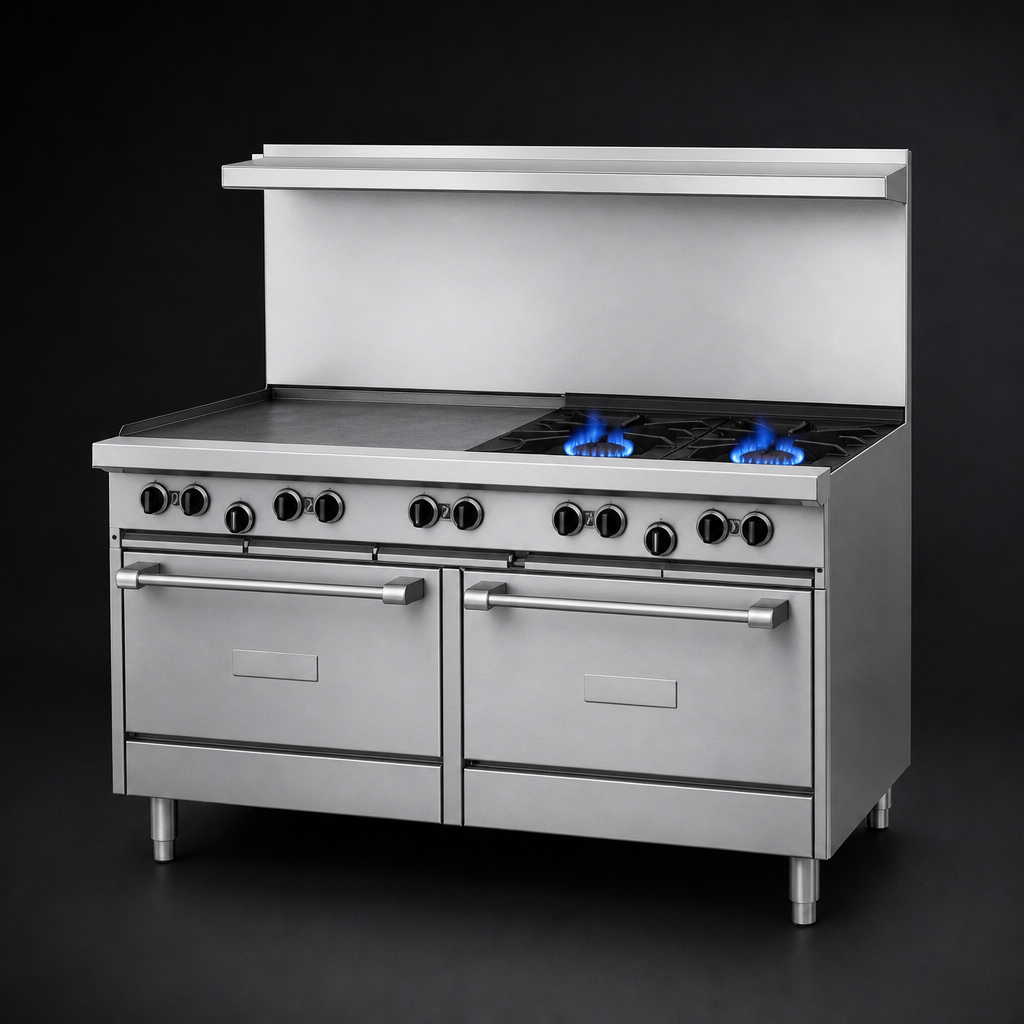

- 2 × 32,000 BTU cast-iron open burners with ergonomic split grates for fast, even heat.

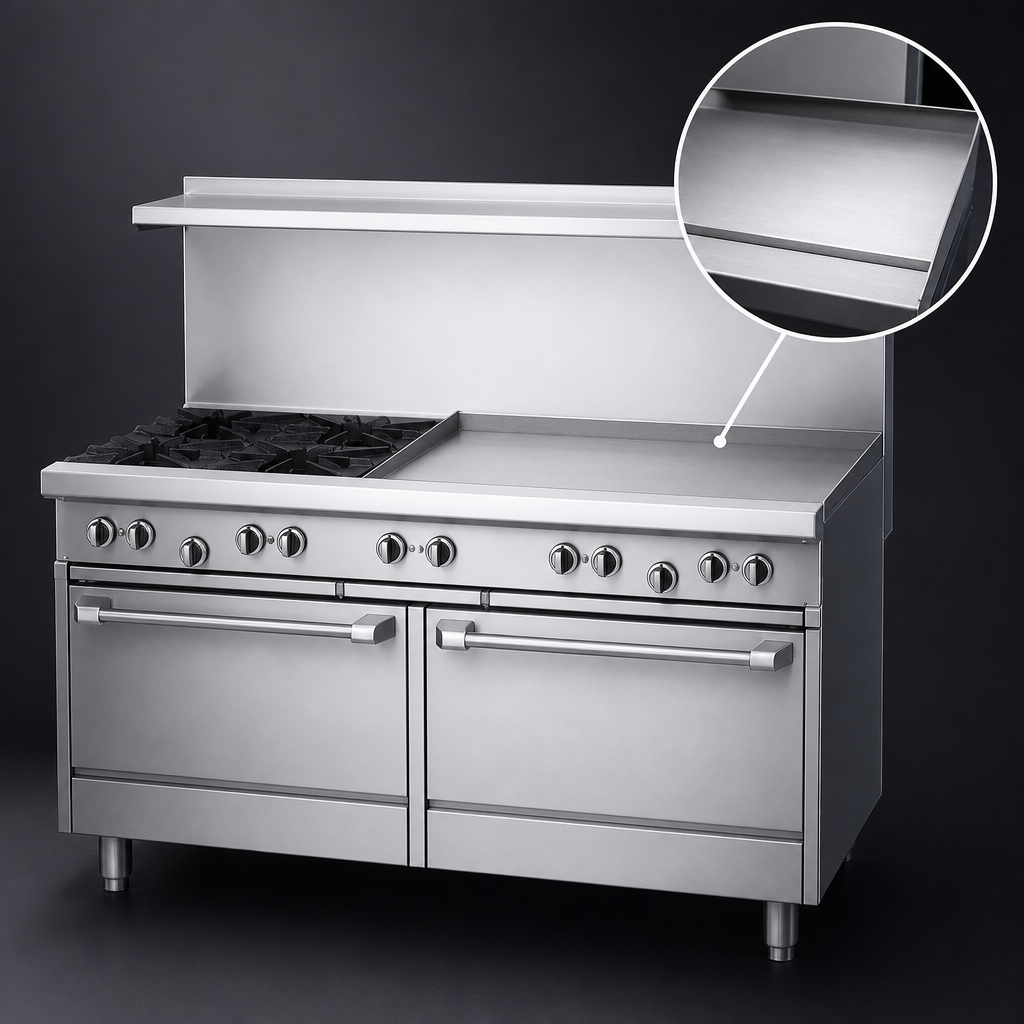

- 48" × 23" griddle – 5/8" (15 mm) smooth steel plate with manual hi/lo valves and four 18,000 BTU “H” style burners (72,000 BTU total).
- 4-1/4" (108 mm) wide grease trough for quick, mess-free clean-up.
- Full-size standard oven (38,000 BTU) with snap-action thermostat, 3-position rack guides and 1 nickel-plated rack (fits sheet pans end-wise or side-wise).
- Open storage base in lieu of a second oven — ideal for sheet pans, smallwares or stockpots.
- Large 27" (686 mm) deep work-top and 5" (127 mm) stainless plate rail.
- Stainless-steel front, sides, plate rail, and 2-piece backguard with removable shelf.
- 6" (152 mm) stainless adjustable legs and factory-supplied gas pressure regulator.
- Certified for commercial use: CSA Flame & Star, cCSAus, NSF.
Technical Specifications
| Overall width | 59 1/16" (1500 mm) |
|---|---|
| Overall depth | 34 1/2" (876 mm) | Work-top depth 27" (686 mm) |
| Overall height | 57" (1448 mm) with high shelf |
| Open burners | 2 × 32,000 BTU cast-iron (64,000 BTU) |
| Griddle section | 48" W × 23" D × 5/8" thick (72,000 BTU total) |
| Standard oven | 26" W × 26" D × 13" H interior | 38,000 BTU |
| Storage base | Open, stainless-steel lined |
| Total input (natural gas) | 174,000 BTU /hr |
| Gas connection | 3/4" NPT rear | 4.5" WC Natural / 10" WC Propane |
| Shipping weight | ≈ 815 lb (370 kg) |
For installations above 2,000 ft (610 m) please specify altitude so factory can adjust input ratings.
This appliance is intended for commercial applications only and is not approved for residential use.
