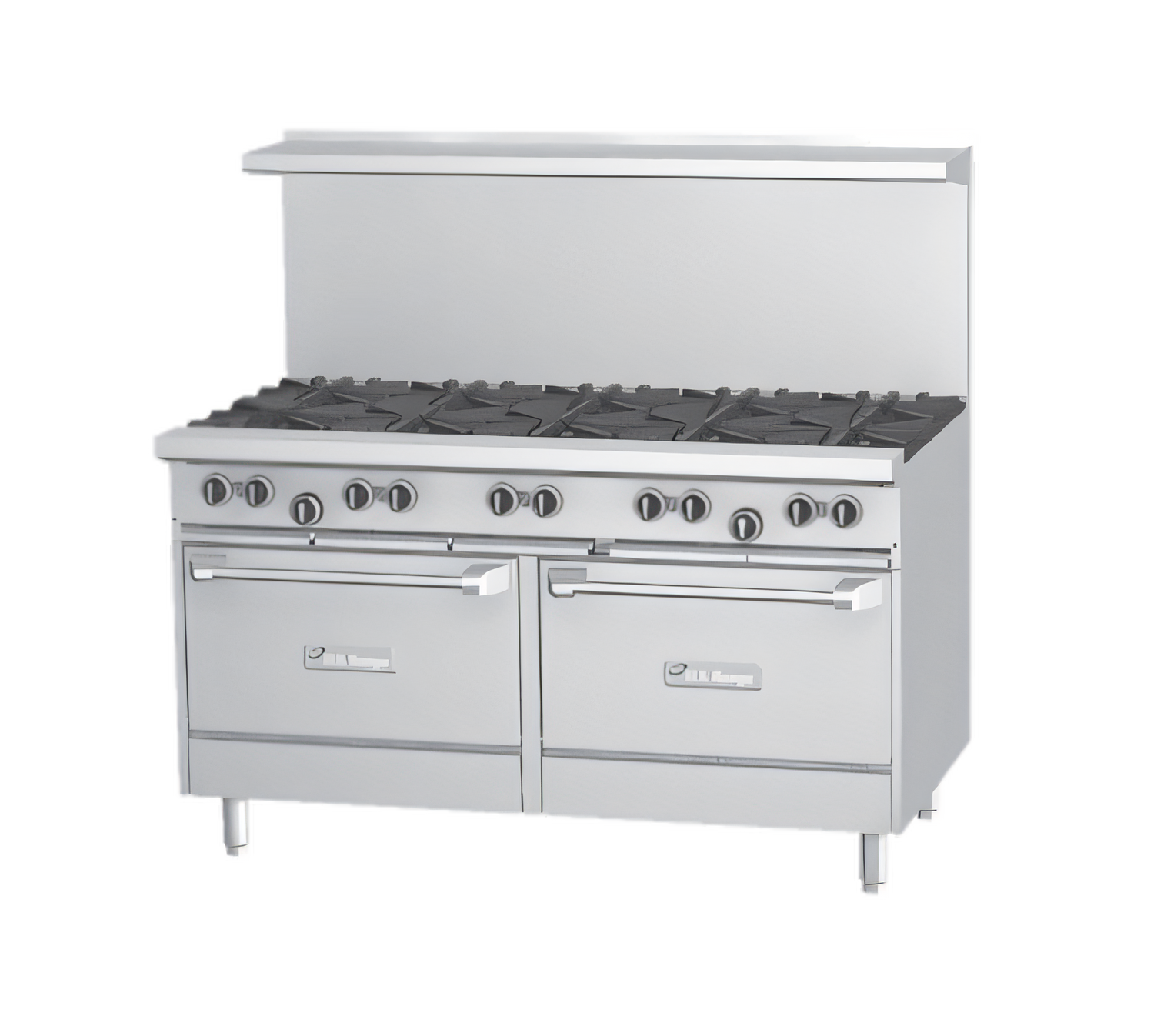

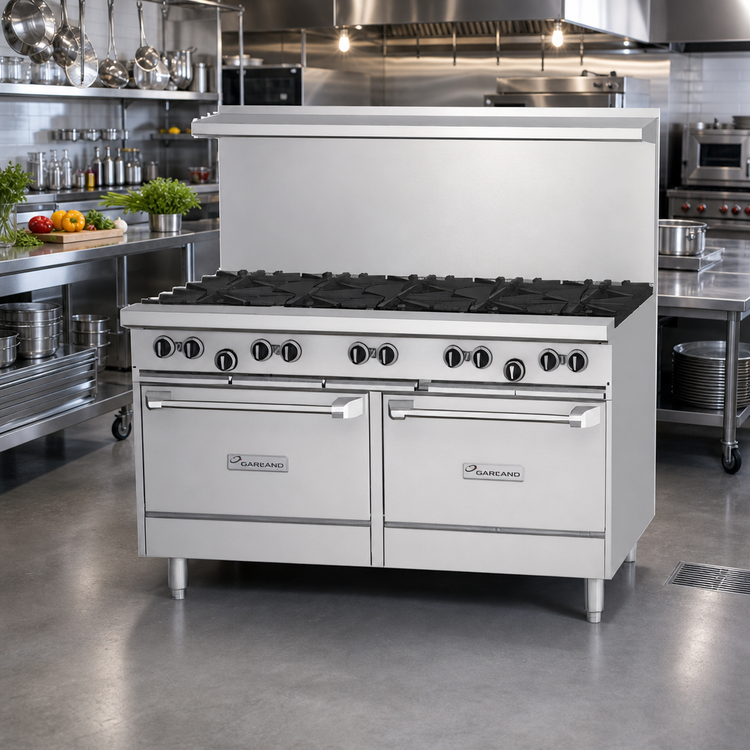

Garland U.S. Range U-Series 60" Gas Restaurant Range
Model U60-10SS – 10 Open Burners with Dual Storage BasesBuilt for the busiest commercial kitchens, the Garland U-Series 60" range delivers blistering heat, rock-solid durability, and the flexibility chefs demand. Ten powerful 32,000 BTU open burners sit beneath split, ergonomic cast-iron grates, while two full-width storage bases keep sheet pans, stock pots, and utensils within easy reach.
Key Features

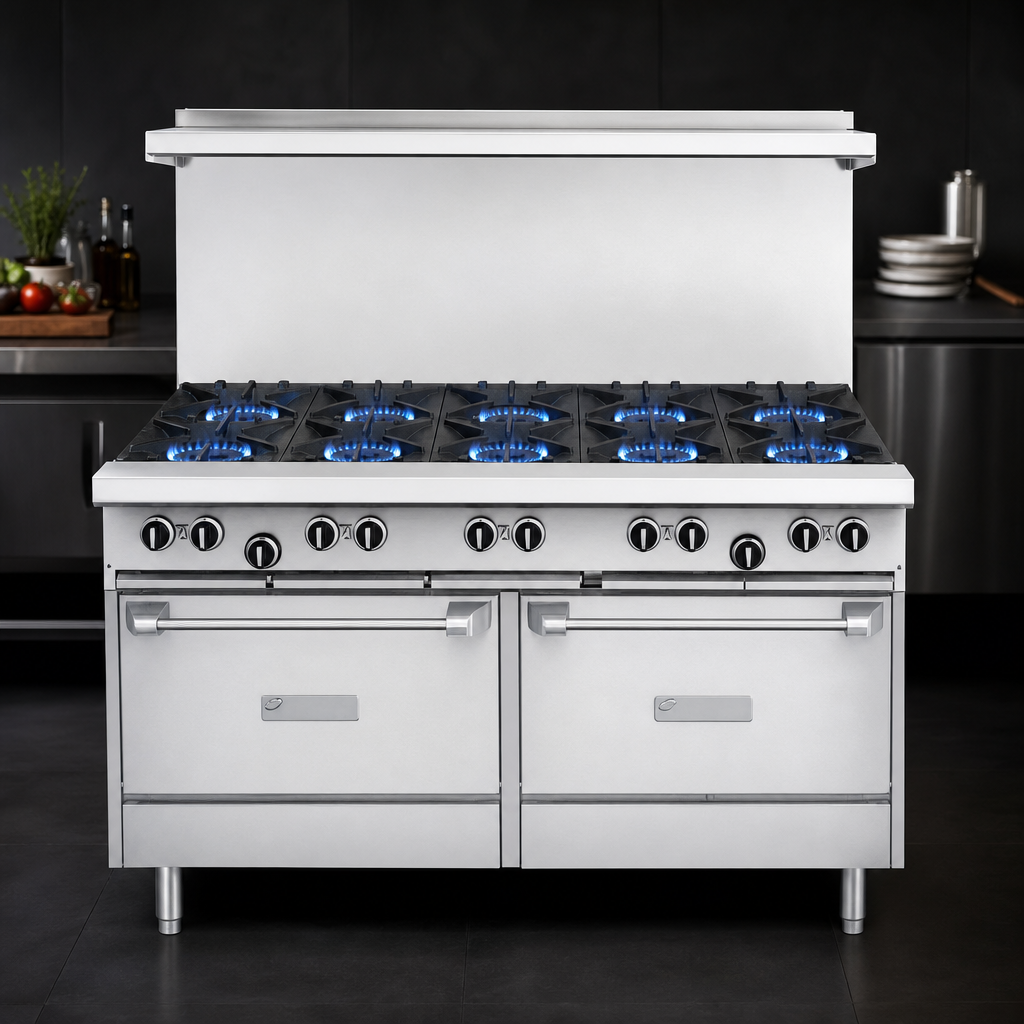

- 320,000 BTU total output – (10) 32,000 BTU two-piece cast-iron burners for fast boiling, searing & sautéing.
- Extra-deep 27" (686 mm) work top maximizes usable cooking space.

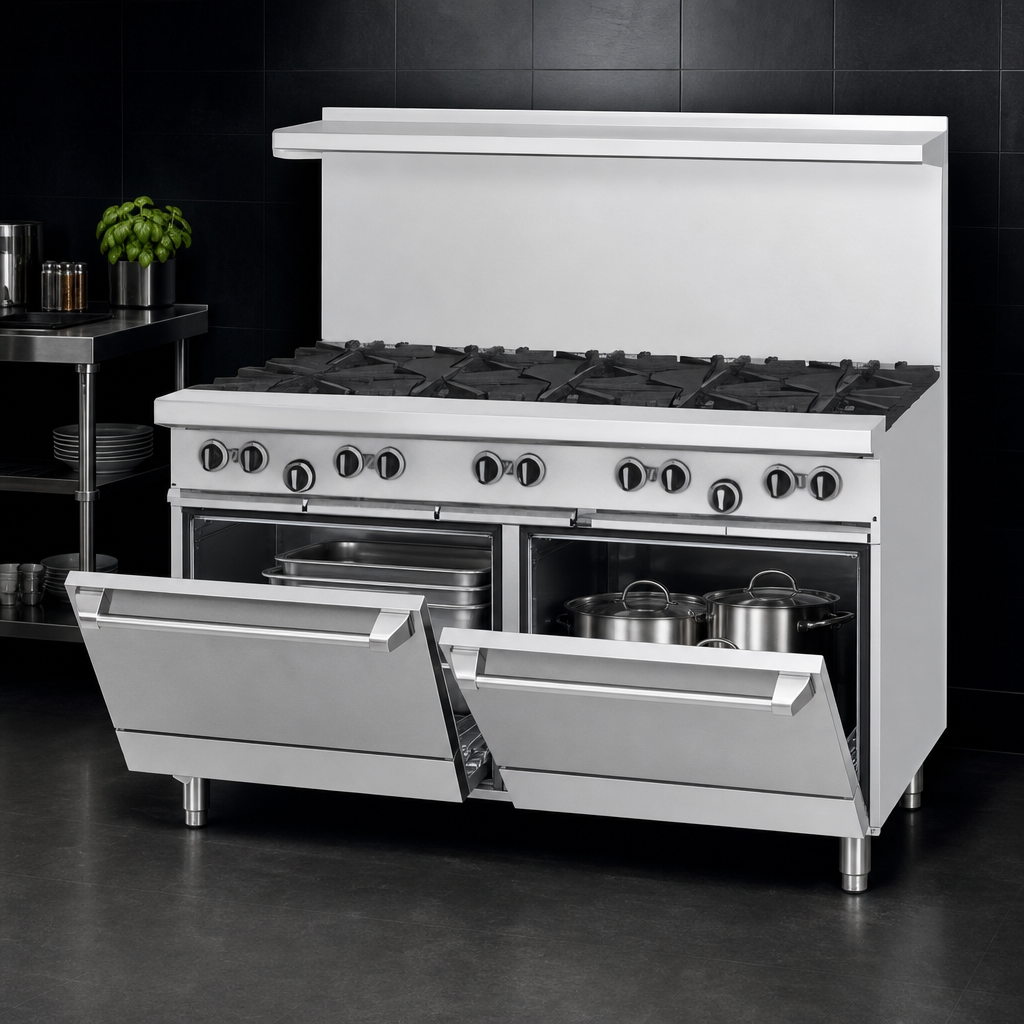

- Dual open storage bases (in lieu of ovens) – ideal for dry pans, sheet trays, smallwares and more.
- Stainless steel front, sides, 5" plate rail and two-piece backguard with removable shelf for easy cleanup and added mise-en-place.
- 6" (152 mm) adjustable stainless legs provide a level stance on uneven floors.
- Large, easy-grip control knobs and factory-installed gas pressure regulator for quick, precise adjustments.
- CSA Flame & Star, cCSAus and NSF-listed for worry-free code compliance.
Performance Benefits
- Two-piece burner design lifts off without tools, speeding nightly cleaning.
- Geometric burner ports ensure even flame distribution across pan bottoms.
- Split top-ring grates let you slide heavy stock pots from burner to burner without lifting.
- Wide 4-1/4" front grease trough channels spillage away from the flame zone.
At-a-Glance Specifications
| Overall width | 59-1/16" / 1500 mm |
|---|---|
| Overall depth | 34-1/2" / 876 mm |
| Work top height | 36-1/2" / 927 mm to cooking surface |
| Backguard height | 57" / 1448 mm (standard high shelf) |
| Number of open burners | 10 |
| Burner rating | 32,000 BTU each (Natural gas) 26,000 BTU each (Propane) |
| Total input (Natural) | 320,000 BTU/hr • 93.7 kW |
| Gas connection | 3/4" NPT rear manifold Manifold pressure – 4.5" WC Natural • 10" WC LP |
| Base configuration | (2) full-width stainless storage compartments |
| Construction | Stainless front/sides, aluminized steel base interior, cast-iron grates |
| Shipping weight | ≈ 581 lb / 264 kg |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Ideal Applications
- Full-service restaurants & hotel kitchens
- Catering & banquet production lines
- Institutional, hospitality or any operation that needs high-volume sauté capacities without ovens
Commercial use only: Garland U-Series ranges are not approved for residential installation.
Where casters are fitted, a factory-approved restraining device must be used.
Need a convection-oven base, griddle sections or custom configurations? Explore the complete Garland U-Series lineup or contact our team for a tailored quote.
$7,561.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland U60-10SS 60" U Series gas range with ten 32,000 BTU burners, 320,000 BTU total, stainless steel build, storage bases, NSF & CSA certified.
Manufacturer
Garland
Brand name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
59.1in
Depth
34.5in
Shipping Weight
581.0lbs
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Top
(10) open burners
Base
(2) cabinets
Specifications
U Series Restaurant Range, gas, 60", (10) 32,000 BTU open burners, (2) storage bases, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 320,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
