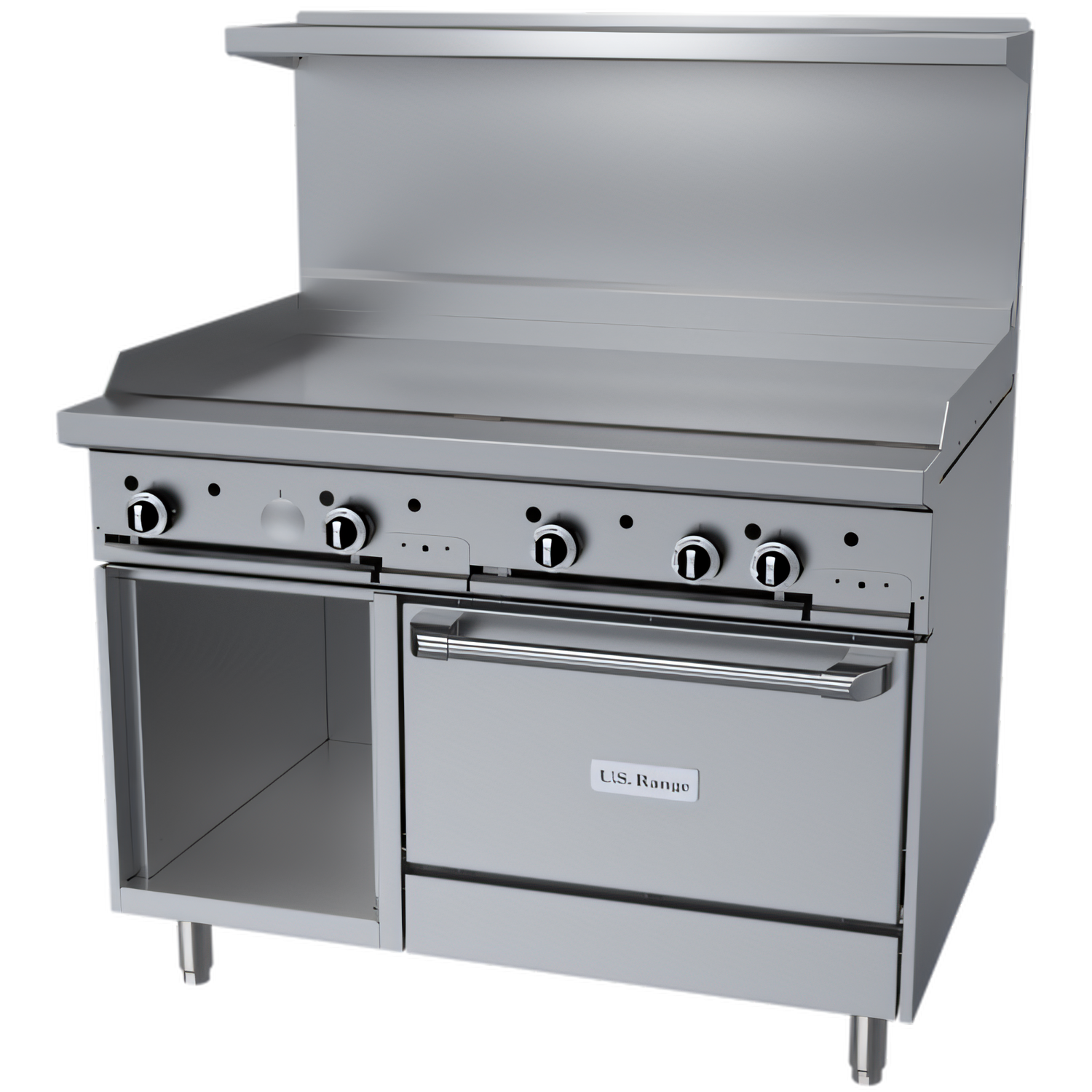

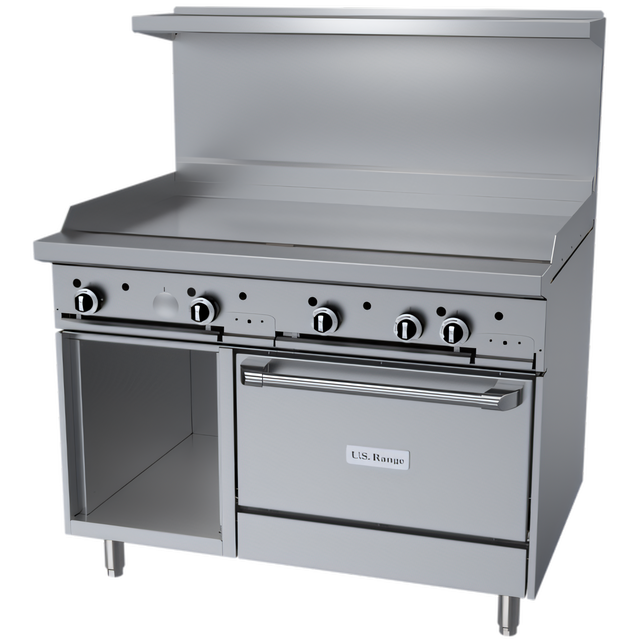

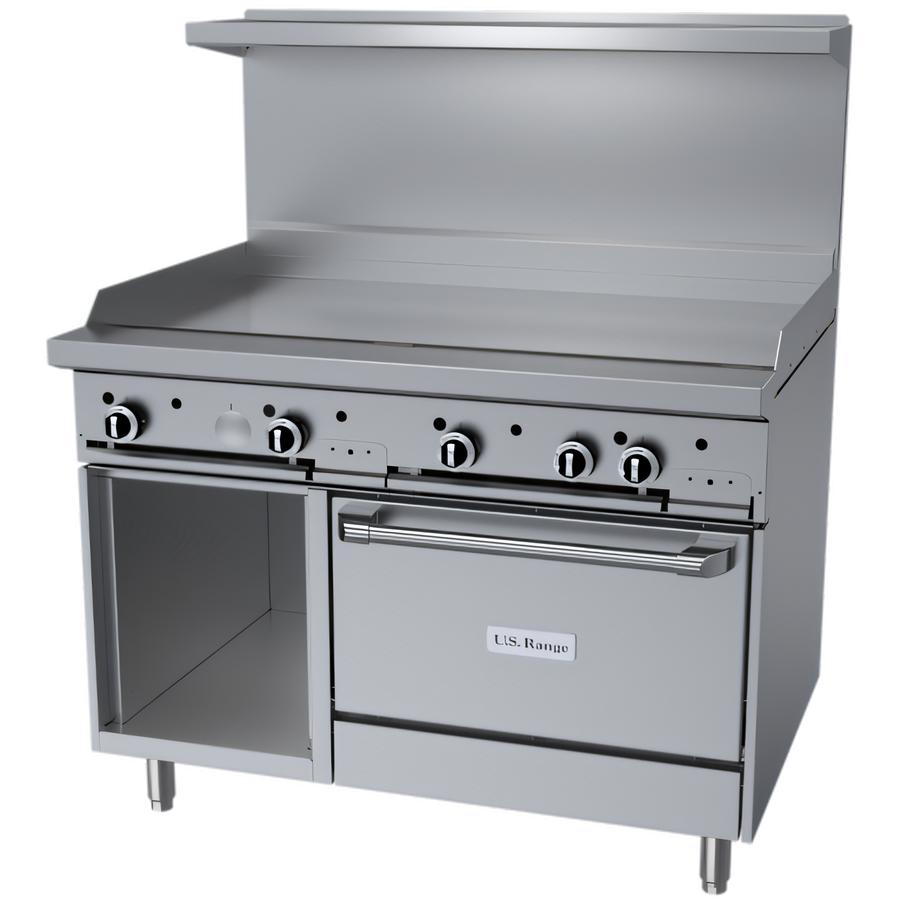

U Series 48" Gas Restaurant Range – 48" Griddle + Standard Oven
Model U48-G48RS | Garland / U.S. RangeBuilt for demanding, high-volume kitchens, this 48" U Series range unites a full-width griddle, a full-size oven and a handy storage base in one rock-solid, stainless-steel chassis. With 110,000 BTU of total input and industry-leading 27" depth, it delivers the cooking power and workspace chefs need to keep service moving.
Highlights
- 48" (1219 mm) smooth 5/8" (15 mm) steel griddle plate with 23" (584 mm) working depth.
- Four cast-iron “H” burners under the griddle — 18,000 BTU each (72,000 BTU total) for lightning-fast heat-up and an even cooking zone.
- Right-hand standard oven (26-1/4" wide) with porcelain-enameled bottom & door, plus three-position rack guides; includes one nickel-plated rack.
- 38,000 BTU cast-iron oven burner controlled by a snap-action thermostat adjustable from low to 500 °F (260 °C).
- Left-hand open storage base keeps sheet pans, sauce pots or smallwares within arm’s reach.
- Rugged stainless steel front, sides, 5" plate rail and a two-piece stainless backguard with removable shelf.
- Large, easy-grip control knobs and front-mounted 3/4" NPT gas regulator.
- 6" (152 mm) stainless steel legs with adjustable feet for quick leveling on uneven floors.
- Certified 110,000 BTU/h total input — CSA Flame, CSA Star, cCSAus and NSF listed for commercial use.
Specifications
| Overall Width | 47-1/4" / 1200 mm |
|---|---|
| Overall Depth (to plate rail) | 34-1/2" / 876 mm |
| Work-top Depth | 27" / 686 mm |
| Work-surface Height | 36" / 914 mm (adjustable) |
| Overall Height w/ Std. Backguard | 57" / 1448 mm |
| Griddle Plate | 48" W × 23" D × 5/8" thick smooth steel |
| Oven Interior (H × W × D) | 13" × 26-1/4" × 26" |
| Total BTU Input | 110,000 BTU/h (natural gas) |
| Gas Connection | 3/4" NPT, rear |
| Shipping Weight | ≈ 659 lb / 299 kg |
| Agency Approvals | CSA Flame, CSA Star, cCSAus, NSF |
Built for the Long Shift
- Reinforced chassis corners and heavy-gauge components stand up to daily abuse.
- Front-serviceable griddle plate shortens cleanup and maintenance times.
- “Keep-cool” oven door handle and fully insulated cabinet increase operator safety and energy efficiency.
- 27" deep cook surface offers extra plating real estate without increasing overall footprint.
Gas ratings shown for installations up to 2,000 ft (610 m) above sea level — please specify higher altitudes when ordering. This appliance is engineered for commercial kitchens and is not approved for residential use.
Overall Dimensions:
48.0"W x 34.5"D x 57.0"HProduct Weight:
659.0 lbCertifications & Compliance
