Garland U48-G48LL US Range U Series Ranges Gas Ranges
$9,404.00
Unit price
/
Unavailable
Description
U-Series 48" Gas Restaurant Range – Full Griddle / Dual Space-Saver Ovens
Model: U48-G48LL | Natural or Propane GasBuilt for high-volume kitchens that demand rock-solid consistency, this 48" U.S. Range by Garland combines a full-width 5/8" steel griddle with two independent space-saver ovens – packing 136,000 BTU/h of total cooking power into a single, chef-friendly workstation.
Why It Belongs on Your Line

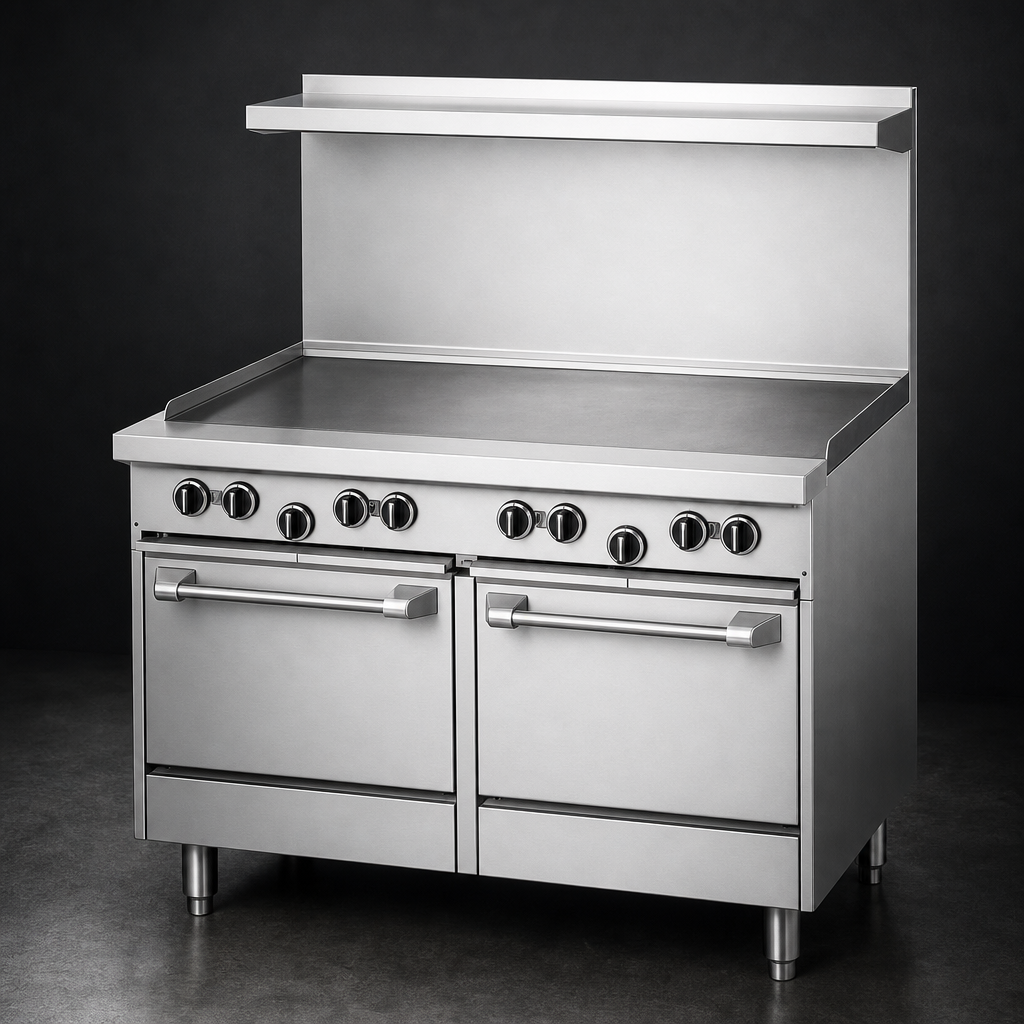

- One-piece 48" griddle. 5/8" (15 mm) smooth steel plate delivers rapid recovery and even heat across a 23" deep cooking surface.
- Four high-performance “H” burners. 18,000 BTU each (72,000 BTU total) – manual Hi/Lo valves for precise zone control.
- Dual 20" space-saver ovens. Each oven supplies 32,000 BTU with a heavy cast-iron burner, snap-action thermostat (Low–500 °F) and 3-position nickel-plated rack guides.
- All-steel exterior. Stainless front, sides, 5" plate rail, 2-piece backguard & removable shelf stand up to daily abuse and wipe clean fast.
- Reinforced chassis & easy-glide drip trays. 12" stamped trays catch grease; rounded dimples cut splatter and cleaning time.
- Ergonomic operation. Extra-large low-profile knobs stay cool; 6" stainless legs feature threaded feet for on-site leveling.
- Factory-installed 3/4" regulator & rear gas connection simplify hook-up on delivery day.
Performance & Capacity
| Total Input (Natural) | 136,000 BTU/h |
|---|---|
| Griddle Section | 4 × 18,000 BTU “H” style burners |
| Ovens (2) | 32,000 BTU each – cast-iron “H” burner |
| Temperature Range | Thermostatic ovens Low – 500 °F (260 °C) |
| Oven Interior (each) | 13" H × 26" D × 20" W – fits 18 × 26" sheet pan front-to-back |
| Working Surface | 48" W × 23" D griddle plate |
Dimensions & Utilities
| Overall Width | 47-1/4" (1200 mm) |
|---|---|
| Overall Depth | 34-1/2" (876 mm) |
| Height w/ High Shelf | 57" (1448 mm) |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | Natural 4.5" WC | Propane 10" WC |
| Clearances (Combustible) | Sides 14" | Rear 6" |
| Shipping Weight | ≈ 692 lb (314 kg) |
Certifications
- CSA Flame & Star
- cCSAus
- NSF Listed
This appliance is engineered for commercial use only and is not approved for residential installations.
Popular Factory Options (sold separately)
- Snap-action modulating griddle thermostat (175 – 425 °F)
- Low-profile 9-3/8" stainless backguard
- 4 locking swivel casters or flanged deck-mount legs
- Additional oven racks & Celsius dial kits
Gas Safety: Installation must comply with all local codes. Units supplied with casters require a secured restraining device.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
48.0in
Depth
34.5in
Shipping Weight
692.0lbs
Base
(2) standard / space saver ovens
Exterior Finish
stainless steel front & sides
Plate Thickness
.625" = 5/8"
Top
(1) griddle
Vent
backriser with hi-shelf
Specifications
U Series Restaurant Range, gas, 48", (1) griddle with 5/8" thick smooth steel plate, (2) space saver oven with 3 position rack guides with oven rack, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 136,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
