Garland U48-8SS US Range U Series Ranges Gas Ranges
Description
U48-8SS | U-Series 48" Gas Restaurant Range
8 open burners • twin storage bases • 256,000 BTU/hEngineered by Garland’s U.S. Range division, the U48-8SS delivers uncompromising power and prep-side convenience for high-volume kitchens that don’t require an oven. Eight 32,000 BTU open burners sit atop a rugged 27-inch deep work surface, while two full-width stainless storage bases keep sheet pans, utensils and smallwares right where you need them—at the range.
Why this range stands out
- Eight 32,000 BTU two-piece cast-iron geometric burners for fast, even heat
- Ergonomic split cast-iron top grates—easy to lift, easy to clean

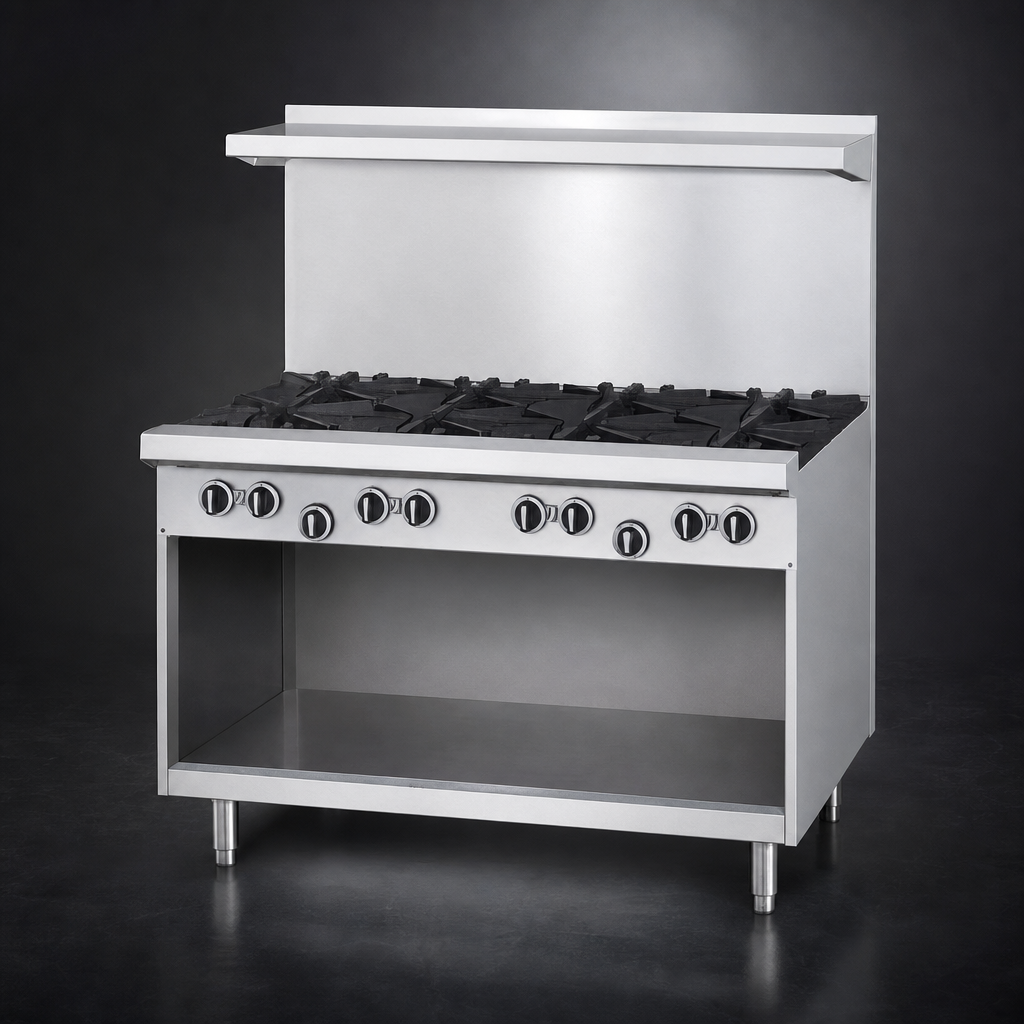

- Dual open storage bases (in lieu of ovens) for quick-grab sheet pan or small-equipment access
- Oversized 27″ (686 mm) deep cook surface handles large stock pots & skillets simultaneously
- Stainless steel front, sides, 5″ plate rail and two-piece backguard with removable shelf
- Individual 12″ stamped drip trays with dimpled bottoms help contain spills
- Factory-supplied 3/4″ NPT rear gas regulator for simple hook-up
- 6″ stainless legs with adjustable bullet feet for fast leveling
- Fully field-convertible for Natural or LP gas
Technical specifications
| Model | U48-8SS (storage base model) |
|---|---|
| Total input | 256,000 BTU/h (Natural Gas) | 208,000 BTU/h (LP) |
| Open burners | 8 × 32,000 BTU (NG) cast-iron open burners |
| Work surface | 47-1/4″ W × 27″ D (1200 mm × 686 mm) |
| Overall dimensions | 47-1/4″ W × 34-1/2″ D × 57″ H (to high shelf) |
| Gas connection | 3/4″ NPT, rear manifold | Manifold pressure: 4.5″ WC (NG) / 10″ WC (LP) |
| Construction | Stainless front, sides, rail & backguard; cast-iron grates & burners |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
| Net / Ship weight | ≈ 402 lb / 182 kg (per factory data) |
Perfect for
- High-volume line kitchens needing additional burner capacity without oven redundancy
- Hotels, banquet halls and catering facilities that stage finished items in holding cabinets
- Open-kitchen concepts—polished stainless looks great front-of-house
Need casters, additional drip trays or low-profile backguard? Ask our team about factory options and accessories.
