Garland  |  US Range U Series Ranges  |  SKU: U48-8LL

Garland U48-8LL US Range U Series Ranges Gas Ranges

$7,538.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

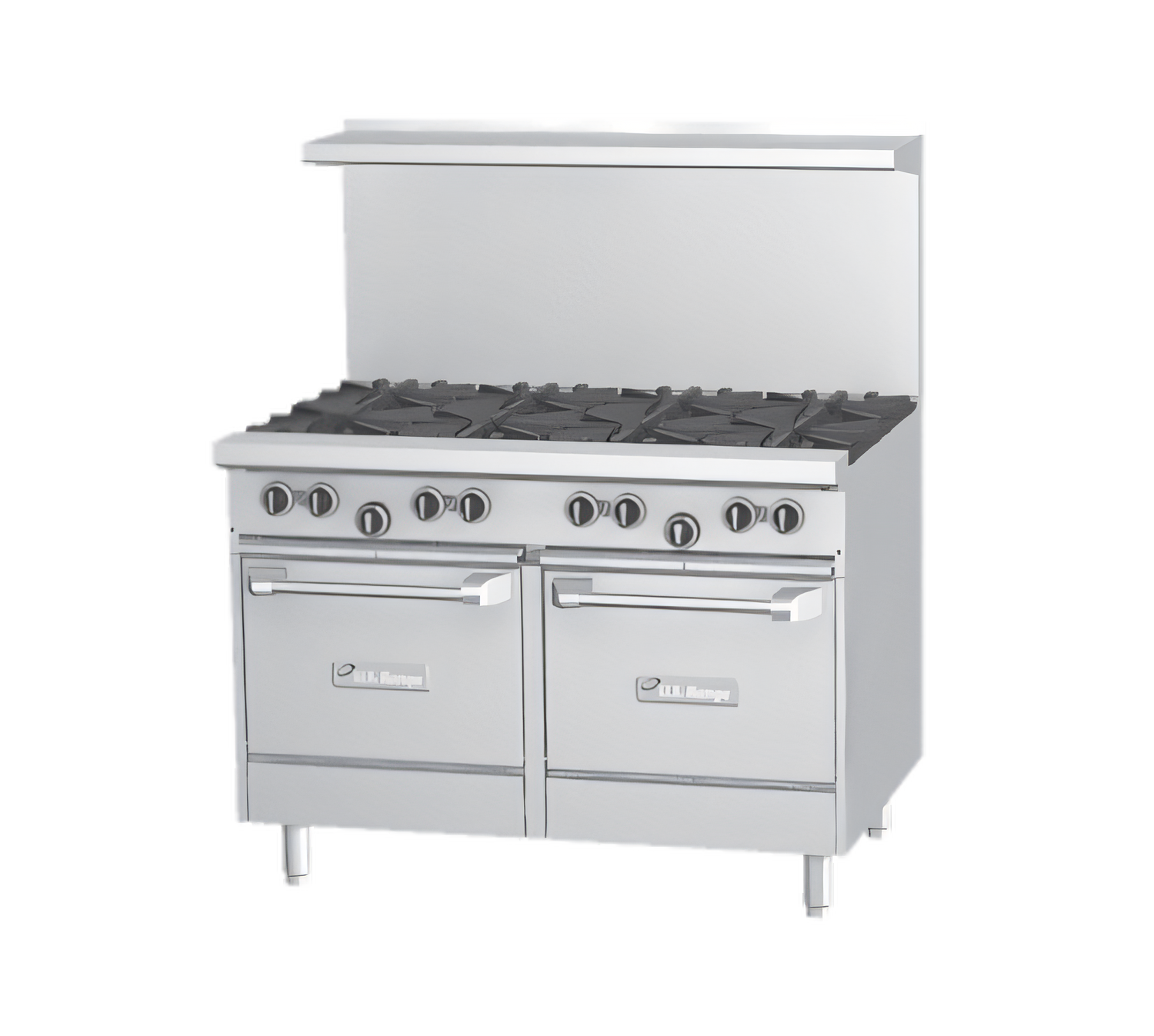

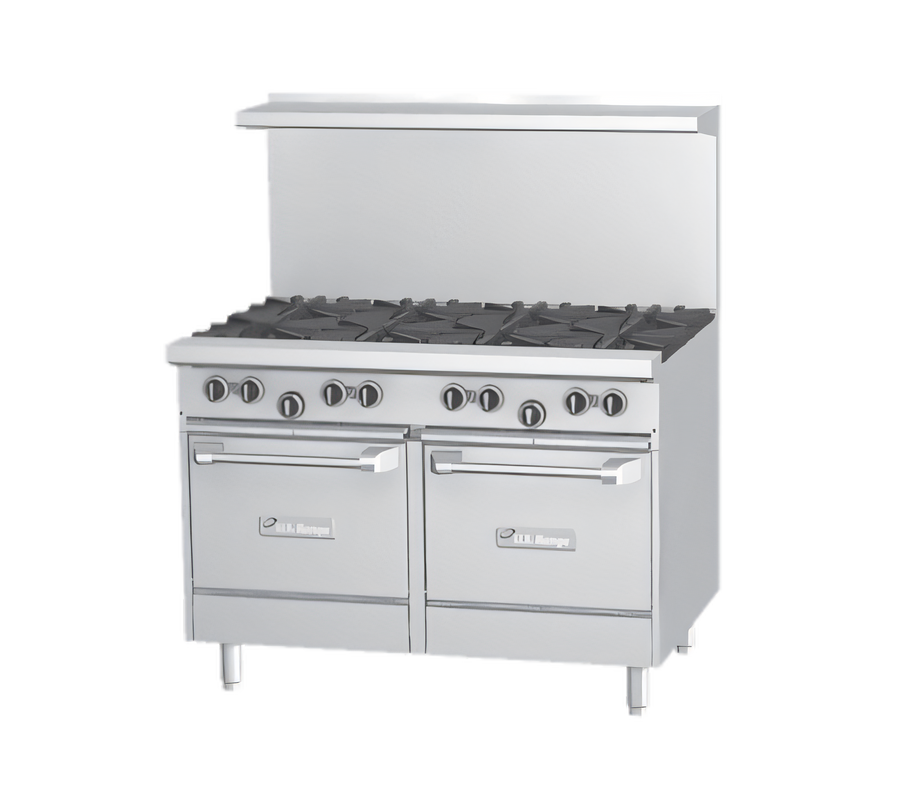

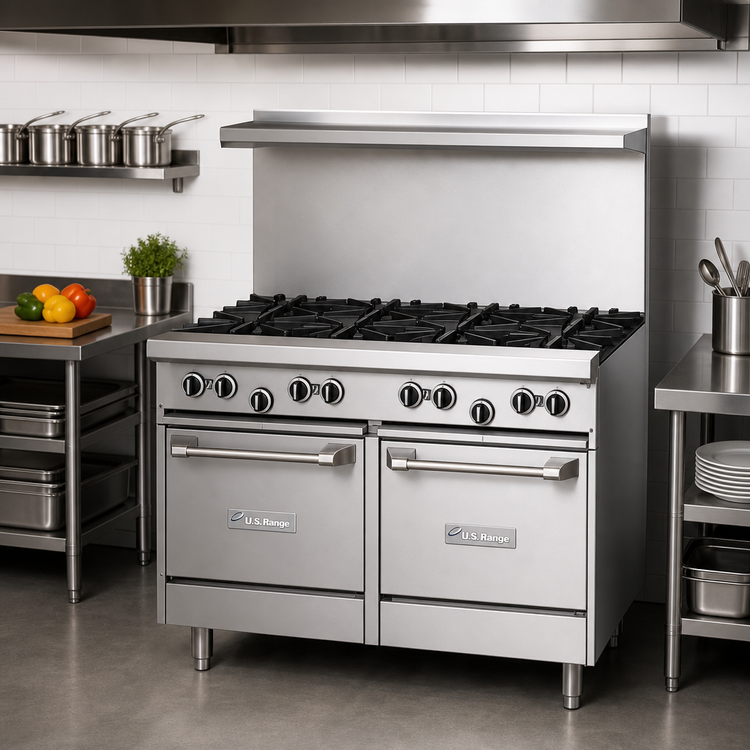

Garland U Series 48" Gas Restaurant Range

Model U48-8LL  |  8 Open Burners & 2 Space-Saver Ovens

Built for demanding, high-volume kitchens, the U.S. Range U Series 48" range delivers 320,000 BTU of dependable Garland performance in a compact footprint that fits virtually any cook-line.

Key Features

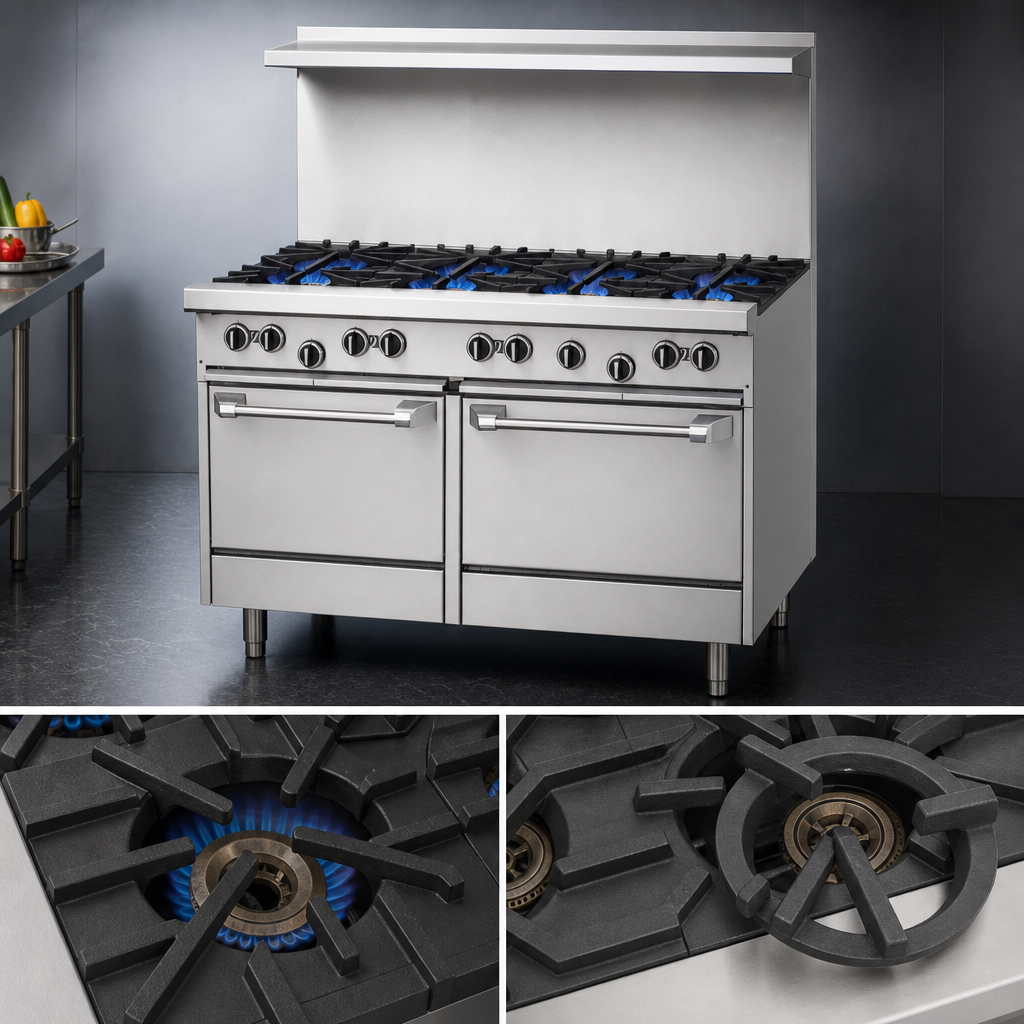

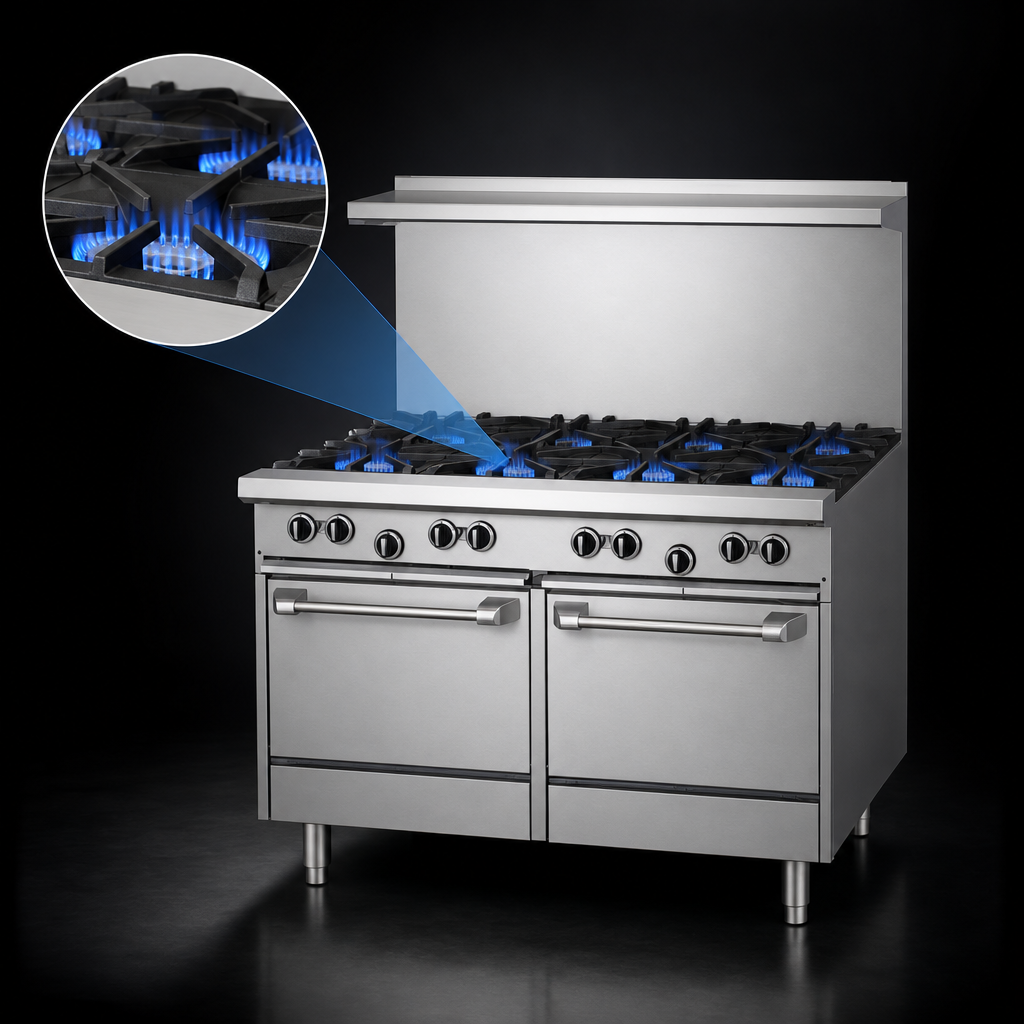

  • Eight 32,000 BTU/hr 2-piece cast-iron open burners with ergonomic split top-ring grates.
  • Two 20" space-saver ovens, each with a 32,000 BTU cast-iron “H” burner and snap-action thermostat (low–500 °F / 260 °C).
  • Roomy 27" (686 mm) deep work top and 5" (127 mm) stainless plate rail for efficient plating.
  • Stainless steel front, sides, removable 2-piece backguard & shelf—easy to keep sanitary.
  • 6" (152 mm) stainless steel legs with adjustable feet for fast leveling.
  • Full-width 12" (305 mm) stamped drip trays beneath every two-burner section.
  • Large, reinforced control knobs and “keep-cool” oven door handles for operator comfort.
  • Factory-supplied gas pressure regulator; field convertible for Natural or LP gas.
Space-Saver Oven Advantages
  • Porcelain-enamel oven bottom & door liner resists corrosion and wipes clean.
  • Three-position removable rack guides with one nickel-plated rack supplied per oven.
  • Accepts standard 18" × 26" sheet pans (front-to-back).
  • Even-bake, fast-recovery design keeps up with peak-period demand.
Durable Garland Construction
  • Heavy-duty chassis with reinforced corners for long service life.
  • Cast-iron burner bowls concentrate heat and resist warping.
  • 4-1/4" (108 mm) wide grease trough directs runoff to a front-removable drawer.
Popular Options & Accessories
  • Swivel casters (front locking, rear swivel) – maintain mobility while meeting code.
  • Low-profile 9-3/8" (238 mm) backguard.
  • Additional oven racks.
  • Flanged deck-mount legs for marine or curb installations.
  • Celsius temperature dials & piezo pilot ignition for griddles (factory-installed).
Specifications
Nominal width 48" (actual 47-1/4" / 1200 mm)
Depth (with front rail) 34-1/2" (876 mm)  |  Work top depth : 27" (686 mm)
Height w/ standard backguard 57" (1448 mm)
Total input (Natural gas) 320,000 BTU/hr (93.7 kW)
Open burners 8 × 32,000 BTU cast-iron, lift-off heads
Oven burners 2 × 32,000 BTU cast-iron “H” style
Oven interior (H × D × W) 13" × 26" × 20" (330 × 660 × 508 mm) each*
Gas connection 3/4" NPT rear manifold; 4.5" WC Natural, 10" WC LP
Certifications CSA Flame, CSA Star, cCSAus, NSF
Shipping weight Approx. 572 lb / 259 kg

*Space-saver oven width is 20" (508 mm).

Compliance & Installation
  • Intended for commercial use only—not for residential installation.
  • Gas ratings shown valid up to 2,000 ft (610 m) elevation; specify altitude above 2,000 ft when ordering.
  • When supplied with casters, an approved anti-tip restraining device must be installed.
  • Clearances (combustible): 14" sides, 6" rear.
Important: Installation must conform to local codes, or in the absence of local codes, the National Fuel Gas Code ANSI Z223.1/NFPA 54 or CAN/CSA-B149.1 Natural Gas & Propane Installation Code. A licensed gas professional is required for connection and start-up.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

48.0in

Depth

34.5in

Shipping Weight

572.0lbs

Top

(8) open burners

Exterior Finish

stainless steel front & sides

Base

(2) standard / space saver ovens

Vent

backriser with hi-shelf

Specifications

U Series Restaurant Range, gas, 48", (8) 32,000 BTU open burners, with cast iron top & ring grates, (2) space-saver ovens with 3 position rack guides with oven rack each, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 320,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
