Description

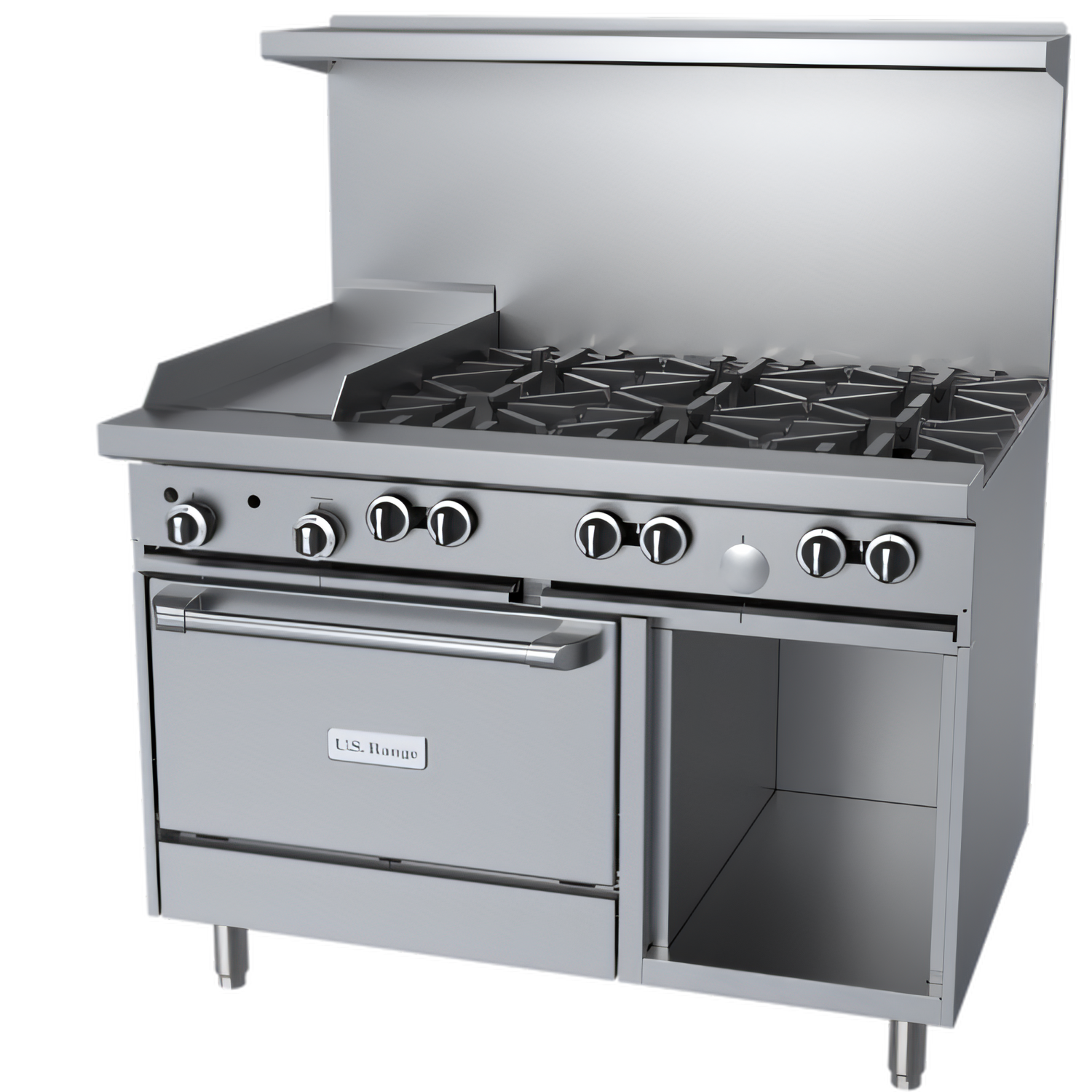

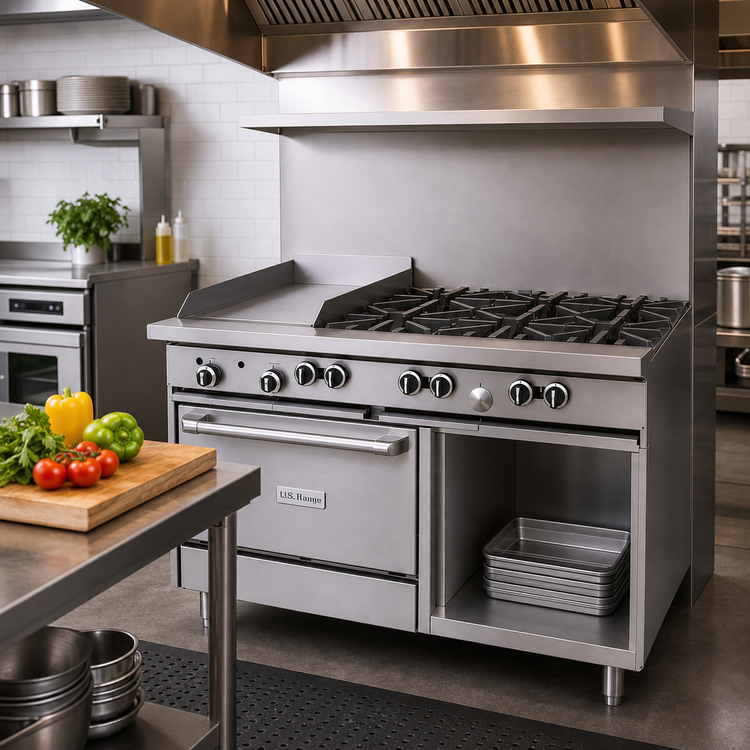

Garland U-Series 48" Gas Restaurant Range

Model: 6 Open Burners + 12" Griddle • Standard Oven & Storage Base

Built for busy kitchens that need maximum versatility in a 48-inch footprint, the Garland U-Series combines six high-performance open burners, a precision 12" griddle and a full-size oven with the added convenience of an open storage base. Heavy-gauge stainless steel construction, simple front-service components and legendary Garland durability make this range a reliable workhorse shift after shift.

Key Features at a Glance

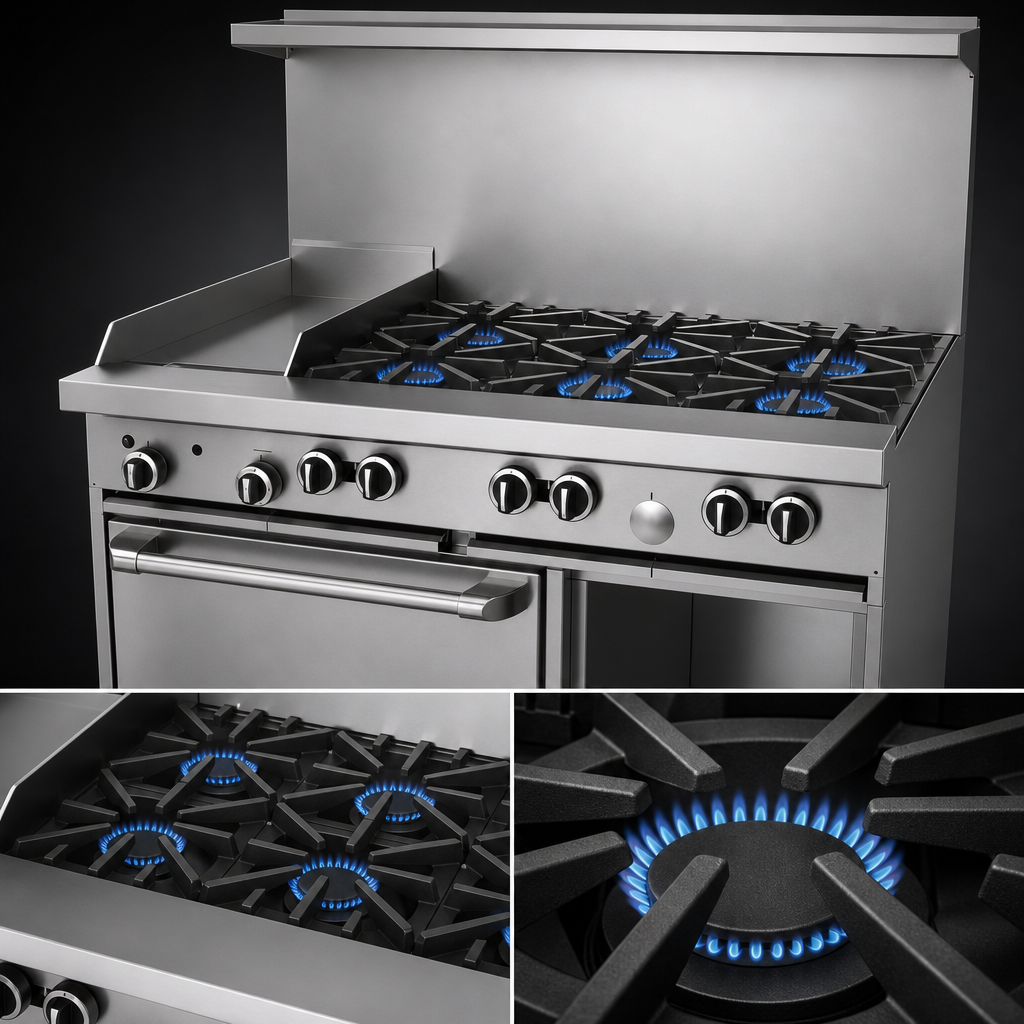

  • Six 32,000 BTU two-piece cast-iron open burners with split ergonomic grates

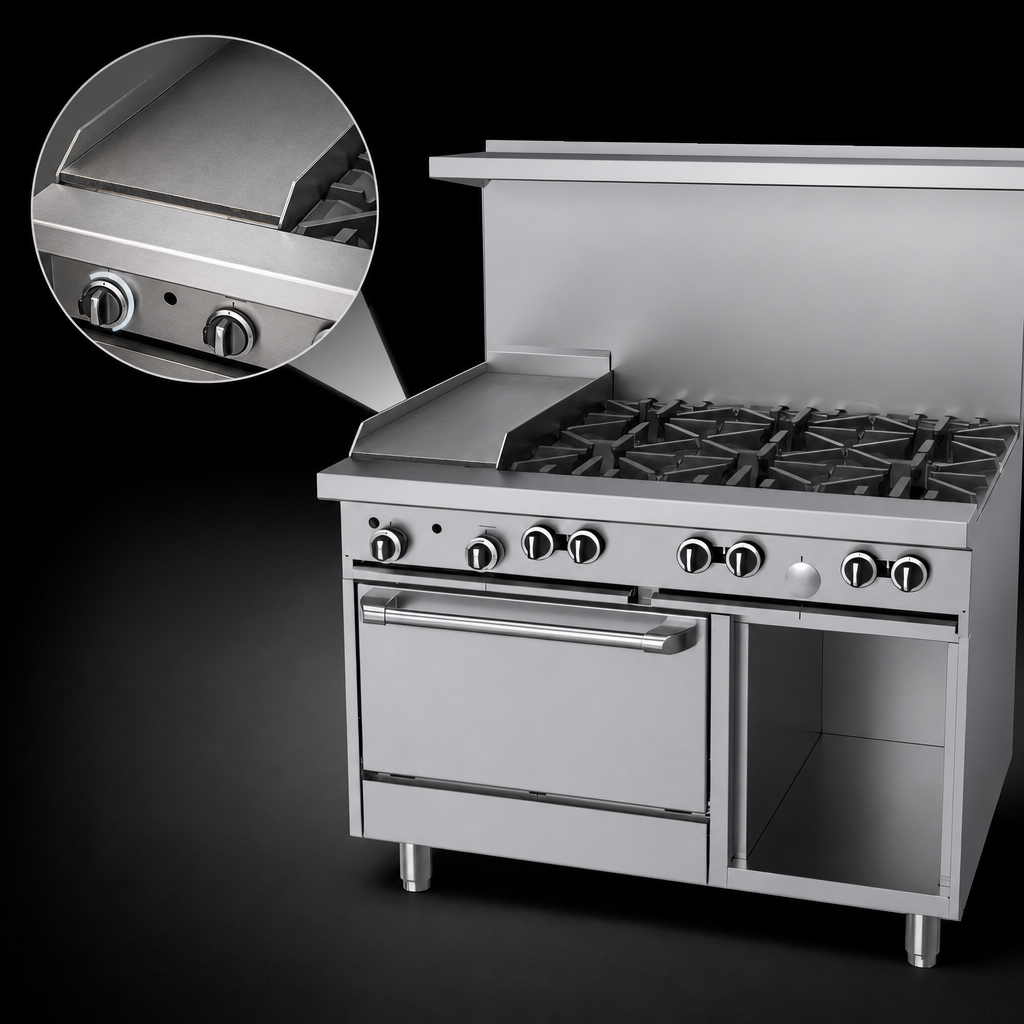

  • 12" (305 mm) griddle section
    • 5/8" (15 mm) thick polished steel plate
    • 18,000 BTU cast-iron “H” style burner
    • Manual Hi/Lo valve for quick surface recovery
    • 4-1/4" (108 mm) wide integrated grease trough
  • Standard oven – porcelain–lined bottom & door, aluminized top/sides/back
    • 38,000 BTU cast-iron “H” burner
    • Snap-action thermostat, Low to 500 °F (260 °C)
    • Nickel-plated rack with 3-position removable guides
    • Fits 18 × 26" sheet pans in both directions
  • Open storage base (left side) keeps sheet pans, smallwares or stock pots close at hand
  • 27" (686 mm) extra-deep worktop gives ample plating & prep space
  • Two-piece stainless steel backguard with removable high shelf
  • 6" (152 mm) adjustable stainless steel legs for easy leveling
  • Large, easy-grip control knobs & front-located oven pilot for fast access
  • Factory-installed gas pressure regulator
Cooking Power
Open burners (6) 32,000 BTU each  |  192,000 BTU total
Griddle burner 18,000 BTU
Standard oven burner 38,000 BTU
Total input ≈ 257,000 BTU/hr (Natural Gas or Propane)*
Dimensions & Utilities
Overall width 48" (1,200 mm)
Overall depth 34-1/2" (876 mm)  |  27" (686 mm) work surface
Cooking height 36" (914 mm) to work surface
With high shelf 57" (1,447 mm) overall height
Oven interior (H × W × D) 13" × 26-1/4" × 26" (330 × 667 × 660 mm)
Gas connection 3/4" NPT rear manifold
Manifold pressure Natural 4.5" WC | Propane 10" WC
Shipping weight ≈ 570 lb (259 kg)
Certifications
  • CSA Flame
  • CSA Star
  • cCSAus
  • NSF
Included with Your Range
  • One nickel-plated oven rack
  • Stainless steel drip trays (2 × 12") with dimpled bottoms
  • Factory-installed 6" stainless steel legs with adjustable feet
  • Owner’s/installation manual
Commercial use only: Garland U-Series ranges are engineered for professional food-service operations and are not approved for residential installation. Use only Garland-approved gas hoses, casters and restraining devices where required.

*Gas input values shown are for installations up to 2,000 ft (610 m) above sea level. Specify altitude and gas type when ordering.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

48.0in

Depth

34.5in

Shipping Weight

569.0lbs

Base

(1) standard oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Plate Thickness

.625" = 5/8"

Top

(6) open burners, (1) 12" griddle

Vent

backriser with hi-shelf

Specifications

U Series Restaurant Range, gas, 48", (6) 32,000 BTU open burners, (1) 12" griddle, 5/8" thick steel plate, (1) standard oven with 3 position rack guides with oven rack, (1) storage base, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 257,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
