Garland  |  US Range U Series Ranges  |  SKU: U48-4G24LL

Garland U48-4G24LL US Range U Series Ranges Gas Ranges

$8,562.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

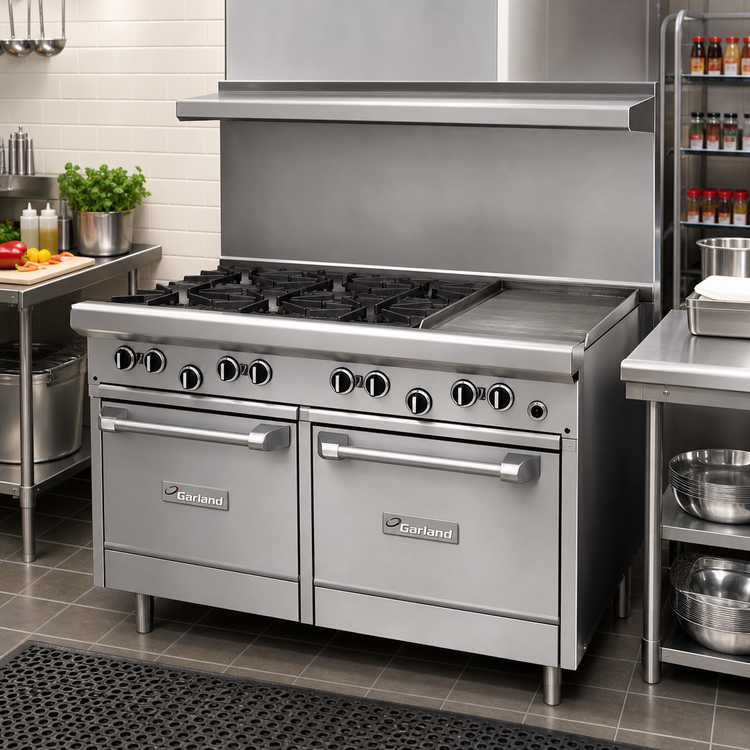

Garland / U.S. Range U-Series 48" Gas Restaurant Range

Model U48-4G24LL – 4 Open Burners | 24" Griddle | Double Space-Saver Ovens

Designed for the hard-working mid-volume kitchen, the U-Series 48" range combines four high-powered open burners, a full-service 24" griddle and two independent space-saver ovens in one heavy-duty footprint. Stainless construction, snap-action controls and easy-service components keep crews cooking and cleaning with confidence shift after shift.

Key Performance Benefits

  • 4 × 32,000 BTU cast-iron open burners with split ergonomic grates for fast, even heat.

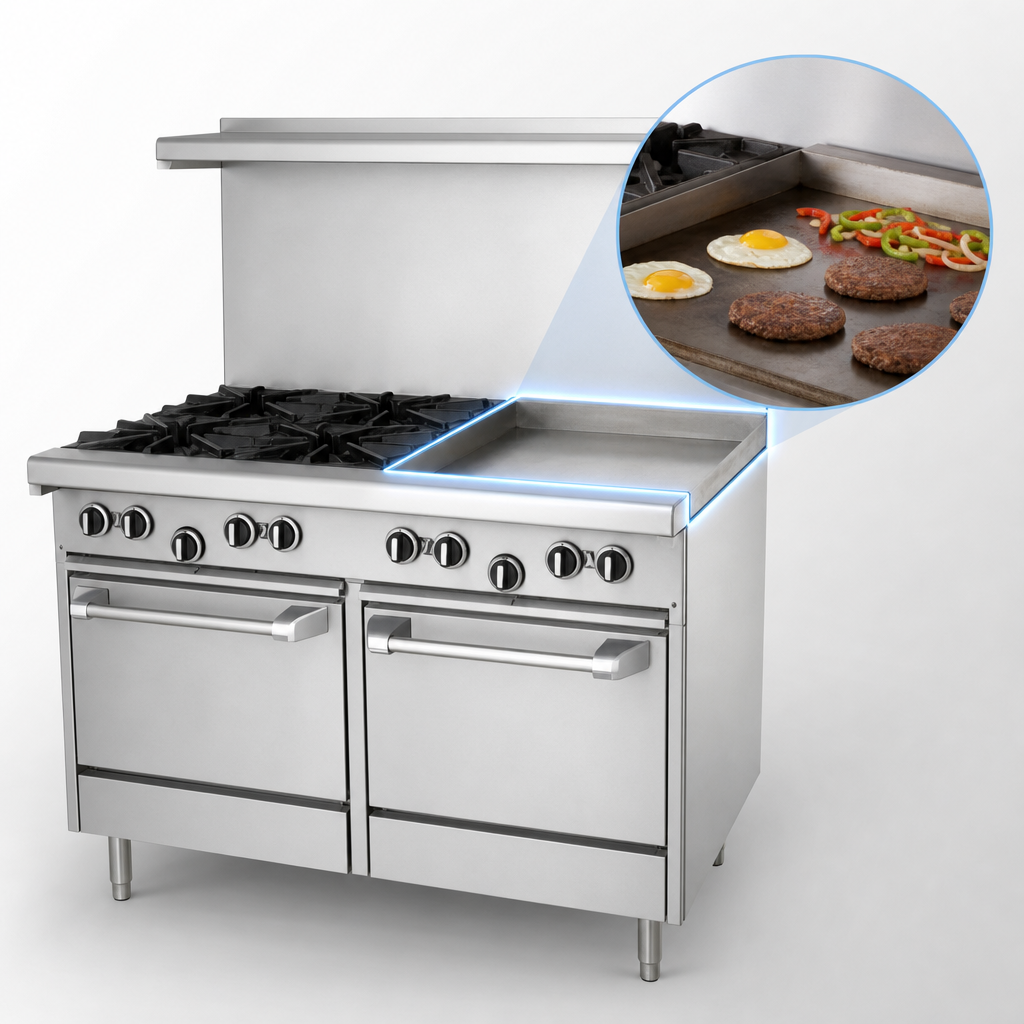

  • 24" griddle with 5/8" (15 mm) thick steel plate, manual Hi/Lo valve and 4-1/4" wide grease trough; two 18,000 BTU “H” style burners deliver 36,000 BTU of even surface heat.
  • Dual space-saver ovens (20" W) – each powered by a 32,000 BTU cast-iron “H” burner and governed by a snap-action thermostat from low to 500 °F (260 °C).
  • Nickel-plated rack in each oven with 3-position removable guides; fits full-size 18" × 26" sheet pans left-to-right.
  • Total input: 228,000 BTU/h (Natural gas; Propane ratings available).

Chef-Focused Design Details

  • Generous 27" (686 mm) deep work top for multiple pan and tool placements.
  • Stainless steel front, sides, 5" plate rail and two-piece backguard with removable shelf.
  • Large, easy-grip control knobs and front-serviceable pilots for quick lighting.
  • 12" stamped drip trays with dimpled bottoms under each burner section for fast clean-up.
  • 6" adjustable stainless steel legs for perfect leveling on any cook-line.
  • Factory-installed 3/4" gas regulator included.

Certifications

  • CSA Flame
  • CSA Star
  • cCSAus
  • NSF

Technical Specifications

Overall width 47-1/4" (1200 mm)
Overall depth 34-1/2" (876 mm)
Work-top depth 27" (686 mm)
Height (to cook surface) 36" (914 mm) on 6" legs
Height (with shelf) 57" (1448 mm)
Open burners 4 × 32,000 BTU (Natural)  |  4 × 26,000 BTU (LP)
Griddle burners 2 × 18,000 BTU (Natural/LP)
Oven burners 2 × 32,000 BTU (Natural)  |  2 × 28,000 BTU (LP)
Total input 228,000 BTU/h (Natural)
Oven interior (each) 20" W × 26-1/4" D × 13" H (508 × 667 × 330 mm)
Rack positions 3
Included racks 1 nickel-plated rack per oven
Gas connection 3/4" NPT rear
Shipping weight ~667 lb (303 kg)

Gas ratings shown for installations up to 2,000 ft (610 m). Specify altitude for higher elevations.

Commercial use only: Garland / U.S. Range equipment is engineered for professional kitchens and is not approved for residential installation.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

48.0in

Depth

34.5in

Shipping Weight

667.0lbs

Base

(2) standard / space saver ovens

Exterior Finish

stainless steel front & sides

Plate Thickness

.625" = 5/8"

Top

(4) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Specifications

U Series Restaurant Range, gas, 48", (4) 32,000 BTU open burners, (1) 24" griddle, 5/8" thick steel plate, (2) space-saver ovens with 3 position rack guides with oven rack, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 228,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
