Garland U48-2G36SS US Range U Series Ranges Gas Ranges
Description
U.S. Range U-Series 48" Gas Restaurant Range – 2 Open Burners & 36" Griddle
Model U48-2G36SS • 118,000 BTU • Dual Storage BaseBuilt for demanding commercial kitchens, the U-Series 48" range combines high-output open burners, an extra-wide griddle and two full-width storage bases in one rugged, stainless-steel package. From sautéing and simmering to all-day grilling, this versatile workhorse keeps pace with breakfast rushes, lunch lines and late-night service alike.
Key Features
- 118,000 BTU total input:

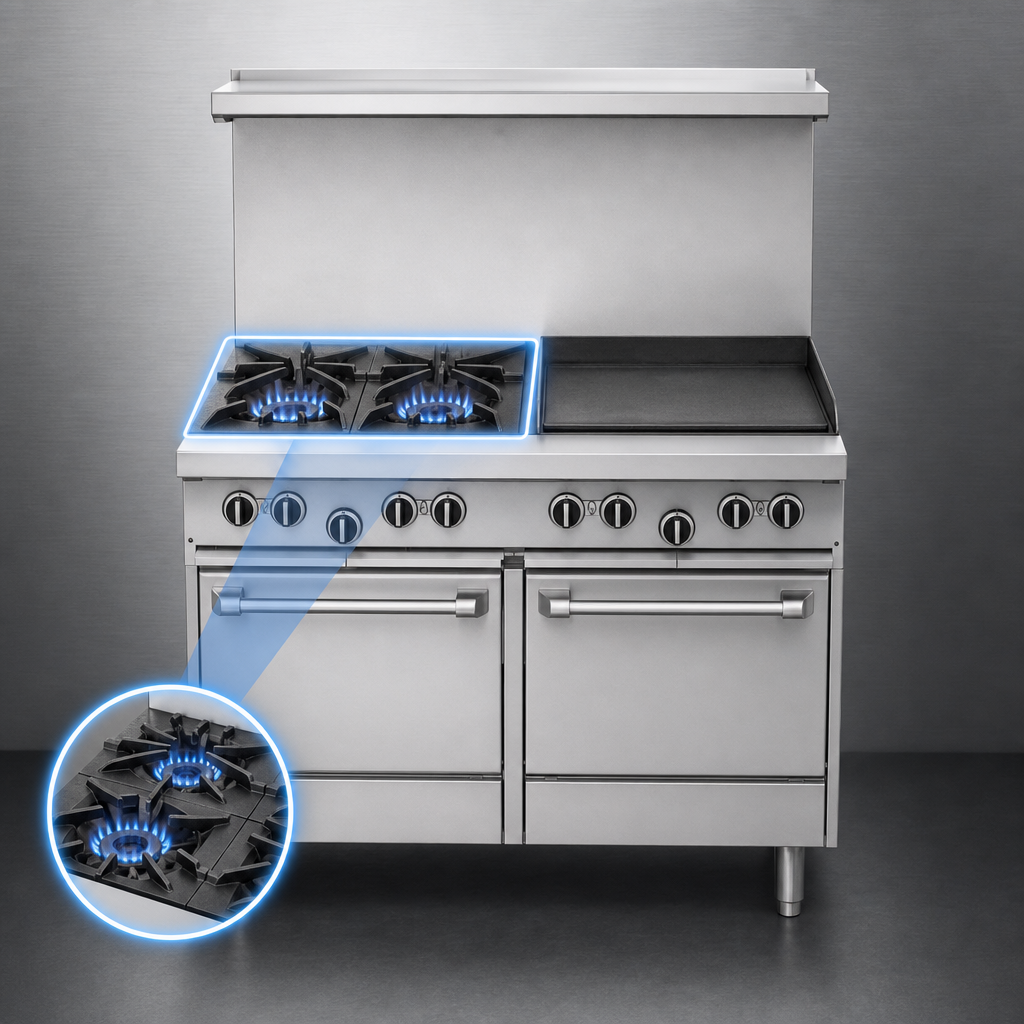

- 2 × 32,000 BTU two-piece cast-iron open burners (left)

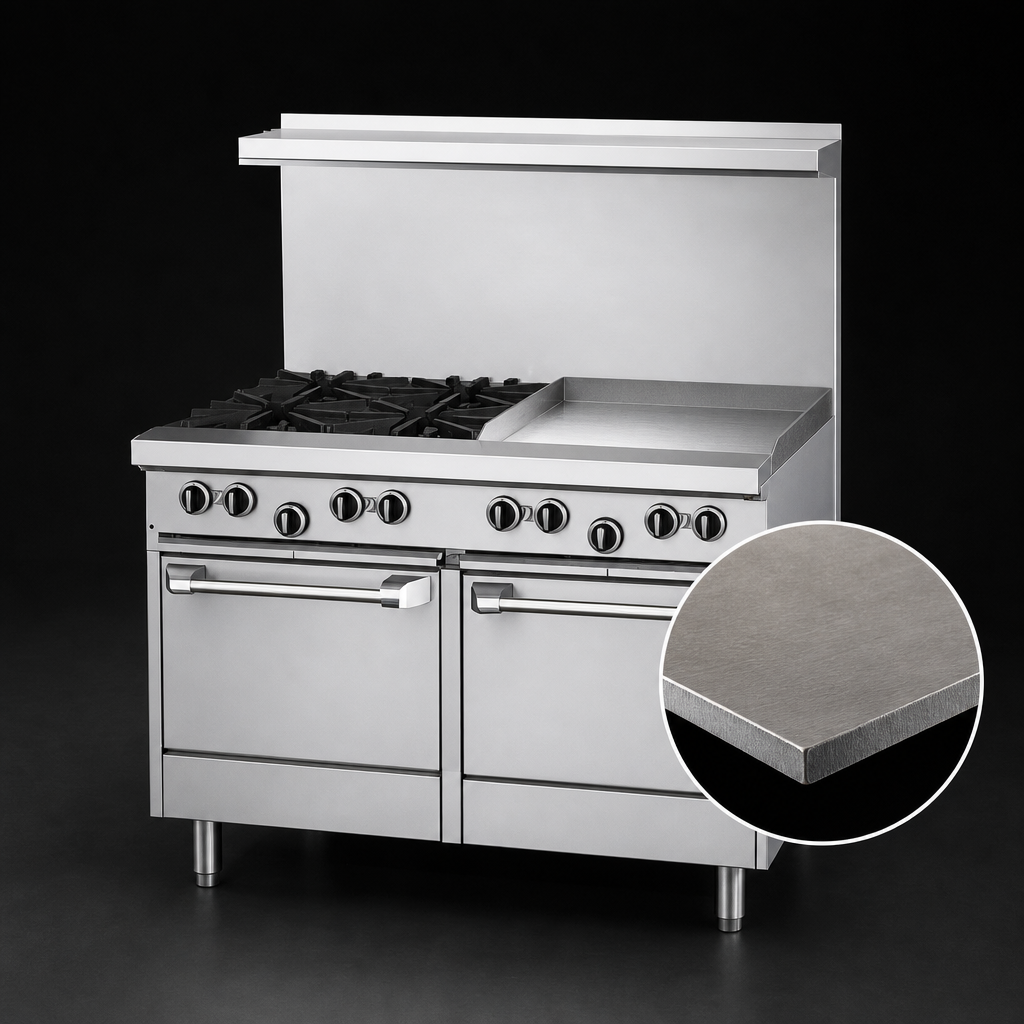

- 36" griddle with 3 × 18,000 BTU cast-iron “H” burners (right)
- 5/8" (15 mm) thick polished steel griddle plate with manual Hi/Lo valves and 23" (584 mm) deep cooking surface
- Ergonomic split cast-iron top ring grates lift out easily for cleaning
- Dual open storage bases—perfect for sheet pans, smallwares and mise en place
- Stainless-steel front, sides, 5" (127 mm) plate rail, plus 2-piece stainless backguard with removable shelf
- 4-1/4" (108 mm) wide grease trough and individual 12" stamped drip trays with dimpled bottoms
- 6" (152 mm) adjustable stainless-steel legs level the unit on uneven floors
- Front-mounted gas regulator and service-friendly control panel
Technical Specifications
| Overall Width | 47-1/4" (1200 mm) |
|---|---|
| Overall Depth | 34-1/2" (876 mm) |
| Work-Top Depth | 27" (686 mm) |
| Overall Height* | 57" (1448 mm) with standard high-shelf backguard |
| Griddle Plate | 5/8" thick steel, 36" W × 23" D |
| Storage Base | Two open compartments (no ovens) |
| Gas Connection | 3/4" NPT (rear manifold) • Natural or Propane |
| Manifold Operating Pressure | Natural 4.5" WC • Propane 10" WC |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
*Low-profile 9-3/8" (238 mm) backguard available.
Perfect For
- Diners, cafés and food trucks that need maximum versatility in minimal space
- Catering kitchens requiring expanded griddle capacity without sacrificing open burners
- High-volume operations that benefit from on-board dry storage
Important: This appliance is engineered for commercial use only and is not approved for residential installations. When mounted on casters, a factory-approved restraining device must be used. Follow all local codes and the installation manual for required clearances and ventilation.
