Garland U36-4G12S US Range U Series Ranges Gas Ranges
$4,038.00
Unit price
/
Unavailable
Description
Garland U Series 36" Gas Restaurant Range – 4 Open Burners & 12" Griddle, Storage Base
Model U36-4G12S | 146,000 BTU | Natural or Propane GasCombine the searing power of four 32,000 BTU open burners with the versatility of a 12" griddle in one rugged, 36" platform. The Garland (U.S. Range) U36-4G12S gives chefs the high-heat performance they expect, plus a full stainless storage base that keeps cookware right where it’s needed.
Key Performance Features

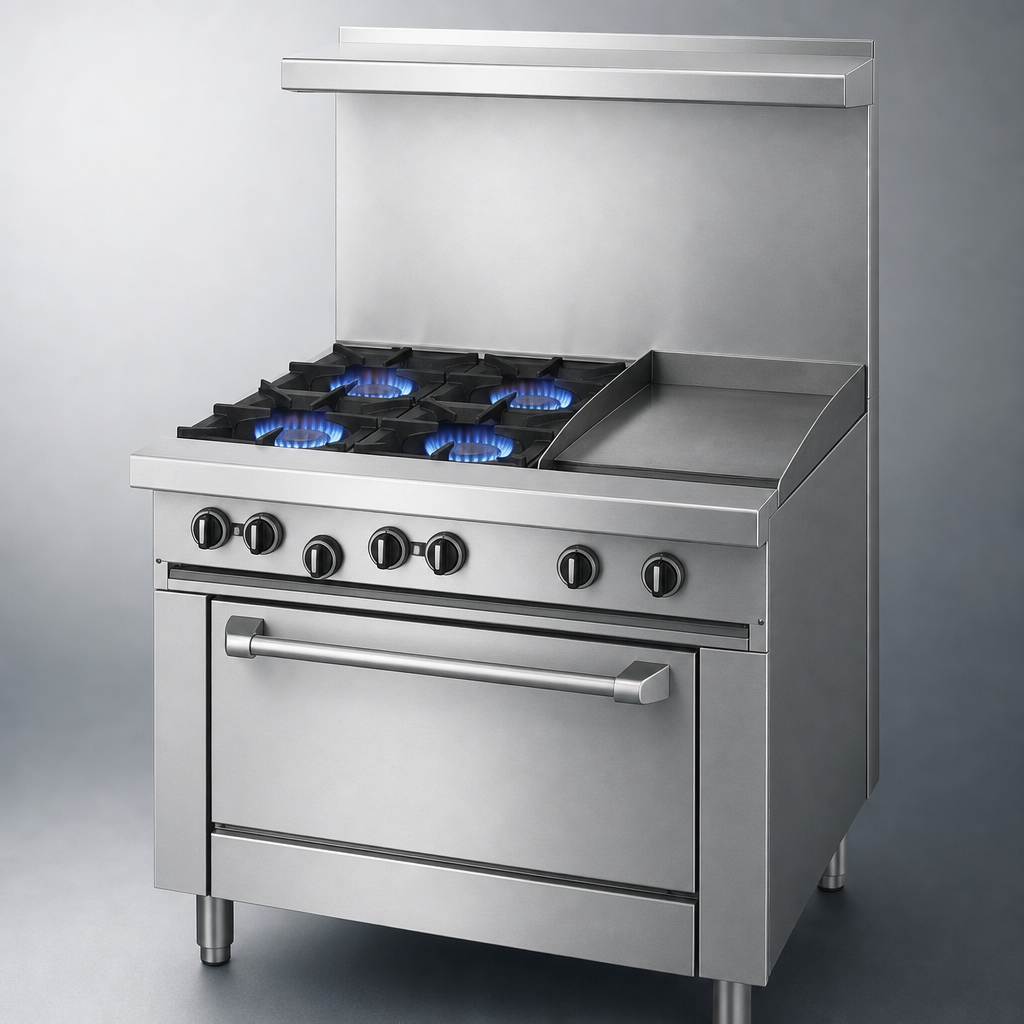

- 4 × 32,000 BTU cast-iron open burners (128,000 BTU total) with ergonomic split grates for effortless pot movement.

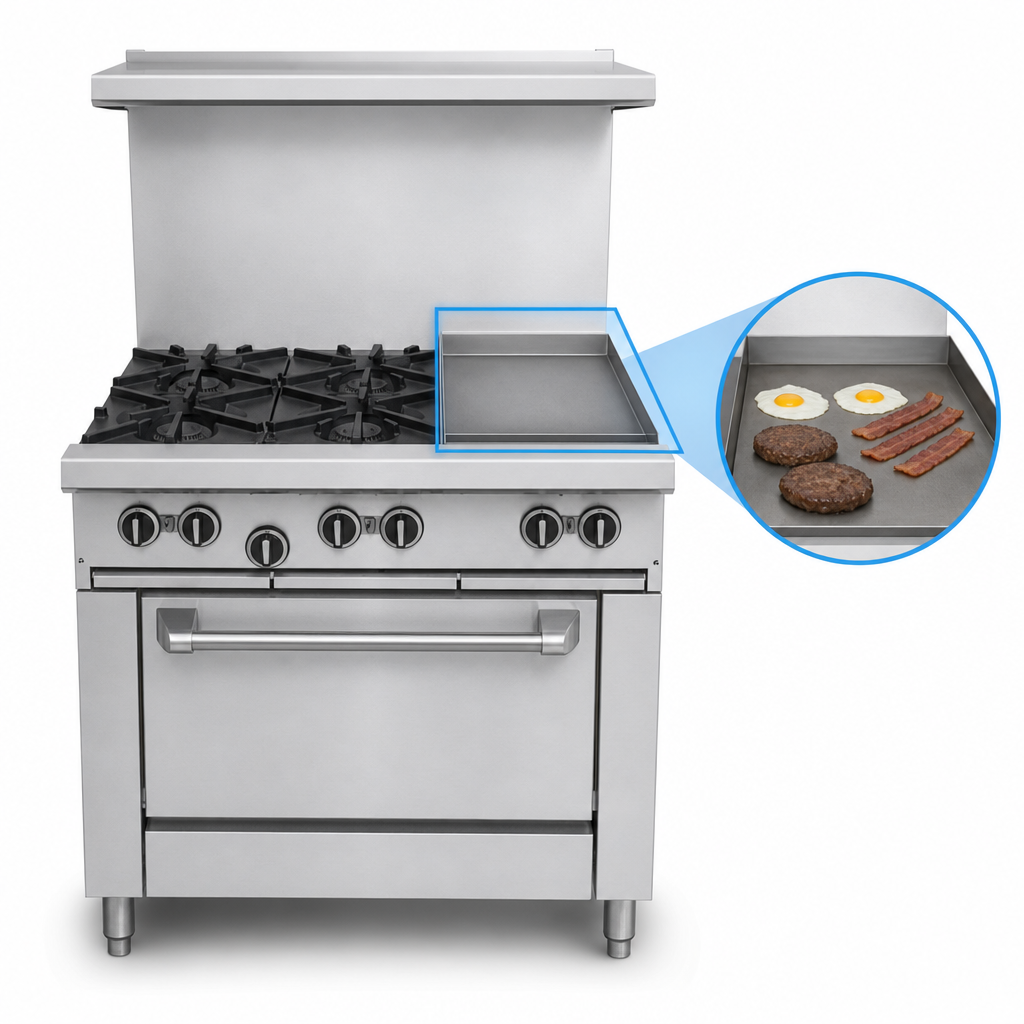

- 12" (305 mm) griddle:
- 5/8" (15 mm) smooth steel plate, 23" (584 mm) working depth
- 18,000 BTU cast-iron “H” style burner
- Manual Hi/Lo valve control and 4-1/4" (108 mm) wide grease trough
- Spacious 27" (686 mm) deep work top provides extra plating and prep room.
- All-stainless construction—front, sides, 5" plate rail, and two-piece backguard with removable shelf—for long-lasting durability and fast cleanup.
- Open stainless steel storage base replaces the oven, giving you quick access to pans, stock pots and utensils.
- 12" section, dimple-bottom drip trays slide out for easy cleaning.
- 6" (152 mm) adjustable stainless legs simplify leveling and floor care.
- Factory-installed gas regulator and 3/4" NPT rear gas connection.
- Certified for commercial safety & sanitation: CSA Flame, CSA Star, cCSAus, NSF.
Specifications at a Glance
| Model | U36-4G12S (Natural or Propane) |
|---|---|
| Total Input | 146,000 BTU/hr – Natural | 122,000 BTU/hr – Propane |
| Open Burners | 4 × 32,000 BTU (Natural) • Cast-iron, two-piece |
| Griddle | 12" W × 23" D, 5/8" smooth steel, 18,000 BTU “H” burner |
| Work Top Depth | 27" (686 mm) |
| Overall Dimensions | 35-7/16" W × 34-1/2" D × 57" H (900 × 876 × 1448 mm) 38" (965 mm) cook-surface height |
| Base Type | Open stainless storage cabinet |
| Gas Connection | 3/4" NPT, rear • Includes pressure regulator |
| Shipping Weight | Approx. 340 lb (154 kg) |
| Construction | Stainless steel front, sides, rail, backguard & shelf; cast-iron grates |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Popular Options & Accessories
- 6" levelling swivel casters (front locking)
- Low-profile 9-3/8" (238 mm) backguard
- Flanged deck-mount legs
- Piezo spark ignition for griddle pilot
Important: This appliance is engineered for commercial use only and is not approved for residential installations.
Units supplied with casters must be secured with an approved restraining device.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
36.0in
Depth
34.5in
Shipping Weight
340.0lbs
Base
(1) cabinet
Plate Thickness
.625" = 5/8"
Top
(4) open burners, (1) 12" griddle
Vent
backriser with hi-shelf
Exterior Finish
all stainless steel exterior
Specifications
U Series Restaurant Range, gas, 36", (4) 32,000 BTU open burners, (1) 12" griddle, 5/8" thick smooth steel plate, storage base, stainless steel front, sides, plate rail, 2-piece back guard & shelf, 6" stainless steel legs, adjustable feet, 146,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
