Garland U36-4G12R US Range U Series Ranges Gas Ranges
Description

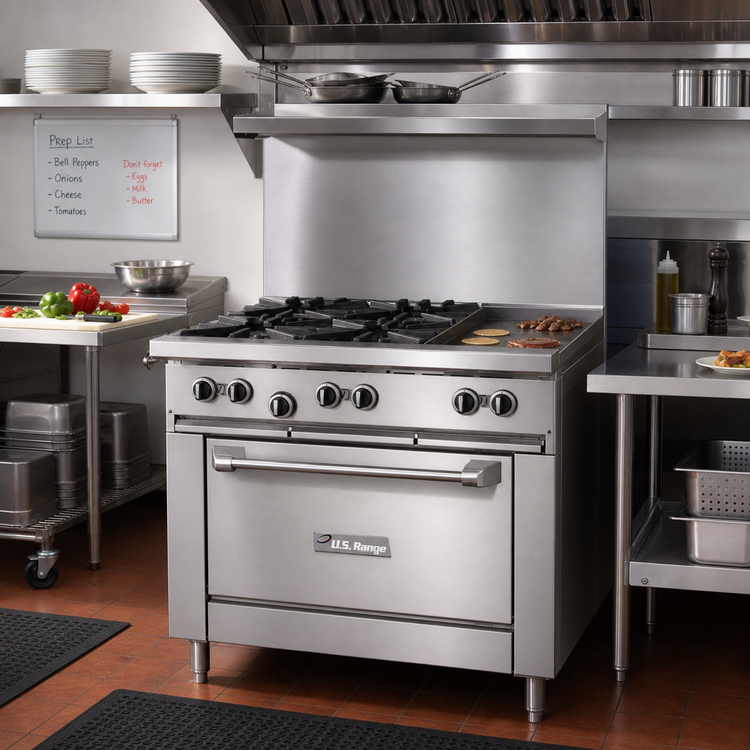

U-Series 36" Gas Restaurant Range – 4 Open Burners & 12" Griddle
Model U36-4G12R • Garland / U.S. RangePower, flexibility and rugged construction make the U-Series a staple in busy commercial kitchens. This 36" range pairs four 32,000 BTU open burners with a 12" steel griddle and a full-size oven, delivering a combined 184,000 BTU/hr to keep service moving at peak times.
Why It Stands Out
- 4 × 32,000 BTU geometric cast-iron open burners for instant, even heat.
- 12" (305 mm) griddle with 5/8" (15 mm) smooth steel plate & manual hi/lo control.
- Standard 26" oven (38,000 BTU) holds full-size sheet pans both directions; snap-action thermostat to 500 °F (260 °C).
- 27" deep worktop plus 5" stainless plate rail for generous prep & plating space.
- Stainless steel front, sides, plate rail, and two-piece backguard with removable shelf.
- 1 nickel-plated oven rack included; 3-position removable rack guides adapt to any menu.
- 6" adjustable stainless steel legs stabilize the unit on uneven floors.
- Large, easy-grip knobs and factory-installed pressure regulator simplify operation.
- Certified CSA Flame, CSA Star, cCSAus & NSF for gas safety and sanitation.
Performance Snapshot
| Total Input (Natural Gas) | 184,000 BTU/hr (53.9 kW) |
|---|---|
| Open Burners | 4 × 32,000 BTU cast-iron burners |
| Griddle Burner | 18,000 BTU cast-iron “H” burner |
| Oven Burner | 38,000 BTU cast-iron “H” burner |
| Oven Temperature Range | Low to 500 °F (260 °C) |
| Griddle Plate | 5/8" thick smooth steel • 12" W × 23" D cooking area |
Dimensions & Connections
| Width | 35-7/16" (900 mm) |
|---|---|
| Depth | 34-1/2" (876 mm) |
| Cook-Surface Height | 36" (914 mm) |
| Overall Height (with backguard & shelf) | 57" (1448 mm) |
| Oven Interior (H × W × D) | 13" × 26-1/4" × 26" (330 × 667 × 660 mm) |
| Gas Connection | 3/4" NPT (rear), factory regulator supplied |
| Manifold Pressure | Natural 4.5" WC • Propane 10" WC |
| Shipping Weight | ≈ 460 lb (209 kg) |
Popular Options & Accessories
- Snap-action modulating griddle thermostat (175 °F – 425 °F).
- Convection oven base (suffix “C”) with 1/3 HP fan & 3 racks.
- Low-profile 9-3/8" backguard.
- Additional oven racks or storage base in lieu of oven.
- 6" locking swivel casters or flanged deck-mount legs.
