Garland U36-2G24S US Range U Series Ranges Gas Ranges
Description
Garland U-Series 36" Gas Restaurant Range – 24" Griddle & 2 Open Burners
Model U36-2G24S | 100,000 BTU Total | Storage BaseWhen kitchen space is tight but performance can’t be compromised, choose the Garland U36-2G24S. This 36" U-Series range pairs a high-output 24" griddle with two powerful open burners, all on a rugged stainless-steel chassis that includes a full-width storage compartment for pans, stock pots and utensils.
Key Features

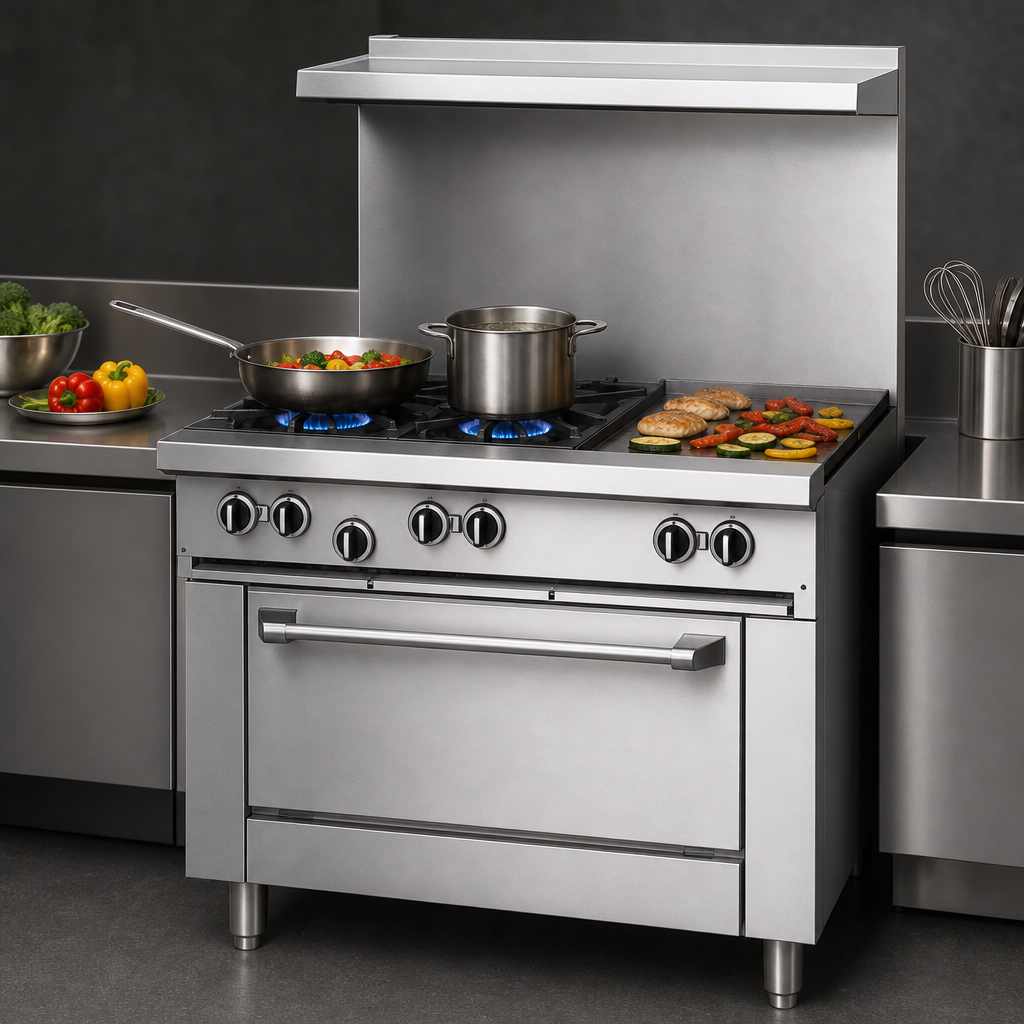

- Two 32,000 BTU cast-iron open top burners with split ergonomic grates for seamless pan movement

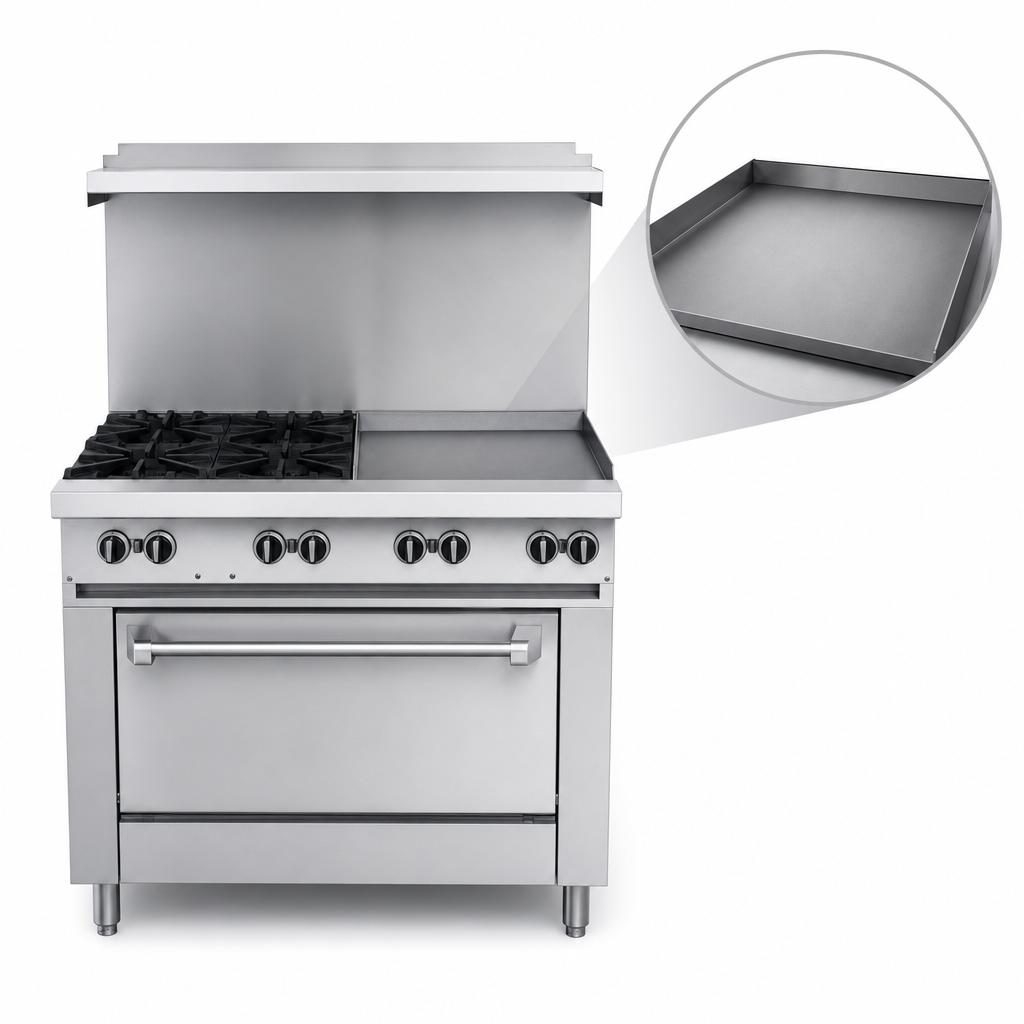

- 24" (610 mm) griddle with 5/8" (15 mm) smooth steel plate powered by dual 18,000 BTU “H” burners
- Manual Hi/Lo valve for precise griddle temperature control from breakfast to dinner service
- Spacious 27" (686 mm) deep work top and 4-1/4" (108 mm) grease trough for high-volume production
- Open storage base (in lieu of oven) keeps frequently used cookware within arm’s reach
- Stainless-steel front, sides, 5" plate rail and two-piece backguard with removable shelf
- Individual 12" stamped drip trays with dimpled bottoms slide out for fast cleanup
- 6" (152 mm) adjustable stainless-steel legs level the unit on uneven floors
- Factory-installed 3/4" NPT gas regulator and rear gas connection for straightforward installation
- Certified for commercial use: CSA Flame, CSA Star, cCSAus, NSF
Performance Data
| Open burners (2) | 32,000 BTU each (Natural) / 26,000 BTU each (Propane) |
|---|---|
| Griddle burners (2) | 18,000 BTU each (Natural or Propane) |
| Total input | 100,000 BTU/hr (Natural gas) |
| Manifold pressure | 4.5" WC Natural | 10" WC Propane |
| Gas connection | 3/4" NPT (rear) |
Dimensions & Shipping
| Overall width | 35-7/16" / 900 mm |
|---|---|
| Overall depth | 34-1/2" / 876 mm |
| Height with high shelf | 57" / 1,448 mm |
| Work-top depth | 27" / 686 mm |
| Shipping weight | 375 lb / 170 kg |
This appliance is intended for commercial use only. If the unit is supplied with casters, it must be secured with an approved restraining device. Install in accordance with all local gas and fire codes.
