Garland U24-G24S US Range U Series Ranges Gas Ranges
Description
Garland U Series 24" Gas Griddle Range – Model U24-G24S
Full-width 5/8" steel griddle • Storage base • 36,000 BTUBuilt for busy commercial kitchens that need a powerful griddle, not an oven, the U24-G24S delivers 36,000 BTU of even heat in a slim 24" footprint. Heavy-duty stainless construction, quick-adjust controls and a spacious built-in storage base make it a rugged, space-saving workhorse for food trucks, concessions, cafés and satellite cook lines.
Key features
- Full 24" (610 mm) griddle – 5/8" (15 mm) smooth steel plate for superior heat retention
- Two cast-iron “H” burners – 18,000 BTU each, manual hi/lo valves for left & right heat zones
- 23" (584 mm) working-depth cooking surface with 4-1/4" (108 mm) grease trough
- All-stainless exterior: front, sides, 5" plate rail, and 2-piece backguard with removable shelf

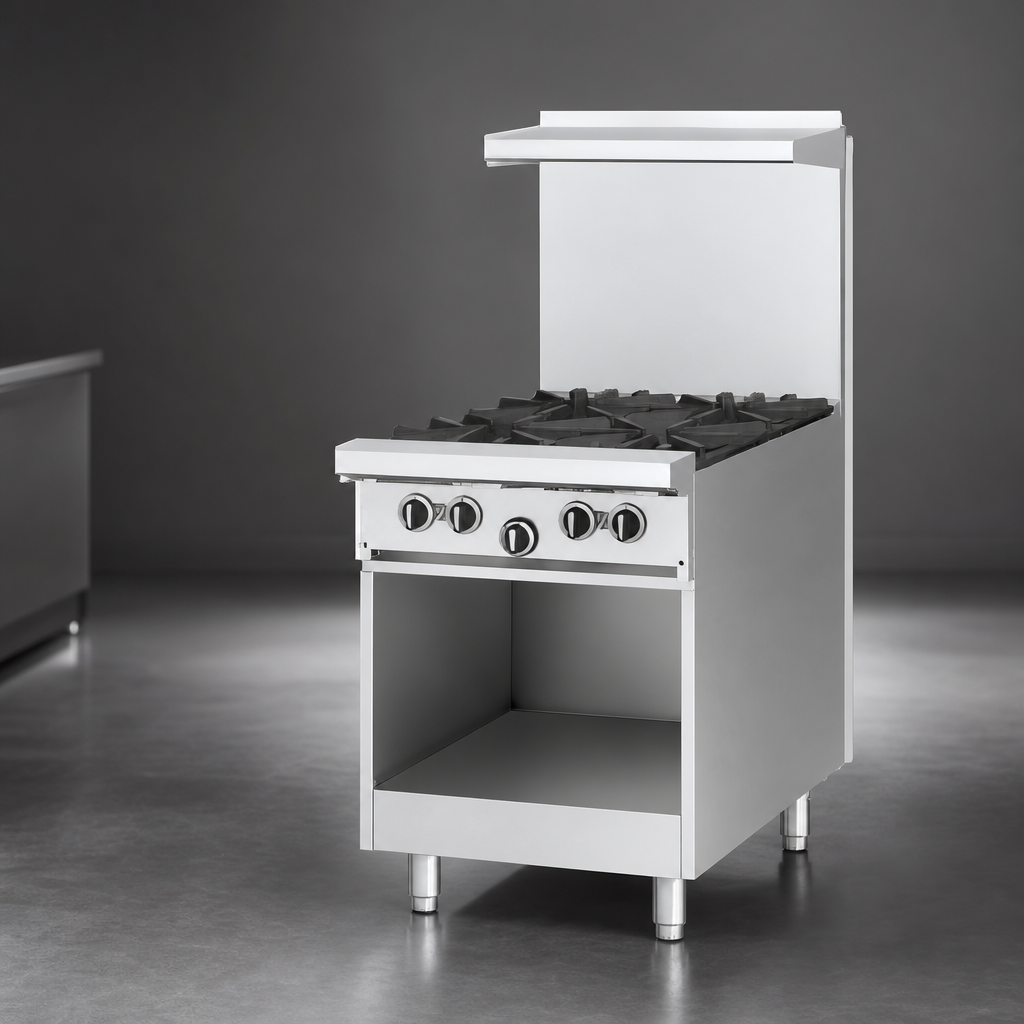

- Open storage base (no oven) keeps sheet pans, utensils or smallwares close at hand
- 6" (152 mm) stainless steel legs with adjustable feet for fast leveling on uneven floors
- Large, easy-grip control knobs & factory-installed gas regulator
- Field convertible for Natural or Propane gas
- Certified: CSA Flame, CSA Star, cCSAus & NSF
Specifications
| Model | U24-G24S |
|---|---|
| Cooking surface | 24" W × 23" D (610 × 584 mm) smooth steel plate |
| Griddle thickness | 5/8" (15 mm) |
| Total input | 36,000 BTU/hr (10.55 kW) – Natural or Propane |
| Burners | 2 × 18,000 BTU cast-iron “H” style |
| Gas connection | 3/4" NPT (rear), 4.5" WC Nat / 10" WC LP manifold pressure |
| Exterior dimensions | 23-5/8" W × 34-1/2" D × 57" H (600 × 876 × 1448 mm) with shelf |
| Work-height to plate | 38" (965 mm) |
| Shipping weight | 286 lb (130 kg) |
For commercial use only. Casters must be paired with an approved restraining device. Garland reserves the right to modify specifications without notice.
