Description
U-Series 24" Gas Restaurant Range – Full 24" Griddle & Space-Saver Oven
Garland / U.S. Range • Model U24-G24L • 68,000 BTUFit a full-size griddle and a high-performance oven into just two feet of line space. The Garland U-Series U24-G24L delivers griddle, roasting, finishing and holding power in a single, all-stainless package that’s built for the rigours of professional kitchens.
Why you’ll love it

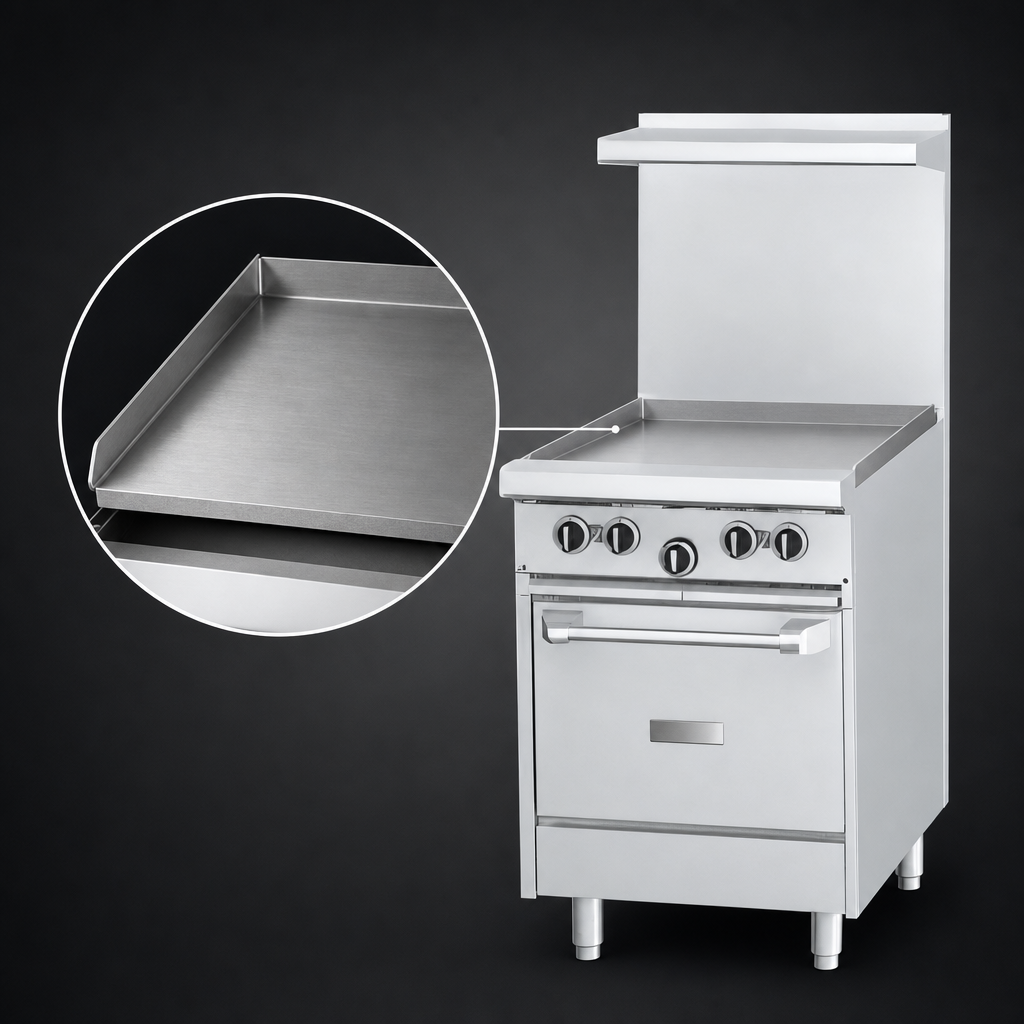

- All-day griddle performance – 24" (610 mm) wide, 5/8" (15 mm) smooth steel plate with manual Hi/Lo valves and a generous 23" (584 mm) working depth.
- Even heat, fast recovery – Two cast-iron “H” style griddle burners (18,000 BTU each) plus a 32,000 BTU cast-iron oven burner for consistent results shift after shift.

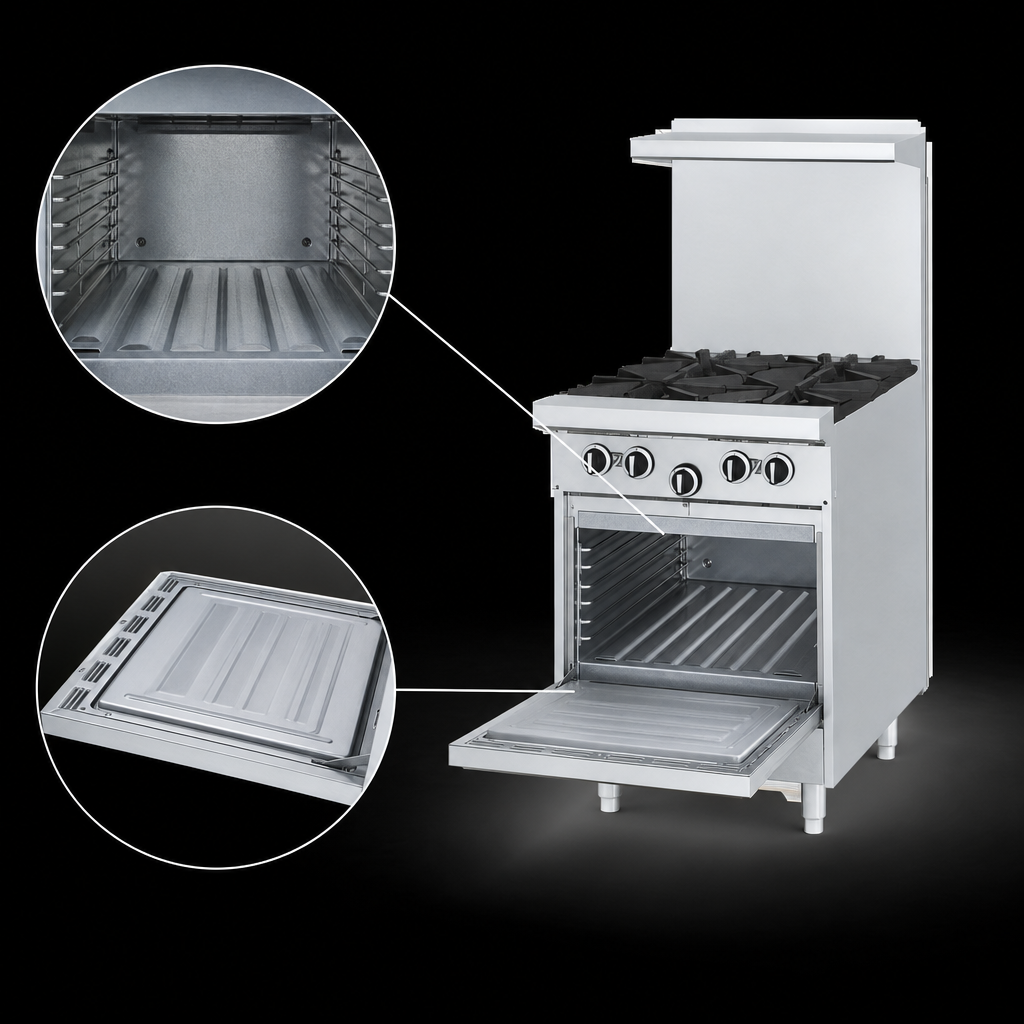

- Space-Saver oven – 13" H x 20" W x 26" D porcelain-lined cavity fits full-size sheet pans front-to-back; includes 3-position rack guides and one nickel-plated rack.
- Snap-action thermostat – Modulating control from low to 500 °F (260 °C) for precise baking and finishing.
- Built to last – Stainless steel front, sides, 5" plate rail, and a two-piece backguard with removable shelf for quick cleanup.
- Easy on the line – Large, ergonomic control knobs and 6" (152 mm) stainless legs with adjustable feet for a perfect working height.
- Simple serviceability – Front-serviceable components, separate gas regulator, and easy-access oven pilot.
- Certified kitchen-ready – CSA Flame, CSA Star, cCSAus and NSF listed.
Technical specifications
| Overall width | 23 5⁄8" (600 mm) |
|---|---|
| Overall depth (to plate rail) | 34 1⁄2" (876 mm) |
| Work-top depth | 27" (686 mm) |
| Height (to shelf) | 57" (1448 mm) |
| Griddle plate | 24" W × 23" D × 5⁄8" thick smooth steel |
| Heat input – griddle | 36,000 BTU (2 × 18,000) |
| Heat input – oven | 32,000 BTU cast-iron “H” burner |
| Total heat input | 68,000 BTU (19.9 kW) |
| Oven interior (H × W × D) | 13" × 20" × 26" (330 × 508 × 660 mm) |
| Rack guides / racks supplied | 3 positions / 1 rack (nickel-plated) |
| Manifold pressure (Nat / LP) | 4.5" WC / 10" WC |
| Gas connection | ¾" NPT rear |
| Shipping weight | 367 lb (166 kg) |
Factory options & accessories
- Snap-action modulating griddle thermostat (175 – 425 °F).
- Low-profile 9 ⅜" (238 mm) backguard.
- Swivel or low-profile casters with front locks.
- Additional oven racks.
- Flanged deck-mount legs.
- Celsius temperature dials.
- Piezo spark ignition for griddle pilots.
Not for residential installation.
This commercial appliance must be installed in accordance with local codes and by a qualified professional.
Garland / U.S. Range reserves the right to modify specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
US Range U Series Ranges
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
57.0in
Width
24.0in
Depth
34.5in
Shipping Weight
367.0lbs
Base
(1) space saver oven
Plate Thickness
.625" = 5/8"
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Top
(1) griddle
Specifications
U Series Restaurant Range, gas, 24", griddle, 5/8" thick smooth steel plate, space saver oven, 3 position rack guides, (1) oven rack, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 68,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
