Garland U24-2G12S US Range U Series Ranges Gas Ranges
Description

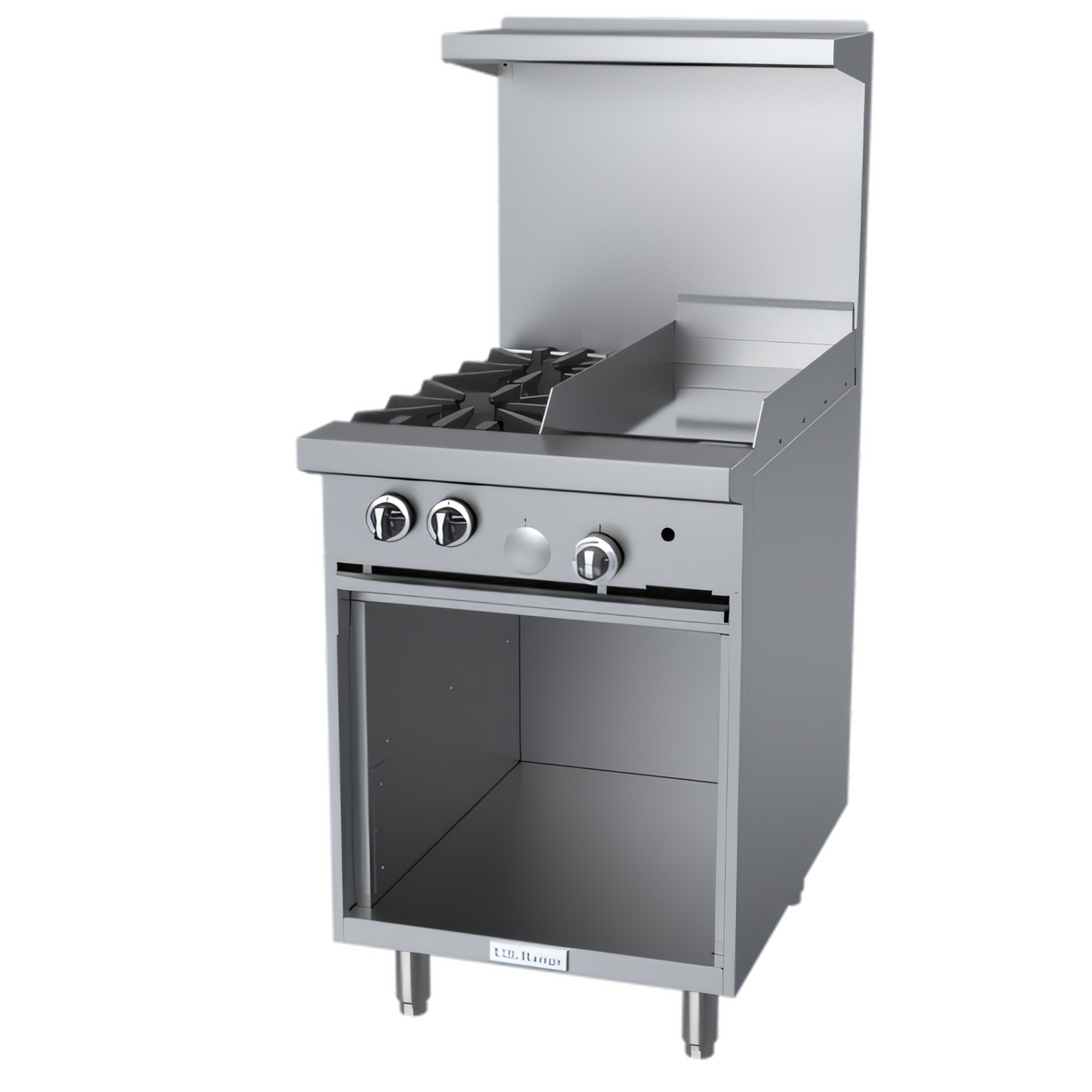

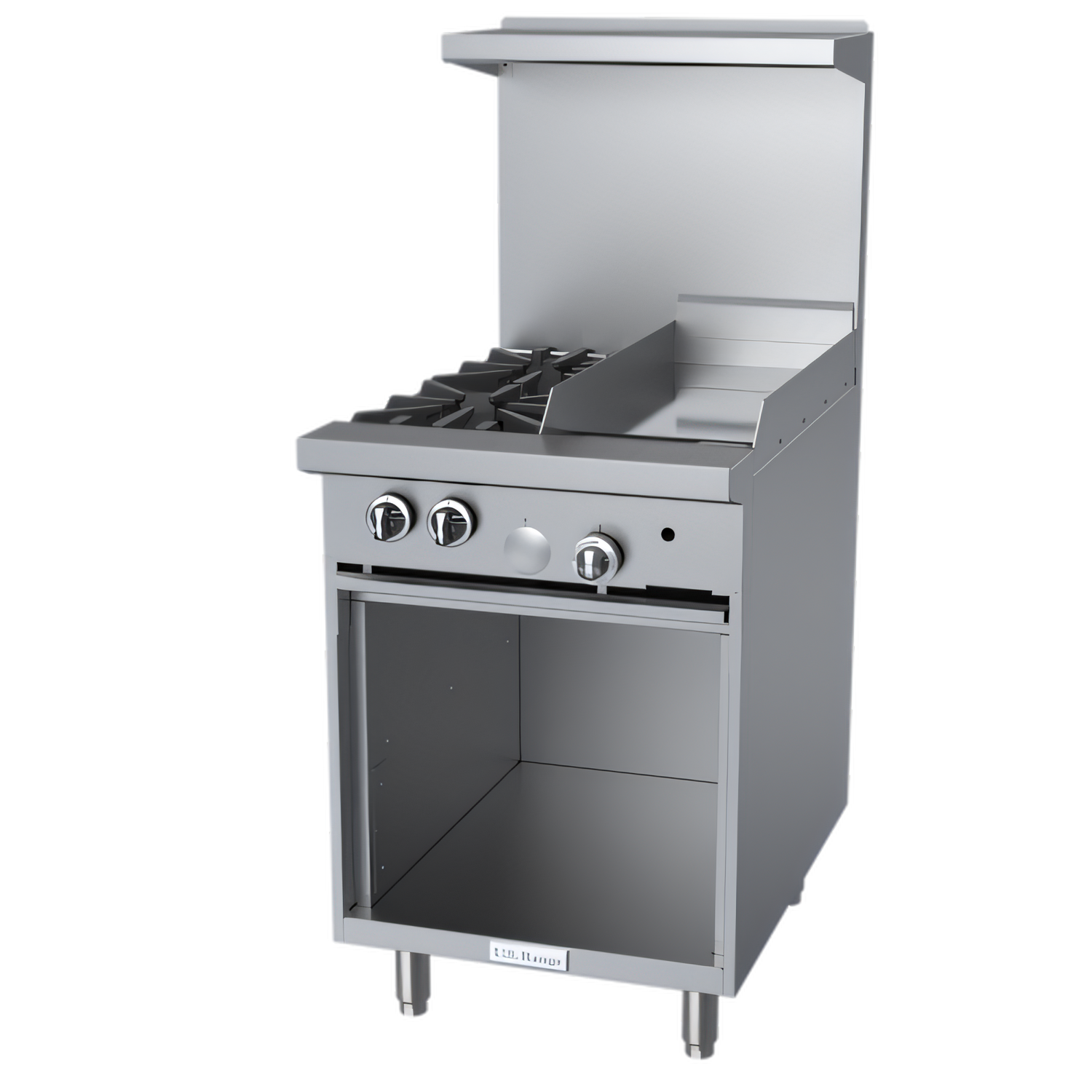

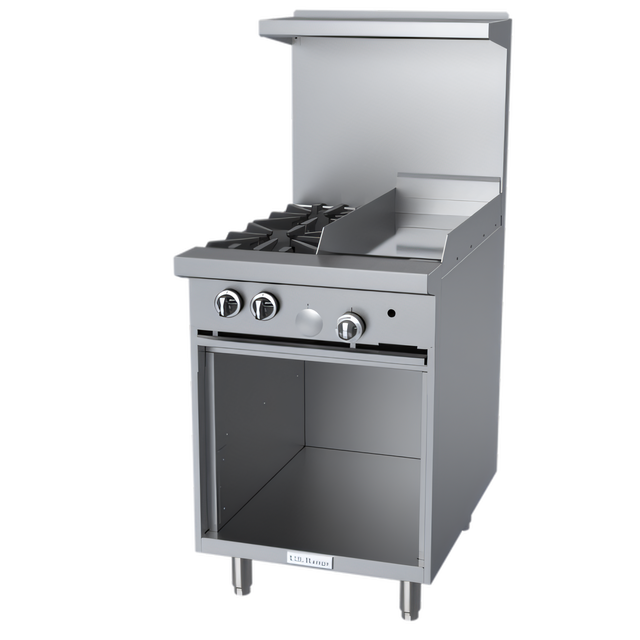

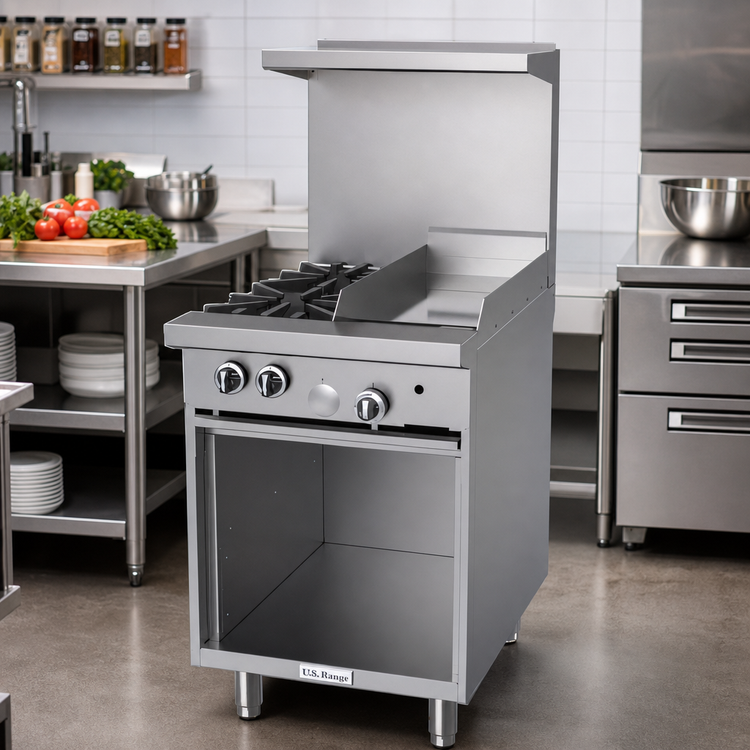

U.S. Range U-Series 24" Gas Restaurant Range – Model U24-2G12S
2 Open Burners • 12" Griddle • Storage Base • 82,000 BTUEngineered for compact kitchens that refuse to compromise on performance, the Garland U-Series U24-2G12S packs heavy-duty power into a slim 24" footprint. Two high-performance open burners sit alongside a precision 12" griddle, all supported by a rugged stainless-steel chassis with a roomy storage base below. From short-order breakfasts to finishing sauces, this versatile workhorse keeps pace with the busiest line.
Why chefs choose the U24-2G12S

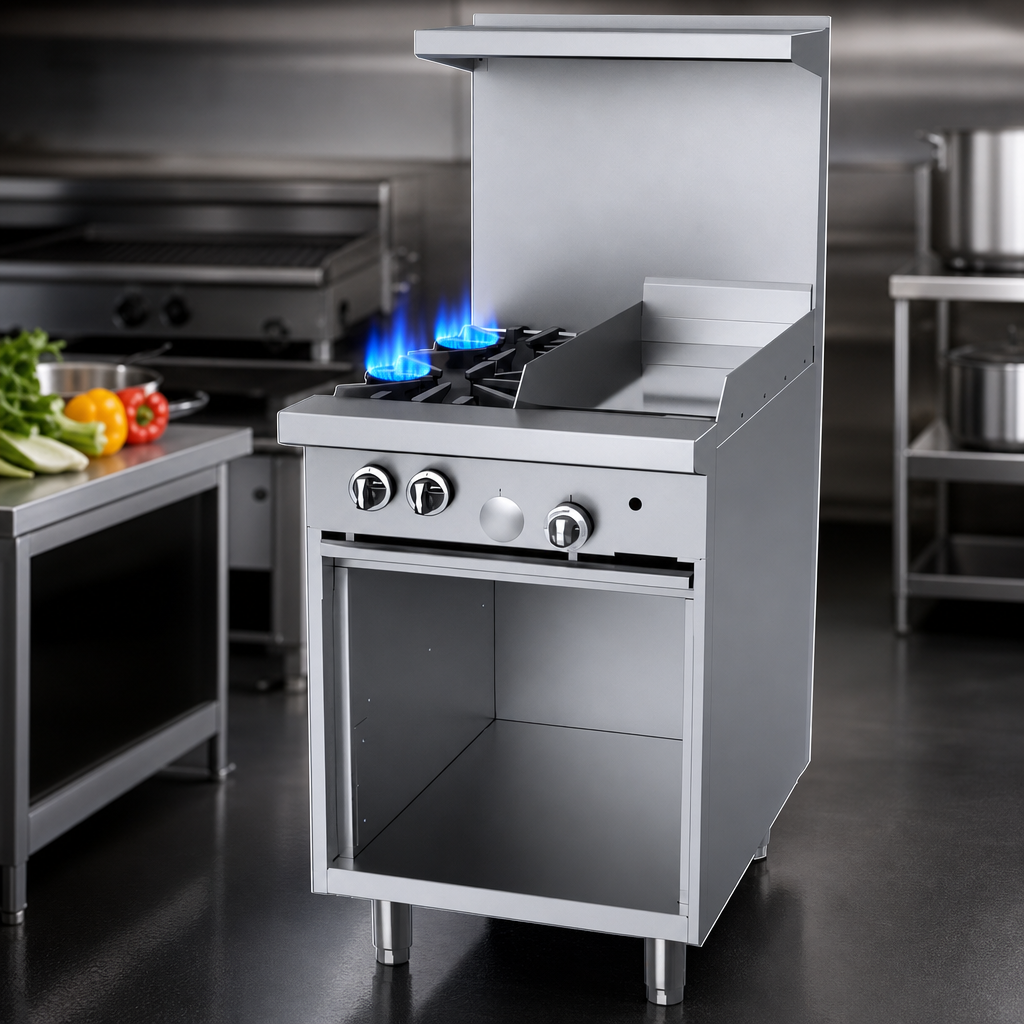

- 32,000 BTU two-piece cast-iron open burners (x2) deliver fast boil and instant sear.

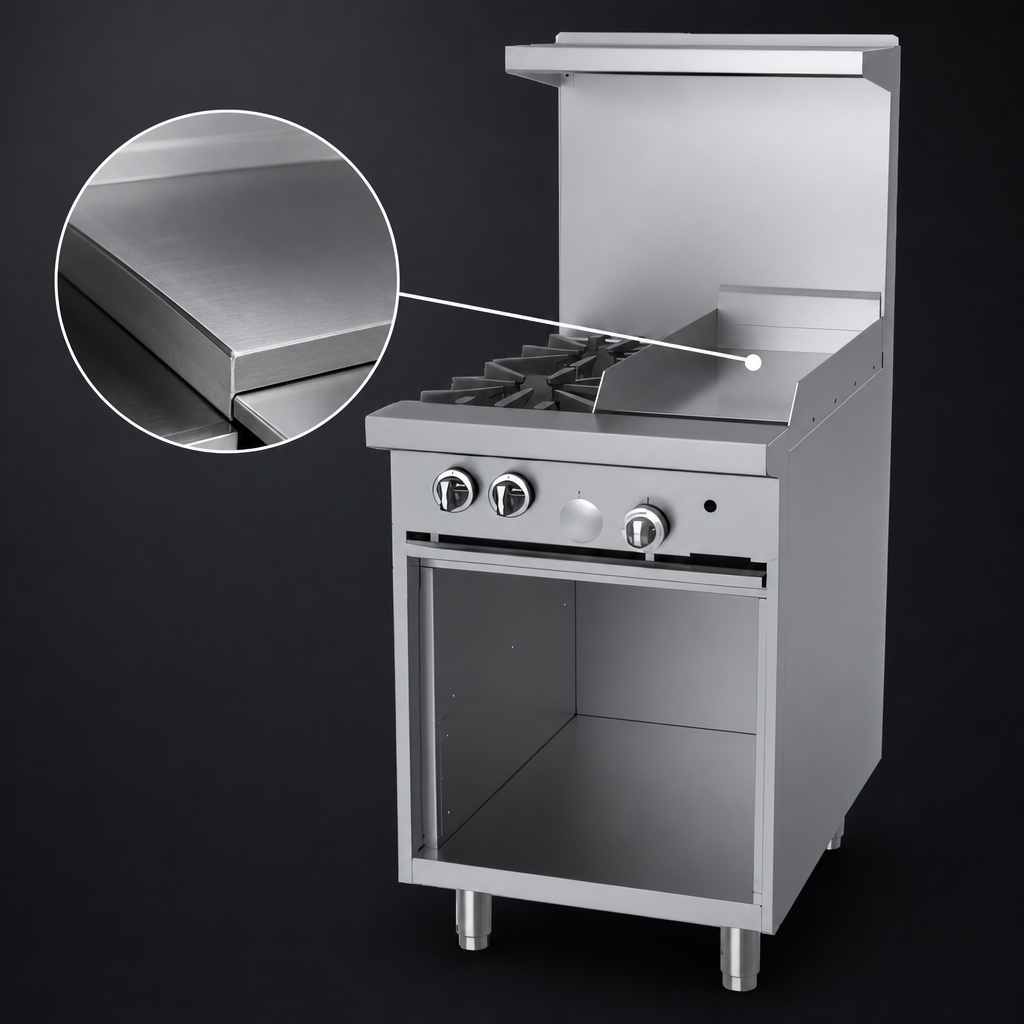

- 12" griddle with 5/8" (15 mm) smooth steel plate and manual Hi/Lo valve—ideal for eggs, burgers & more.
- 18,000 BTU cast-iron “H” style griddle burner ensures even heat across the full 23" cook depth.
- Open storage base replaces the oven for quick access to sheet pans, skillets and smallwares.
- All-stainless front, sides, 5" plate rail, plus a 2-piece stainless backguard with removable high shelf.
- Ergonomic split cast-iron top grates let you slide heavy stockpots from burner to burner.
- 6" stainless legs with adjustable feet provide a rock-solid, level cooking platform.
- Simple, oversized control knobs are easy to grip with gloved or greasy hands.
- Factory-installed 3/4" rear gas regulator for quick, code-compliant hookup.
- Certified to CSA Flame & Star, cCSAus and NSF standards for North American commercial kitchens.
Performance & utilities
| Model | U24-2G12S |
|---|---|
| Total input | 82,000 BTU/hr • 24.0 kW |
| Open burners | 2 × 32,000 BTU cast-iron, two-piece |
| Griddle burner | 1 × 18,000 BTU cast-iron “H” style |
| Griddle plate | 12" W × 23" D, 5/8" thick smooth steel |
| Gas connection | 3/4" NPT (rear, left-of-center) |
| Manifold pressure | 4.5" WC Natural / 10" WC Propane |
| Dimensions (W × D × H) | 23-5/8" × 34-1/2" × 57" (with high shelf) |
| Shipping weight | 251 lb / 114 kg |
| Certifications | CSA Flame, CSA Star, cCSAus, NSF |
Installation & clearances
- Clearance to combustibles: 14" (sides) / 6" (rear).
- Gas ratings shown for elevations ≤ 2,000 ft. Specify higher altitude at order.
- Rear gas inlet is 25" from floor; confirm line routing before setting in place.
- Ranges supplied with casters must be secured by an approved restraining device.
This appliance is intended for commercial use only and is not approved for residential installation.
