Description

Garland U Series 24" Gas Restaurant Range – 2 Open Burners & 12" Griddle

Model U24-2G12L | 114,000 BTU | Natural Gas

Pack maximum cooking power into minimal space. The Garland U24-2G12L couples two 32,000 BTU open burners, a high-performance 12" griddle and a space-saving oven—all in a true 24" footprint—making it the perfect centerpiece for compact kitchens, food trucks and satellite stations.

Key Performance Features
  • (2) 32,000 BTU open burners with 2-piece cast-iron geometric heads for rapid boil and precise simmer.

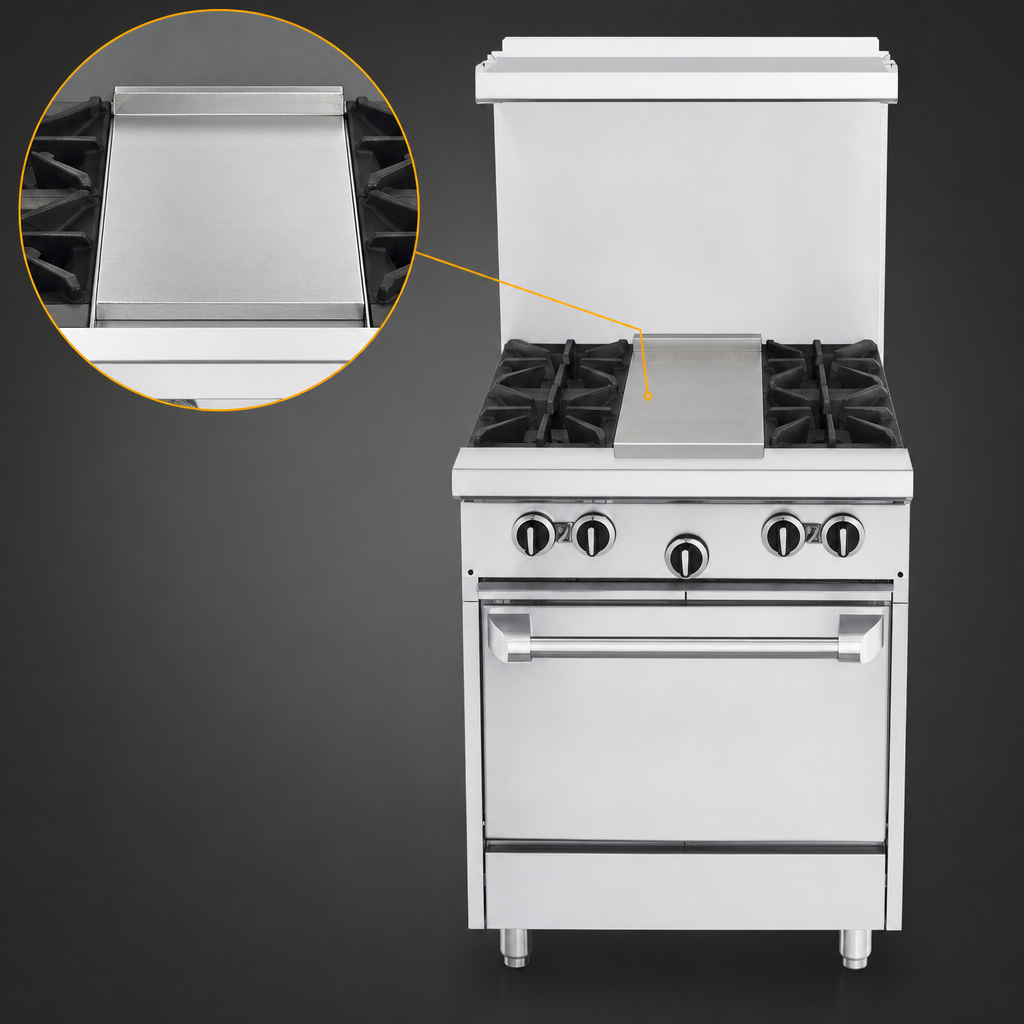

  • 12" (305 mm) griddle, 5/8" (15 mm) smooth steel plate with manual hi/lo valve and 18,000 BTU cast-iron “H” burner.
  • 27" (686 mm) deep work surface offers ample room for full-size pans.
  • Ergonomic split cast-iron top-ring grates lift individually for easy cleaning.
  • Total input: 114,000 BTU/h—stays strong during peak service.
Space-Saver Oven
  • 32,000 BTU cast-iron “H” burner for fast recovery and even bake.
  • Snap-action modulating thermostat from Low to 500 °F (260 °C).
  • Porcelain-coated bottom & door liner; aluminized top, sides & back.
  • 3-position removable rack guide with (1) nickel-plated rack included.
  • Heavy-duty “keep-cool” door handle stands up to daily abuse.
  • Interior: 13" H × 26" D × 20" W (330 × 660 × 508 mm).
Construction & Convenience
  • Stainless steel front, sides, 5" (127 mm) plate rail and two-piece backguard with shelf.
  • 4-1/4" (108 mm) grease trough keeps the griddle clean and the line moving.
  • 6" (152 mm) stainless steel legs with adjustable feet for perfect leveling.
  • Factory-installed 3/4" NPT regulator and easy-access pilot lights.
  • Large, easy-grip control knobs—glove-friendly and built to last.
Specifications
Model U24-2G12L (Natural Gas)
Overall Width 23-5/8" (600 mm)
Overall Depth 34-1/2" (876 mm)
Height (to shelf) 57" (1448 mm)
Work-Top Depth 27" (686 mm)
Total BTU 114,000 BTU/h
Open Burners (2) × 32,000 BTU cast-iron
Griddle Burner 18,000 BTU cast-iron “H”
Oven Burner 32,000 BTU cast-iron “H”
Griddle Plate 12" W × 23" D, 5/8" thick smooth steel
Gas Connection 3/4" NPT rear, 4.5" WC manifold pressure
Shipping Weight ≈ 332 lb (151 kg)
Certifications CSA Flame, CSA Star, cCSAus, NSF
What’s Included
  • (1) Nickel-plated oven rack
  • 3-position oven rack guides
  • Factory gas regulator
  • User & installation manual
Popular Accessories (sold separately)
  • Additional oven racks
  • Low-profile 9-3/8" backguard
  • 6" levelling swivel casters with front locks
  • Flanged deck-mount legs
  • Piezo spark ignition kit for the griddle pilot
Commercial use only: This appliance is not approved for residential installation. Follow all local codes and the supplied installation manual. When installing on casters, use only Garland certified casters and approved restraining devices.

Still planning your cookline? Talk to our foodservice specialists for expert layout and ventilation advice.

Features & Specs

Manufacturer

Garland

Brand_name

US Range U Series Ranges

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

57.0in

Width

24.0in

Depth

34.5in

Shipping Weight

332.0lbs

Exterior Finish

all stainless steel exterior

Top

(2) open burners, (1) 12" griddle

Plate Thickness

.625" = 5/8"

Base

(1) space saver oven

Vent

backriser with hi-shelf

Specifications

U Series Restaurant Range, gas, 24", (2) 32,000 BTU open burners, (1) 12" griddle, 5/8" thick smooth steel plate, cast iron top & ring grates, space saver oven, 3 position rack guides, (1) oven rack, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 114,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)
