Key specifications

BTU
27,000 BTU
Dimensions
17.0"W × 38.0"D × 36.38"H
Type
Range Attachment
Style
Add-A-Unit
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Garland SKU: MST6S-E

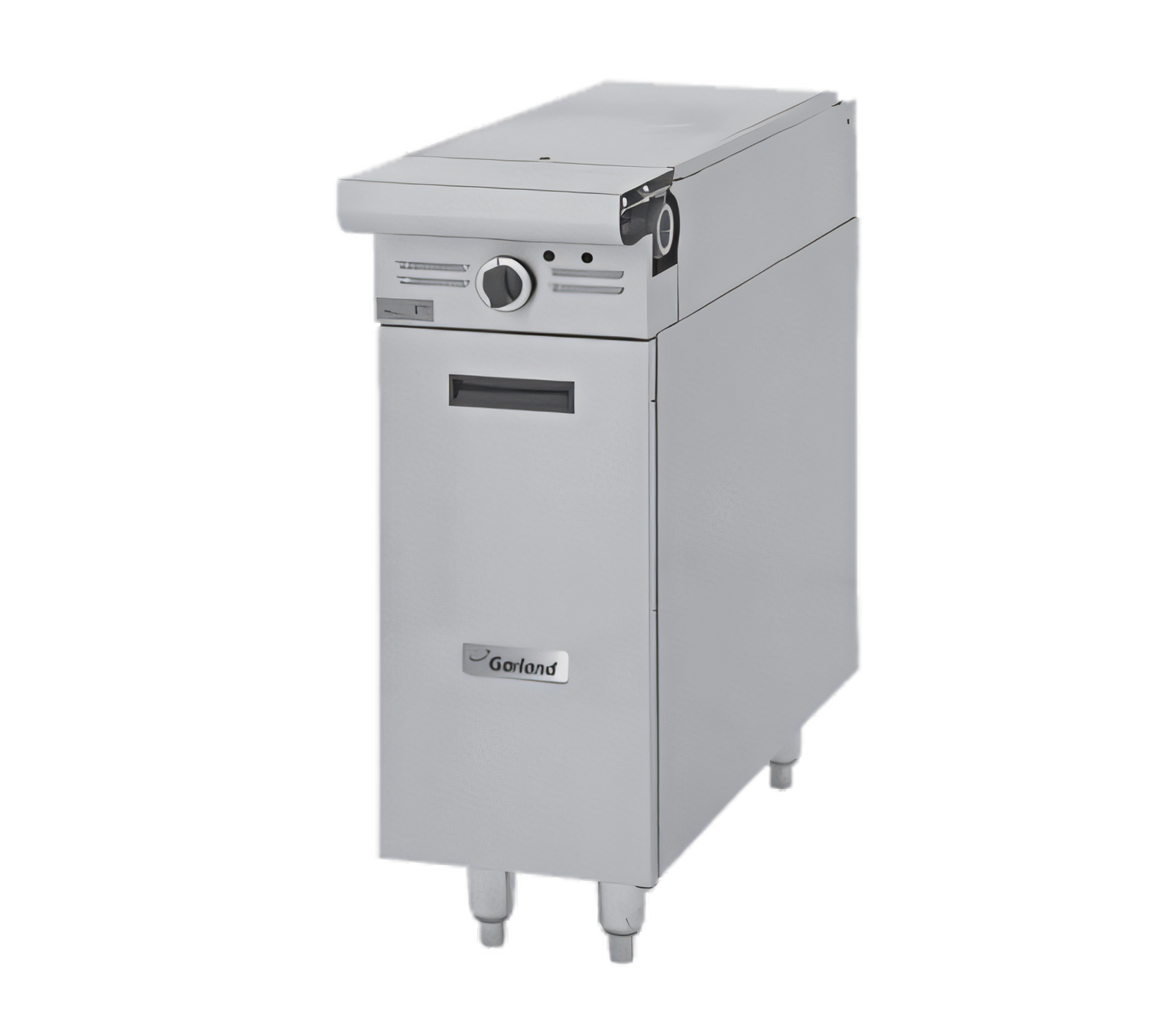

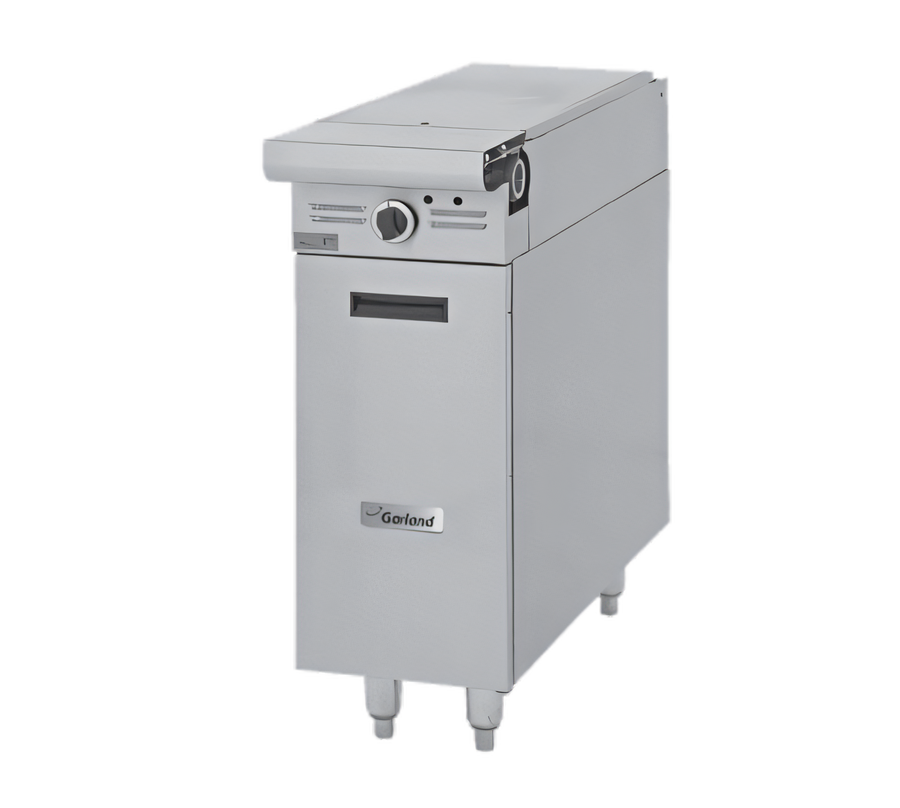

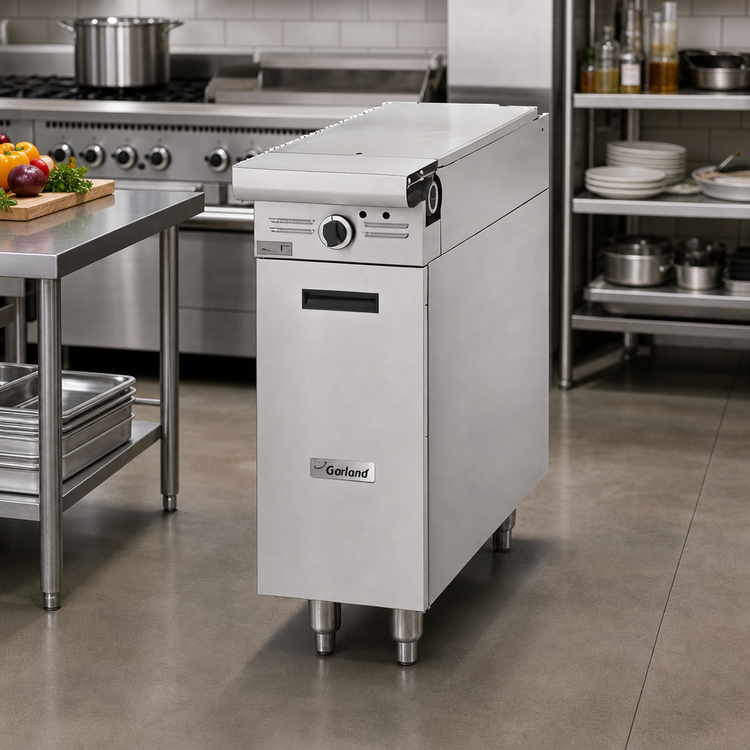

Garland Master MST6S-E 17-Inch Gas Hot Top Range Attachment

$3,894.75
/each
Estimated to ship in 13–16 business days
Configuration
Gas typeRequired
Electrical
Rear gas connection
Base mounting
Gas Connector

Need something else? Contact us.

Included: Garland warranty 1-year limited warranty on most products; 2-year warranty on select equipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $360/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range Attachment
Style Add-A-Unit
Installation Type Floor Model
Material Stainless Steel
Top Even Heat Hot Top
Base Storage Base
Top Material Steel
Burner Material Cast Iron
BTU 27,000 BTU
Ignition Type Electronic Spark
Flame Protection Total Flame Failure Protection
Leg Height 6 in
Leg Type Adjustable
Width 17 in
Depth 38 in
Height 36.38 in
Weight 240 lb

Description

The Garland Master MST6S-E is a 17-inch even-heat hot top range attachment with a storage base.

  • Cooking surface: One steel-plate even-heat hot top with one 27,000 BTU cast iron burner.
  • Ignition: Electronic spark ignition on all pilots.
  • Safety: Sentry total flame failure protection for all burners.
  • Construction: Stainless steel front and sides with 6-inch adjustable legs.
  • Gas: Designed for natural or propane gas.

Overall Dimensions:

17.0"W x 38.0"D x 36.38"H

Product Weight:

240.0 lb

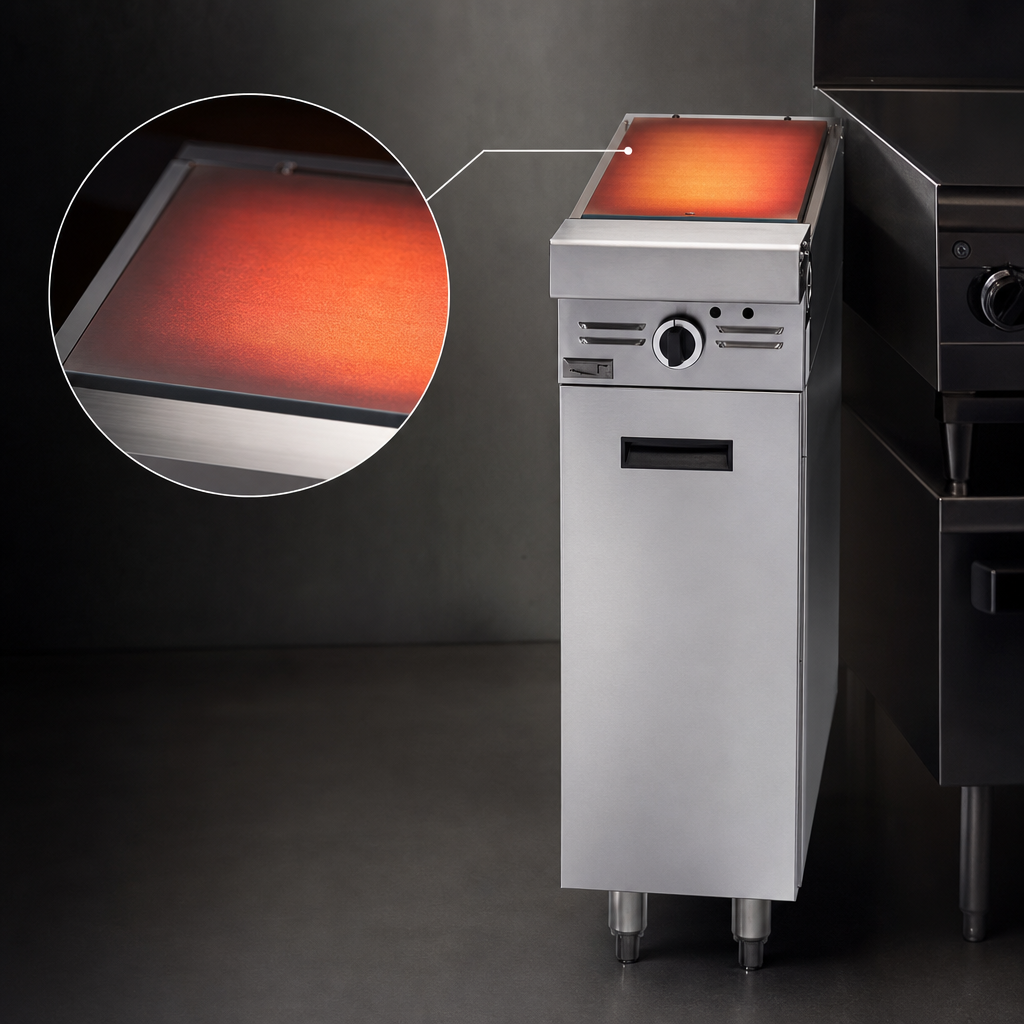

Even-Heat Hot Top

One 17-inch steel-plate even-heat hot top provides the cooking surface.

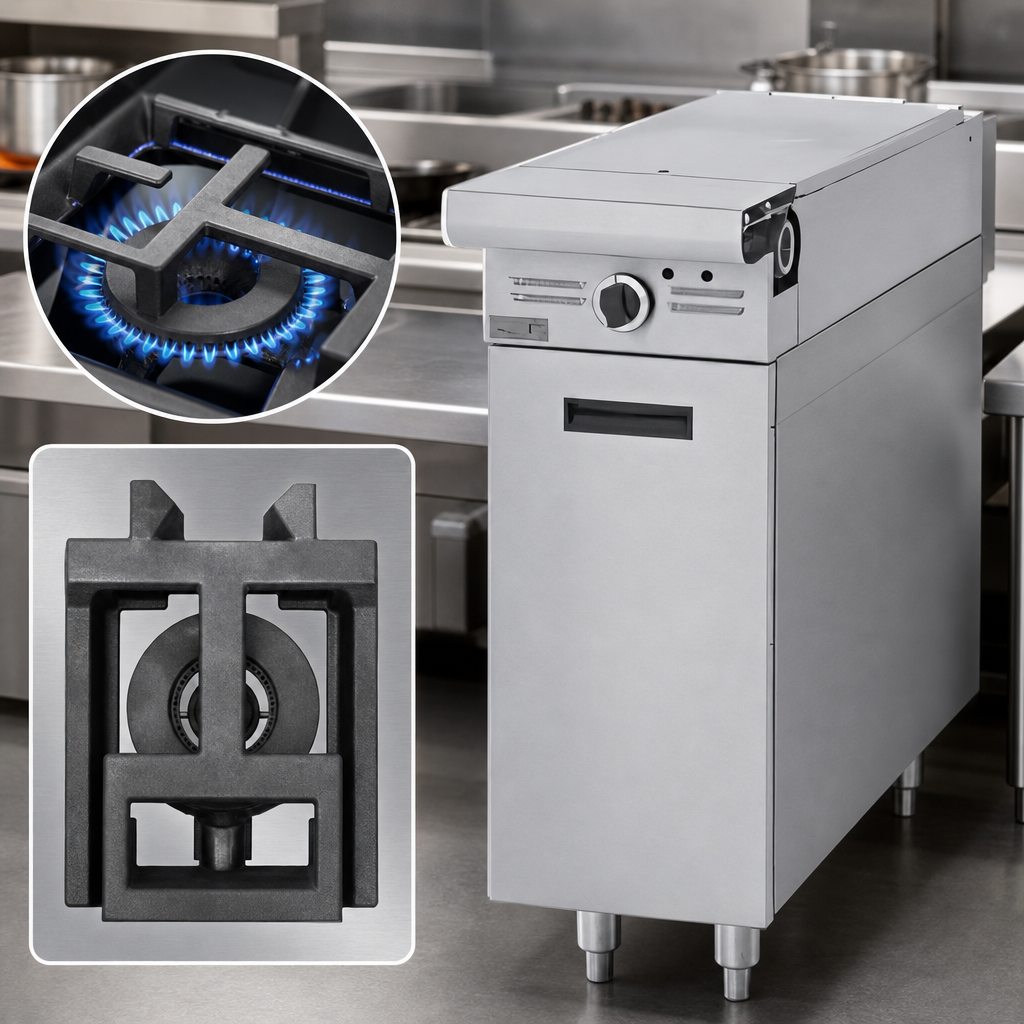

Cast Iron Burner

Includes one H-style cast iron burner rated at 27,000 BTU.

Storage Base

Includes a storage base with a stainless steel door.

Electronic Spark Ignition

Electric spark ignition is provided on all pilots.

Flame Failure Protection

Sentry total flame failure protection is provided for all burners.

Stainless Steel Exterior

The front and sides are stainless steel.

Adjustable Legs

Includes 6-inch adjustable legs.

Gas Compatibility

The range attachment is specified for natural or propane gas.

Frequently Asked Questions

It has one 17-inch even-heat hot top with a steel plate.
The unit includes one H-style cast iron burner rated at 27,000 BTU.
Yes. It includes a storage base with a stainless steel door.
It uses electronic spark ignition on all pilots.
Sentry total flame failure protection is provided for all burners.
Yes. The product documentation specifies natural or propane gas.
The unit is 17 inches wide, 38 inches deep, and 36.38 inches high.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
