Key specifications

BTU
115,000 BTU
Amps
0.1 Amps
Phase
1-Phase
Dimensions
34.0"W × 38.0"D × 9.5"H
Type
Range Top
Style
Modular
Spec sheet
Garland SKU: MST54T-E

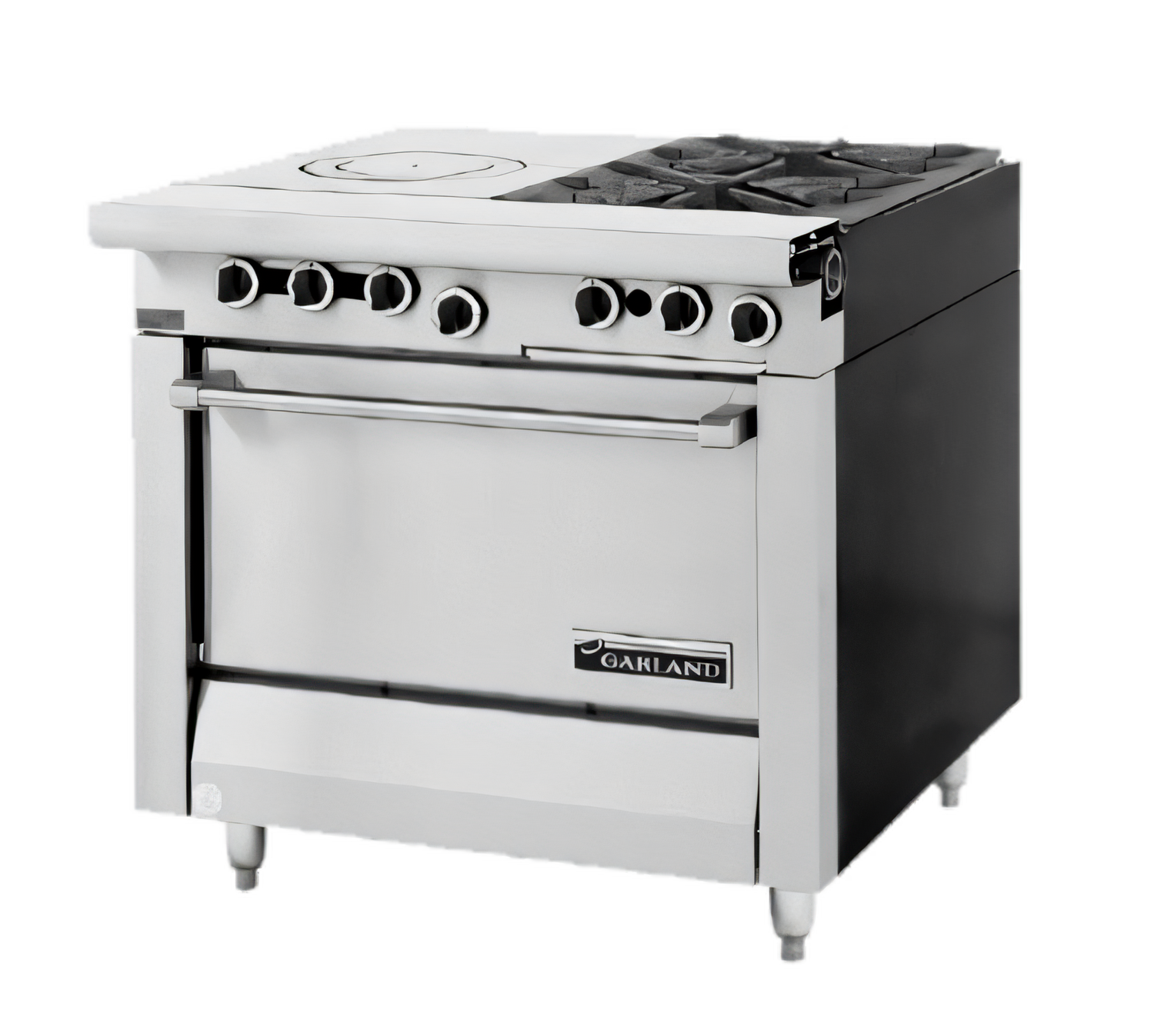

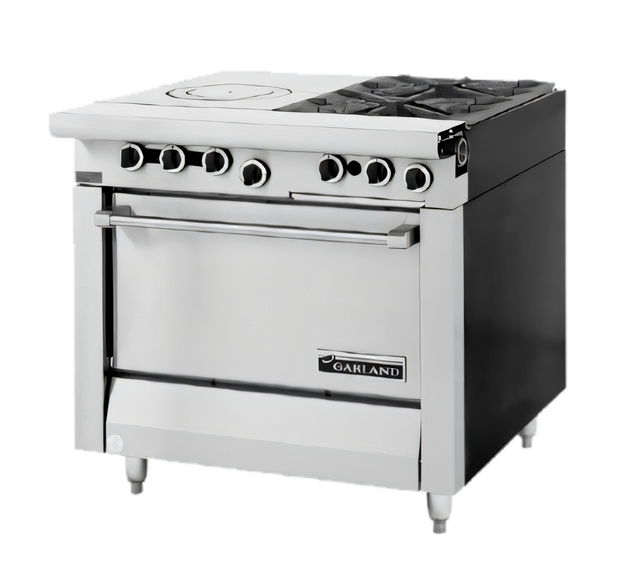

Garland Master MST54T-E 34-Inch Range Top, 2 Burners/Hot Top

$6,944.85
/each
Estimated to ship in 13–16 business days
Configuration
Gas typeRequired
Electrical
Hot top position
Support
Gas Connector

Need something else? Contact us.

Included: Garland warranty 1-year limited warranty on most products; 2-year warranty on select equipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $642/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Range Top
Style Modular
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel Front And Sides
Size 34 in
Open Burner Count 2
Open Burner Input 35,000 BTU Each
Hot Top Size 17 in
BTU 115,000 BTU
Ignition Type Electric Ignition
Flame Failure Protection On Burners
Voltage 115 Volts
Amps 0.1 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

The Garland Master MST54T-E is a 34-inch modular gas range top with two 35,000 BTU open burners and a 17-inch front-fired hot top.

It provides electric ignition and flame-failure protection on the burners, with stainless steel front and sides.

  • Total input: 115,000 BTU
  • Electrical: 115 Volts, 0.1 Amps, 60 Hz, 1-Phase, NEMA 5-15P

Overall Dimensions:

34.0"W x 38.0"D x 9.5"H

Product Weight:

270.0 lb

Modular Design

Modular range-top configuration for commercial kitchen installation.

Open Burners

Includes two 35,000 BTU open burners.

Front-Fired Hot Top

Includes one 17-inch front-fired hot top.

Electric Ignition

The -E model is specified with electric ignition.

Flame-Failure Protection

Flame-failure protection is specified on the burners.

Stainless Steel Exterior

The front and sides are stainless steel.

Frequently Asked Questions

The MST54T-E has two 35,000 BTU open burners and one 17-inch front-fired hot top.
The total input is 115,000 BTU.
The documented electrical characteristics are 115 Volts, 0.1 Amps, 60 Hz, 1-Phase, with a NEMA 5-15P plug.
The product is 34 inches wide, 38 inches deep, and 9.5 inches high, with a listed weight of 270 pounds.
The front and sides are stainless steel.
