Garland MST54S-E Master Gas Ranges
Description

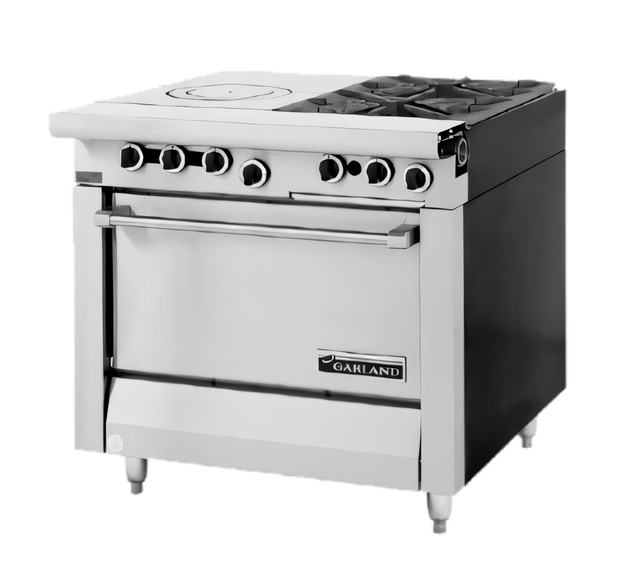

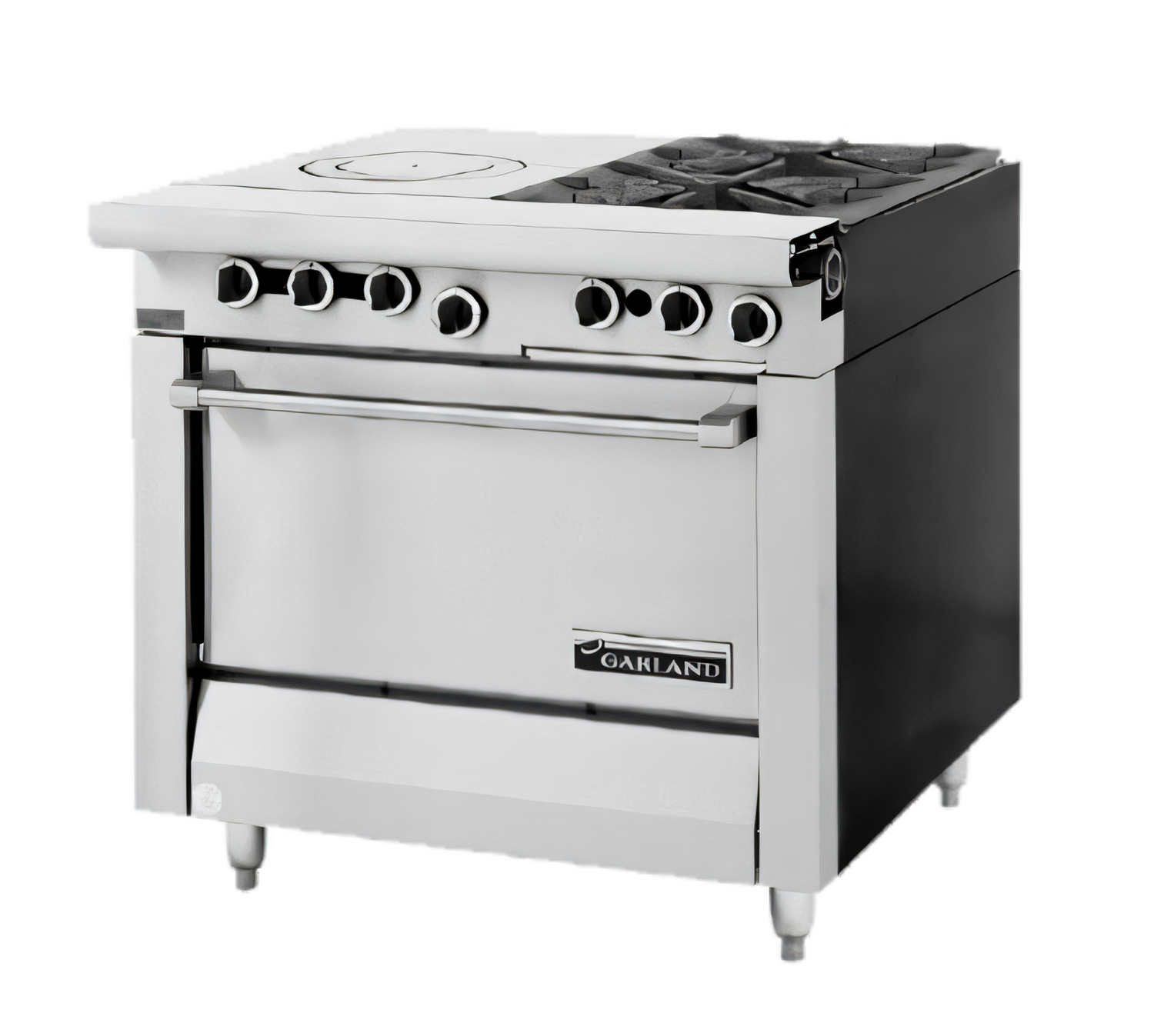

Garland Master Series 34" Heavy-Duty Range
2 Starfire® Open Burners • 17" Front-Fired Hot Top • Storage BaseBuilt for the busiest professional kitchens, the Garland Master Series gas range delivers 115,000 BTU/hr of uncompromising power in a space-saving 34 in. footprint. Two 35,000 BTU Starfire open burners sit alongside a 40,000 BTU front-fired Spectro-Heat™ hot top, giving chefs instant high heat and even holding capability on a single, heavy-duty platform—all backed by Garland’s legendary durability.
Key Features & Benefits
- Power where you need it: (2) 35,000 BTU Starfire open burners with removable two-piece cast-iron heads for fast cleaning.
- Versatile 17" Hot Top: 40,000 BTU front-fired plate provides uniform heat across its entire surface—perfect for stockpots, sauté pans or holding sauces.
- Sentry Flame Failure & Electric Ignition: Built-in safety shuts off gas if flame is lost; push-button ignition lights pilots in seconds.
- Rugged construction: Stainless steel front and sides resist corrosion; heavy, continuous cast-iron grates stand up to daily abuse.
- Convenient storage base: Full-width cabinet keeps sheet pans, pots and hotel pans close at hand, eliminating extra trips to the rack.
- 6" adjustable chrome legs: Level the range on uneven floors and simplify under-unit cleaning.
- Front 1-1/4" NPT gas inlet: Speeds installation; optional rear connection available.
Why Choose the Master Series?
- Modular design allows multiple Master Series units to be “batteried” together for a perfectly fitted cook line.
- Field-reversible cap & cover lets you create a flush chef-side finish when batterying.
- Backguard, high-shelf, casters, common front rails and rear gas kits are factory-fit options that grow with your operation.
- Commercial-only build quality; engineered for continuous, high-volume use.
Technical Specifications
| Model | Master Series Hot-Top/2-Burner Range with Storage Base |
|---|---|
| Total Input | 115,000 BTU/hr (Natural or Propane) |
| Open Burners | (2) Starfire cast-iron, 35,000 BTU each |
| Hot Top | 17 in. Spectro-Heat plate, 40,000 BTU |
| Dimensions (W × D × H) | 34" × 38" × 36-3/8" (864 × 965 × 924 mm) with 6" legs |
| Gas Connection | 1-1/4" NPT (front, standard) – rear connection optional |
| Operating Pressure | Natural 6" WC / Propane 10" WC |
| Base | Unheated storage cabinet with stainless steel doors |
| Net / Shipping Weight | ≈ 305 lb (138 kg) / 375 lb (170 kg) |
| Certifications | NSF, CE, CSA Flame, CSA Star |
Popular Accessories (sold separately)
- 10", 17" or 33" stainless steel backguards
- Single or double tubular high-shelves
- Polyurethane swivel casters with front brakes
- Gas flex hose & quick disconnect kits (3/4", 1" or 1-1/4")
- Common front rails for battery installations up to 102"
Need help configuring a full Garland cook line? Our specialists are ready to assist—call 1-800-424-2411.
