Garland  |  Master  |  SKU: MST54R-E

Garland MST54R-E Master Gas Ranges

$8,125.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual Check list
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

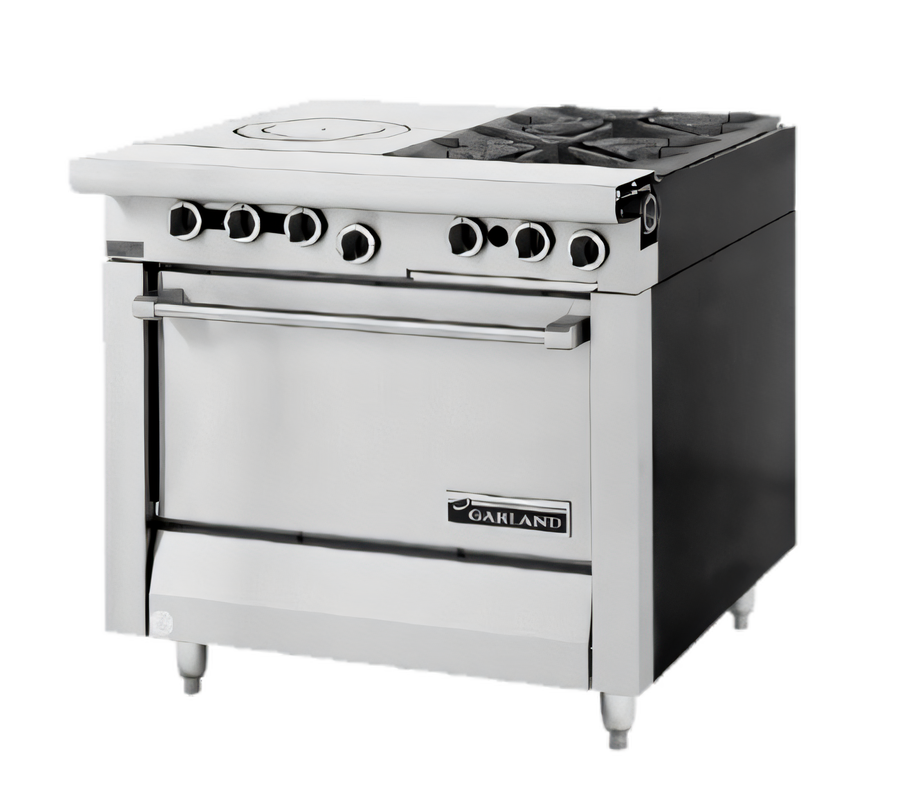

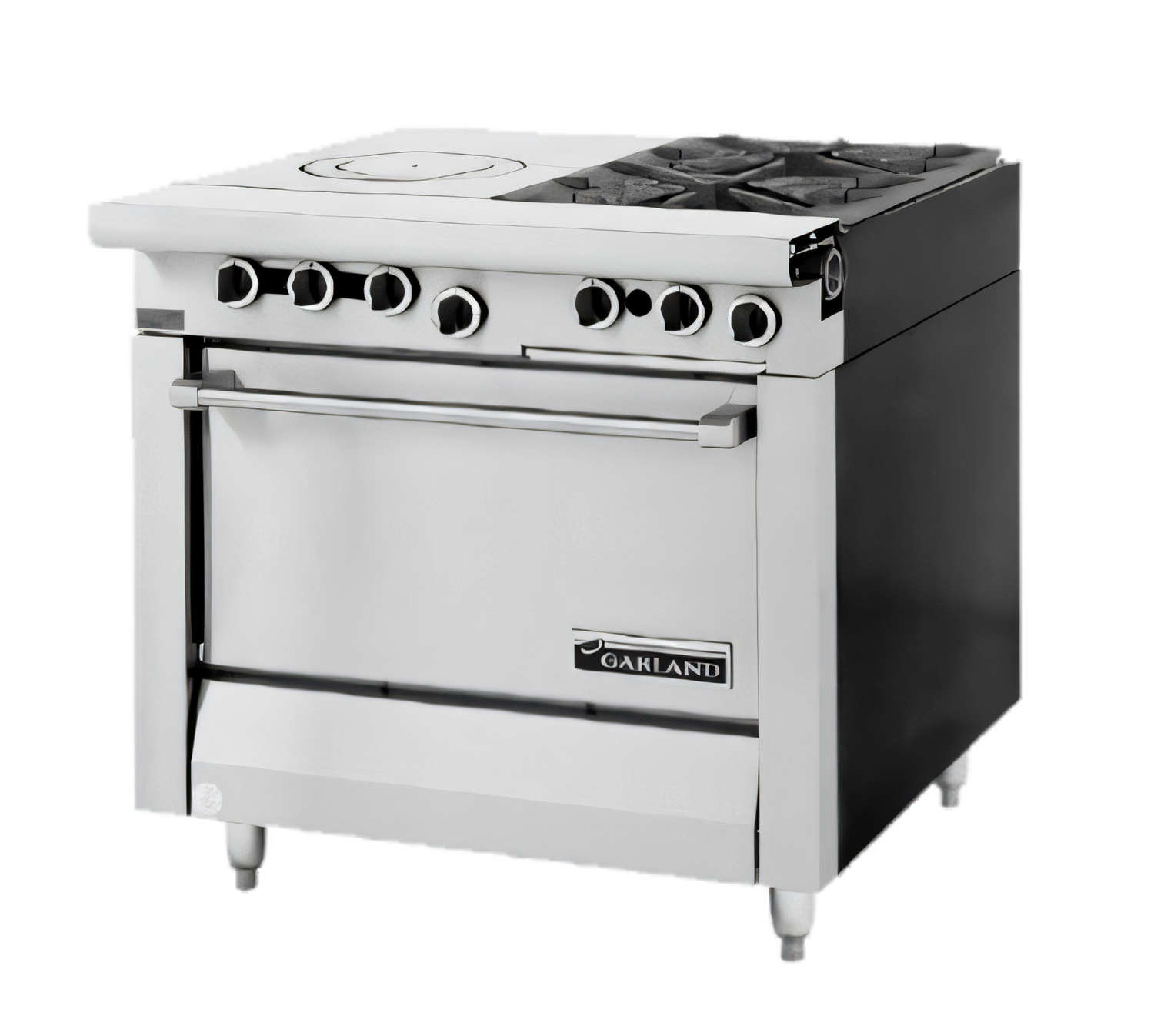

Garland Master Series 34" Heavy Duty Gas Combination Range

Model MST54R – 2 Starfire Open Burners • 17" Front-Fired Hot Top • Standard Oven

Bring powerhouse performance to a compact footprint with Garland’s Master Series 34" Combination Range. Two instant-heat Starfire burners, an even-tempered 17" hot top and a full-size oven let you sauté, sear, hold stock pots and bake – all on one rugged platform engineered for the most demanding commercial kitchens.

Key Benefits

  • Versatile Cooking Suite – open-flame precision for sauté pans, a high-mass hot top for pans & stock pots, plus a spacious standard oven.
  • Total 155,000 BTU/h of fire-power for rapid heat-up and productivity during peak service.
  • Electric spark ignition + Sentry flame-failure protection on every burner for safer, no-match start-ups and automatic gas shut-off if the flame is lost.
  • Stainless steel front & sides with 6" adjustable chrome legs resist corrosion and simplify daily wipe-downs.
  • Starfire 2-piece burner heads lift off without tools for fast, thorough cleaning.
  • Fully porcelainized oven interior speeds clean-up and boosts heat retention.

Performance Highlights

  • (2) Starfire open burners @ 35,000 BTU each – 70,000 BTU
  • 17" front-fired hot top – 40,000 BTU, ideal for sauces & holding
  • Standard oven – 40,000 BTU cast-iron burner, 150 – 500 °F (66 – 260 °C) range

Certifications

  • CE Mark
  • CSA Star (gas) & CSA Flame (sanitation)
  • NSF Listed for commercial foodservice

Technical Specifications

Total Input 155,000 BTU/h (45.4 kW)
Gas Type Natural or Propane (specify at order)
Manifold Pressure NG 6" WC (15 mbar) • LP 10" WC (25 mbar)
Gas Connection 1-1/4" NPT front (rear connection optional)
Exterior Dimensions (W × D × H) 34" × 38" × 36-3/8" (864 × 965 × 924 mm) – with 6" legs
Oven Interior (W × D × H) 26-1/4" × 29" × 13-1/2" (667 × 737 × 343 mm)
Clearances – Combustible 14" (356 mm) sides • 6" (152 mm) rear
Shipping Weight ≈ 475 lb (216 kg)

Popular Options & Accessories

  • Convection oven base (Model MST54RC upgrade)
  • Rear gas connection, ¾"–1¼" NPT
  • 10", 17" or 33" stainless-steel backguards / high shelves
  • 5' gas flex hose with quick-disconnect & restraining device
  • Polyurethane swivel casters with front brakes
  • Stainless-steel oven interior & side panels
Installation Note: Ranges supplied with casters must be secured with an approved restraining device. Always specify gas type and elevation when ordering.

Garland products are engineered exclusively for commercial use.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CE, CSA Star, CSA Flame

Height

30.38in

Width

34.0in

Depth

38.0in

Shipping Weight

475.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) standard oven

Top

(2) open burners, (1) 18" hot top

Specifications

Master Series Heavy Duty Range, gas, 34", (2) 35,000 BTU open burners, (1) 17" front fired hot top, standard oven, electric ignition & flame fail on burners, stainless steel front & sides, 6" legs, 155,000 BTU, CE, CSA Flame, CSA Star, NSF (Garland)
